SKU: TS-1-6262B-T3082E | UPC: 9329677030044

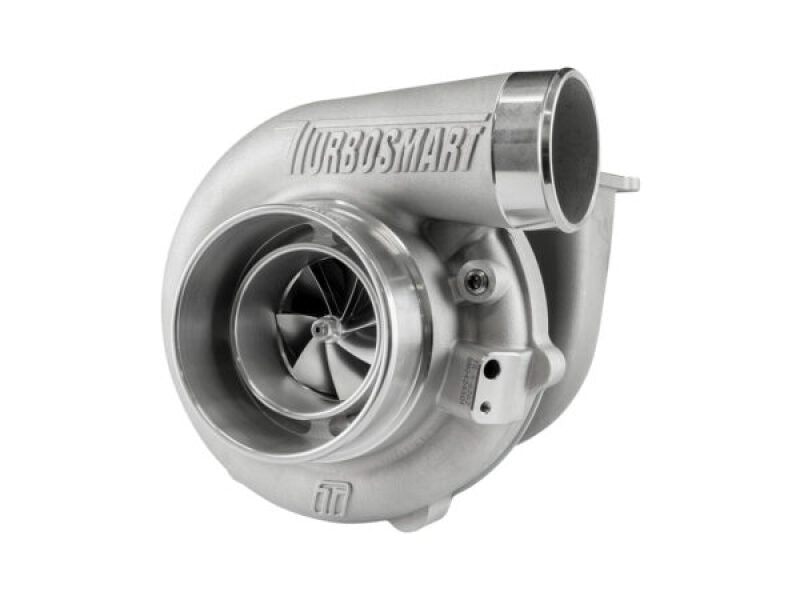

Turbosmart 6262 T3 0.82AR Externally Wastegated TS-1 Turbocharger for 2JZ-GTE Supra, RB, 4G63
The Turbosmart 6262 T3 0.82AR Externally Wastegated TS-1 Turbocharger delivers 450-750 horsepower for 2.0L to 4.0L engines in high-performance builds like Toyota Supra 2JZ-GTE, Nissan RB-series, and Mitsubishi 4G63. This dual ball bearing turbo features a billet compressor and Inconel turbine for fast spool and sustained power on street or track. External wastegate provision ensures precise boost management across RPM range.
Key Features
- Dual Ceramic Ball Bearing CHRA: Oil and water cooled center housing enables 200,000+ RPM shaft speeds for minimal lag and maximum durability under high boost.
- Forged Billet Compressor Wheel 62/83mm: Extended-tip design flows 75+ lbs/min for efficient airflow and reduced surge in 450-750hp applications.
- Inconel 64/62mm Turbine Wheel: High-temperature resistant material handles 1050C+ exhaust gases with extended tips for better flow and quicker response.
- T3 Divided 0.82AR Turbine Housing: Mono-scroll V-band outlet optimizes mid-range torque while supporting external wastegate for full exhaust flow control.
- Black High-Temp Cerakote Finish: Corrosion-resistant housing withstands heat cycles and harsh environments in race or daily driven setups.
Product Notes
- Requires separate external wastegate like Turbosmart IWG75 Series for operation.
- Custom intake, downpipe, and manifold fabrication needed for install.
- Special order item with lead time of 5-10 business days.
Installation Notes
- Professional installation recommended.
- Requires T3 divided inlet manifold flange and V-band turbine outlet clamp.
- Compatible with aftermarket oil and water lines. use -4AN fittings.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | Turbo (2JZ-GTE) |
| 1989-2002 | Nissan | Skyline | GT-R (R32/R33/R34 RB26DETT) |
| 1989-1998 | Nissan | 240SX | S13/S14 (SR20DET) |
| 1989-2006 | Mitsubishi | Eclipse | GSX (4G63T) |
| 2003-2007 | Mitsubishi | Lancer Evolution | EVIII/IX (4G63T) |
| 2008-2015 | Mitsubishi | Lancer Evolution | EVX (4B11T) |
| 1992-2006 | Subaru | Impreza | WRX (EJ20/EJ25) |
| 2004-2021 | Subaru | WRX STI | (EJ255/EJ257) |
Why Choose Turbosmart?
- Australian engineered for global motorsport with drag, circuit, and rally wins.
- Investment cast housings and CNC machined components for consistent performance.
- Backed by decades of boost control innovation from wastegate pioneers.
Frequently Asked Questions
-
Q: Will this turbo bolt up to my 2JZ-GTE Supra?
A: Direct T3 flange compatibility with aftermarket manifolds like Precision or CXRacing. custom hot-side piping required for V-band outlet. -
Q: What materials are used in construction?
A: Billet 2618 aluminum compressor wheel, Inconel 713C turbine wheel, nickel-chromium cast housings with Cerakote coating. -
Q: What warranty coverage applies?
A: 3-year unlimited mileage warranty on defects. register product on Turbosmart site for full protection.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: Special order - ships within 5-10 business days
- Packaging: Foam protected in double-wall box, 16 x 14 x 14 inches
- Weight: 18 lbs
