SKU: TS-1-5862B-T3082E | UPC: 9329677030181

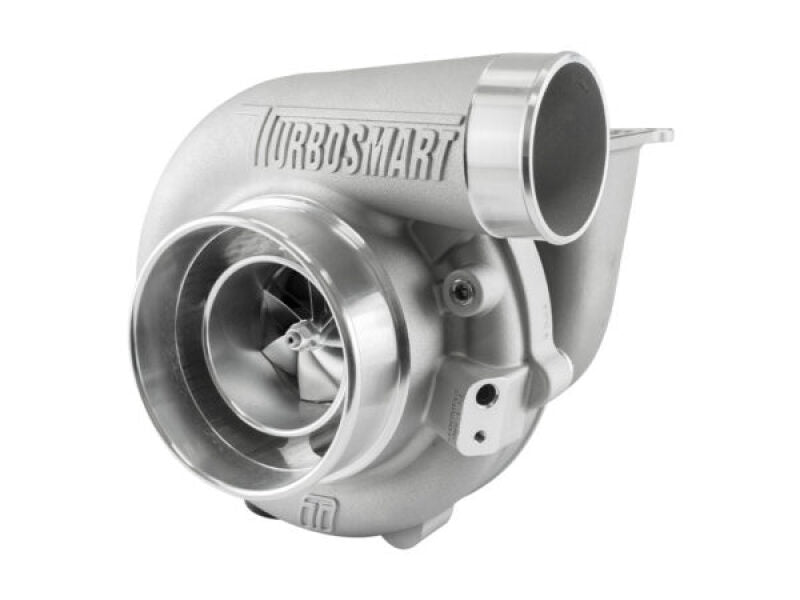

Turbosmart 5862 T3 0.82AR Externally Wastegated TS-1 Turbocharger for Subaru WRX STI Evo
This Turbosmart TS-1 turbocharger delivers 450-750 horsepower from 1.8L to 2.5L four-cylinder engines with a 58/62mm compressor wheel and T3 0.82AR turbine housing. It fits popular platforms like Subaru WRX and STI models plus Mitsubishi Evo for street and track builds. Ball bearing technology ensures fast spool and long service life under high boost.
Key Features
- Dual Ceramic Ball Bearing CHRA: Oil and water cooled center housing cuts friction for spool under 3000 RPM and supports 200000 mile durability
- 58/62mm Extended Tip Compressor: Billet 2618 aluminum wheel with 9 blades flows 70+ lbs/min for 750HP potential without surge
- 62/55mm Inconel Turbine Wheel: Handles 1600+ deg F EGTs for reliable high boost in competition use
- T3 Divided 0.82AR Turbine Housing: V-band outlet balances quick spool on 2.0-2.5L engines with top-end power
- External Wastegate Port: Pairs with Turbosmart IWG75 for stable boost control across RPM range
Product Notes
- Special order item confirm lead time before purchase
- Custom tuning required for ECU and fuel system
- Securely packaged weighs 17 lbs ships via ground freight
Installation Notes
- Professional installation recommended.
- Requires T3 divided exhaust manifold and V-band downpipe.
- External wastegate and hardware sold separately.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2007 | Subaru | Impreza | WRX |
| 2004-2021 | Subaru | Impreza | WRX STI |
| 2003-2005 | Mitsubishi | Lancer | Evolution VIII |
| 2006-2007 | Mitsubishi | Lancer | Evolution IX |
| 1990-1999 | Mitsubishi | Eclipse | GSX |
Why Choose Turbosmart?
- Motorsport proven in rally and drag racing worldwide
- Engineered in Australia with investment cast housings
- Precision balanced assembly for vibration-free operation
Frequently Asked Questions
-
Q: What engines fit this turbocharger?
A: Designed for 1.8L-2.5L inline-four engines including Subaru EJ20 EJ25 and Mitsubishi 4G63 in WRX STI and Evo applications -
Q: What materials are used in construction?
A: 2618 billet aluminum compressor wheel Inconel turbine wheel and Ni-Resist housings for heat resistance -
Q: What is the warranty coverage?
A: Turbosmart offers 12-month warranty register online for extended coverage excludes abuse or improper install
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original double-walled box 16 x 16 x 16 inches
- Weight: 17 lbs
