SKU: TS-1-6466B-T3082E | UPC: 9329677030051

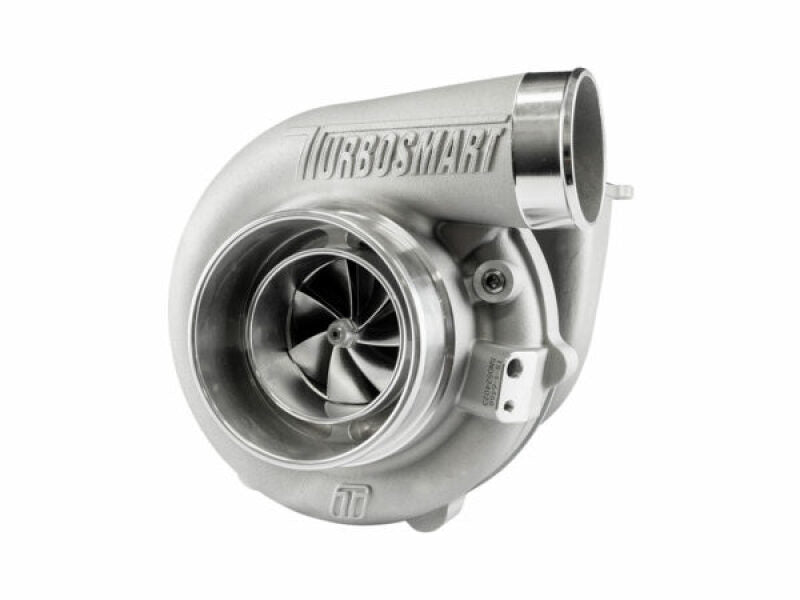

Turbosmart 6466 T3 0.82AR Externally Wastegated TS-1 Turbocharger Universal T3 Fitment
The Turbosmart 6466 T3 0.82AR Externally Wastegated TS-1 Turbocharger boosts performance with quick spool and high airflow for engines up to 550hp. It fits universal T3 divided manifolds on popular builds like Toyota 2JZ-GTE Nissan RB26DETT Subaru EJ25 Mitsubishi 4G63. Ball bearing technology and optimized wheels deliver responsive throttle and efficient power across the RPM range.
Key Features
- Dual Ball Bearing CHRA: Oil and water cooled center housing spins up 50 percent faster than journal bearings for minimal lag and maximum durability under high boost
- 64/66mm Compressor Wheel: Billet 2618 aluminum extended tip design flows 70lbs per minute supports 550hp resists surge maintains efficiency at high RPM
- T3 Divided 0.82AR Turbine Housing: Ni-Resist material handles 1500 degrees F quick spool balances low end response with top end power V-band outlet simplifies plumbing
- External Wastegate V-Band Flange: Precise boost control pairs with 40-50mm wastegates eliminates internal gate restrictions for consistent performance
- Black HMLV Casing: High magnesium low vanadium investment casting corrosion resistant heat dissipation black finish complements engine bays
Product Notes
- External wastegate sold separately tuning required for optimal boost levels
- Inspect oil feed drain lines during install use synthetic oil for longevity
- Special order item securely packaged to prevent damage in transit
Installation Notes
- Professional installation recommended.
- Requires T3 divided inlet manifold V-band turbine outlet and external wastegate setup
- Hardware kit includes V-band clamps gaskets oil feed restrictor
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE |
| 1989-1994 | Nissan | Skyline | R32 GT-R RB26DETT |
| 1995-1998 | Nissan | Skyline | R33 GT-R RB26DETT |
| 1999-2002 | Nissan | Skyline | R34 GT-R RB26DETT |
| 1992-2016 | Mitsubishi | Lancer Evolution | 4G63T |
| 2002-2021 | Subaru | Impreza WRX STI | EJ255 EJ257 |
Why Choose Turbosmart?
- Motorsport heritage from Australian drag Supercars racing real world proven
- Investment cast components billet wheels exceed OEM standards for reliability
- Engineered for bolt-on simplicity with V-band connections worldwide support
Frequently Asked Questions
-
Q: Does this bolt directly to stock 2JZ or RB26 manifolds?
A: Fits T3 divided manifolds common on aftermarket setups adapter kits available for stock twins turbo deletes -
Q: What materials are used in construction?
A: Billet 2618 compressor wheel Inconel turbine wheel Ni-Resist housings withstand extreme heat boost levels -
Q: What warranty coverage applies?
A: Limited lifetime on CHRA for defects 2 years on housings when installed tuned properly by certified shop
Shipping & Handling
- Method: Ground shipping UPS FedEx
- Availability: In stock - ships same or next business day
- Packaging: Double-walled box 16 x 14 x 13 inches
- Weight: 25.5 lbs
