TURTS-1-6870B-VR107E-Turbosmart 6870B V-Band Reverse Rotation 1.07AR Externally Wastegated TS-1 Turbocharger-Turbochargers-Turbosmart
Click to zoom in

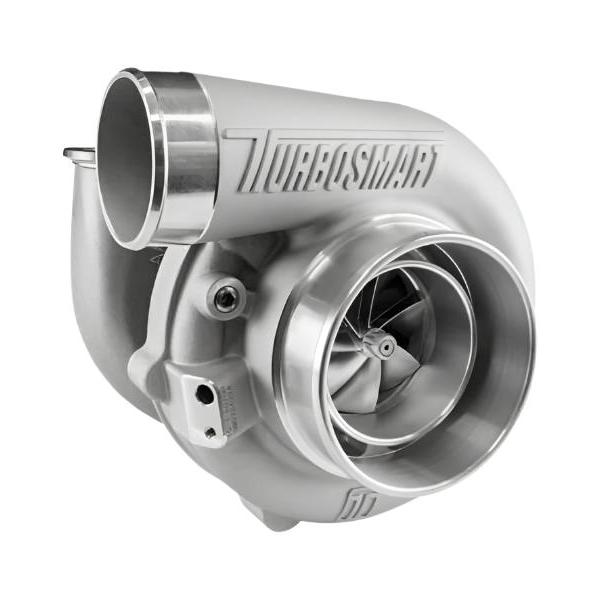

Turbosmart 6870B V-Band Reverse Rotation 1.07AR Externally Wastegated TS-1 Turbocharger

Turbosmart
TURTS-1-6870B-VR107E
9329677030709
Turbochargers
2 Units In Stock - Ships Next Business Day
$ 2,990.99 $ 2,691.89
$ 2,691.89

SKU: TS-1-6870B-VR107E | UPC: 9329677030709

Turbosmart 6870B V-Band Reverse Rotation 1.07AR Externally Wastegated TS-1 Turbocharger - Universal for 2JZ RB26 Performance Builds

This Turbosmart TS-1 6870B turbocharger features reverse rotation for passenger-side or twin-turbo setups on engines like Toyota 2JZ-GTE and Nissan RB26DETT. It supports up to 950HP with fast spool times and high-flow efficiency for drag racing or street performance. V-band housings simplify installation on custom manifolds in high-performance 4-6 cylinder applications.

Key Features

  • Dual Ceramic Ball Bearing CHRA: Oil and water-cooled center housing delivers quicker spool by 25% over journal bearings and withstands 150000RPM+
  • Billet 9+9 Compressor Wheel: 68mm inducer x 87mm exducer design flows 110+ lbs/min for massive boost on 2.5-5.0L engines
  • Reverse Rotation Layout: Mirrors standard rotation for right-side engine bay fits or matched twin setups without custom wheels
  • V-Band Turbine Housing: 1.07 A/R stainless steel external wastegate port balances low-end response with 950HP top-end power
  • VSR Balanced Assembly: Factory balanced to OE standards ensures vibration-free operation at extreme RPM and boost levels

Product Notes

  • External wastegate actuator and flange required, sold separately
  • High-flow oil feed line and -8AN drain recommended for reliability
  • Securely packaged for protection during transit

Installation Notes

  • Professional installation recommended.
  • Prime oil system before startup to seat bearings
  • V-band clamps torque to 8Nm, compatible with T3/T4/V-band manifolds

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-2002 Nissan Skyline GT-R RB26DETT
2003-2009 Nissan 350Z Fairlady Z VQ35DE/HR
2002-2014 Ford Falcon FG Barra FG/FGX
2010-2016 BMW M3 E90/E92 S65

Why Choose Turbosmart?

  • Motorsport-proven in World Time Attack and drag racing
  • Engineered in Australia for extreme heat and endurance
  • Investment cast housings machined to micron tolerances

Frequently Asked Questions

  • Q: What horsepower range does this turbo support?
    A: Rated for 600-950HP on 2.5-5.0L inline engines with proper fueling and tuning
  • Q: What materials are used in construction?
    A: 2618 billet compressor wheel, Inconel turbine wheel, 304 stainless V-band housings
  • Q: What is the warranty coverage?
    A: 12-month unlimited mileage warranty when installed by certified shop with oil/water lines

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Custom foam-lined box 16 x 16 x 16 inches
  • Weight: 18 lbs
