SKU: TS-1-5862B-VR082E | UPC: 9329677030037

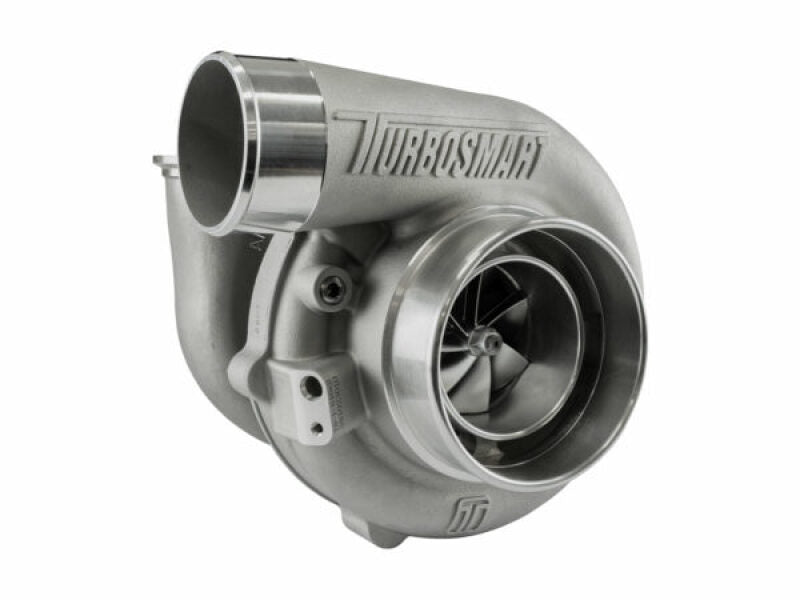

Universal Fit Turbosmart 5862 V-Band Reverse Rotation 0.82AR Externally Wastegated TS-1 Turbocharger
The Turbosmart TS-1 5862 turbocharger features reverse rotation with V-band housings and 0.82AR external wastegate for compact installations in performance engines up to 650HP. Designed for custom turbo setups on 4-cylinder and inline-6 engines this ball-bearing unit provides fast spool-up and reliable boost response. Ideal for drag racing street builds and motorsport applications requiring opposite-side packaging.
Key Features
- Dual Ceramic Ball Bearings: Oil and water-cooled CHRA spins up to 230000RPM with minimal lag for instant throttle response across the powerband
- Billet Compressor Wheel: 58.1mm inducer 71.4mm exducer 10-blade design moves 75lb/min of air for high efficiency and surge resistance
- Inconel Turbine Wheel: 62mm inducer 55mm exducer withstands extreme exhaust temperatures over 1050C for durability in high-boost setups
- V-Band Housings: Reverse rotation turbine and compressor housings with quick-release clamps simplify installation and maintenance
- External Wastegate Port: 0.82AR divided turbine housing integrates seamlessly with Turbosmart wastegates for precise boost control without internal restrictions
Product Notes
- Requires dedicated oil and water lines plus high-quality synthetic oil for initial startup and longevity
- Break-in procedure mandatory: 15-20 minutes at 5000RPM idle with oil pressure verified
- Special order item handles with care during transit to prevent housing damage
Installation Notes
- Professional installation recommended.
- Custom exhaust manifold and downpipe required for reverse rotation orientation
- Compatible with T4 divided V-band flanges and Turbosmart IWG75 external wastegates
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE |
| 1989-2002 | Nissan | Skyline | RB26DETT |
| 2004-2021 | Subaru | Impreza WRX STI | EJ257 |
| 1989-1998 | Mitsubishi | Eclipse GSX | 4G63T |
| 1990-2000 | Toyota | Supra | 1JZ-GTE 2JZ-GTE |
Why Choose Turbosmart?
- Motorsport heritage with World Time Attack Challenge wins and Formula Drift podiums
- Investment cast housings and CNC-machined billet components ensure consistent performance
- Engineered and manufactured in Australia for demanding global racing conditions
Frequently Asked Questions
-
Q: What power range does this turbo support?
A: Rated for 450-650HP depending on engine displacement fueling and tuning ideal for 2.0L-3.2L builds -
Q: What materials are used in construction?
A: 2618 billet aluminum compressor wheel Inconel 713C turbine wheel and high-temperature Ni-Resist housings -
Q: What warranty coverage applies?
A: 2-year unlimited mileage warranty with lifetime on CHRA for manufacturing defects when installed and maintained correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 14in x 14in x 14in with foam inserts
- Weight: 15.4 lbs
