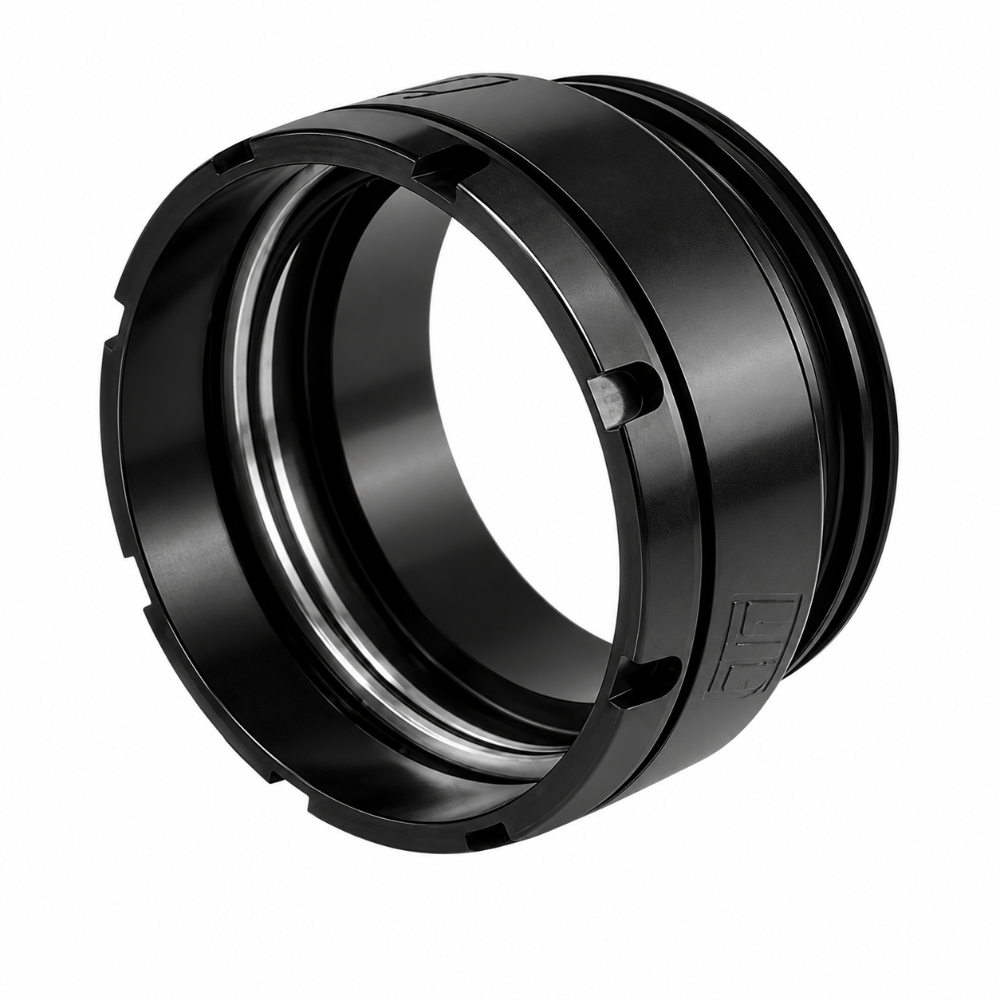

The Turbosmart TS-199-3041 LockSleeve Turbo Adapter provides a clean and professional solution for connecting a 3.00 inch turbo compressor outlet to straight piping without welding. This adapter is designed to work with the Vibrant Plazmaclamp system and is ideal for builders who want a secure, boost-ready connection that can be installed and removed more easily than traditional welded setups.
Understanding the Turbosmart LockSleeve System
Turbosmart developed the LockSleeve system to address common challenges in custom turbo installations. Many builders prefer to avoid welding directly to the compressor outlet of an expensive turbocharger. The LockSleeve adapter slides over the outlet and creates a strong mechanical connection using a clamp system, eliminating the need for welding while still maintaining excellent sealing performance under boost.
Welded vs LockSleeve Adapters
| Feature | Welded Connection | Turbosmart LockSleeve (TS-199-3041) |
|---|---|---|
| Installation Method | Requires welding | Weld-free, clamp-on |
| Serviceability | Permanent / difficult to remove | Easy to remove and reinstall |
| Risk to Turbo | Higher (heat damage possible) | Lower (no welding required) |
| Appearance | Clean but permanent | Clean and professional |
| Best For | Permanent, high-volume builds | Custom builds and frequent modifications |
| Boost Capability | Excellent | Excellent when properly installed |
Benefits of Using the LockSleeve System
One of the main advantages of the TS-199-3041 is flexibility. Because the connection is not welded, it can be disassembled if you need to remove the turbo, upgrade intercooler piping, or make other changes to your setup. This makes it especially useful for performance shops and builders who work on multiple vehicles or frequently modify their builds.
Another benefit is reduced risk. Welding directly to a compressor outlet can sometimes damage the turbo housing or create weak points. The LockSleeve system avoids this issue entirely while still providing a strong, reliable seal.
Key Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | TS-199-3041 |
| UPC | 9329677035476 |
| Brand | Turbosmart |
| Type | LockSleeve Turbo Adapter |
| Compressor Outlet Size | 3.00 inch |
| Connection Type | Straight to Vibrant Plazmaclamp 3.00 inch |
| Design | Weld-Free, Boost-Ready |
| System | Turbosmart LockSleeve |
| Country of Origin | Australia |
| Warranty | Turbosmart Limited Warranty |
Installation Guide
Proper installation of the Turbosmart TS-199-3041 is important for maintaining boost pressure and preventing leaks. Below are the general steps for installing this adapter.
Tools Typically Required:
- Vibrant Plazmaclamp (3.00 inch)
- Torque wrench
- Socket set
- Clean rags
- Safety gloves
Step-by-Step Installation:
- Clean the turbo compressor outlet thoroughly and inspect it for any damage or debris.
- Slide the LockSleeve adapter (TS-199-3041) over the compressor outlet until it is fully seated.
- Position your 3.00 inch charge pipe so it aligns properly with the adapter.
- Place the Vibrant Plazmaclamp over the joint and ensure it is centered correctly.
- Tighten the clamp gradually and evenly to the manufacturer’s recommended torque specification.
- Double-check alignment and clearance, then perform a boost leak test if possible.
- Re-torque the clamp after the first heat cycle if recommended by the clamp manufacturer.
Common Installation Mistakes to Avoid
- Not fully seating the adapter on the compressor outlet before clamping
- Over-tightening the Plazmaclamp, which can damage the adapter or piping
- Poor pipe alignment, which puts stress on the connection
- Using the wrong size clamp (must be 3.00 inch for this adapter)
- Skipping the boost leak test after installation
Frequently Asked Questions
What is the main purpose of the Turbosmart TS-199-3041?
It provides a weld-free connection between a 3.00 inch turbo compressor outlet and straight piping using the Vibrant Plazmaclamp system.
Do I need to weld anything when using this adapter?
No. The TS-199-3041 is designed as a completely weld-free solution.
What clamp system does this adapter work with?
It is designed to work with the Vibrant Plazmaclamp 3.00 inch system.
Is this adapter suitable for high boost applications?
Yes. The Turbosmart LockSleeve system is engineered to handle high boost levels when properly installed.
Can I remove this adapter later if needed?
Yes. One of the main benefits of the LockSleeve system is that it can be disassembled more easily than welded connections.
Is professional installation recommended?
Yes. Proper alignment and secure clamping are important, especially on high-boost turbo setups.
Will this work with aftermarket intercooler piping?
Yes. It is commonly used with custom charge pipes and intercooler setups that use the Vibrant Plazmaclamp system.
Does the TS-199-3041 come with the clamp?
No. The Vibrant Plazmaclamp is sold separately. You will need the correct 3.00 inch clamp for installation.
What are the most common mistakes when installing this adapter?
Common mistakes include not fully seating the adapter, over-tightening the clamp, poor pipe alignment, and using the wrong size clamp.
Is the LockSleeve system better than welding?
It depends on your goals. Welding is more permanent, while the LockSleeve system offers easier serviceability and lower risk to the turbo housing. Many builders prefer it for custom or frequently modified setups.
