Turbosmart Turbo Adapter Compressor Outlet 3.00in to 90 Elbow Hose Barb 3.00in

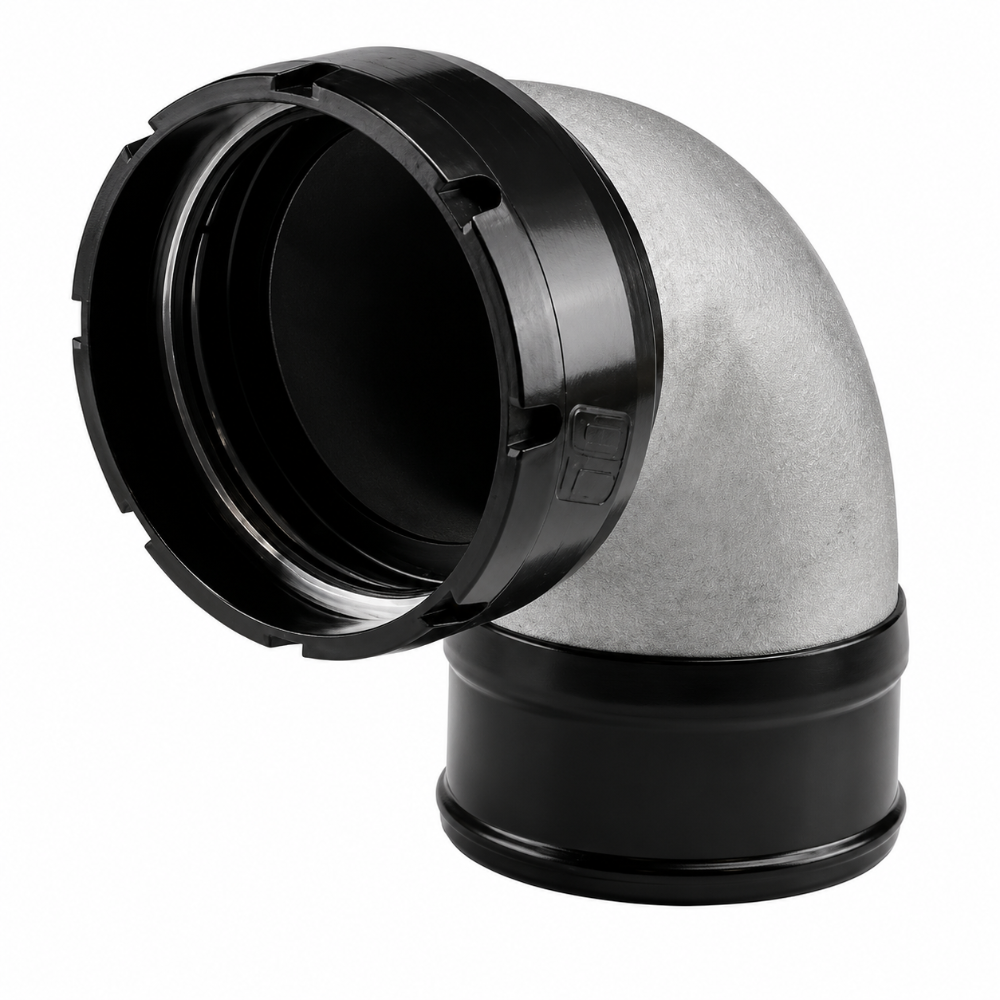

The Turbosmart TS-199-3040 LockSleeve Turbo Adapter provides a professional, weld-free solution for adapting a 3.00 inch turbo compressor outlet to a 90-degree hose barb connection. This adapter is especially useful in tight engine bays where charge piping must make an immediate turn after the turbo. It is designed to work with standard 3.00 inch hose and offers the strength and reliability needed for high-boost applications.

Understanding the Turbosmart LockSleeve System

Turbosmart developed the LockSleeve system to give builders a strong, boost-ready connection without the drawbacks of welding. The TS-199-3040 uses a two-piece collar design with internal split rings and an O-ring that creates a high-pressure seal when the collar is properly torqued. This system allows for easier installation and future serviceability compared to permanent welded connections.

Welded vs LockSleeve Adapters

Key Technical Specifications

Installation Guide

Proper installation of the Turbosmart TS-199-3040 is critical for maintaining boost pressure and preventing leaks. Below are the recommended installation steps and torque specifications.

Tools Typically Required:

• 3.00 inch hose clamps
• Torque wrench
• Socket set
• Clean rags
• Safety gloves

Step-by-Step Installation:

1. Clean the turbo compressor outlet thoroughly and inspect it for any damage, debris, or old gasket material.
2. Slide the LockSleeve adapter (TS-199-3040) over the compressor outlet until it is fully and evenly seated.
3. Position your 3.00 inch hose onto the 90° elbow barb, ensuring proper alignment.
4. Install the hose clamps and tighten them gradually and evenly.
5. Torque the LockSleeve collar bolts to approximately 8–12 ft-lbs, tightening in a crisscross pattern for even pressure.
6. Torque the hose clamps to the clamp manufacturer’s recommended specification (typically 10–15 ft-lbs for high-performance clamps).
7. Double-check alignment, clearance, and support for the charge piping.
8. Perform a boost leak test after installation if possible.

Common Installation Mistakes to Avoid

• Not fully seating the adapter on the compressor outlet before tightening
• Over-tightening the collar bolts or hose clamps
• Poor hose alignment causing stress on the connection
• Using the wrong size or type of hose clamps
• Failing to properly support the charge piping

Frequently Asked Questions

What is the Turbosmart TS-199-3040 used for?
It adapts a 3.00 inch turbo compressor outlet to a 90-degree hose barb connection without requiring welding.

Do I need to weld anything when using this adapter?
No. The TS-199-3040 is part of Turbosmart’s weld-free LockSleeve system.

When should I use the 90-degree version instead of the straight version?
Use the 90-degree version when your charge piping needs to make an immediate turn due to space constraints.

What torque should I use on the LockSleeve collar?
The collar bolts should be torqued to approximately 8–12 ft-lbs in a crisscross pattern for even pressure.

What torque should I use on the hose clamps?
Follow the clamp manufacturer’s recommendations, typically 10–15 ft-lbs for high-performance clamps.

Is this adapter suitable for high boost applications?
Yes. The Turbosmart LockSleeve system is designed to handle high boost levels when properly installed.

Can this adapter be removed later if needed?
Yes. One of the main benefits of the LockSleeve system is easier removal compared to welded connections.

Is professional installation recommended?
Yes. Proper alignment and correct torque are important for maintaining boost pressure and preventing leaks.

Does the TS-199-3040 come with hose clamps?
No. You will need appropriate 3.00 inch hose clamps for the barb side.

What are common mistakes when installing this adapter?
Common mistakes include not fully seating the adapter, over-tightening clamps, poor hose alignment, and using the wrong clamp size.
