SKU: TS-2-5862B-VR082E | UPC: 9329677030105

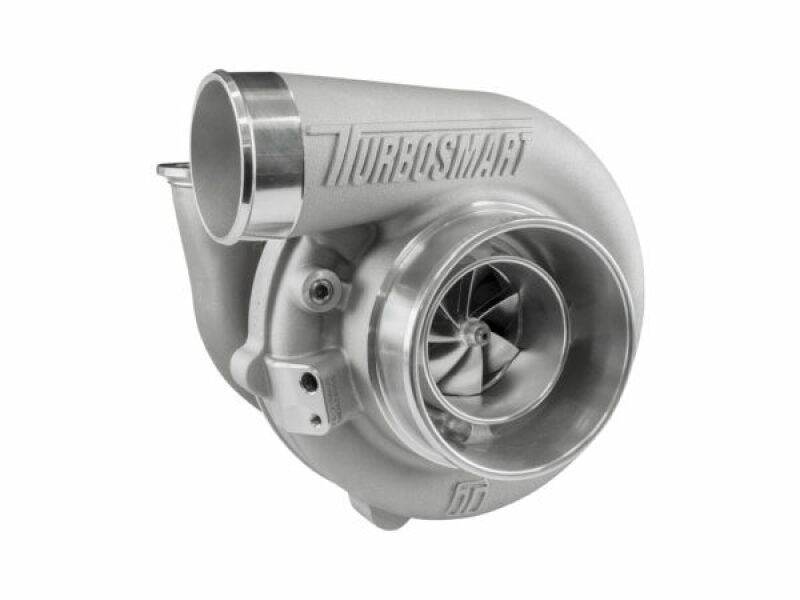

Turbosmart Water Cooled 5862 V-Band Reverse Rotation 0.82AR Externally Wastegated TS-2 Turbocharger
The Turbosmart TS-2 5862 turbocharger features reverse rotation for passenger-side mounting in tight engine bays. It suits custom high-performance builds on 1.8L-2.5L four-cylinder engines from Nissan, Subaru, Mitsubishi and Honda. Expect fast spool-up, reliable boost from 350-650HP and extended durability with water cooling.
Key Features
- Reverse Rotation Design: Enables compact fitment on the passenger side of inline-four engines, freeing up space for manifolds and downpipes in LHD vehicles.
- 0.82 A/R V-Band Turbine Housing: Provides balanced mid-range response and top-end flow in externally wastegated setups for consistent power delivery.
- Water Cooled CHRA: Dual ceramic ball bearings with liquid cooling maintain peak performance during prolonged track sessions and high-heat conditions.
- Forged Milled Compressor Wheel: 58mm inducer x 62mm exducer design handles 650HP max with efficient airflow and surge resistance.
- Investment Cast Turbine Housing: Lightweight stainless steel V-band inlet and outlet clamps ensure secure, leak-free connections and easy servicing.
Product Notes
- Requires separate external wastegate, V-band clamps and gaskets for complete installation.
- Oil and water lines must be supplied. use AN-4 fittings for cooling ports.
- Ships as special order. allow 3-7 business days for processing.
Installation Notes
- Professional installation recommended.
- Prime oil system and cycle bearings before engine start to prevent dry-run damage.
- Compatible with standard V-band flanges. custom manifold required for reverse rotation orientation.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1998 | Nissan | 240SX | S13/S14 SR20DET |
| 1995-2002 | Nissan | Silvia | S15 SR20DET |
| 2002-2021 | Subaru | Impreza | WRX/STI EJ20/EJ25 |
| 1992-2015 | Mitsubishi | Evo | 4G63/4B11/4B12 |
| 1988-2005 | Honda | Civic | B-Series K-Series Swaps |
Why Choose Turbosmart?
- Motorsport-proven components trusted in drag racing and rally applications worldwide.
- Engineered in Australia with focus on durability for daily-driven performance cars.
- Advanced dual ball bearing system reduces friction for quicker spool times.
Frequently Asked Questions
-
Q: Does this turbo fit stock manifolds on WRX or 240SX?
A: No, designed for custom tubular manifolds due to reverse rotation and V-band flanges. adapters available for popular engines. -
Q: What materials are used in construction?
A: Forged billet compressor wheel, investment cast 409 stainless turbine housing and nickel-plated CHRA for heat resistance. -
Q: What warranty coverage applies?
A: Turbosmart provides a 2-year unlimited mileage warranty on the turbine housing and 5-year on the CHRA with proper installation.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: Special order - ships within 3-7 business days
- Packaging: Secure foam-lined box measuring 19 x 15 x 15 inches
- Weight: 16.5 lbs
