UMI Panhard Bar Relocation Kit for the 1982-2002 Camaro and Firebird, Bright Red Powder Coat

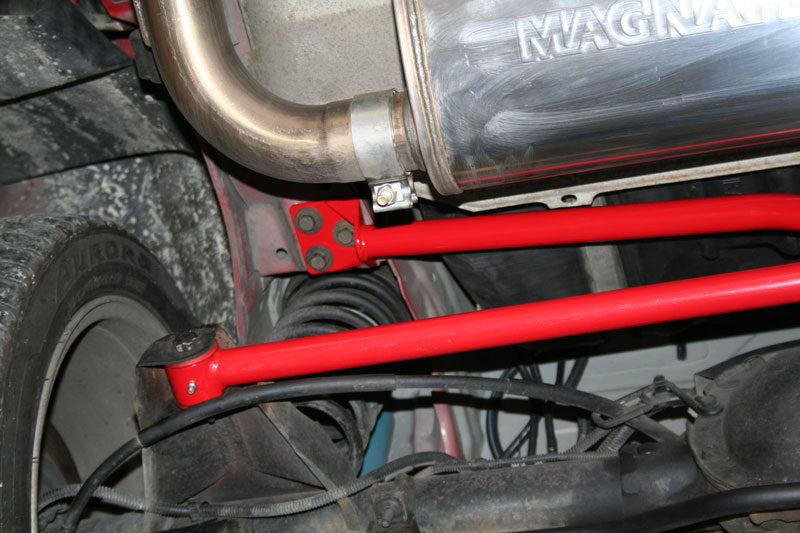

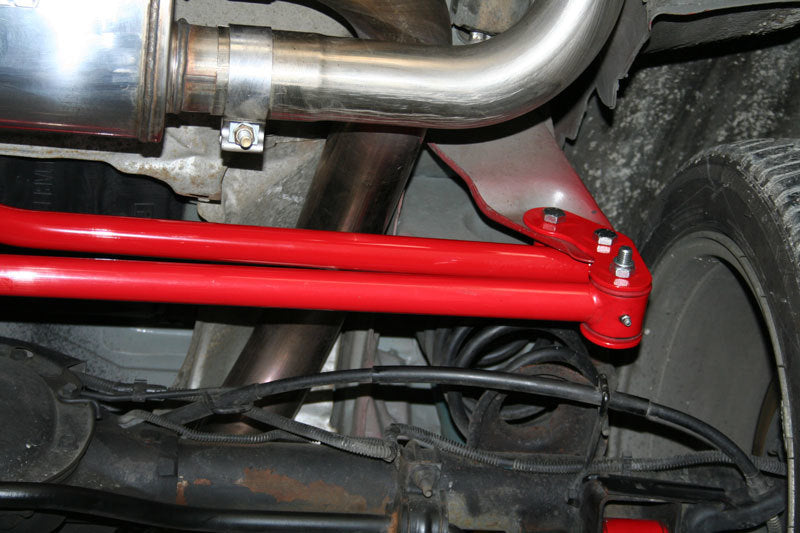

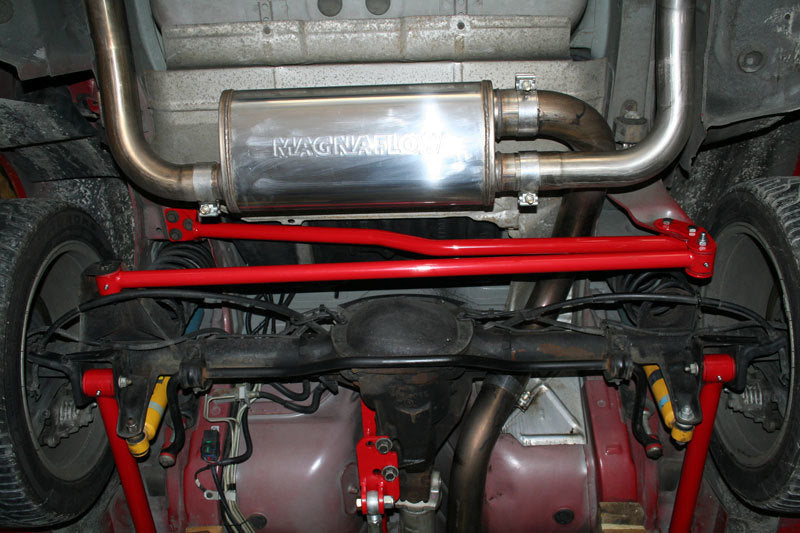

This kit replaces the factory upper panhard rod support and relocates the lower panhard bar on a 1982-2002 GM F-body, opening up the room needed to run a 3 inch true dual exhaust over the passenger side axle. It is a bracket and support kit rather than a panhard bar, and UMI states it works with both the factory bar and aftermarket bars.
Key Features
- Replaces the upper panhard rod support and relocates the lower panhard bar mounting point in one kit.
- Creates space for a 3 inch true dual exhaust system to pass over the passenger side axle.
- Heavy duty upper support built from 1.250 inch DOM tubing with precision welds.
- Laser cut and CNC machined mounting brackets, finished in durable bright red powder coat.
- Compatible with both the factory panhard bar and aftermarket panhard bars.
- High grade M12 and M14 hardware is supplied with the kit.
- Designed and manufactured in the United States from North American raw materials.
Fitment
| Vehicle | Application |
|---|---|
| Chevrolet Camaro | 1982-2002, third and fourth generation F-body, rear suspension |
| Pontiac Firebird | 1982-2002, third and fourth generation F-body, rear suspension |
UMI publishes one fitment condition for this kit: when lowering springs are used together with the relocation kit, the Panhard Bar Lowering Bracket, UMI part 2063, is also needed to effectively lower the panhard bar at the axle. That is a ride height condition, not a model year or trim restriction.
No trim, transmission, axle, body style or shock exclusions are published for this part.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 2024-R |
| Part type | Panhard bar relocation and support bracket kit |
| Position | Rear |
| Material | Mild steel, 1.250 inch DOM tubing upper support |
| Construction | CNC machined and laser cut brackets, precision welded |
| Finish | Powder coat, bright red |
| Exhaust clearance | Room for a 3 inch true dual system over the passenger side axle |
| Panhard bar compatibility | Factory and aftermarket bars |
| Mounting hardware | Included |
| Adjustment range | None published; the kit relocates to a fixed position |
| Published torque | 60 ft-lb upper support bolts, 72 ft-lb M12 bolts, 90 ft-lb lower panhard bar bolt with the suspension loaded |
| Country of manufacture | United States, built in Philipsburg, Pennsylvania |
| Warranty | UMI warrants its own products for two years from the original date of purchase to the original purchaser, excluding normal wear on bearings and bushings, improper installation, alteration and exceeding the design limits of the part |

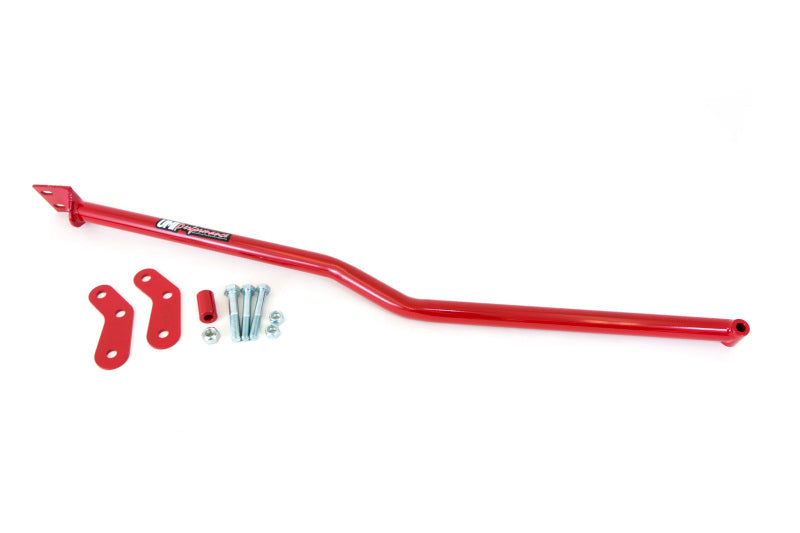

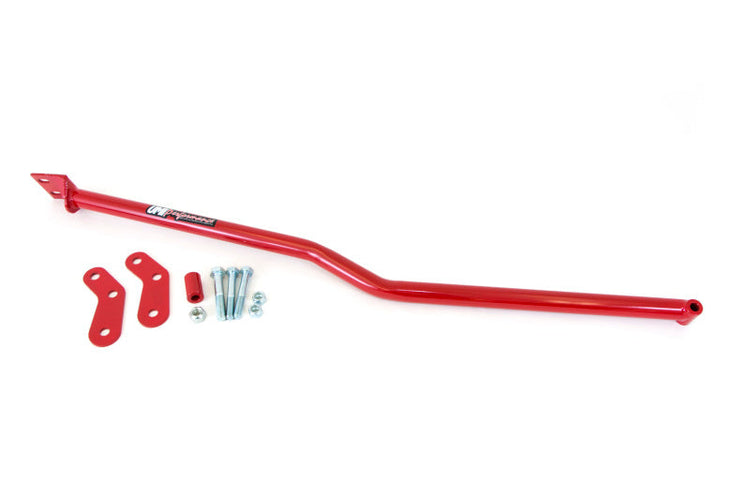

What's Included
- Two lower brackets
- One round spacer
- One upper panhard bar support
- Two M12 x 80mm bolts with lock nuts
- One M14 x 80mm bolt with lock nut
About UMI Performance
UMI Performance designs and manufactures chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, using North American raw materials, laser-cut plate, CNC bending and precision welding. UMI sells direct and through dealers, ships most orders within three business days from Philipsburg, and publishes a printed installation sheet with each part number. Coverage runs two years from the original purchase date for the original purchaser, and UMI states it cannot guarantee compatibility with other manufacturers' components used alongside its parts.
FAQ
Does this kit include a panhard bar?No. It is a relocation and support kit made up of an upper support and lower brackets. The panhard bar itself, factory or aftermarket, carries over.
What problem does it actually solve?It relocates the lower panhard bar and replaces the upper support so a 3 inch true dual exhaust can be routed over the passenger side axle without hitting the bar or its mounts.
Do I need anything else if my car is lowered?Yes. UMI states that when lowering springs are used with this kit you also need the Panhard Bar Lowering Bracket, part 2063, to effectively lower the panhard bar on the axle.
What are the torque figures?UMI's sheet calls for 60 ft-lb on the three upper panhard bar bolts, 72 ft-lb on the two M12 bolts, and 90 ft-lb on the lower panhard bar bolt, which must only be tightened with the rear suspension loaded.
Which bolt goes through the lower panhard bar?If you keep the factory lower panhard bar you reuse the factory bolt. If you run an aftermarket panhard bar, use the supplied M14 x 80mm bolt.
How should the car be supported during the job?On jack stands under the frame with the axle hanging free. UMI specifically instructs not to support the car by the rear axle for this installation.
What tools does the removal take?18mm and 21mm for the panhard bar fasteners, 7mm for the two heat shield screws, and 15mm with a long extension for the three bolts holding the upper support to the driver side frame rail.
Does it fit both third and fourth generation cars?Yes. UMI lists the application as 1982-2002 GM F-body, covering both the 1982-1992 and 1993-2002 platforms for Camaro and Firebird.
Is any cutting or welding required?No modification requirement is published for this kit. The upper support reuses the three factory frame side bolts and the lower brackets use the supplied hardware.
Is the black version the same part?Yes, part 2024-B is the same kit in gloss black powder coat. This listing is the bright red 2024-R.
Installation Instructions
- Support the frame on jack stands with the rear axle hanging free; do not support the car by the rear axle.
- Unbolt the lower and upper panhard bar at the passenger side using 18mm and 21mm tools.
- Remove the two heat shield screws with a 7mm, then remove the three 15mm bolts holding the upper panhard bar support to the driver side frame using a long extension.

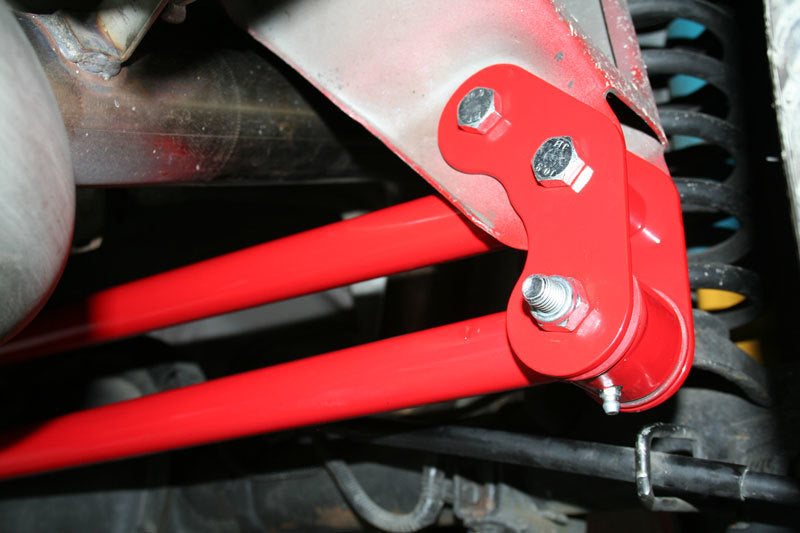

- Install the two lowering brackets and the round spacer on the passenger side with the new M12 x 80mm bolts, placing the spacer into the top hole.
- Attach the new upper panhard bar support at the frame side with the three factory bolts, then to the passenger side with a new M12 x 80mm bolt.
- Install the lower panhard bar into the lowering brackets with the nut facing rearward, reusing the factory bolt with a factory bar or the supplied M14 x 80mm bolt with an aftermarket bar.
- Torque the three upper support bolts to 60 ft-lb and the two M12 bolts to 72 ft-lb.
- Place jack stands under the rear end to load the suspension, then torque the lower panhard bar bolt to 90 ft-lb.
Procedure and torque values come from UMI's own Item 2024 installation sheet. UMI does not host this installation sheet on its own website. The document is UMI's own printed sheet, on UMI letterhead, served from a retailer's static PDF host, so treat it as a manufacturer document on a retailer host rather than a current UMI-hosted page.
