UMI Rear Control Arm and Non-Adjustable Panhard Bar Kit in Black for the 1982-2002 Camaro and Firebird
This black kit pairs UMI's tubular rear lower control arms with its non-adjustable panhard bar, which is the combination that takes the flex out of the two things locating the rear axle: fore and aft through the arms, side to side through the bar. All three pieces are seamless DOM mild steel, TIG welded, running fluted greaseable polyurethane bushings on zinc-plated sleeves, and all of them use the factory mounting points and the original bolts.
Key Features

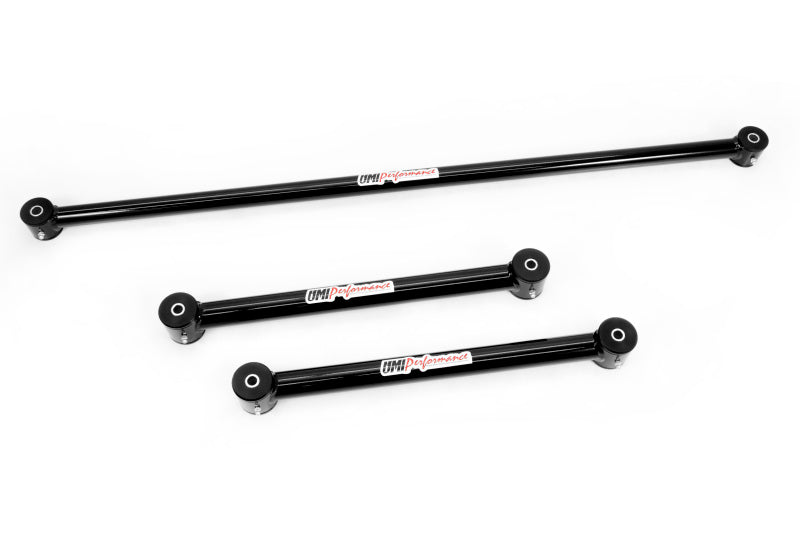

- Includes both rear lower control arms and one non-adjustable panhard bar, in matching black powder coat.
- Panhard bar built from 1.250 inch by 0.095 inch steel DOM tubing.
- TIG welded construction with CNC machined zinc-plated steel sleeves.
- High-quality fluted polyurethane greaseable bushings throughout the kit.
- Seamless DOM mild steel is used for added strength over aluminum alternatives.
- Bolt-on replacements that minimize wheel hop, improve cornering and help track consistency.
- Uses OEM hardware in the factory mounting points, with UMI publishing roughly a 30 minute installation.
Fitment
| Vehicle | Years and notes |
|---|---|
| Chevrolet Camaro | 1982-2002, every model year listed individually by UMI |
| Pontiac Firebird | 1982-2002, every model year listed individually by UMI |
UMI publishes no exclusions on the kit page for the 1982-2002 F-body range.
One caution comes from the panhard bar sheet: some Moser Engineering rear ends have a slightly smaller mounting location, so the bar may need more pressure or light prying to seat.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 201520-B |
| Part type | Rear suspension kit, two lower control arms plus one panhard bar |
| Component part numbers | UMI 2015 lower control arms and UMI 2020 panhard bar |
| Material | Seamless DOM mild steel |
| Panhard bar tubing | 1.250 in x 0.095 in DOM |
| Construction | TIG welded |
| Adjustable | No |
| Bushings | Fluted greaseable polyurethane with grease fittings |
| Sleeves | CNC machined, zinc plated steel |
| Finish and colour | Black powder coat |
| Mounting hardware | Not included; OEM hardware is reused |
| Torque published by UMI | 72 ft-lbs on the control arm bolts and 60 ft-lb on the panhard bar, both with the suspension loaded |
| Shipping weight and size published by UMI | 18 lb, 46 x 6 x 6 in |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |
What's Included
- Two UMI tubular rear lower control arms with one grease packet
- One UMI non-adjustable panhard bar with one grease pre-lube packet
- No mounting hardware; the OEM bolts, including the GM stepped panhard bolt, are reused
About UMI Performance
UMI Performance sells this pairing as a kit because the two parts solve one problem together, and the company builds both halves on the same line in Philipsburg, Pennsylvania from seamless DOM tubing, machined sleeves and Tiger Dry Lac powder coat. UMI does not print a combined instruction sheet for the kit; it ships the individual 2015 and 2020 sheets, each with its own torque figures.
FAQ
What exactly comes in this kit?Two rear lower control arms and one non-adjustable panhard bar, both in black powder coat, plus the grease packets that ship with each component.
Is anything in the kit adjustable?No. Both the arms and the bar are fixed length, sized to the factory dimensions.
Do I need to buy bolts?No, and UMI notes it does not sell or stock the General Motors stepped panhard bar bolt, so save and reuse the original hardware when the old parts come off.
How long does the job take?UMI publishes roughly 30 minutes for the kit, working in the factory mounting points.
Which torque values apply?The control arm bolts go to 72 ft-lbs and the panhard bar to 60 ft-lb, both after the suspension is loaded.
Will it fit over a Moser rear end?Usually, with a note: UMI states some Moser housings have a slightly smaller mounting location, so the panhard bar can require more pressure or light prying to fit.
How often should the bushings be greased?UMI's panhard bar sheet asks for greasing two to three times a year with non-lithium grease, one to one and a half pumps, and warns against over-greasing.
Is DOM tubing better than an aluminum arm?UMI's own reasoning is strength: it specifies seamless DOM mild steel for added strength over aluminum versions of the same parts.
What tubing size does the panhard bar use?1.250 inch by 0.095 inch DOM, a figure UMI publishes on both the kit page and the standalone bar page.
And the control arms?UMI publishes conflicting tubing descriptions for the arms between its own pages, so no diameter is stated here. Both sources agree on seamless DOM mild steel construction with machined ends.
Installation Instructions
- Raise the rear of the car with both wheels off the ground and place jack stands under the frame rather than the rear axle.
- Change the control arms one side at a time so the axle cannot move forward, using 18mm tools on the front and rear arm bolts.
- Lubricate the polyurethane bushing surfaces on each arm and fit them with the grease fittings pointing toward the ground, leaving the bolts loose.
- Move to the panhard bar and remove the original bar with 18mm and 21mm tools, saving the OEM stepped bolts for reuse.
- Grease the bushing surfaces of the new panhard bar and install it with the fittings angled down, again leaving the hardware loose.
- Reposition the stands under the rear axle so the suspension carries the vehicle's weight.
- Tighten all four control arm bolts to 72 ft-lbs.
- Tighten the panhard bar hardware to 60 ft-lb.
- Give every grease fitting one to one and a half pumps of non-lithium grease, then lower the car.
