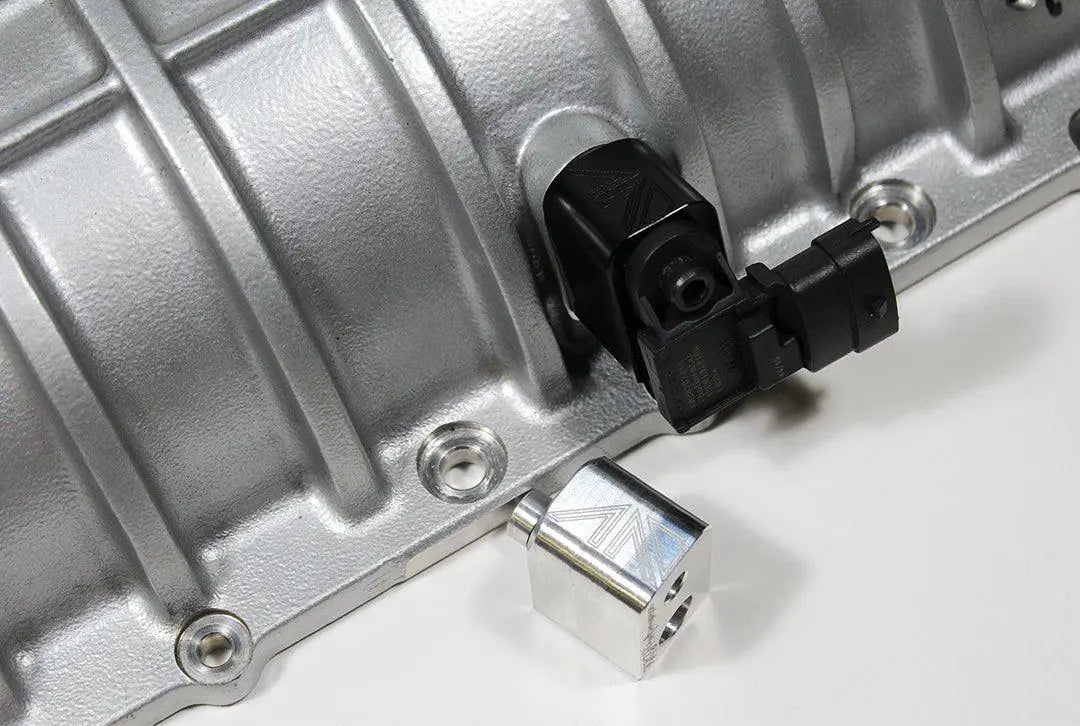

AAD Performance C009-0001 boost reference adapter, main view, image 1 of 6

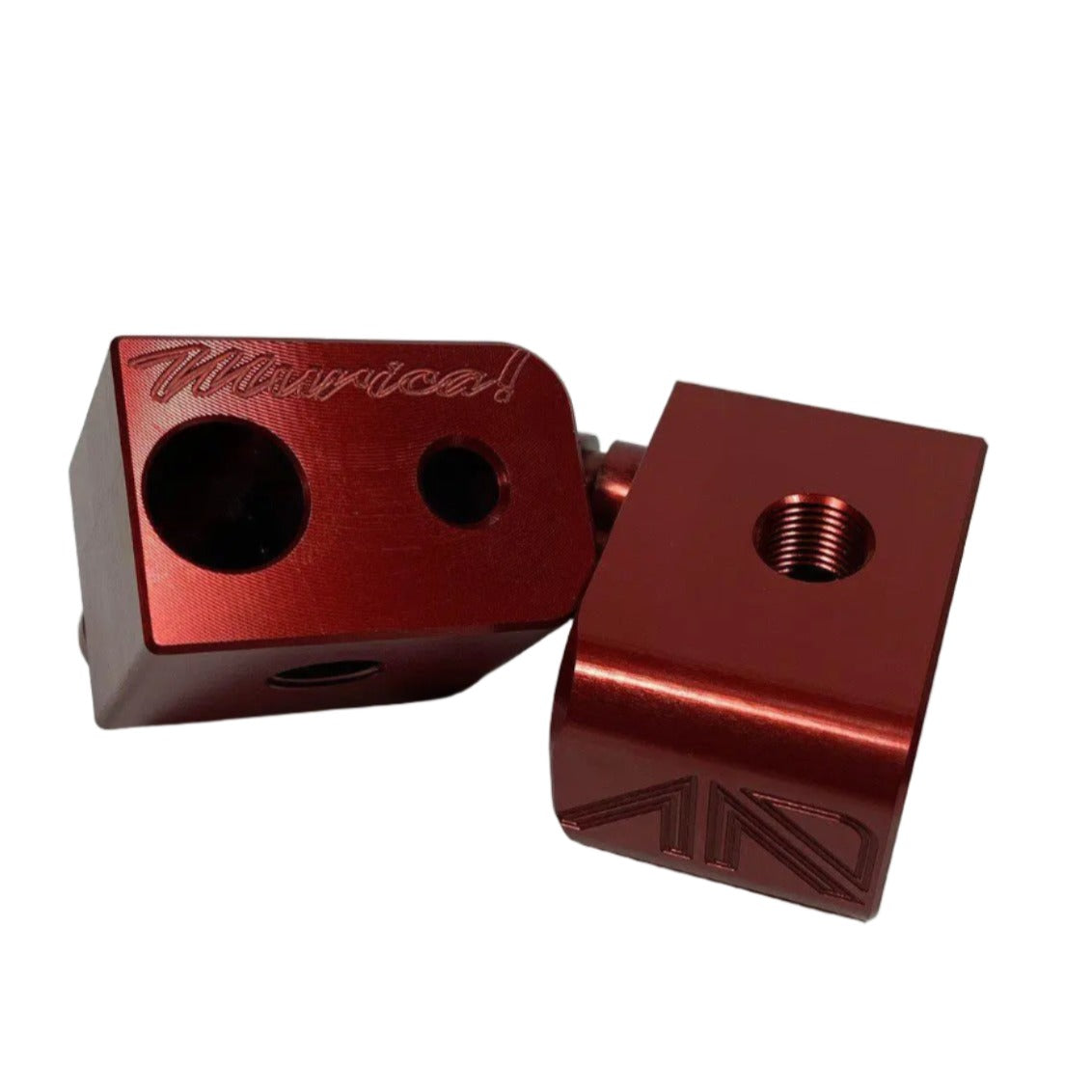

AAD Performance C009-0001 boost reference adapter, red finish view, image 2 of 6
AAD Performance C009-0001 boost reference adapter, black finish view, image 3 of 6
AAD Performance C009-0001 boost reference adapter, raw finish view, image 4 of 6
AAD Performance C009-0001 boost reference adapter, port detail, image 5 of 6

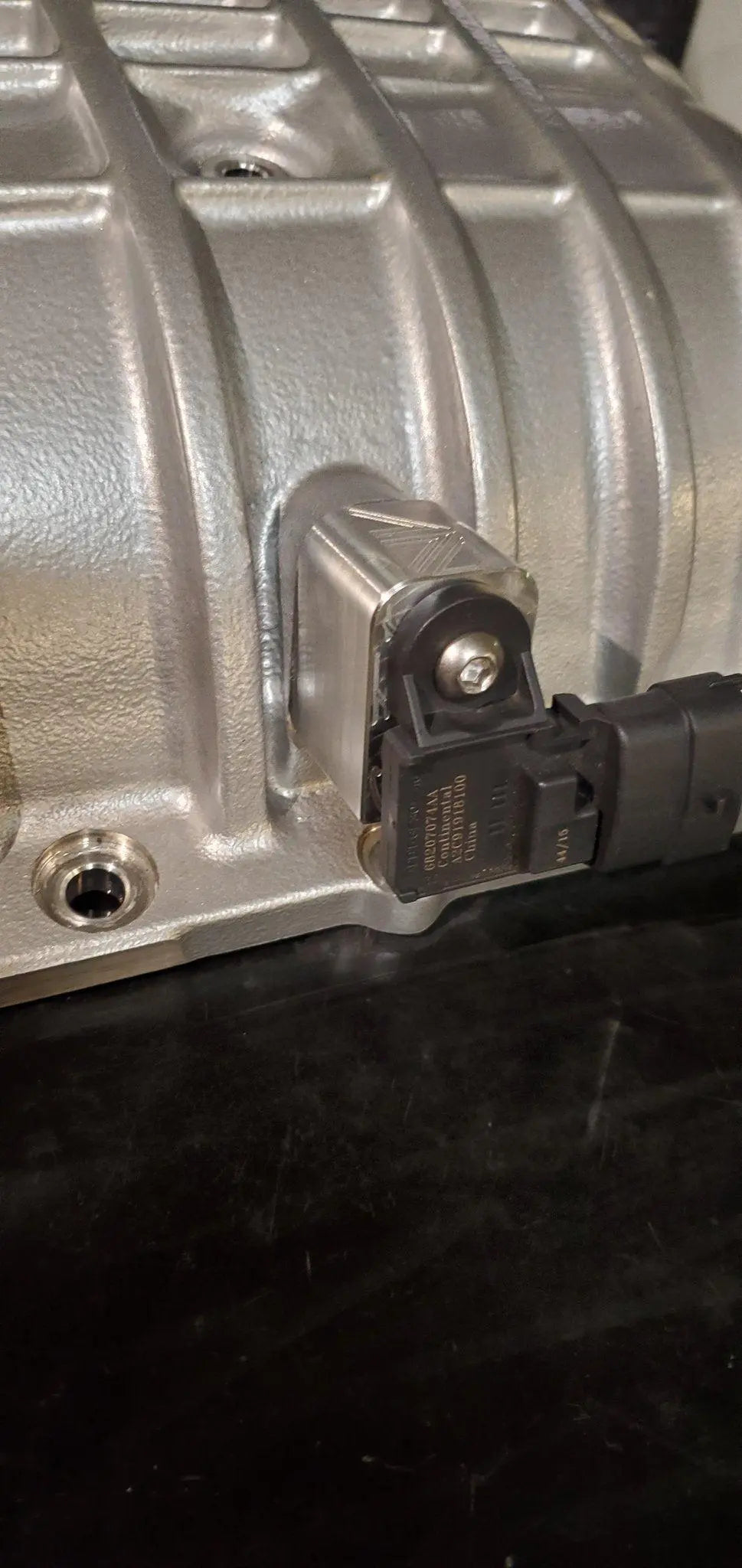

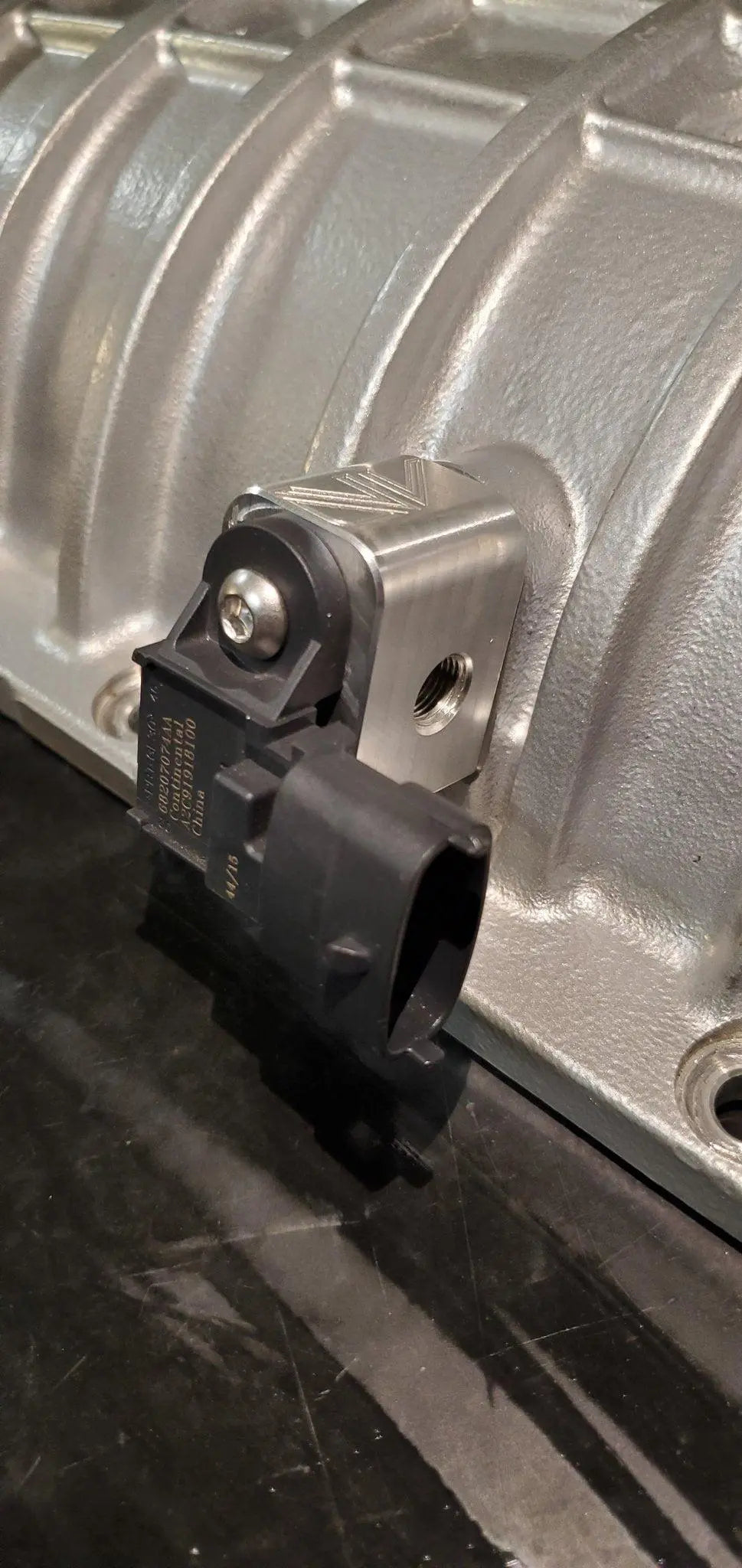

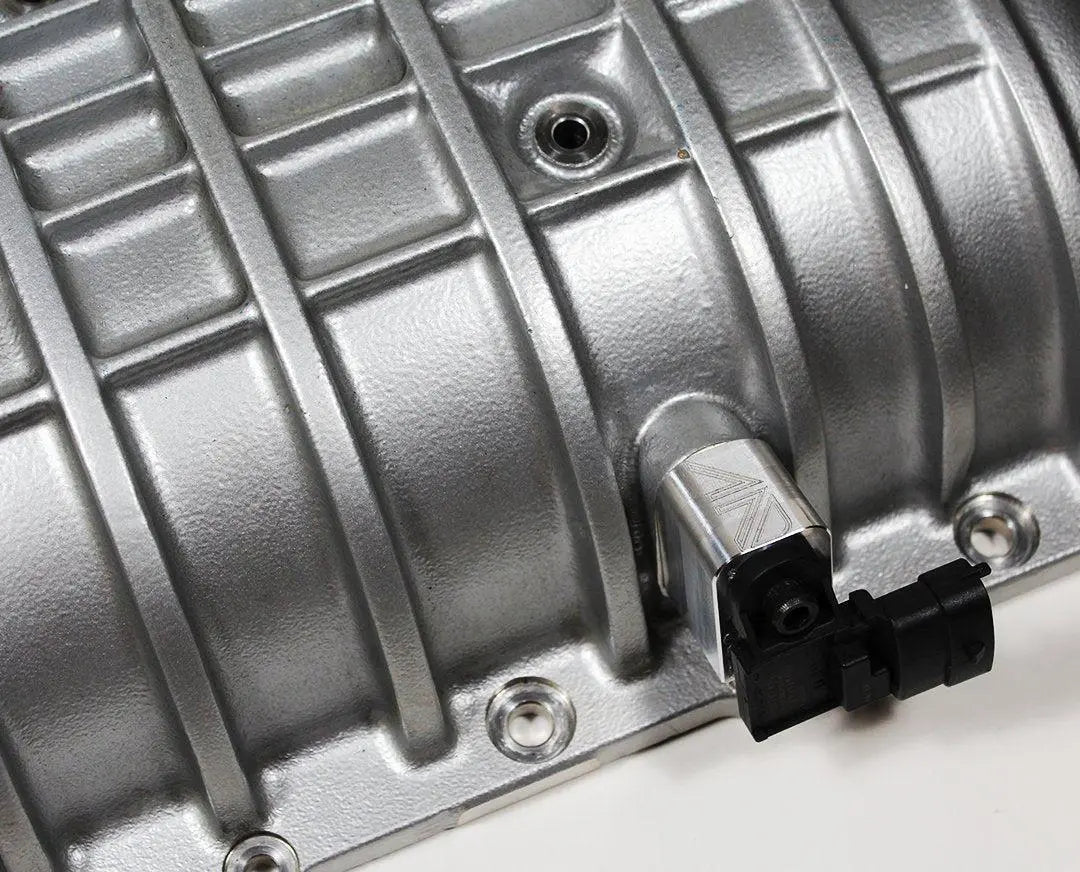

AAD Performance C009-0001 boost reference adapter, installed view, image 6 of 6
Click to zoom in

AAD Boost Reference Adapter Dodge Hellcat, Demon

$ 119.00

A Bolt-In Boost Reference Port Without Drilling The Blower Lid

The AAD Performance C009-0001 boost reference adapter adds a proper boost reference port to a supercharged Hellcat, Redeye or Demon HEMI so a boost-a-pump, boost gauge or any other boost referenced device can be plumbed in. The billet aluminum adapter bolts in, so the supercharger lid never has to be removed, drilled or tapped.

Key Features

  • Billet aluminum adapter with a complete bolt-in boost reference port
  • No need to remove, drill or tap the supercharger lid
  • Suits a boost-a-pump, boost gauge or any boost referenced device
  • Sealed with a Viton O-ring and retained with a stainless steel bolt
  • The C009-0001 adapter is offered in Red, Raw and Black finishes here

Fitment

Make Model Years Submodel
Dodge Challenger 2015-2023 SRT Hellcat
Dodge Charger 2015-2023 SRT Hellcat
Dodge Challenger 2019-2023 SRT Hellcat Redeye
Dodge Challenger 2018 SRT Demon
Jeep Grand Cherokee 2018-2021 Trackhawk
Dodge Durango 2021-2023 SRT Hellcat

The manufacturer lists all model years of Hellcat, Demon and Redeye supercharged engines. Confirm the vehicle against this list before ordering the C009-0001.

Specifications

Detail Value
Manufacturer part number family C009-0001
Material Billet aluminum
Sealing Viton O-ring
Fastener Stainless steel bolt
Function Boost reference port for boost-a-pump or gauge
Shipping weight 1.3 lb, with the black finish listed at 0.5 lb
Finishes offered here Red, Raw, Black
Country of manufacture United States

All specifications listed here are published by the manufacturer for the C009-0001.

What's Included

  • C009-0001 billet aluminum boost reference adapter
  • Viton O-ring
  • Stainless steel bolt

About AAD Performance

AAD Performance, also listed under the All Angles Design vendor name, designs and machines billet aluminum suspension, driveline and engine hardware in Kansas City, Missouri. The company is known for its patent pending Spheriflex bearing, its tab-lock adjustment system and OEM-CAD derived fitment, and it manufactures, assembles and packages its parts in the United States.

Warranty: AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.

Related Parts

FAQ

What is the C009-0001?

It is the AAD Performance billet boost reference adapter family for supercharged Hellcat, Demon and Redeye engines.

Do I have to drill the supercharger lid?

No. That is the point of the adapter: the lid does not need to be removed, drilled or tapped.

What can be connected to it?

A boost-a-pump, a boost gauge or any device that needs a boost reference signal.

How is it sealed?

A Viton O-ring seals the adapter and a stainless steel bolt retains it.

Which model years are covered?

The manufacturer lists all model years of Hellcat, Demon and Redeye engines.

Which finishes are offered here?

Red, Raw and Black.

Is it a machined part?

Yes, it is machined from billet aluminum.

Does it come with instructions?

The manufacturer publishes a boost reference adapter instruction sheet for the installation.

Can more than one device share the port?

A single port is provided; splitting the signal requires a suitable tee fitting sourced separately.

What warranty applies?

AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.

Installation Instructions

  1. Allow the engine to cool and disconnect the battery.
  2. Locate the boost reference position on the supercharger as shown in the manufacturer instructions.
  3. Remove the existing fastener at that location.
  4. Seat the Viton O-ring on the adapter.
  5. Fit the adapter and secure it with the supplied stainless bolt.
  6. Connect the boost line for the gauge or boost-a-pump.
  7. Pressure check the connection and confirm there are no leaks.
  8. Reconnect the battery and verify the gauge or device reads boost correctly.
