Adjustable Billet Idler Pulley That Adds Belt Wrap On The Blown 6.2

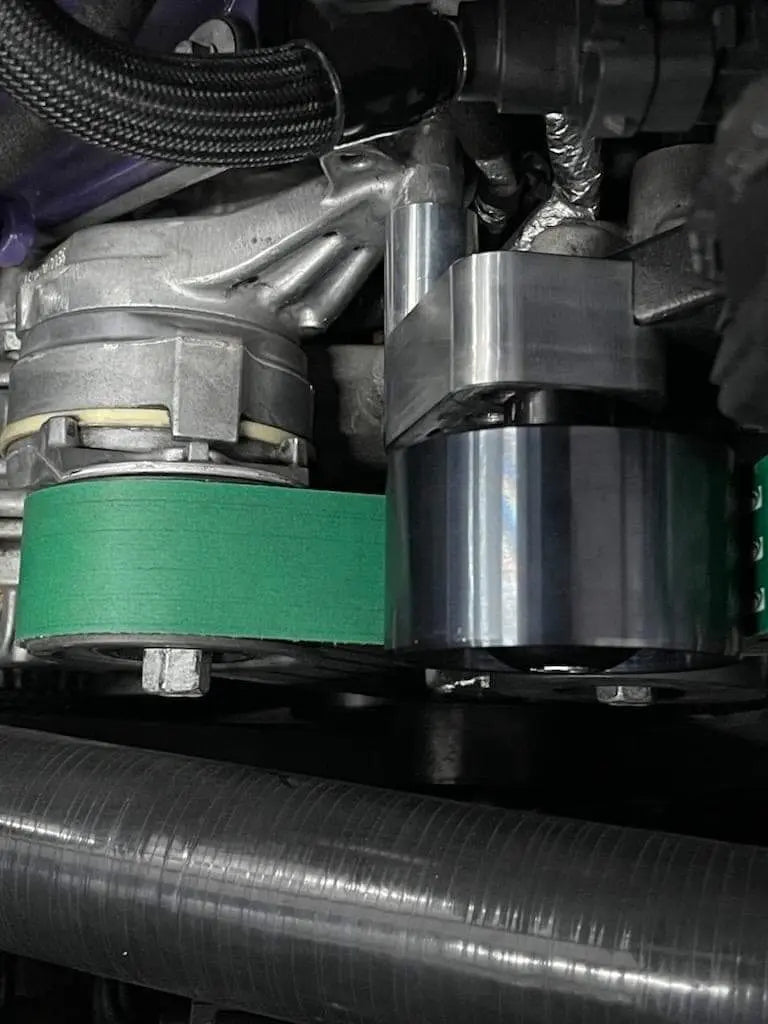

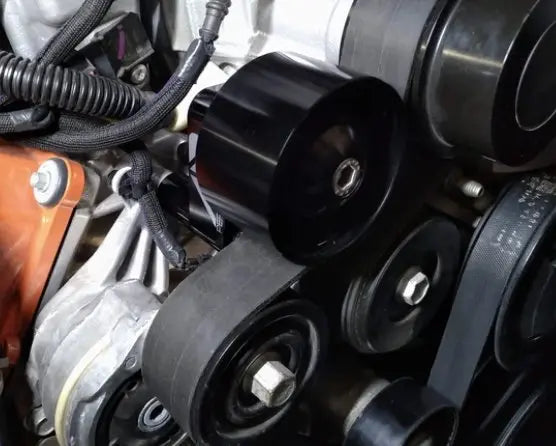

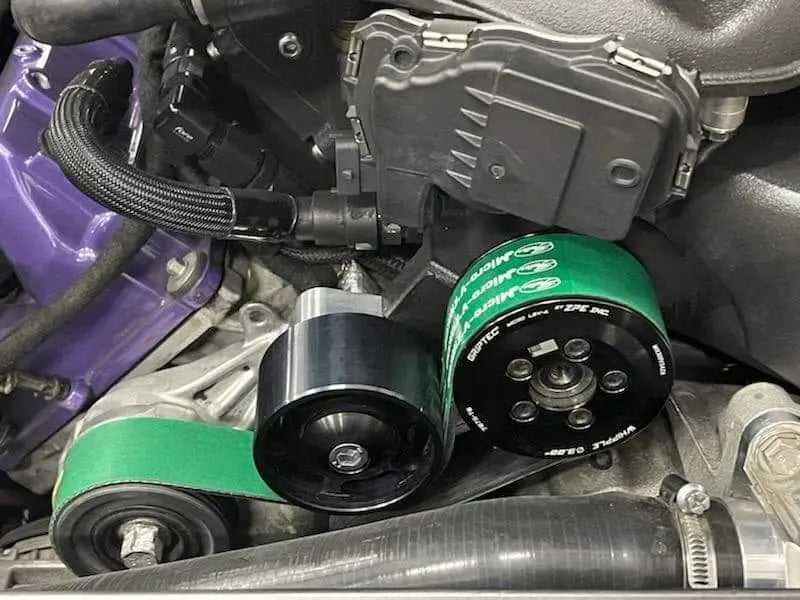

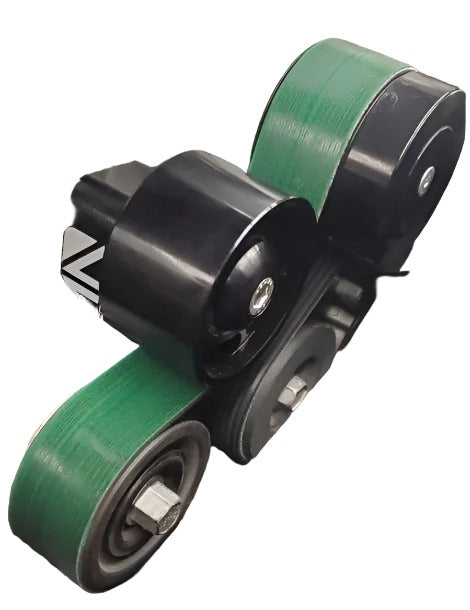

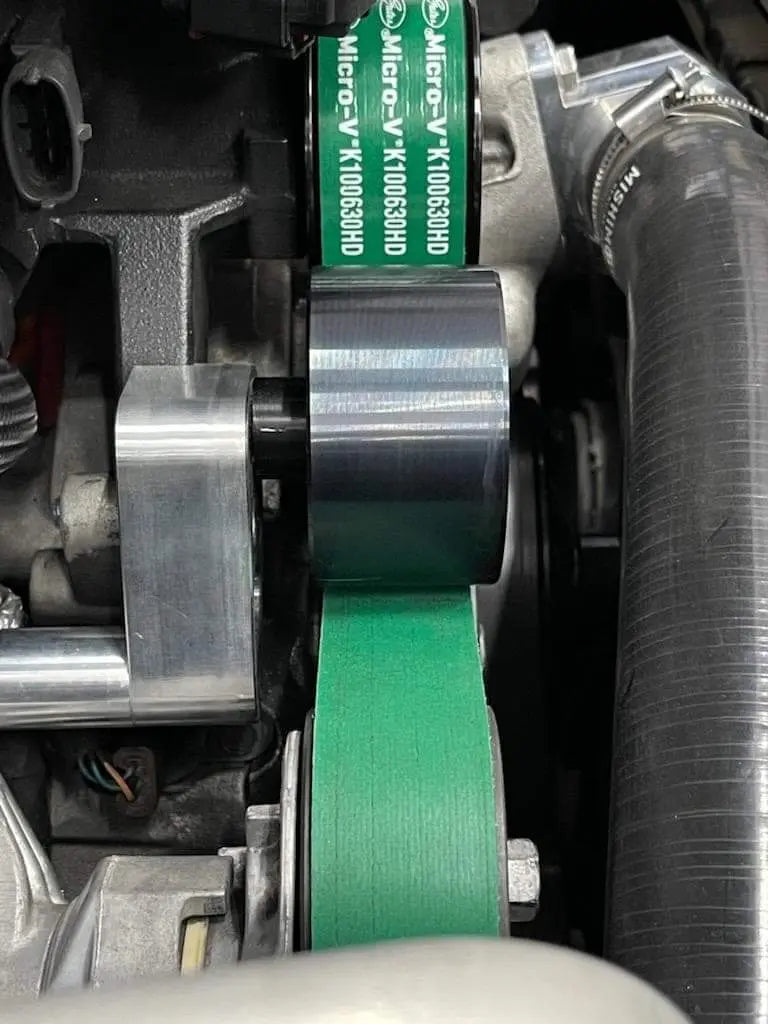

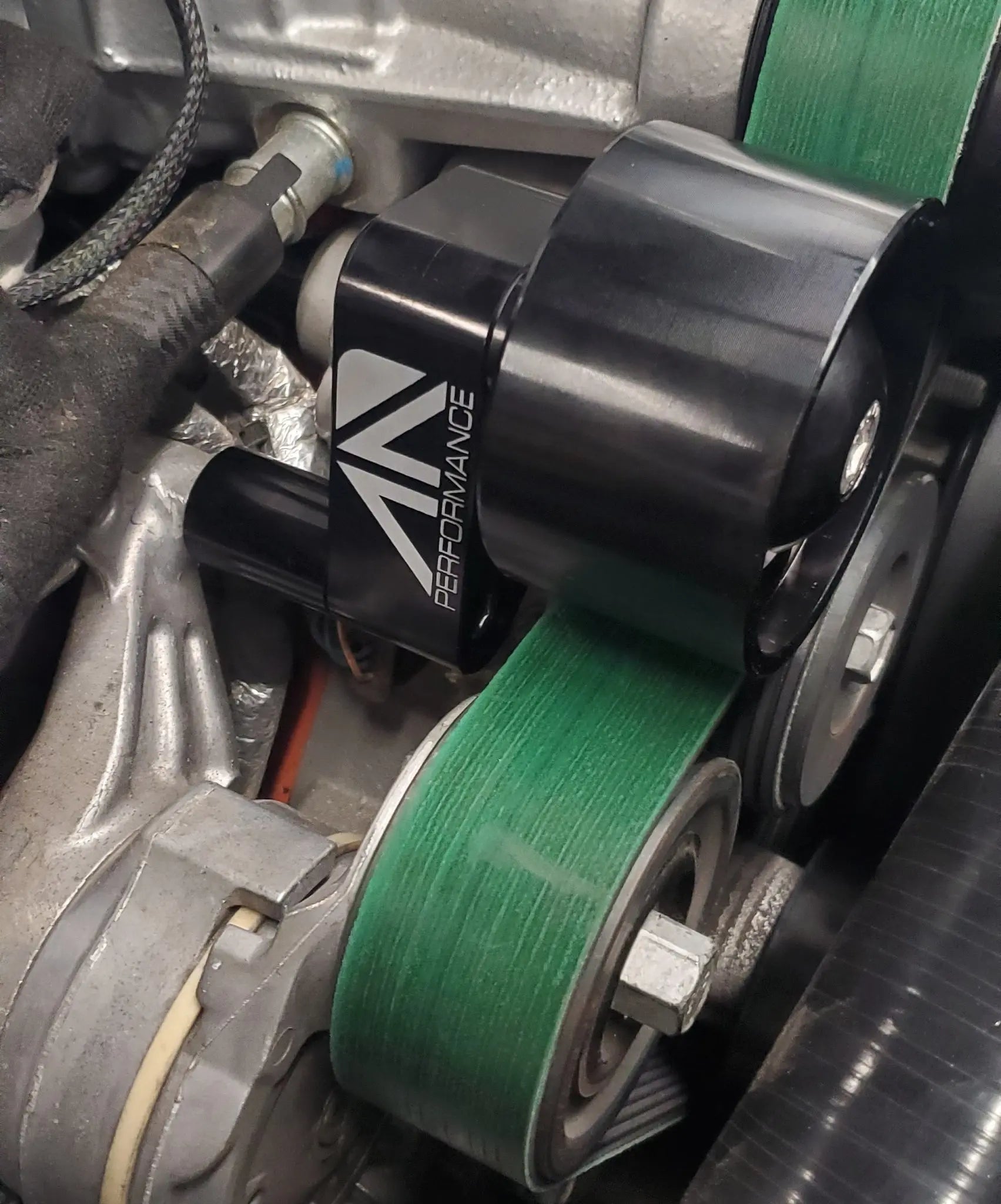

The AAD Performance C022-0006 adjustable idler pulley adds belt wrap to the supercharger pulley on the 6.2 litre supercharged HEMI, which is where factory belt routing runs out of grip under high load. The fixed adjustable design avoids the failures seen in slot adjustable pulleys and can add at least another inch of wrap in the highest position.
Key Features
- 100 percent billet 6061-T6 construction
- Fixed adjustable design for maximum strength and adjustability
- Dual Timken ball bearings
- Zinc plated, corrosion resistant, high strength hardware
- Multiple mounting holes so the C022-0006 pulley can be positioned for the application
- Compatible with the manufacturer's catch can bracket

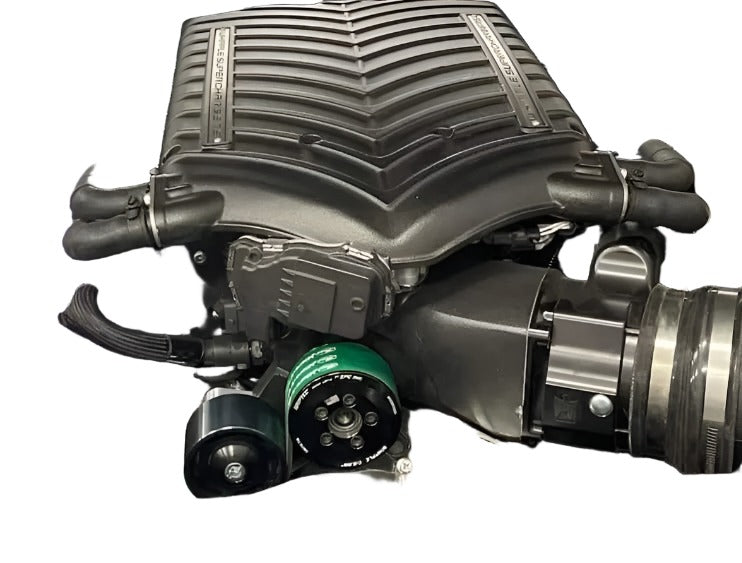

- Whipple specific versions include clearance and a spacer for 3.8 litre applications
Fitment
| Make | Model | Years | Submodel |
|---|---|---|---|
| Dodge | Challenger | 2015-2023 | SRT Hellcat |
| Dodge | Charger | 2015-2023 | SRT Hellcat |
| Dodge | Challenger | 2019-2023 | SRT Hellcat Redeye |
| Dodge | Challenger | 2018 | SRT Demon |
| Jeep | Grand Cherokee | 2018-2021 | Trackhawk |
| Dodge | Durango | 2021-2023 | SRT Hellcat |
| Ram | 1500 | 2021-2024 | TRX |
Fits IHI supercharged Hellcat applications, with a separate variant for 3.0 and 3.8 litre Whipple superchargers. Confirm the vehicle against this list before ordering the C022-0006.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part numbers | C022-0006 series for IHI superchargers and C022-0007 series for Whipple superchargers |
| Material | 100 percent billet 6061-T6 |
| Bearings | Dual Timken ball bearings |
| Hardware | Zinc plated high strength |
| Adjustment | Fixed adjustable with multiple mounting holes |
| Belt wrap gain | At least one additional inch around the upper pulley in the highest position |
| Shipping weight | 7.0 lb |

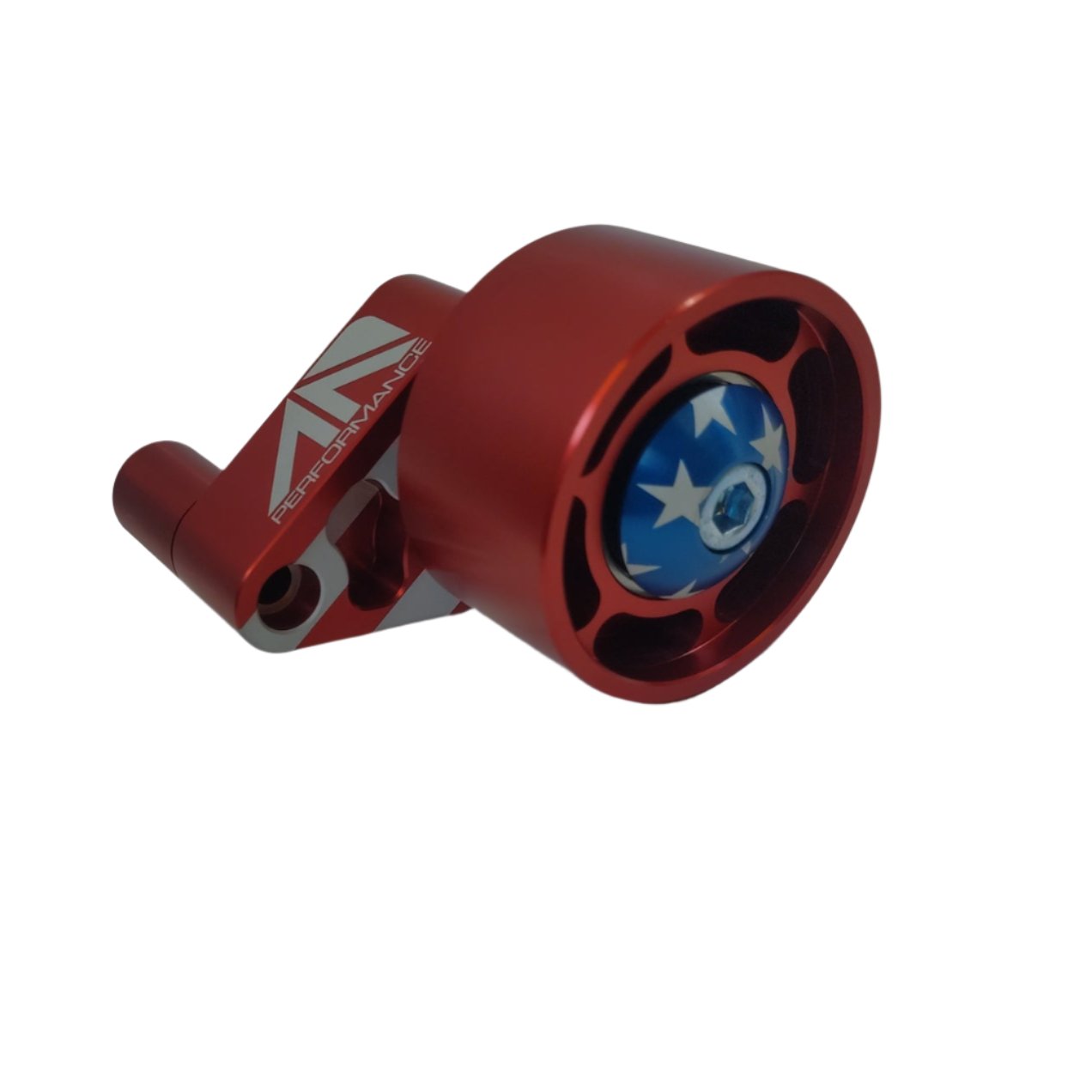

| Finishes offered here | Black, Red, Clear silver and 'Murica |
| Country of manufacture | United States |
All specifications listed here are published by the manufacturer for the C022-0006.
What's Included
- C022-0006 adjustable idler pulley assembly
- Zinc plated mounting hardware
- Spacer and clearance provision on the 3.8 litre Whipple version
About AAD Performance
AAD Performance, also listed under the All Angles Design vendor name, designs and machines billet aluminum suspension, driveline and engine hardware in Kansas City, Missouri. The company is known for its patent pending Spheriflex bearing, its tab-lock adjustment system and OEM-CAD derived fitment, and it manufactures, assembles and packages its parts in the United States.
Warranty: AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Related Parts
FAQ
What is the C022-0006?It is the AAD Performance adjustable idler pulley part number series for IHI supercharged 6.2 litre HEMI engines.
Why does the factory routing need more belt wrap?The manufacturer states factory routing can allow belt slip under high load because belt wrap on the supercharger pulley is inadequate.
How much extra wrap is gained?At least another inch around the upper pulley in the highest position.
Why a fixed adjustable design?The manufacturer states a fixed adjustable design prevents the failures often seen in slot adjustable designs.
What bearings are used?Dual Timken ball bearings, specified directly from the bearing maker.
Is a Whipple version available?Yes. A separate part number series covers 3.0 and 3.8 litre Whipple superchargers, with clearance and a spacer for the 3.8 litre.
Does it work with factory pulleys?Yes. It was designed to work with factory pulleys and is recommended when upper or lower pulleys are changed for more boost.
Is it compatible with a catch can bracket?It is designed to work with the manufacturer's catch can bracket.
Which finishes are stocked here?Black, Red, Clear silver and the 'Murica option.
What warranty applies?AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Installation Instructions
- Allow the engine to cool and disconnect the battery.
- Relieve belt tension and remove the supercharger belt.
- Select the mounting hole position that suits the pulley combination fitted.
- Mount the idler pulley using the supplied zinc plated hardware.
- Confirm the pulley is square to the belt path.
- Refit the belt and verify wrap around the supercharger pulley.
- Check clearance to the catch can bracket if one is fitted.
- Torque the mounting hardware and rotate the engine by hand to confirm free movement.
- Follow the manufacturer installation instructions for the final belt routing.
