Air Oil Separator Kit Built For The Blown 6.2 HEMI

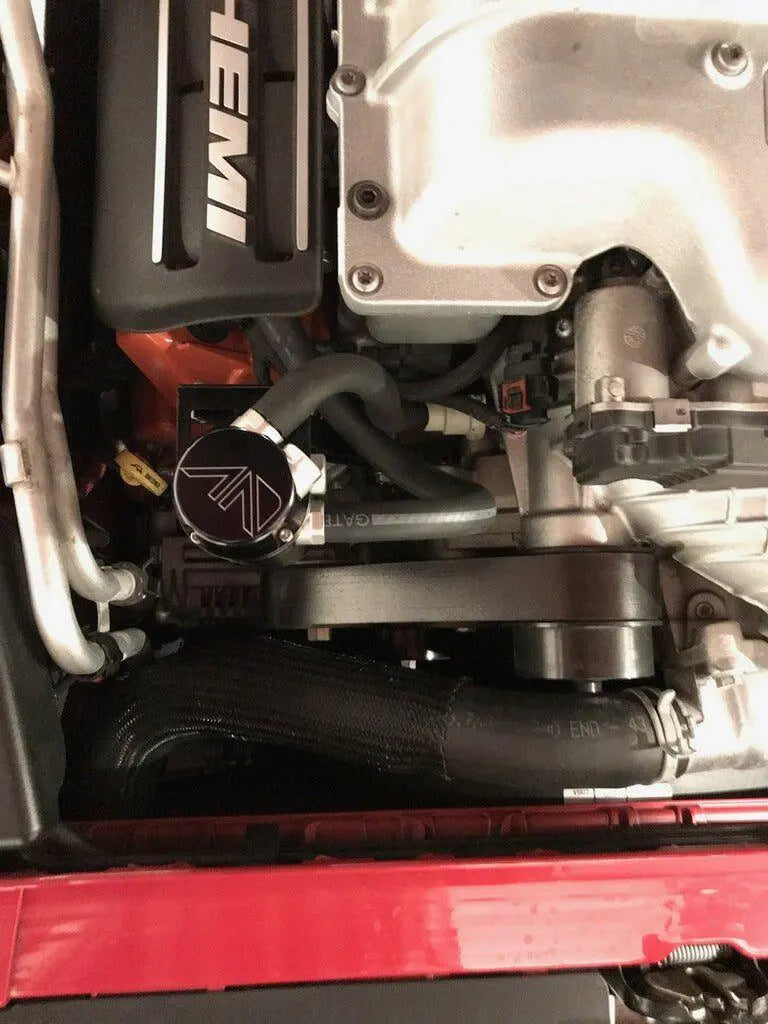

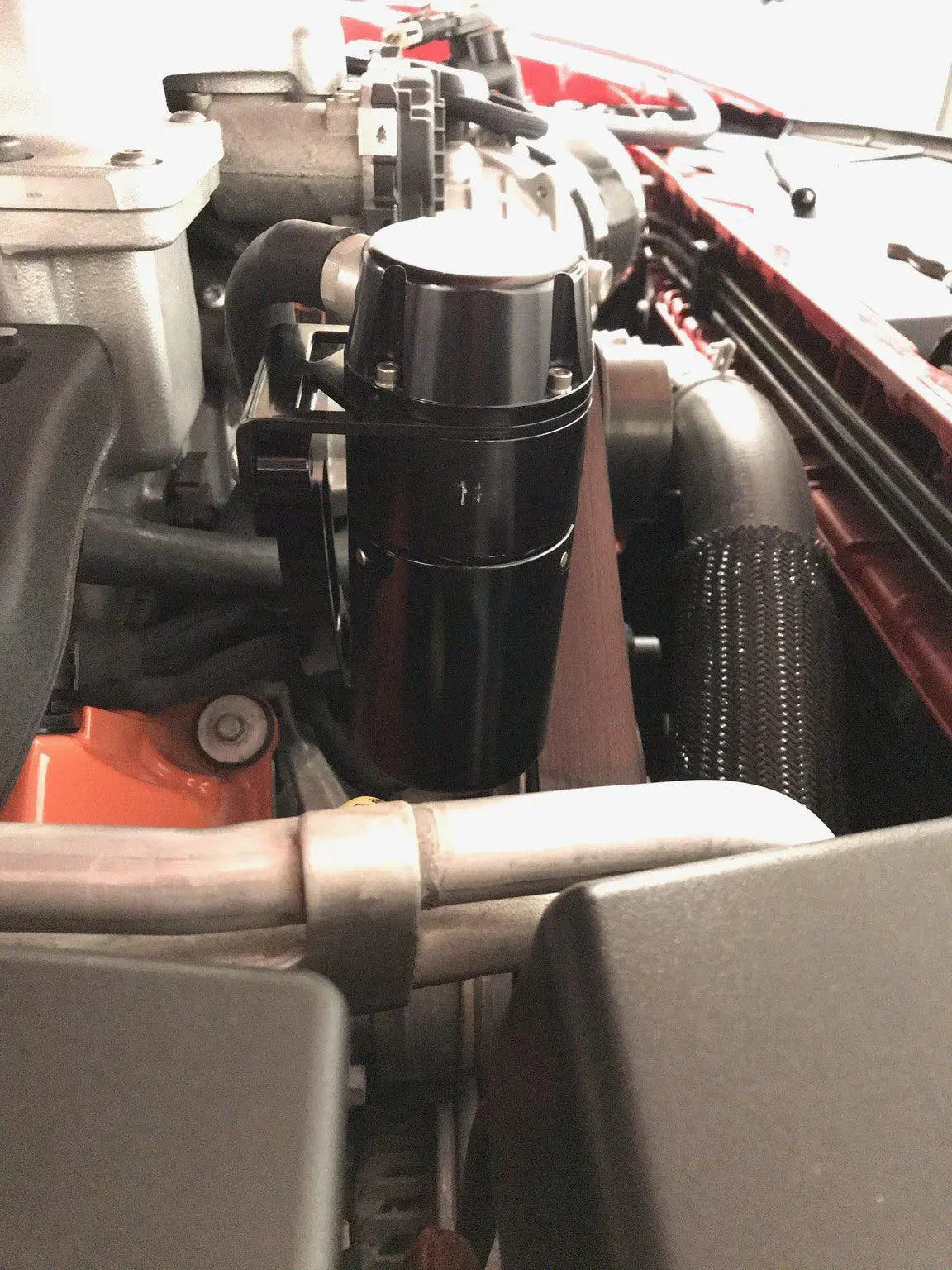

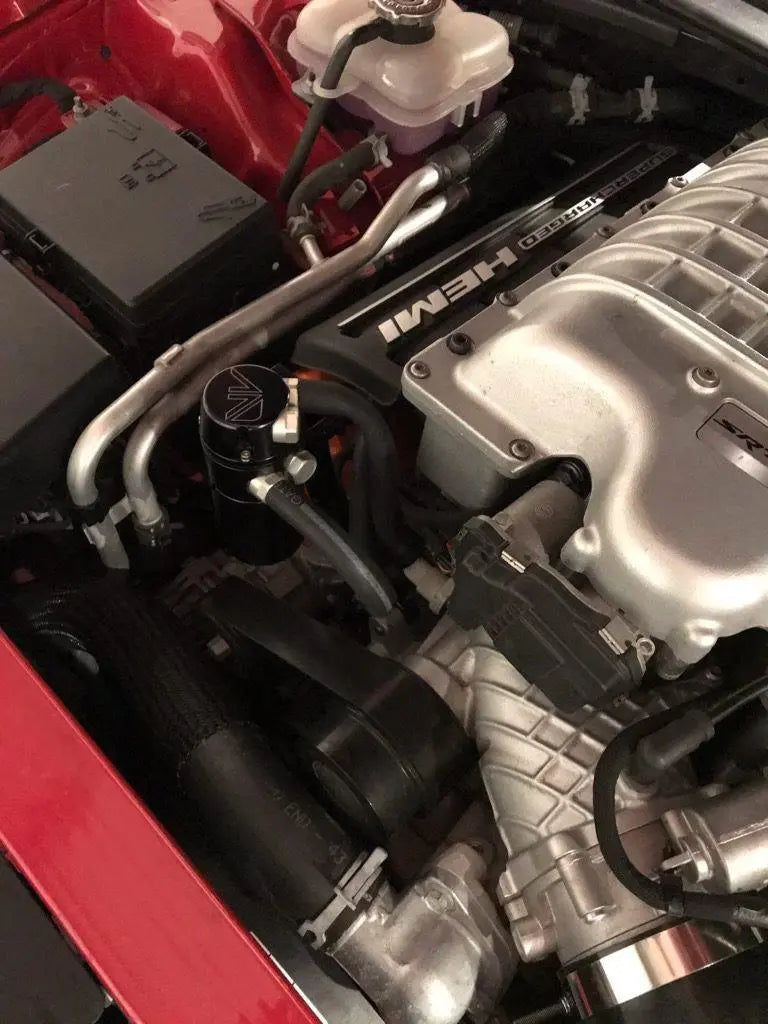

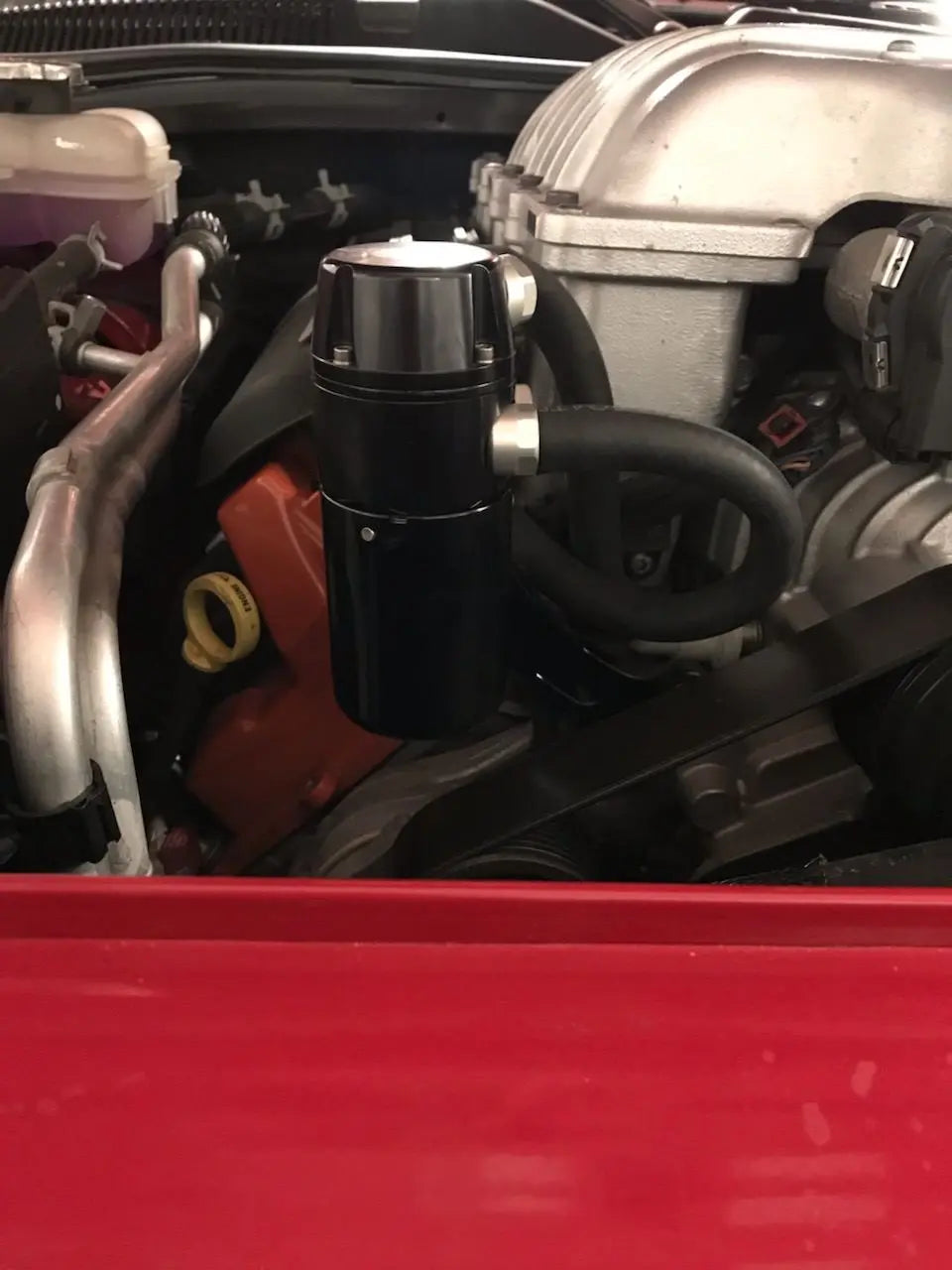

The AAD Performance C013-0000 air oil separator kit keeps oil vapour out of the intake tract on supercharged Hellcat, Redeye and Demon HEMI engines in LX, LC and LA platform cars. It pairs the company's all-metal separator with a blower-specific billet aluminum bracket and the factory style elbow fittings needed on a blown engine.
Key Features
- All-metal filtration media that can be cleaned rather than replaced
- Six inch tall body under two and a half inches in diameter
- Blower-specific billet aluminum mounting bracket
- Bespoke full-flow fittings designed for this separator
- The C013-0000 kit includes inlet and outlet side factory style elbow fittings
- Designed, machined and assembled in the United States
Fitment
| Make | Model | Years | Submodel |
|---|---|---|---|
| Dodge | Challenger | 2015-2023 | SRT Hellcat |
| Dodge | Charger | 2015-2023 | SRT Hellcat |
| Dodge | Challenger | 2019-2023 | SRT Hellcat Redeye |
| Dodge | Challenger | 2018 | SRT Demon |
For blown Hellcat, Redeye and Demon HEMI engines in LX, LC and LA platform vehicles. Confirm the vehicle against this list before ordering the C013-0000.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number family | C013-0000 |
| Height | 6 inches |
| Diameter | Under 2.5 inches |
| Filtration media | All metal, cleanable |
| Bracket | Blower-specific billet aluminum |
| Fittings | Bespoke full-flow, not interchangeable with other brands |
| Shipping weight | 5.0 lb |

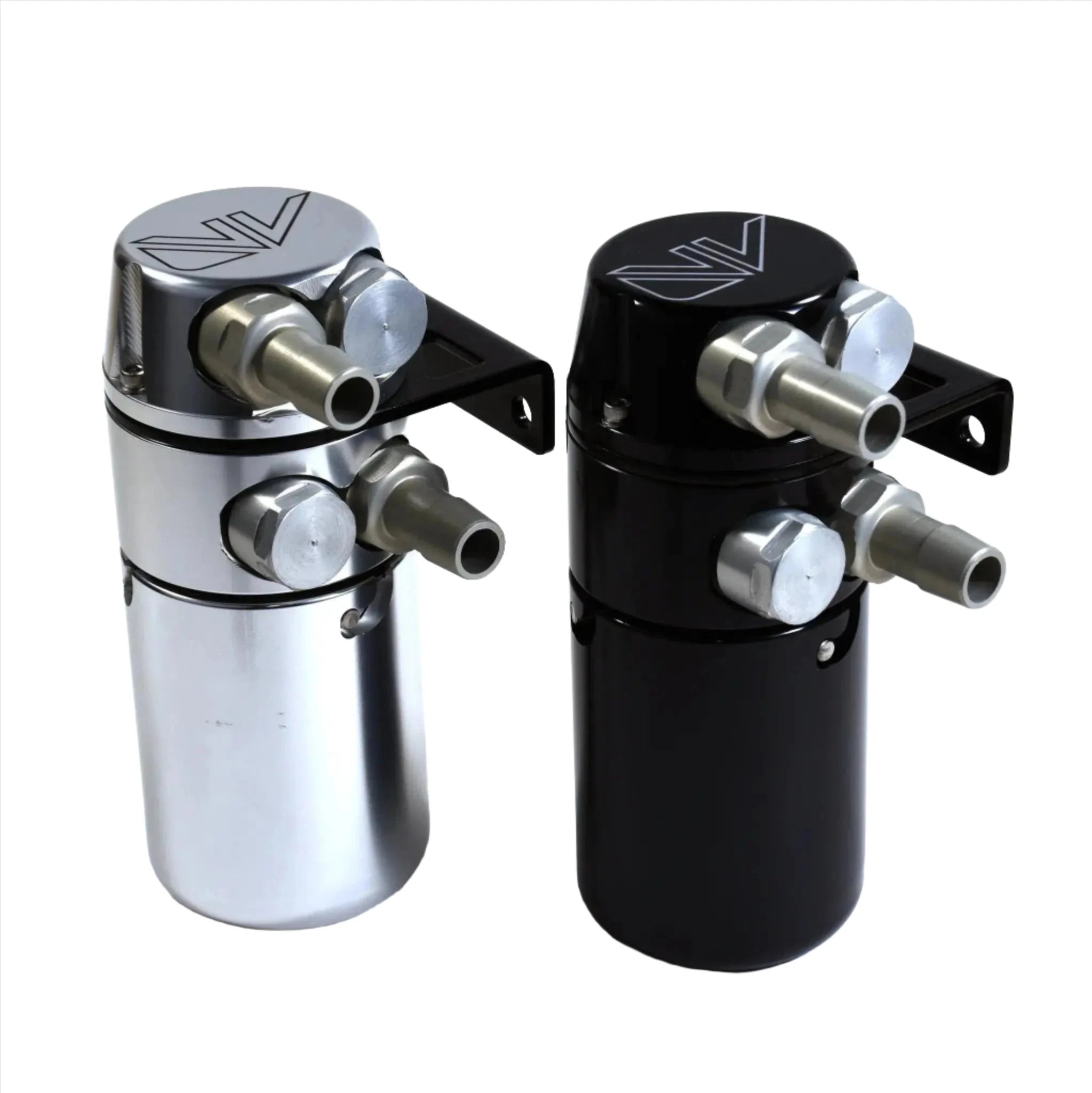

| Finishes offered here | Satin and Black |
| Country of manufacture | United States |
All specifications listed here are published by the manufacturer for the C013-0000.

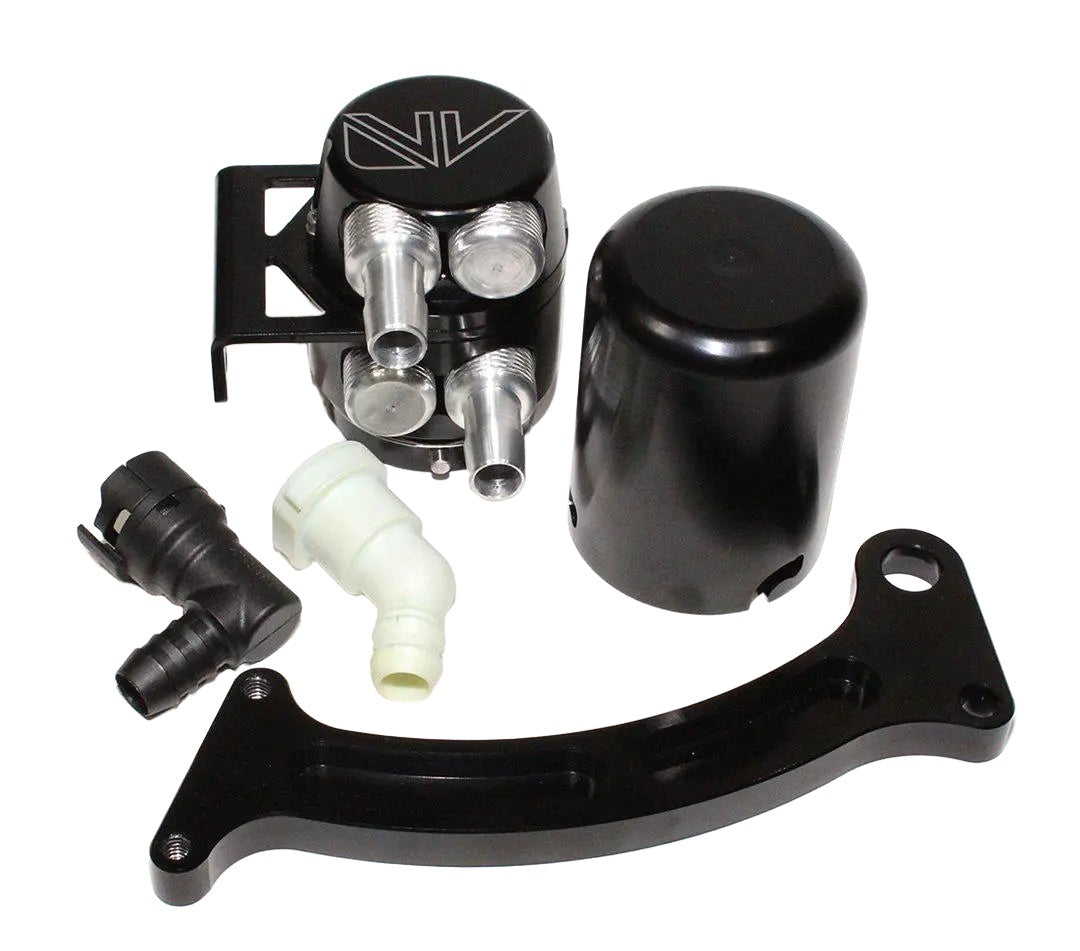

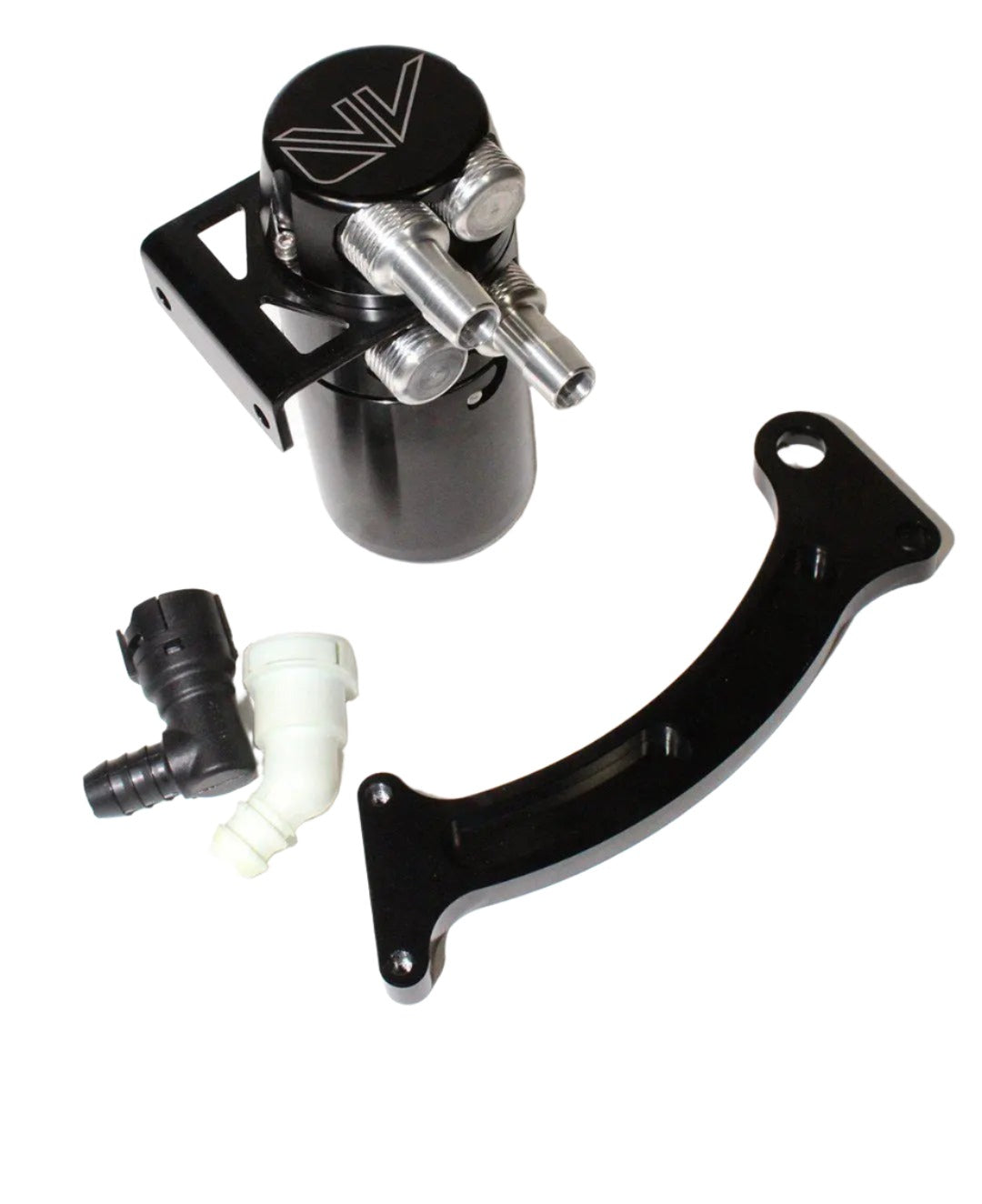

What's Included
- C013-0000 air oil separator with 90 degree steel bracket
- Blower bracket and mounting hardware
- Two half inch barbed fittings and two port plugs
- Inlet and outlet side factory style elbow fittings
- Full set of spare O-rings and stainless fasteners
About AAD Performance
AAD Performance, also listed under the All Angles Design vendor name, designs and machines billet aluminum suspension, driveline and engine hardware in Kansas City, Missouri. The company is known for its patent pending Spheriflex bearing, its tab-lock adjustment system and OEM-CAD derived fitment, and it manufactures, assembles and packages its parts in the United States.
Warranty: AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Related Parts
- AAD Air Oil Separator for HEMI Charger and Challenger
- AAD Boost Reference Adapter
- AAD 6.2L HEMI Adjustable Idler Pulley
FAQ
What is the C013-0000?It is the AAD Performance blown HEMI air oil separator kit family for supercharged Hellcat, Redeye and Demon engines.
Is connecting hose supplied?No. The manufacturer states the connecting hose is not included and should be bought locally.
Can the filter media be cleaned?Yes. The media is all metal, which is what makes cleaning possible instead of replacement.
How large is the separator?It is six inches tall and under two and a half inches in diameter.
Will other brands' fittings work?No. The fittings are bespoke full-flow parts and are not compatible with other manufacturers' fittings.
What makes this the blower version?It uses a blower-specific billet bracket and adds the inlet and outlet side factory style elbow fittings.
Which finishes are stocked here?Satin and Black.
Where is it made?It is designed, machined and assembled in the United States.
How often should it be serviced?Drain and clean the separator at each oil change so collected oil does not build up.
What warranty applies?AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Installation Instructions
- Allow the engine to cool completely before starting work.
- Locate the crankcase ventilation connections on the supercharger and valve cover side.
- Mount the blower-specific bracket to the supercharger using the supplied hardware.
- Fit the separator to the bracket and set its orientation for hose routing.
- Install the barbed fittings and factory style elbows in the correct inlet and outlet ports.
- Plug any unused ports with the supplied port plugs.
- Route locally purchased hose between the engine and the separator, keeping bends gentle.
- Secure all hose connections and check for leaks with the engine idling.
- Drain and clean the separator at each oil change interval.
