SKU: TS-0555-1502 | UPC: 9329677022421

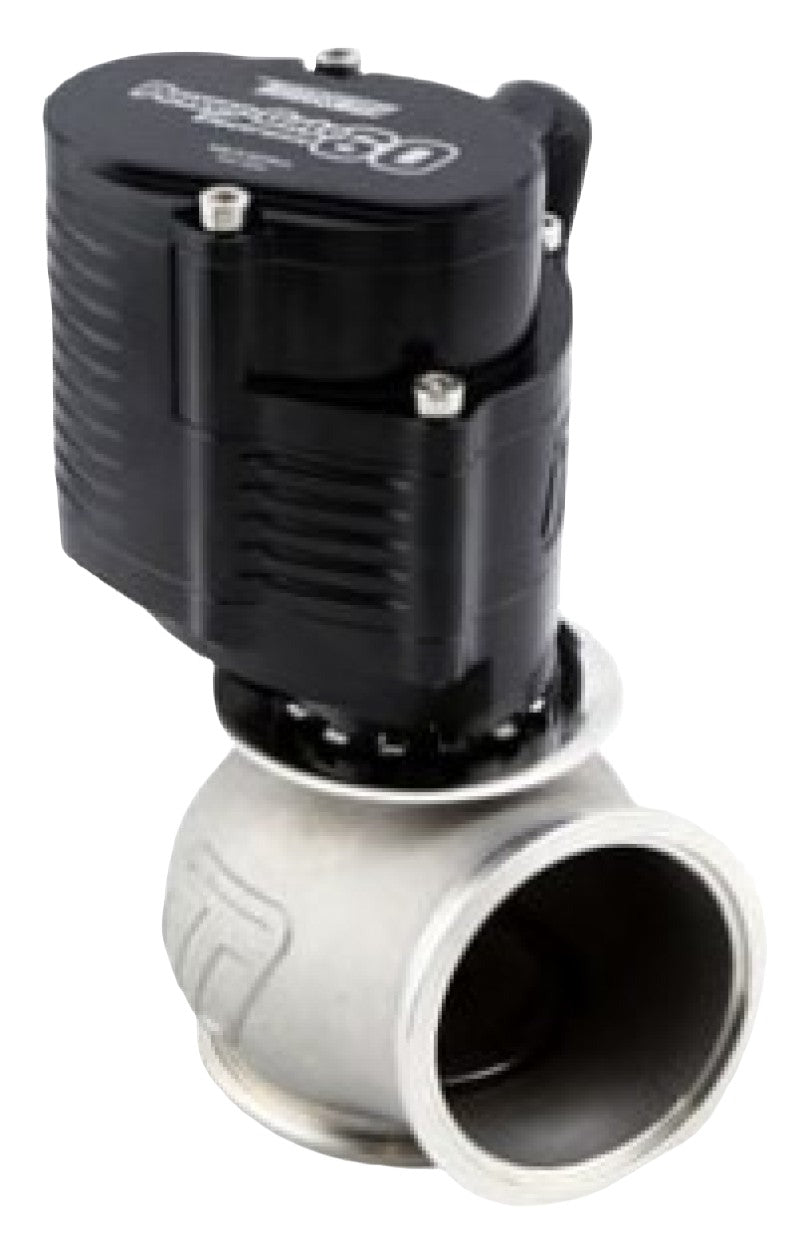

Turbosmart WG45 Gen V Power-Gate 60 Electronic Wastegate - Black
The Turbosmart WG45 Gen V Power-Gate 60 Electronic Wastegate in black provides advanced boost control for high-performance turbocharger setups. This 60mm external wastegate suits universal aftermarket turbo applications including drag racing, circuit cars and street performance builds with compatible V-band flanges. It enables variable boost levels up to 65psi with rapid response through PWM electronic actuation eliminating the need for springs.
Key Features
- Electronic Brushless Actuator: Delivers full 18mm stroke with 0-100% PWM duty cycle control for accurate boost holding and fast transient response across the RPM range
- 60mm Nitronic 60 Valve: Supports extreme flow rates for large turbochargers while ensuring long-term seat integrity under high heat and pressure
- 347 Stainless Steel Body: Investment cast construction withstands boost pressures over 65psi and resists corrosion in harsh motorsport environments
- Integrated Liquid Cooling: Features 3/8-24 NPT fittings to maintain actuator performance during sustained high-boost runs
- V-Band Inlet and Outlet: Includes clamps for secure leak-free mounting on custom exhaust manifolds and dump pipes
Product Notes
- Requires compatible ECU capable of PWM output for actuator control
- Includes Nitto assembly lube for initial valve seating
- Ships fully assembled ready for integration into exhaust system
Installation Notes
- Professional installation recommended.
- Mount actuator vertically or horizontally with cooling lines routed to maintain flow
- Compatible with V-band flanges on most aftermarket turbo manifolds
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Turbocharged Performance Vehicles | All with Compatible V-Band Flanges |
| - | Nissan | Skyline GT-R | R32/R33/R34 (RB26) |
| - | Toyota | Supra | MKIV (2JZ) |
| - | Subaru | WRX STI | Aftermarket Turbo Builds |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Rigorous in-house testing exceeds industry standards for reliability
- Proven design from extensive motorsport development and research
Frequently Asked Questions
-
Q: What type of ECU signal does it require?
A: Operates on standard 0-100% PWM duty cycle signal with 18mm full stroke for precise boost mapping -
Q: What materials are used in construction?
A: 347 stainless steel investment cast body and Nitronic 60 valve seat for maximum durability and heat resistance -
Q: Does it include a warranty?
A: Backed by Turbosmart world-class after-sales support and factory direct reliability
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure foam protected box 10 x 10 x 12 inches
- Weight: 12.1 lbs
