SKU: TS-0555-1015 | UPC: 9329677022766

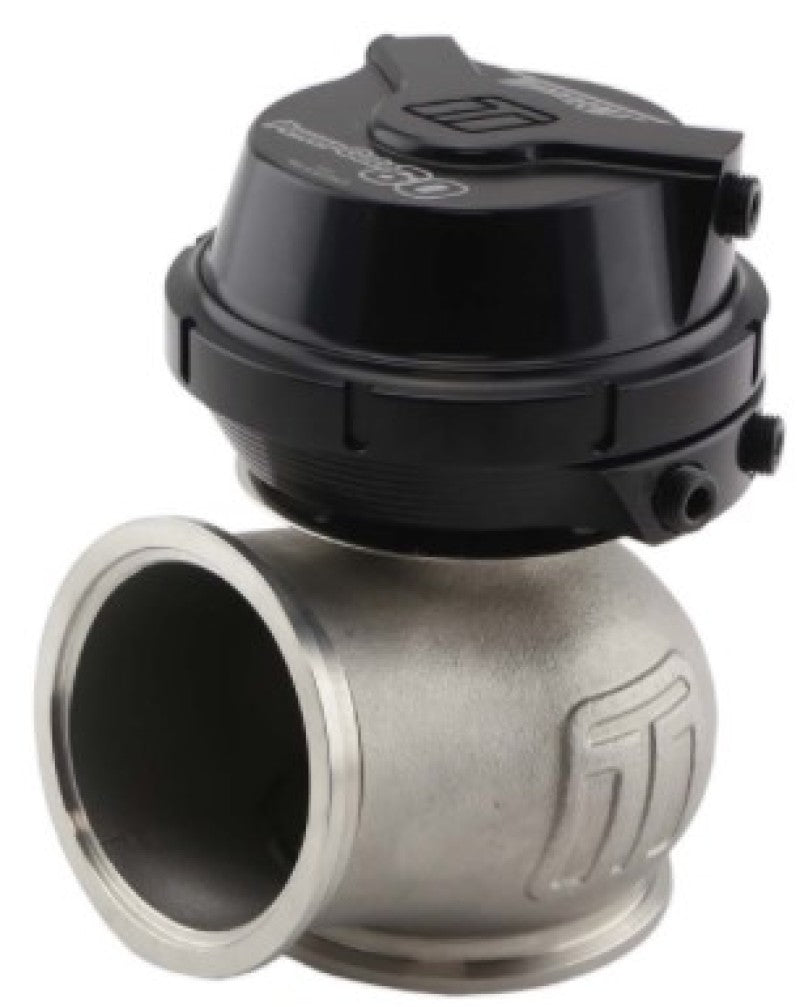

Turbosmart WG60 Gen V Power-Gate 60 14psi Sleeper
The Turbosmart WG60 Gen V Power-Gate 60 14psi Sleeper is a 60mm external wastegate built for accurate boost management in high-performance turbocharged engines. This universal wastegate fits any V-band turbo manifold and downpipe setup delivering fast response and reliable operation across street and track use. Its all-black sleeper design keeps a low profile while handling extreme boost levels.
Key Features
- 60mm Valve Size: Provides high flow capacity for quick boost onset and stability at high pressures up to 40psi with spring swaps
- Liquid-Cooled Option: Separate upper and lower housings allow 360-degree water cooling connections to maintain valve seat integrity during prolonged runs
- Sleeper Black Finish: Fully anodized black components including actuator and housings for discreet stock-like appearance
- Nitronic 60 Seat with 347SS Valve: Withstands 1400°F+ temperatures and resists corrosion for long-term durability in harsh environments
- V-Band Housings: Clamp-style inlet and outlet for secure leak-free seals and easy installation without flange machining
Product Notes
- Factory preset to 14psi black actuator spring included replaceable for custom tuning
- Requires matching V-band turbo outlet and exhaust dump pipe
- Fully assembled with valve seat and springs pre-installed
Installation Notes
- Professional installation recommended.
- Mount upside down with actuator facing up for optimal condensate drainage
- Compatible with all Turbosmart V-band clamps and gaskets included
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band Manifold Compatible |
| 1986-2005 | Toyota | Supra | 2JZ-GTE Turbo |
| 1989-2002 | Nissan | Skyline | R32/R33/R34 GT-R RB26DETT |
| 2002-2021 | Subaru | WRX/STI | EJ20/EJ25 Turbo |
| 1990-2005 | Mitsubishi | Evo | 4G63/4G63T |
Why Choose Turbosmart?
- Motorsport proven in World Rally Championship and NHRA drag racing
- Investment cast housings machined for precise tolerances
- Engineered and manufactured in Australia with global racing validation
Frequently Asked Questions
-
Q: Does this wastegate fit my specific turbo manifold?
A: Yes it bolts directly to any standard V-band turbo outlet flange common on aftermarket T3 T4 T6 and V-band manifolds -
Q: What materials are used in construction?
A: 347 stainless steel housings Nitronic 60 valve seat 17-7PH stainless springs and billet 6061 actuator -
Q: What warranty coverage applies?
A: Turbosmart provides a 3-year unlimited mileage warranty on the valve body springs and seat when installed and used correctly
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 12 x 10 x 8 inches
- Weight: 6.17 lbs
