SKU: TS-0555-1202 | UPC: 9329677019063

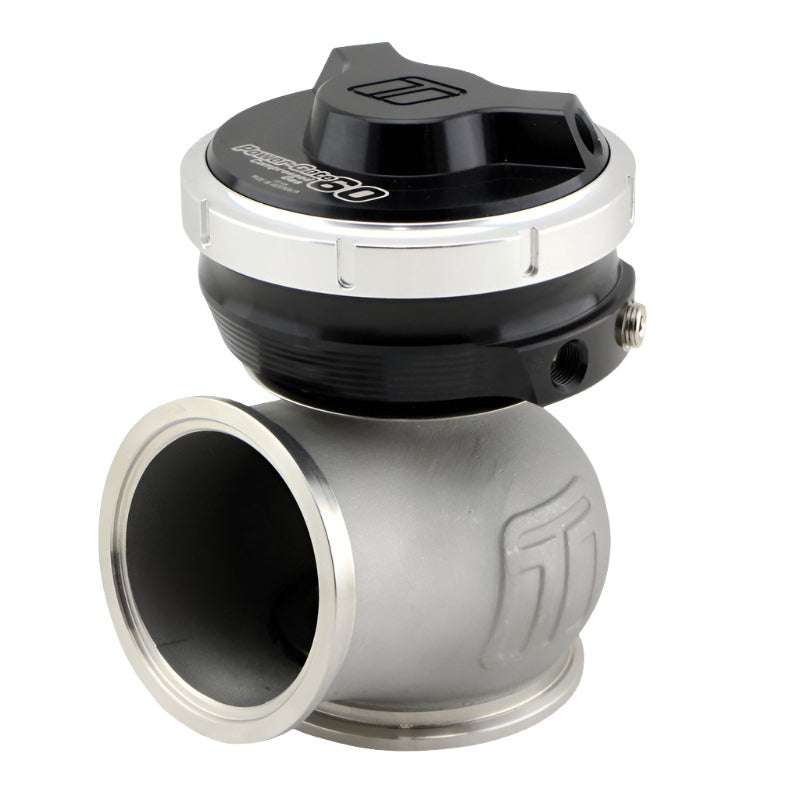

Turbosmart WG60 Gen V Power-Gate 60 CG - 5psi Black
The Turbosmart WG60 Gen V Power-Gate 60 CG - 5psi Black is an external wastegate with a 60mm valve and compressed gas actuator preset to 5psi for rapid boost response in high-performance turbo setups. Designed for universal fitment on turbocharged engines from compact 4-cylinders to V8s this wastegate ensures consistent boost levels across drag racing and street applications. It provides reliable operation with minimal lag for better power delivery and engine safety.
Key Features
- 60mm High-Flow Valve: Handles up to 1500+hp with Nitronic 60 valve seat for durability and extended seat life under high exhaust temperatures
- Compressed Gas Actuator: Pre-set to 5psi using CO2 or N2 canister for ultra-fast opening and precise low-boost control in competition environments
- 347 Stainless Steel Body: Resists corrosion and withstands extreme heat with dual water ports for optional liquid cooling
- Gen V V-Band Housing: Features true dual inlets and rotation for flexible exhaust routing with included clamps and gaskets
- Black Anodized Finish: Provides sleek corrosion-resistant appearance with extended actuator travel for reliable sealing
Product Notes
- Requires separate compressed gas canister and regulator for operation
- Pre-assembled with 5psi spring swap kit available for higher boosts
- Ships fully assembled ready for install with all hardware included
Installation Notes
- Professional installation recommended.
- Mount actuator away from exhaust heat with supplied bracket positions
- Compatible with standard V-band flanges use provided gaskets for leak-free seal
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | 4-8 Cylinder |
| 1990-2024 | Toyota | Supra | 2JZ-GTE |
| 1989-2024 | Nissan | Skyline GT-R | RB26DETT |
| 2004-2021 | Subaru | WRX STI | EJ25 |
| 1993-1998 | Toyota | Supra | MKIV Turbo |
| Universal | Ford | Mustang | Coyote Turbo |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in global performance community backed by rigorous testing
- Innovative designs manufactured in-house for consistent high performance
Frequently Asked Questions
-
Q: Is this wastegate compatible with my turbo setup?
A: Yes universal V-band design fits most aftermarket turbo manifolds on 4-8 cylinder turbo engines with proper routing -
Q: What materials are used in construction?
A: 347 stainless steel body Nitronic 60 valve seat and aluminum actuator for heat and corrosion resistance -
Q: What is the warranty coverage?
A: Turbosmart provides a limited lifetime warranty against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-lined box 12 x 10 x 8 inches
- Weight: 5.1 lbs
