SKU: TS-0555-3001 | UPC: 9329677019360

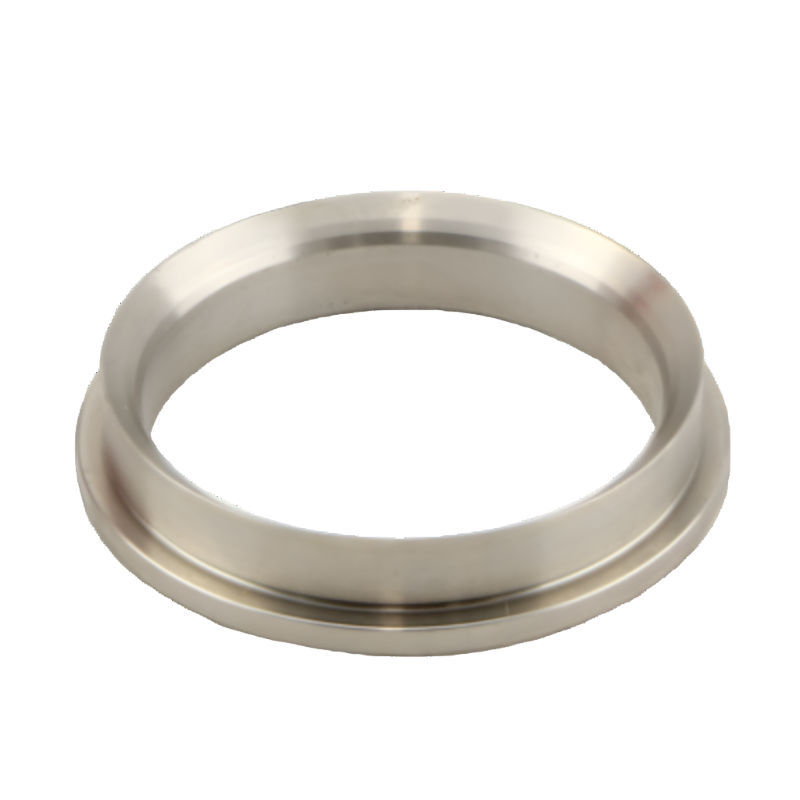

Turbosmart WG60 GenV Power-Gate 60mm Valve Seat - Universal Fit
The Turbosmart WG60 GenV Power-Gate 60mm Valve Seat is a direct replacement component for Turbosmart GenV Power-Gate60 wastegates used in high-boost turbocharged applications. It ensures a tight seal for consistent boost management across demanding performance setups on various turbo vehicles. Built to handle extreme heat and pressure this valve seat maintains wastegate reliability during extended track or street use.
Key Features
- Direct Replacement Design: Matches factory specifications for seamless installation in all GenV WG60 Power-Gate wastegates without modifications.
- Precision Machining: CNC-machined surfaces provide flawless valve contact for leak-free operation and accurate boost response.
- Heat-Resistant Construction: Forged from 347 stainless steel to withstand temperatures over 1000°C and resist wear in high-flow environments.
- Enhanced Sealing: Optimized seat angle improves valve closure reducing boost creep in 50+ psi applications.
- Australian Engineering: Designed and manufactured in Sydney with rigorous testing for proven durability in motorsport conditions.
Product Notes
- Inspect valve stem and spring during replacement for complete wastegate rebuild.
- Lubricate with high-temp assembly lube during install to prevent galling.
- Store in dry conditions to avoid corrosion prior to installation.
Installation Notes
- Professional installation recommended.
- Remove wastegate top cap and valve assembly to access seat using factory tools.
- Torque cap to 25Nm and ensure valve moves freely after reassembly.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| All Years | Universal | Turbosmart GenV WG60 Power-Gate | 60mm Wastegates |
| 2005-2023 | Subaru | WRX STI | All Turbo Models |
| 2008-2023 | Nissan | GT-R | R35 |
| 2015-2023 | Ford | Mustang | GT / Shelby |
| 1997-2023 | Various | Turbocharged Imports | High Boost Setups |
Why Choose Turbosmart?
- Products hand-crafted in Sydney Australia since 1997 with strict quality control.
- Proven reliability trusted by performance enthusiasts worldwide.
- Innovative design backed by in-house testing beyond industry standards.
Frequently Asked Questions
-
Q: Will this valve seat fit GenIV wastegates?
A: No it is engineered specifically for GenV WG60 Power-Gate models with updated seat geometry. -
Q: What material is used for the valve seat?
A: 347 stainless steel construction offers superior heat resistance and corrosion protection for long-term performance. -
Q: What warranty coverage applies?
A: Backed by Turbosmart's limited lifetime warranty against manufacturing defects when installed correctly.
Shipping & Handling
- Method: UPS Ground / USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective box 6.2 x 6 x 2.6 inches
- Weight: 0.1 lbs product / 0.35 lbs shipping
