Turbo actuators control wastegate position on a turbocharger, regulating the amount of exhaust gas bypassed around the turbine wheel to set maximum boost pressure. Replacing a worn or incorrectly calibrated actuator restores accurate boost control, reduces overboost and underboost faults, and improves throttle response consistency.

Popular Turbo Actuator Types

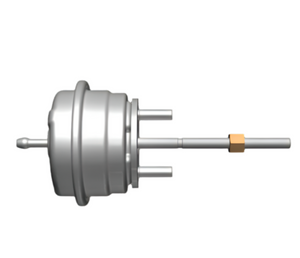

Pneumatic wastegate actuators use boost pressure referenced from the intake manifold or compressor outlet to push a diaphragm that opens the wastegate at a preset pressure. Electronic actuators used on modern variable-geometry turbos and twin-scroll applications receive position commands from the ECU and adjust wastegate angle continuously across the RPM range for precise boost targeting. Aftermarket adjustable actuators with stiffer springs allow higher base boost levels on pneumatically controlled turbochargers.

How do I know if my turbo actuator is failing?

Common symptoms of a failing turbo actuator include inconsistent boost pressure, P0234 overboosting fault codes, P0299 underboosting codes, poor throttle response, and black smoke from over-fueling when boost spikes. Electronic actuator faults typically trigger a limp-home mode that limits boost to a safe level. Inspecting the actuator rod for smooth travel and verifying the diaphragm is intact are the first steps in diagnosing pneumatic actuator faults.

Can a turbo actuator be adjusted without replacement?

Pneumatic actuators can often be adjusted by changing the rod length to alter the cracking pressure at which the wastegate begins to open. Shortening the rod increases the opening force required and raises base boost; lengthening the rod reduces base boost. However, worn diaphragms, seized pivot arms, or electronic actuators with internal motor or position sensor faults require replacement rather than adjustment.
