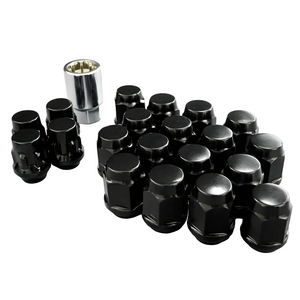

Complete a wheel installation with lug nuts, wheel locks and matching service tools from Black Ops Auto Works. Compare ICON, Method, McGard, Rays, WELD and other current hardware choices by thread and wheel-seat design before selecting the finish. A lock set, standard nut kit and replacement key serve different needs.
Thread, Seat and Open or Closed Ends
Match the hub stud’s full thread specification and the wheel’s required seat. Cone, ball/radius and shank-seat designs are different interfaces. The listed WELD 12x1.5 shank-seat set is a different purchase from a cone-seat nut with the same nominal thread.
Closed-end nuts need enough internal depth for the stud. Open-ended designs can suit a supported extended-stud installation, but the wheel seat, engagement and available socket space must still match. Choose finish and visible length after the fastening requirements are established.
Lock Sets, Spline Kits and Keys
The ICON M14x1.5 24-nut package includes its matching key. McGard wheel-lock references provide a separate security-hardware option with their own seat, length and package contents. Compare a complete wheel set with a small service pack before counting the pieces required.
The Rays Formula key adapter is a service tool for its specified hardware, not another lug-nut set. Spline-drive tools and coded lock keys also use different interfaces. Keep the correct tool available for tire service and follow the exact hardware manufacturer’s tightening procedure.
Choose Your Part
- Match stud thread, wheel seat and usable engagement.
- Choose standard nuts, a lock system or the exact replacement tool.
- Check open/closed-end clearance, package count and socket access.
Frequently Asked Questions
Are cone-seat and shank-seat lug nuts interchangeable?
No. The nut’s seating surface must match the wheel. Thread size alone does not establish the correct fastening interface.
Do extended studs require open-ended nuts?
Check the exact stud projection and nut’s usable depth. A closed-end nut must not bottom before clamping the wheel; use the supported hardware combination.
Is a spline-drive key the same as a coded wheel-lock key?
Not necessarily. Match the exact hardware family and key interface. Do not assume a similar-looking tool will engage another set correctly.
Will a 24-piece package suit every vehicle?
No. Count the wheel positions and required fasteners, including any separately specified spare-wheel hardware, then compare the exact package.
