ACL Ford 4 BD Series 1099-1700cc Standard Size High Performance Rod Bearing Set ACL ACL4B1060H-STD
ACL Ford 4 BD Series 1099-1700cc Standard Size High Performance Rod Bearing Set ACL ACL4B1060H-STD
ACL Ford 4 BD Series 1099-1700cc Standard Size High Performance Rod Bearing Set ACL ACL4B1060H-STD
Click to zoom in

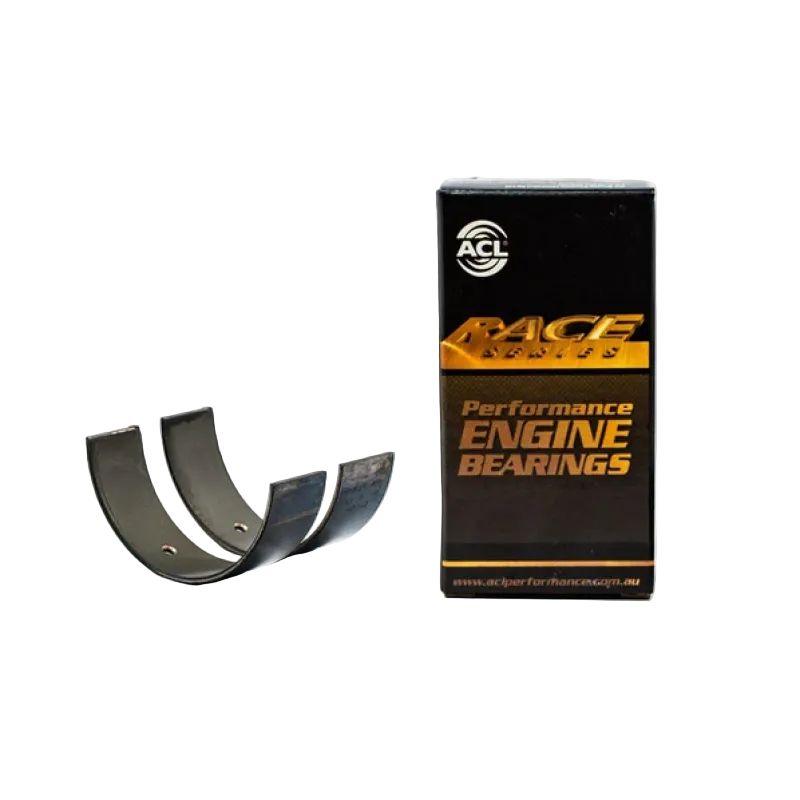

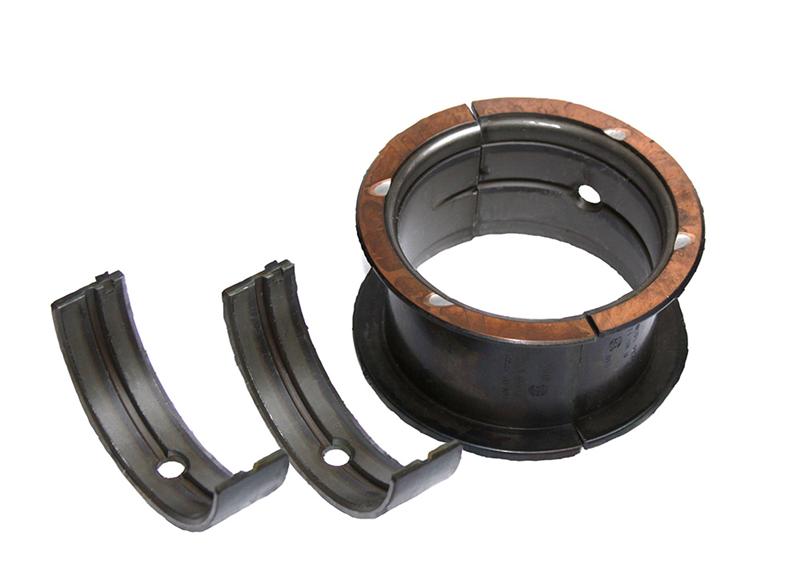

ACL Ford 4 BD Series 1099-1700cc Standard Size High Performance Rod Bearing Set

ACL
ACL4B1060H-STD
9315726152041
Bearings
1 Units In Stock - Ships Next Business Day
ACL, Bearings, Engine, Engine Block
$ 97.90
$ 97.90

SKU: 4B1060H-STD | UPC: 9315726152041

ACL Ford 4 BD Series 1099-1700cc Standard Size High Performance Rod Bearing Set 1962-1974 Capri Escort Cosworth BDA

ACL 4 BD Series rod bearings provide reliable support for Ford BDA BDB BDC BDD Cosworth 1601cc inline-4 DOHC engines in classic performance vehicles. This standard size set fits 1099-1700cc displacements with precision tolerances for high-revving applications. Engineered to handle increased loads these bearings ensure consistent oil flow and longevity in racing street builds.

Key Features

  • Increased Oil Clearance: Built-in extra clearance supports high RPM operation reduces friction promotes better heat dissipation during extended runs
  • High Strength Overlay: Alloy overlay plate delivers superior wear resistance maintains integrity under extreme pressures in performance engines
  • Hardened Steel Backing: Robust backing prevents distortion provides stable foundation for connecting rods in demanding conditions
  • Precision Tolerances: Exact wall thickness and crush fit simplify installation ensure perfect seating on 46.99mm standard journals
  • Tri-Metal Construction: Copper-lead alloy with nickel barrier and steel base offers fatigue resistance for 1601cc BDA reliability

Product Notes

  • Confirm rod journal size measures 46.99-47.00mm standard before install
  • Apply assembly lube to bearings prior to engine assembly for protection
  • Packaged in protective sleeves to prevent damage during storage transit

Installation Notes

  • Professional installation recommended.
  • Measure clearances with plastigage adjust as needed for performance setup
  • Compatible with standard Ford BDA rods no special hardware required

This Part Fits

Year Make Model Submodel
1962-1965 Ford Capri Base
1964 Ford Capri GT
1968-1974 Ford Escort L RS RS1600
1967-1971 Ford Capri GT XL 1600
1970-1974 Ford Escort RS2000 BDA
1971-1974 Lotus Elan +2 1700

Why Choose ACL?

  • Decades of experience supplying bearings to motorsport teams globally
  • Manufactured to exacting standards for performance engine demands
  • Advanced metallurgy proven in high-rev Cosworth BDA applications

Frequently Asked Questions

  • Q: Will this fit Ford Cosworth BDA 1601cc engines in Escort RS1600?
    A: Yes 4B1060H-STD matches Ford BDA BDB series 1601cc DOHC exactly standard size for direct replacement
  • Q: What bearing material is used?
    A: Tri-metal design features high-tensile copper-lead overlay nickel interlayer hardened steel backing for maximum durability
  • Q: What warranty applies?
    A: ACL provides manufacturer warranty against defects contact supplier with details for claims process

Shipping & Handling

  • Method: UPS Ground USPS Priority
  • Availability: In stock - ships same or next business day
  • Packaging: Compact protective box 5.5 x 4 x 1.25 inches
  • Weight: 0.45 lb
