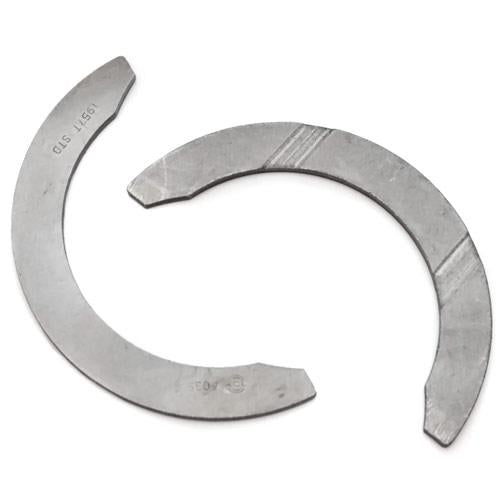

ACL Toyota 2AZFE (2.4L) Standard Size Thrust Washer ACL ACL1T8412-STD
Click to zoom in

ACL Toyota 2AZFE (2.4L) Standard Size Thrust Washer

ACL
ACL1T8412-STD
084777701474
Bearings
2 Units In Stock - Ships Next Business Day
ACL, Bearings, Engine, Engine Block
$ 6.43
$ 6.43

SKU: 1T8412-STD | UPC: 084777701474

ACL Toyota 2AZ-FE (2.4L) Standard Size Thrust Washer 2001-2008 Camry RAV4 Highlander Matrix Vibe Solara

ACL thrust washers control crankshaft endplay in Toyota 2AZ-FE 2.4L engines in models including Camry RAV4 Highlander Matrix Vibe and Solara. Standard size at 1.945-1.955mm maintains exact clearances to reduce wear under high loads. Perfect for engine rebuilds or upgrades requiring dependable axial support and smooth rotation.

Key Features

  • Precision Thickness: 1.945-1.955mm standard size matches OEM specs for direct replacement without machining
  • High Strength Material: Hardened powdered metal construction resists fatigue and supports higher power outputs
  • Matched Pair Design: Complete set balances thrust on both crankshaft sides for even load distribution
  • Heat Treated: Boosts durability in extreme temperatures and oil pressures for modified engines
  • ACL Quality: Tight tolerances ensure smooth operation and extended service life in performance applications

Product Notes

  • Inspect crankshaft thrust surfaces for flatness before installation
  • Use assembly lube on contact areas during install
  • Packaged in protective sleeves ships in 6x4x1 inch box

Installation Notes

  • Professional installation recommended.
  • Check endplay to 0.004-0.008 inch after torquing mains
  • Compatible with stock or ACL main bearings no special hardware needed

This Part Fits

Year Make Model Submodel
2002-2006 Toyota Camry All
2001-2005 Toyota RAV4 All
2001-2007 Toyota Highlander Base L4
2003-2008 Toyota Matrix All
2003-2008 Pontiac Vibe All
2004-2008 Toyota Solara L4

Why Choose ACL?

  • Over 60 years as global leader in engine bearings
  • Used in racing from drag to endurance
  • Engineered in Australia with strict tolerances

Frequently Asked Questions

  • Q: Does this fit all 2AZ-FE engines?
    A: Yes covers all standard bore 2AZ-FE 2.4L variants in listed Toyota and Pontiac models from 2001-2008
  • Q: What material are these thrust washers?
    A: High tensile powdered metal hardened and heat treated for maximum strength without overlay
  • Q: Is there a warranty?
    A: ACL offers limited warranty against defects contact supplier for details professional install required

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: In stock - ships same or next business day
  • Packaging: Protective sleeve in 6 x 4 x 1 inch box
  • Weight: 0.1 lbs
