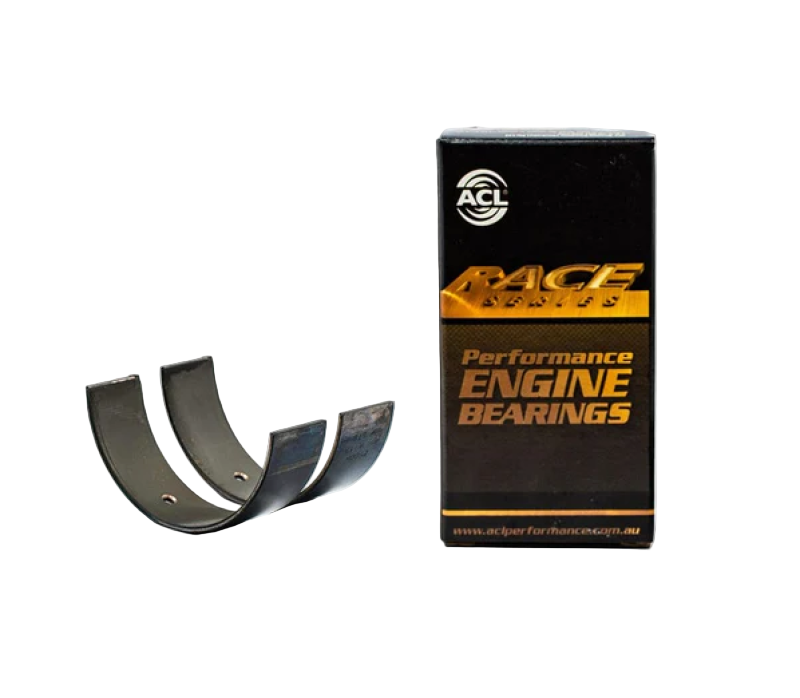

ACL 5M5563H-.25 Main Bearings VW EA888 0.25 Oversize

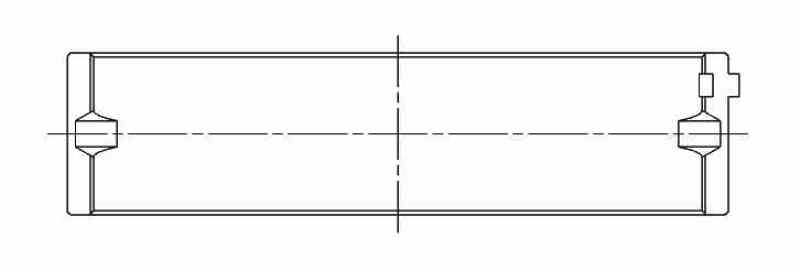

Technical Drawing
Technical Drawing
Click to zoom in

ACL VW 2.0L TSI/TFSI EA888 4cyl 0.25 Oversized High Performance Main Bearing Set

ACL
ACL5M5563H-.25
9315726451366
Bearings
7 Units In Stock - Ships Next Business Day
ACL, Bearings, Engine, Engine Block
$ 267.39
$ 267.39

SKU: 5M5563H-.25 / UPC: 9315726451366

ACL Race Series Main Bearing Set for VW 2.0L TSI/TFSI EA888 Engines

The ACL Race Series main bearing set, engineered specifically for 2.0L TSI/TFSI EA888 4-cylinder engines. This 0.25mm (0.010 in.) undersize set delivers robust load-carrying capacity and consistent oil film strength, making it the best choice for high-revving applications where reliability under extreme conditions matters most. Compared to standard bearings, it provides greater fatigue resistance and heat dissipation through its advanced tri-metal design, ensuring longer service life in demanding performance scenarios.

What's Included in Your Purchase

  • Complete set of 5 high-performance main bearings (upper and lower halves)
  • Part number: 5M5563H-.25
  • UPC: 9315726451366
  • Bearing type: Tri-metal copper-lead construction with hardened steel backing for enhanced support
  • Oversize: 0.25mm (0.010 in.) undersize for reground crankshafts
  • Shipping weight: Approximately 0.62 lbs.

This set arrives ready for installation, with precision-machined tolerances for exact fit and crush to lock securely into the housing.

Vehicle Fitment

Designed for seamless compatibility with EA888 Gen 2 and Gen 3 engines in a broad range of Audi, Volkswagen, and Seat models. Confirm your engine code (e.g., BYT, CABB, CAWA, CHHA) for precise match. Key applications include:

Year Range

Make

Model

Submodel/Notes

2008-2013

Audi

A3

Base

2009-2013

Audi

A4

All variants, including Quattro

2013

Audi

A4 allroad

Base

2010-2013

Audi

A5

All variants

2000+

Audi

A3, A4, A6, TT

TFSI 1798cc (EA888 Gen 2) with codes BYT, BZB, CABA, CABB, CGYA

2015-2017

Audi

Q3

All variants

2014

Volkswagen

Beetle

All variants

2014

Volkswagen

Jetta

All variants

2014

Volkswagen

Passat

All variants

2000+

Volkswagen

Eos, Golf, Jetta, Passat, Polo

TFSI 1798cc (EA888 Gen 2) with codes BYT, BZB, CABA, CABB, CGYA

2006-2014

Volkswagen

Golf GTI (Mk6)

All variants, TFSI 1984cc (EA888 Gen 2) with codes CADA, CAEA, CAEB, CAED, CAWA, CAWB, CBFA, CCTA, CCTB, CCZA, CCZB, CCZC, CCZD, CDNB, CDNC, CDND, CESA, CETA, CFKA, CFPA, CHJA, CJKB, CPMA, CPMB, CPSA

2015+

Volkswagen

Golf GTI/R (Mk7)

All variants, TFSI 1984cc (EA888 Gen 3) with codes CHHA, CHHB, CHHC, CJXA, CJXB, CJXC, CJXD, CJXE, CJXF, CJXG, CNCB, CNCD, CNCE, CPKA, CPLA, CPPA, CULA, CULB, CULC, CWZA, CXCA, CXCB, CXDA, CYFB, CYMC, CYNB, CYPA, CYPB, CYRB, CYRC, DAXB, DAXC, DAYB, DCGA, DEDA, DJHA, DJHB, DJHC, DJJA, DJYA, DKTB, DLBA, DLRA, DLRB, DMFA, DNUA, DNUC, DNUE, DNUF, DRFA

2007-2013

Seat

Leon

All variants

2009

Seat

Freetrack

All variants

2011

Seat

Exeo

All variants

Additional fitment for TFSI 1798cc (EA888 Gen 3) with codes CDAA, CDAB, CDHA, CDHB, CEA, CPKA, CPRA across compatible Audi/VW models from 2013 onward.

Key Specifications

  • Material: Tri-metal construction with lead-tin-copper overlay (0.013-0.018mm thick), nickel barrier, copper-lead-tin lining (0.3mm thick), and SAE 1010 steel backing for maximum strength
  • Dimensions:
    • Tunnel (housing): 63.000-63.019 mm
    • Shaft (journal): 57.958-57.978 mm
    • Max wall thickness: 2.504 mm
    • Max length: 15.50 mm
    • Width: 0.61 in.
    • Outside diameter: 2.4803-2.4811 in.
    • Shaft diameter: 2.2826 in. (undersize adjusted) jegs.com +2
  • Oil Clearance Recommendation: 0.020-0.025mm per 25mm of journal diameter, plus 0.013mm (e.g., 0.063mm for 50mm journal)

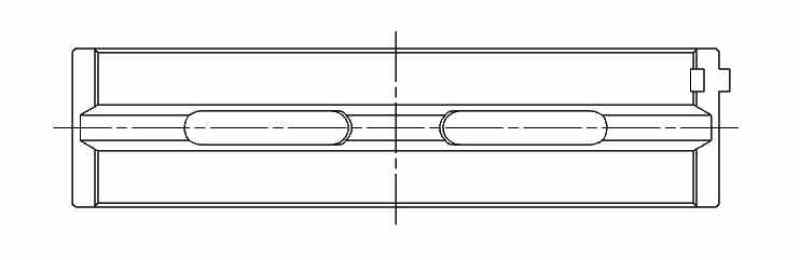

  • Features: Increased eccentricity for bore distortion compensation, full 180° oil grooves on upper halves with tapered run-outs, enlarged ID chamfers for large-fillet cranks, and no flash plating for better heat transfer and retention.
  • Grooved Bearing: Yes

This ACL 5M5563H-.25 set outperforms alternatives by combining high seizure resistance with deformability, allowing it to handle the stresses of boosted and high-RPM operation without compromise. It's the go-to solution for racers and daily drivers alike building reliable power in their EA888 platform.
