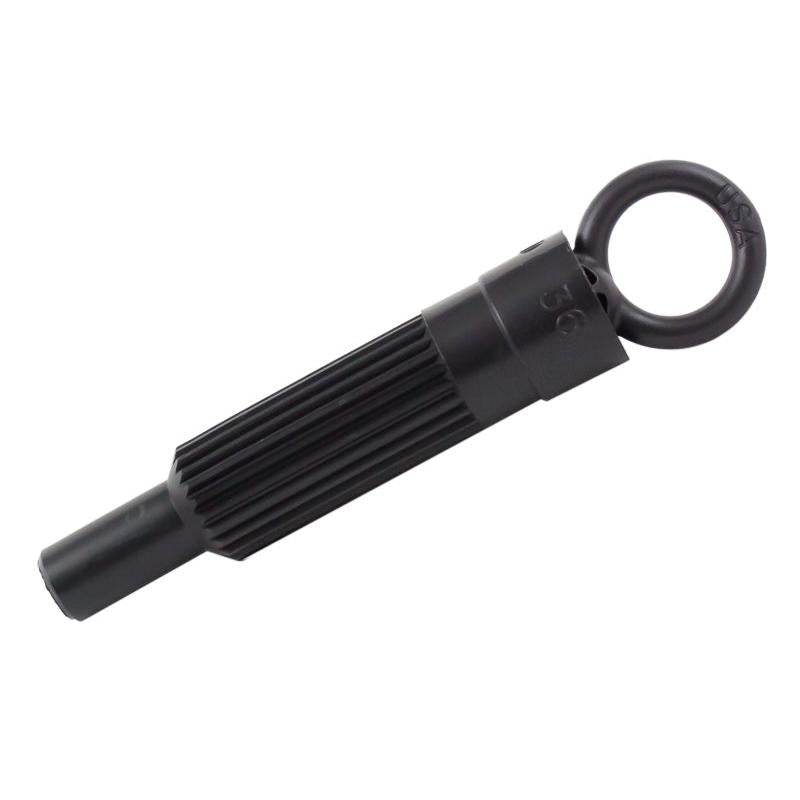

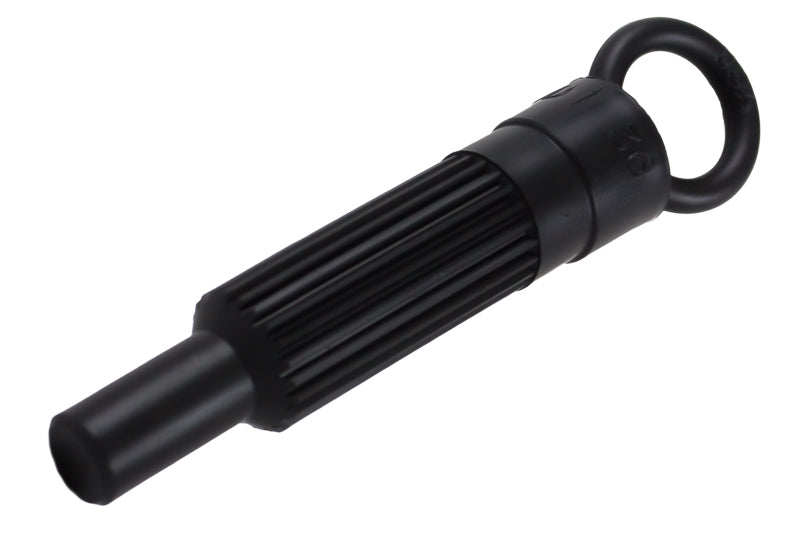

alignment tool simplifies clutch installation by precisely positioning the clutch disc with the pilot bearing. It ensures seamless engagement with the transmission input shaft on 1997-2008 Audi A4 Base and Quattro models plus S4 A6 Allroad RS4 and 1998-2005 VW Passat. Drivers trust this tool for reliable results during performance clutch upgrades. Browse the complete ACT performance clutch collection , compare related clutch.
Key Features
- Precise Disc Alignment: Positions clutch disc splines directly into pilot bearing for accurate setup
- Easy Pressure Plate Install: Holds components steady while torquing bolts preventing misalignment
- Smooth Shaft Engagement: Allows transmission input shaft to slide in without resistance or damage

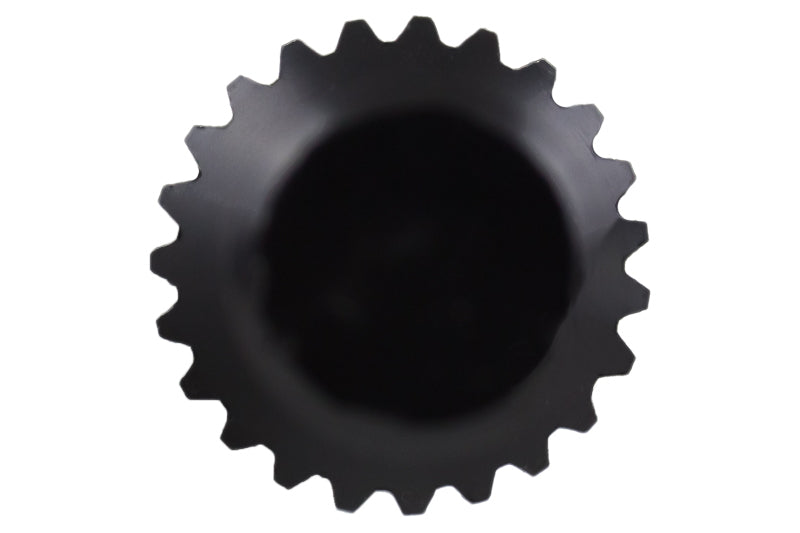

- Audi VW Specific Design: Matches spline count and dimensions for B5 B6 B7 platform vehicles
- Durable Construction: Tough nylon build withstands repeated professional use
- Exact ACT manufacturer part number AT36 for confident product matching
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 1997-2008 | Audi | A4 | Base |
| 1999-2008 | Audi | A4 Quattro | Avant |
| 1997-2008 | Audi | A4 Quattro | Base |
| 2000-2004 | Audi | A6 Quattro | Base |
| 2001-2005 | Audi | Allroad Quattro | Base |
| 2007-2008 | Audi | RS4 | Base |
| 2008 | Audi | RS4 | Cabriolet |
| 2001-2002 | Audi | S4 | Avant |
| 2004-2008 | Audi | S4 | Avant |
| 2000-2002 | Audi | S4 | Base |
| 2004-2008 | Audi | S4 | Base |
| 2004-2009 | Audi | S4 | Cabriolet |
| 2003-2005 | Volkswagen | Passat | GL |
| 1998-2005 | Volkswagen | Passat | GLS |
Vehicle fitment is a starting point. Confirm every drivetrain specification and the exact ACT part number before installation.
Specifications
| Brand | ACT |
|---|---|
| Manufacturer Part Number | AT36 |
| Product Type | Tools |
| Condition | New |
What's Included
The exact ACT tool and quantity identified by the product title and MPN. Bearings, alignment tools, flywheel bolts, pressure-plate bolts, hydraulic parts, and related hardware are included only when specifically stated.
About ACT
ACT develops application-specific clutch kits, friction discs, pressure plates, flywheels, bearings, and supporting drivetrain components for street and motorsport use. Black Ops Auto Works organizes every ACT listing by exact MPN and verified vehicle application.
Related Parts
- ACT 2007 Infiniti G35 Alignment Tool
- ACT 2003 Mitsubishi Lancer Alignment Tool
- Shop the complete ACT clutch and drivetrain collection
Frequently Asked Questions
What is ACT part AT36?
It is the tool described on this page in the exact listed configuration.
How do I confirm fitment?
Match the exact MPN plus year, make, model, trim, engine, transmission, drivetrain, and every application note.
Can I choose a clutch component by vehicle alone?
No. Clutch diameter, input-shaft spline, flywheel step, release system, engine code, and transmission can vary within one vehicle listing.
What is included?
Only the ACT components and quantity identified by this exact title and MPN are included. Related hardware or drivetrain parts may be separate.
Is break-in required?
Follow the current ACT instructions for the exact friction material and kit. Street clutch assemblies commonly require a controlled break-in period before full-load use.
Is professional installation recommended?
Yes. Clutch and flywheel work requires transmission removal, correct fastener procedures, alignment, release-system setup, and final operational checks.
Is this product new?
Yes. The item condition is new unless the product page explicitly states otherwise.
What should I verify before checkout?
Confirm the MPN, application, torque requirement, friction material, spline and diameter, flywheel compatibility, included items, and required hardware.
Installation Instructions
- Confirm ACT part AT36 and the complete engine, transmission, flywheel, spline, and release-system application before disassembly.
- Inspect every component and compare the new part with the removed assembly before modifying or installing anything.
- Inspect the flywheel or friction surface, pilot support, release bearing, fork, pivot, hydraulic system, seals, and mounting hardware.
- Clean friction surfaces correctly and keep oil, grease, and fingerprints away from the clutch disc and mating faces.
- Use the vehicle service procedure and current ACT instructions for alignment, fasteners, torque sequence, release travel, and clearances.
- Verify smooth release, correct free play, clean gear engagement, and leak-free operation before road use.
- Complete the manufacturer-specified break-in procedure before launches, dyno pulls, racing, towing, or full-torque operation.
