Street-Ready Clutch Engagement for the FA20-Powered BRZ, FR-S, and 86

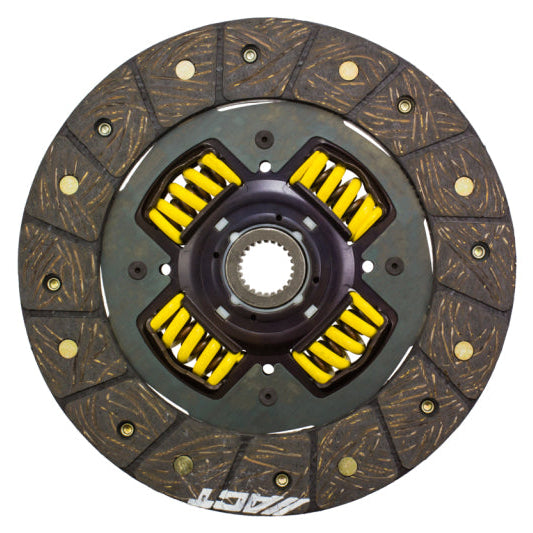

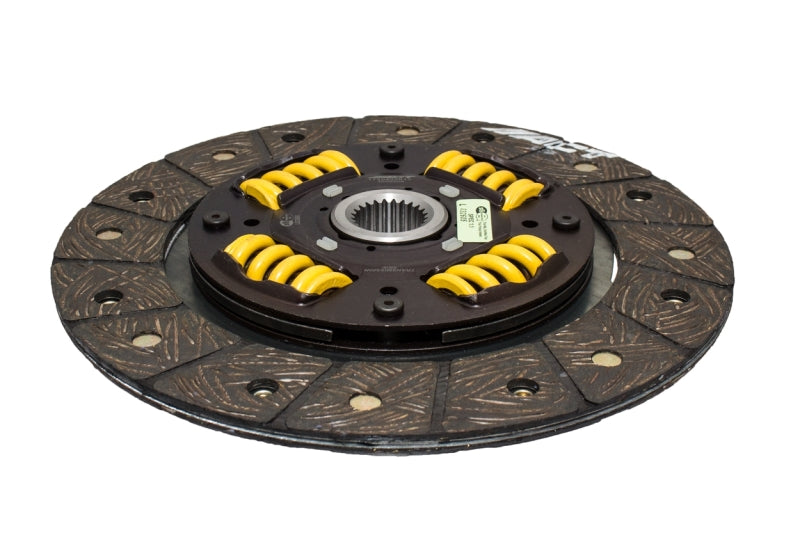

The ACT ACT3000506 is a Performance Street Sprung clutch disc engineered for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86 on the FA20 platform. It is purpose-built for drivers who demand more from their drivetrain without sacrificing daily driveability. The ACT3000506 delivers 70 percent greater torque capacity over the OE disc at 270 ft-lbs, using an 8.8 inch diameter, 24-spline, 1-inch spline hub. The Street Sprung compound provides progressive engagement with spring-dampened torsional cushions that absorb drivetrain shock during normal street driving, making it an ideal upgrade for a lightly modified daily driver or track car that sees occasional street use. This disc is designed to pair with ACT's Heavy Duty and Xtreme pressure plates for a complete performance clutch system on the BRZ, FR-S, and 86.
Key Features
- 70 percent greater torque capacity than the OE clutch disc on the FA20 platform
- 270 ft-lb torque capacity with 8.8 inch / 224mm disc diameter
- 24-spline, 1-inch spline hub for direct bolt-in fitment
- Street Sprung compound with spring-dampened torsional cushions for smooth street engagement
- Compatible with ACT Heavy Duty and Xtreme pressure plates
- Designed for lightly modified street and occasional track use
- Direct-fit replacement with no modifications required
- Backed by ACT's industry-leading warranty program
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2013-2020 | Subaru | BRZ | Premium, Sport-tech RS |
| 2017-2020 | Toyota | 86 | GT, Special Edition, TRD Special Edition, Hakone Edition |
Specifications
| Detail | Value |
|---|---|
| Part Number | ACT3000506 |
| SKU | ACT3000506 |
| UPC | Not Available |
| Disc Diameter | 8.8 in / 224mm |
| Spline Count | 24 |
| Spline Diameter | 1 inch |
| Torque Capacity | 270 ft-lbs |
| OE Torque Increase | 70% |
| Disc Type | Street Sprung |
| Compatible Pressure Plates | ACT Heavy Duty and Xtreme series |
| Warranty | ACT Industry-Leading Warranty |
What's Included
- 1 x ACT3000506 Performance Street Sprung clutch disc
Related Parts on Our Site
- ACT 3000504 — Perf Street Sprung Disc (alternate disc option for FR-S / BRZ / 86)
- ACT 6224218-1 — 6 Pad Sprung Race Disc (race-duty upgrade)
- ACT RB004 — Release Bearing for FR-S / BRZ / 86
- ACT AT90 — Clutch Alignment Tool
About ACT
Advanced Clutch Technology (ACT) has been designing and manufacturing performance clutch components in the USA since 1991. Every ACT disc, pressure plate, and flywheel is engineered to precise tolerances using premium materials and validated through rigorous dyno and track testing. ACT backs its performance line with an industry-leading warranty and provides technical support for all fitment and installation questions.
Frequently Asked Questions
What is the ACT ACT3000506?The ACT ACT3000506 is a Performance Street Sprung clutch disc for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86 (FA20 platform). It delivers 270 ft-lbs of torque capacity, a 70 percent increase over the OEM disc, with a spring-dampened Street Sprung design for smooth daily-driver engagement.
What is the difference between the ACT3000506 and the ACT3000504?Both discs fit the same FA20 platform vehicles. The ACT3000506 is a higher-spec Performance Street Sprung disc with greater torque capacity, while the ACT3000504 is the standard Street Sprung option. The ACT3000506 is suited to more aggressively modified engines, while the ACT3000504 works well for light bolt-on builds.
Does the ACT3000506 require a specific pressure plate?Yes. The ACT3000506 is designed to pair with ACT Heavy Duty or Xtreme pressure plates for the FA20 platform. Using an OEM pressure plate with a performance disc is not recommended, as the OEM spring pressure will not fully clamp the higher-capacity disc.
Is this disc streetable for daily driving?Yes. The Street Sprung design uses torsional dampening springs that cushion drivetrain shock during low-speed street operation, giving the ACT3000506 a more forgiving pedal feel than rigid or cerametallic discs. It is appropriate for a daily driven BRZ, FR-S, or 86 that also sees track days.
Does this fit the 2018-2020 Toyota 86 GT?Yes. The ACT3000506 fits the 2018-2020 Toyota 86 GT and all other listed trims of the FA20-powered 86 from 2017 to 2020, including the TRD Special Edition and Hakone Edition.
Do I need a new release bearing when installing this disc?It is strongly recommended to replace the release bearing at the same time as the clutch disc, particularly if the existing bearing has high mileage. The ACT RB004 release bearing is a direct-fit option for the FR-S, BRZ, and 86 platform.
Is an alignment tool required for installation?Yes. A clutch alignment tool is required to center the disc properly before tightening the pressure plate. The ACT AT90 alignment tool is compatible with this application and is available separately on our site.
What warranty does ACT provide on this disc?ACT provides an industry-leading warranty on all performance clutch components. Contact ACT directly or consult the included documentation for full warranty terms and conditions specific to your application.
Installation Instructions
- Safely lift and support the vehicle and remove the driveshaft and transmission.
- Remove the OEM pressure plate and clutch disc assembly.
- Inspect and resurface or replace the flywheel as needed. ACT recommends a clean, flat friction surface.
- Install the new ACT3000506 disc onto the flywheel using the alignment tool (ACT AT90 or equivalent) to center it in the splines.
- Install the ACT pressure plate (Heavy Duty or Xtreme) and torque the bolts to factory spec in a star pattern.
- Replace the release bearing with the ACT RB004 or equivalent.
- Reinstall the transmission and driveshaft. Torque all fasteners to specification.
- Adjust clutch pedal free-play if applicable and test engagement through several drive cycles before hard use.
