Description

AEM 10 Micron Fuel Filter

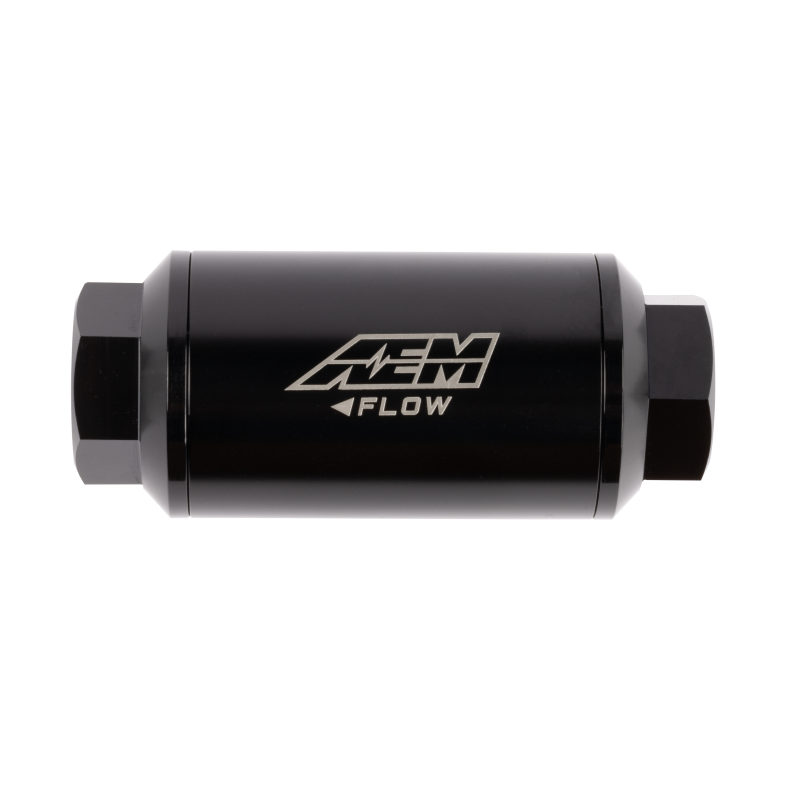

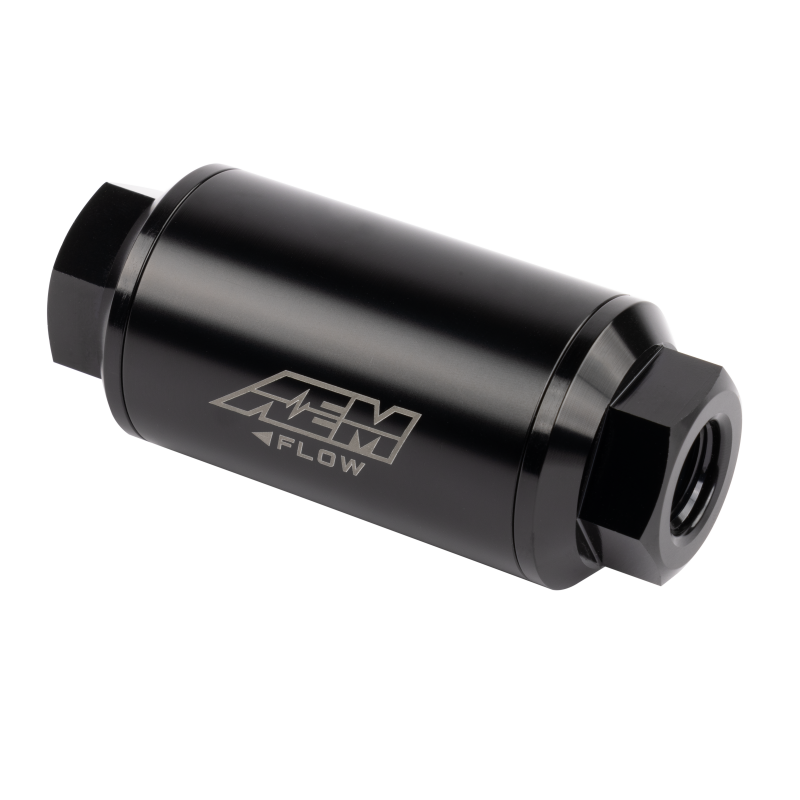

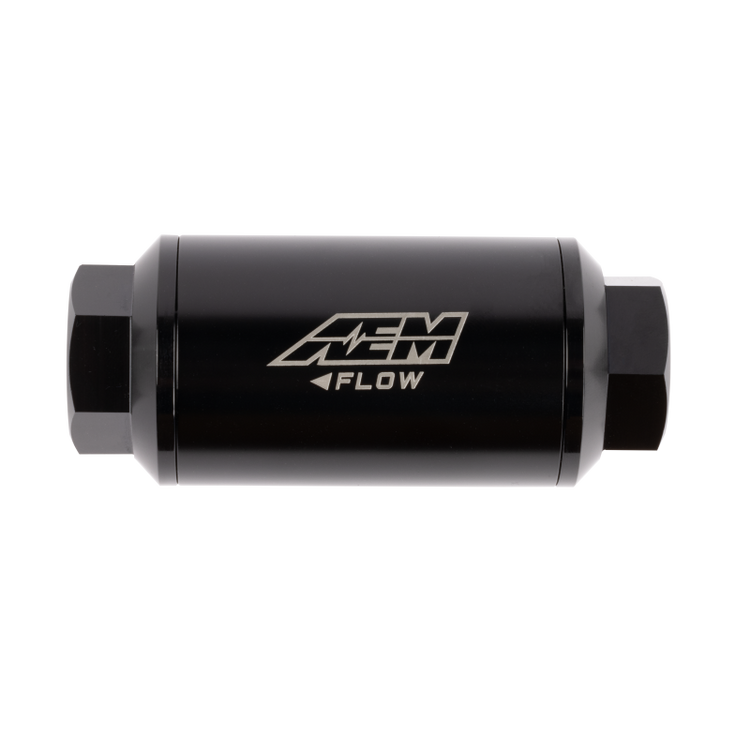

AEM 25-204 is a universal inline fuel filter with 10 micron filtration, -6 AN ORB female connections and a manufacturer-listed 100 GPH flow rating. The compact housing measures 3.5 inches long by 1.5 inches in diameter.

Key Features

  • Designed for compatible fuel systems; verify fuel type, flow direction, fitting size, service requirements, and pressure rating.

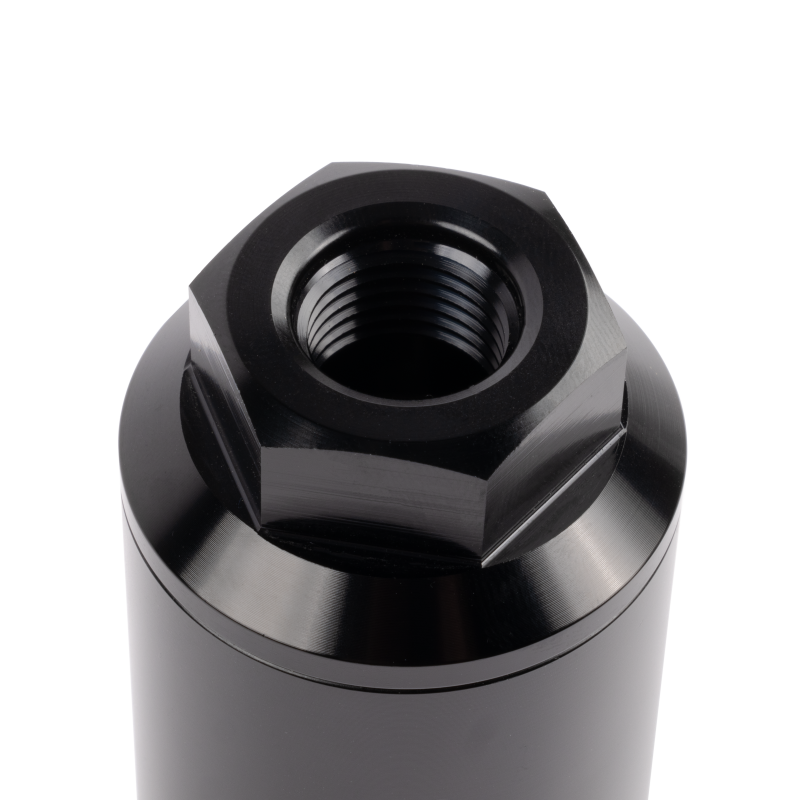

  • -6 AN ORB female inlet and outlet.
  • Manufacturer lists gasoline/E85 compatibility and Viton seals.
  • Match the entire installed system rather than treating a flow or micron figure as vehicle-specific fitment.

Fitment

Component / installation Required application
System Universal inline installation with correctly matched fuel, flow requirement and mounting clearance
Connections -6 AN ORB female inlet and outlet
Physical package 3.5-inch length x 1.5-inch diameter
Service selection Use a replacement element explicitly specified for this exact compact housing; do not assume the larger filter's cartridge fits

The exact current page lists 100 GPH without a test-pressure point. Do not substitute the larger -10AN filter's flow chart or dimensions. Its overview/end-gender fields specify female ORB ports; the separate generic Fitting Type field says Male and should not override the actual port description.

Specifications

Detail Value
Brand AEM
Manufacturer Part Number 25-204
Product Type Fuel Filters
Item supplied Complete inline filter assembly
Condition New
Filtration 10 micron
Connections -6 AN ORB female inlet and outlet
Size / component application 3.5-inch length x 1.5-inch diameter
Manufacturer-listed flow 100 GPH; test-pressure point not stated on exact page

What's Included

  • One complete inline fuel-filter assembly

Fuel-line adapters, vehicle-specific brackets and a complete plumbing kit are separate unless explicitly identified in the exact supplied package.

About AEM

AEM develops performance electronics, monitoring, fueling, ignition, and water-methanol products for enthusiast and motorsport applications. Black Ops Auto Works organizes AEM listings by exact part number and available application data to support accurate product selection.

Related Parts

Select other fuel-system parts by their own application data; a shared brand or line size does not prove interchangeability.

Frequently Asked Questions

What is the 25-204?

It is a universal inline fuel-filter assembly in the connection size and filtration configuration listed above.

How do I confirm compatibility?

Match inlet/outlet thread and seal type, fuel compatibility, mounting space and complete-system flow requirements.

What filtration rating is documented?

10 micron. A micron figure alone does not establish an absolute efficiency percentage or a complete fuel-system performance guarantee.

Is a complete housing included?

Yes, this listing is the complete filter assembly. External fuel-line adapters, mounting hardware and spare replacement elements are not promised.

Can I substitute another filter's flow rating?

No. Use this exact assembly's manufacturer information and the actual fuel-system requirements; port size alone does not determine flow.

What fuel guidance should I follow?

AEM lists gasoline and E85 compatibility, with race fuels in the current specifications. Verify compatibility of the full system rather than transferring another filter's fuel list.

How should the service element be oriented?

Follow the exact product's flow marking and service instructions. The large -10AN housing's spring and cartridge arrangement must not be assumed to apply.

What manufacturer restrictions or source limits remain?

The current page lists emissions code 5. No separate exact installation manual or quantified maximum working pressure was confirmed on that page; do not borrow those values from a related filter.

Installation Instructions

  1. Confirm the exact -6AN ORB female inlet/outlet connections and review the manufacturer product information before installation.
  2. Depressurize the fuel system and eliminate ignition sources before loosening connections.

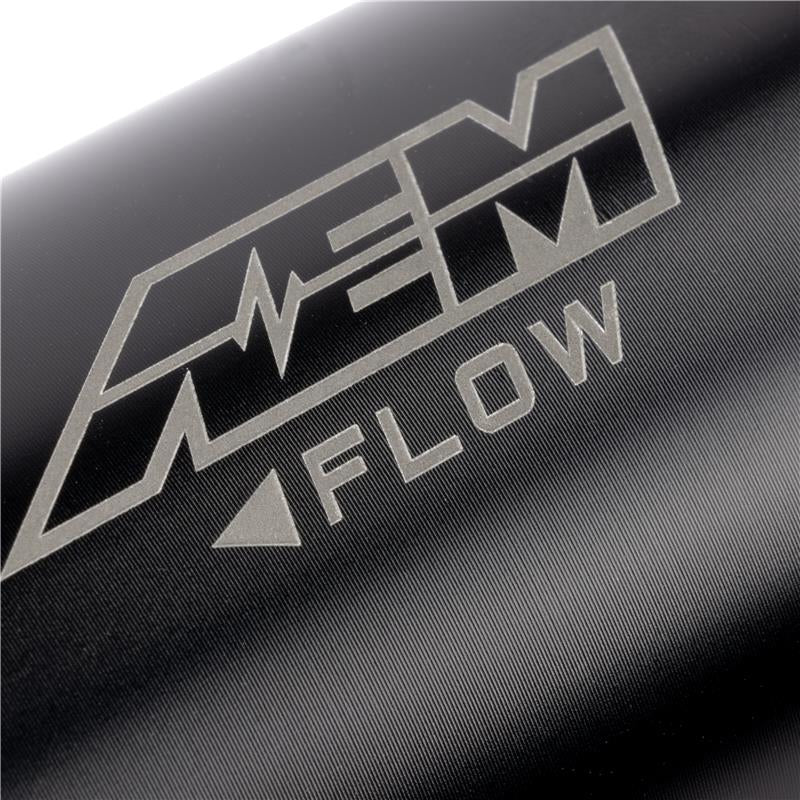

  3. Mount the compact housing securely, protect it and the lines from heat and abrasion, and follow its flow marking.
  4. Use fuel-compatible fittings and the correct O-ring sealing method. Do not force a flare or tapered-thread adapter into a different port standard.
  5. Prime the system, check for leaks and confirm adequate flow and pressure under the actual system requirements.
