Description

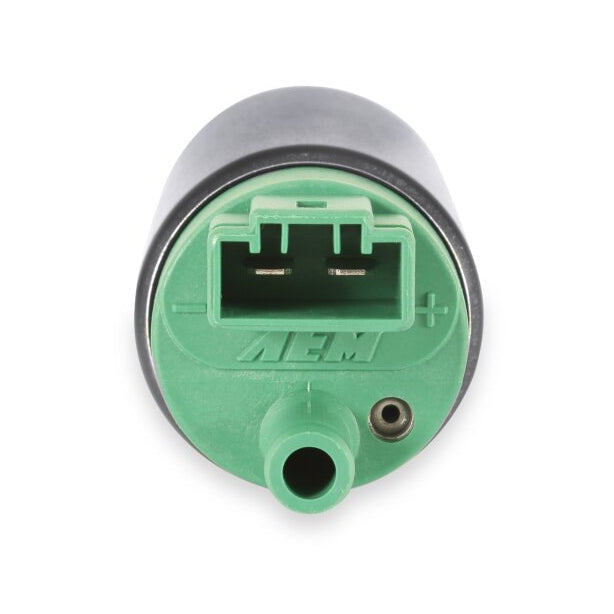

AEM 400 LPH E85 Compatible Fuel Pump Kit - Single Barb - Ethanol Compatible

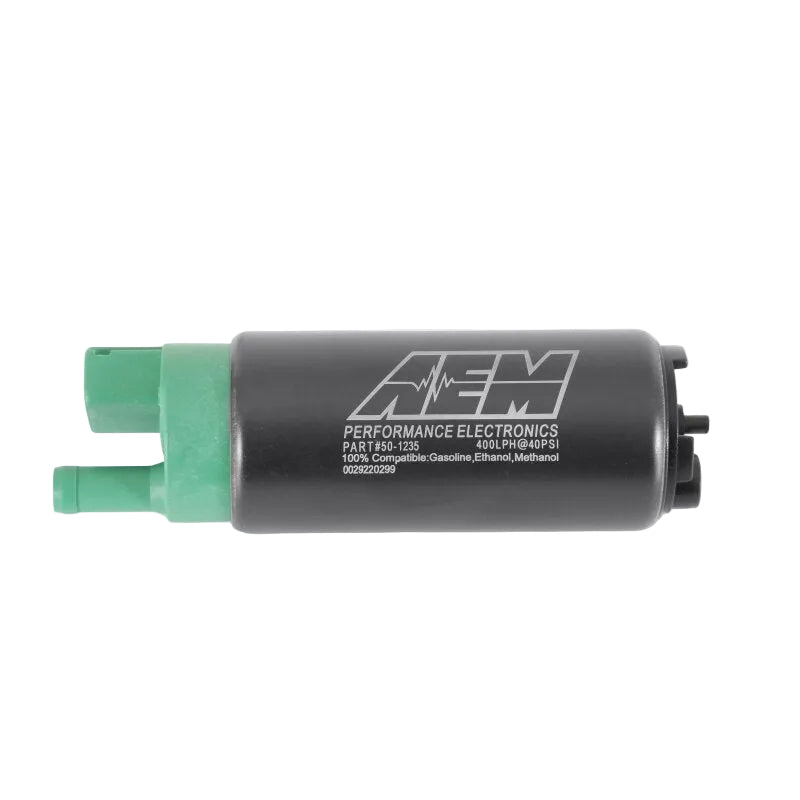

AEM 50-1235 is a 400+ LPH in-tank fuel pump with a smooth/single-barb outlet intended for 5/16-inch-ID hose. The exact manufacturer page distinguishes it from the double-barb version and states that no integrated check valve is fitted. It is a universal component requiring assembly, strainer and wiring checks.
Key Features

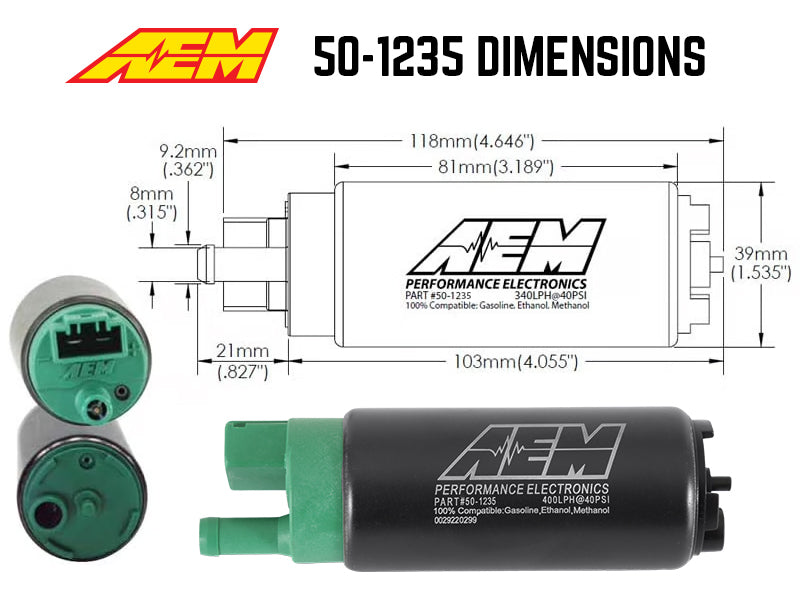

- 39 mm diameter body; in-tank configuration

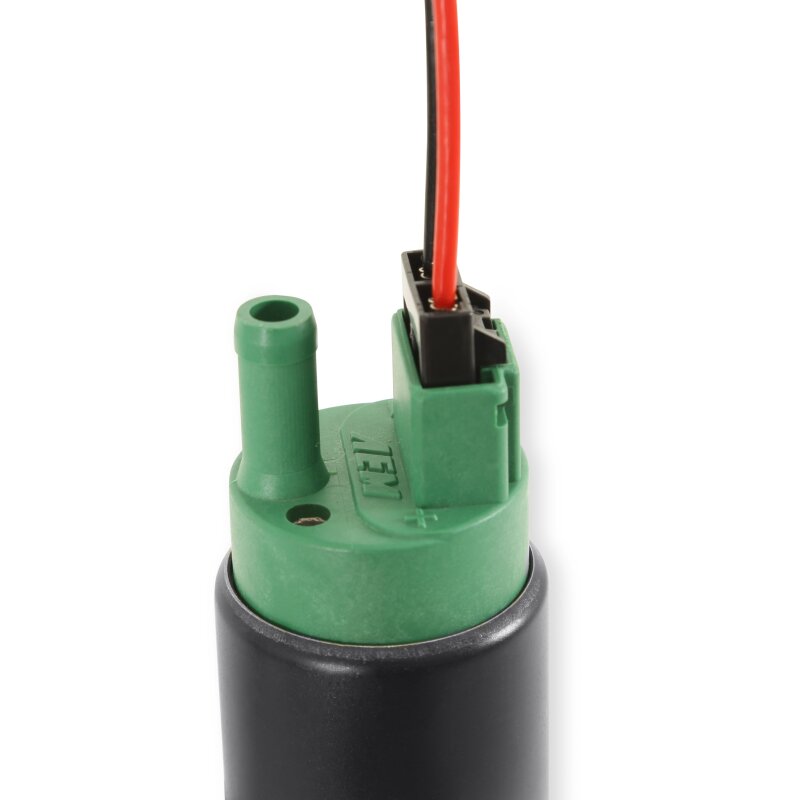

- 11 mm inlet in line with 9 mm outlet barb; smooth/single-barb outlet for 5/16-inch-ID hose, per exact PDP
- Current primary PDP lists pump/race gasoline, ethanol up to E100 and methanol up to M100.
- Flow ratings apply at the stated test pressure and voltage; they are not a guaranteed horsepower or installed-system capacity.
- Universal hardware requires checking the actual fuel assembly, wiring, polarity and filtration.
Fitment
| Detail | Value |
|---|---|
| Application | Universal component, not a certified vehicle-specific assembly replacement. Verify body, inlet/outlet geometry, strainer clearance, mounting, wiring polarity and electrical capacity. AEM's vehicle finder is reference-only and does not approve modifying a tank to force fitment. |
| System | In-tank EFI use; do not install externally or infer a carburetor application from generic PDP table wording. |
| Source qualifications | The current page links a dimension sheet rather than a complete installation manual. Exact fuse and circuit details remain open; another pump's manual is not substituted. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 50-1235 |
| Body/configuration | 39 mm diameter body; in-tank configuration |
| Inlet/outlet | 11 mm inlet in line with 9 mm outlet barb; smooth/single-barb outlet for 5/16-inch-ID hose, per exact PDP |
| Fuel compatibility | Current primary PDP lists pump/race gasoline, ethanol up to E100 and methanol up to M100. |

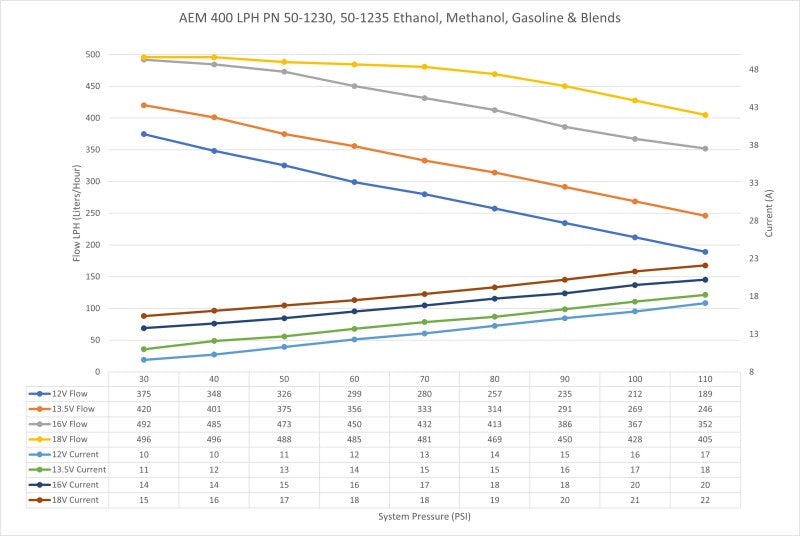

| Published flow tests | 400+ LPH at 40 PSI and 330+ LPH at 70 PSI, both at 13.5 V. Flow at the engine depends on line losses, supply voltage and pressure. |
| Electrical | Current primary PDP lists 12 A at 40 PSI and 15 A at 70 PSI. Exact fuse/voltage-limit/relay instructions are not established by the linked dimension sheet; obtain the correct supplied-pump instructions. |

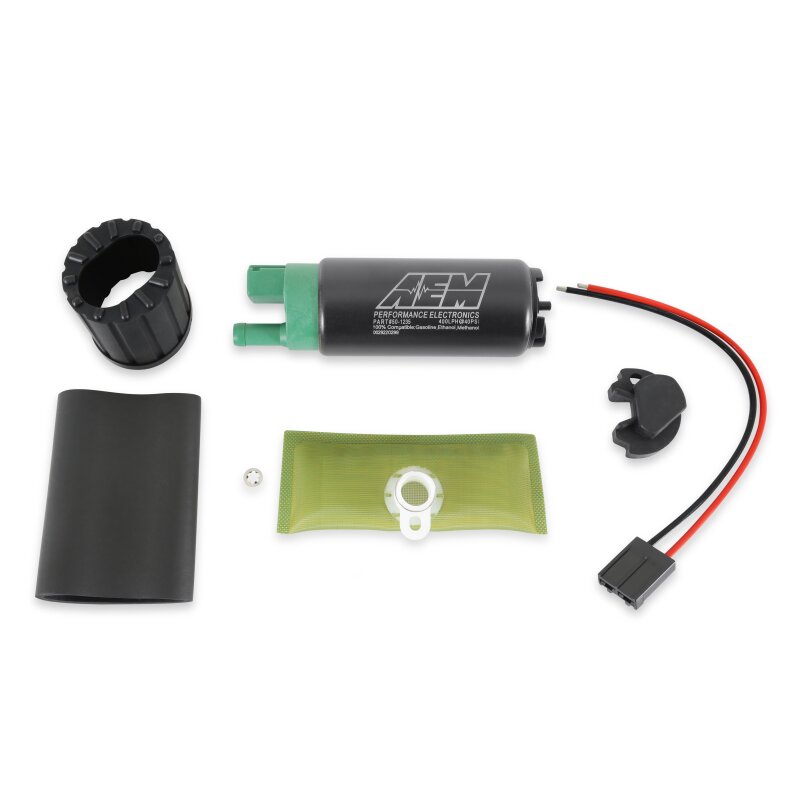

What's Included
- One smooth/single-barb fuel pump

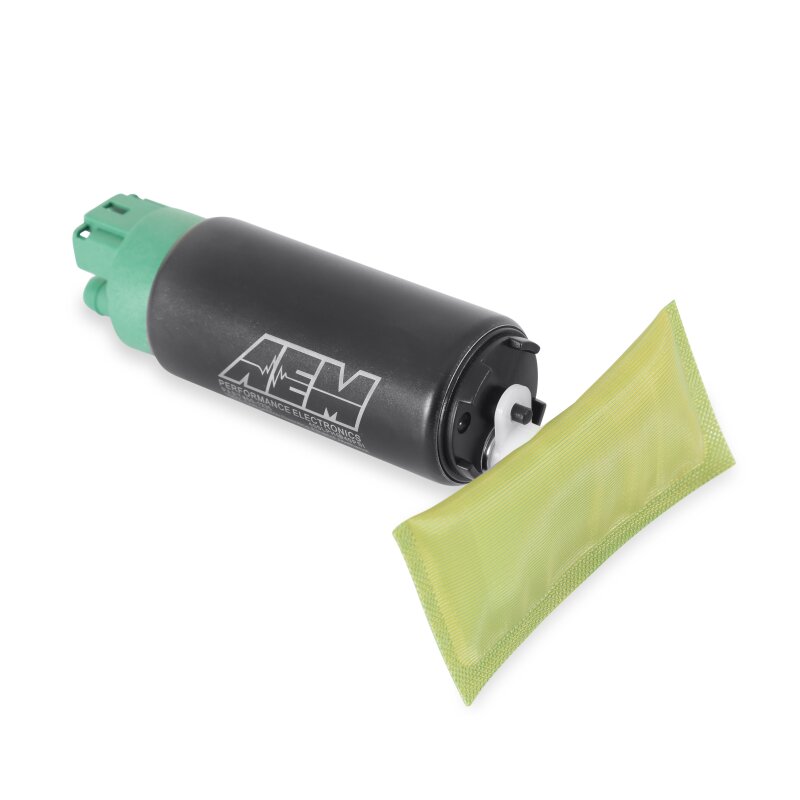

- Wiring harness, universal pre-filter, end cap and rubber buffer sleeve per current PDP
- No integrated check valve
- No separate regulator, relay circuit or application-specific internal hose/clamp package is promised
About AEM
AEM develops performance electronics, monitoring, fueling, ignition, and water-methanol products for enthusiast and motorsport applications. Black Ops Auto Works organizes AEM listings by exact part number and available application data to support accurate product selection.
Related Parts
- Browse AEM fuel-system components; verify exact ports, filtration and system compatibility before selecting a related part.
Frequently Asked Questions
What is the 50-1235?It is the AEM universal fuel pump in the configuration, pressure-dependent flow rating and kit contents described above.
Is this a guaranteed drop-in replacement?No. Match the actual assembly dimensions, inlet/outlet, mounting, pre-filter clearance and wiring. AEM's vehicle finder is reference-only and does not approve modifying a tank to force installation.

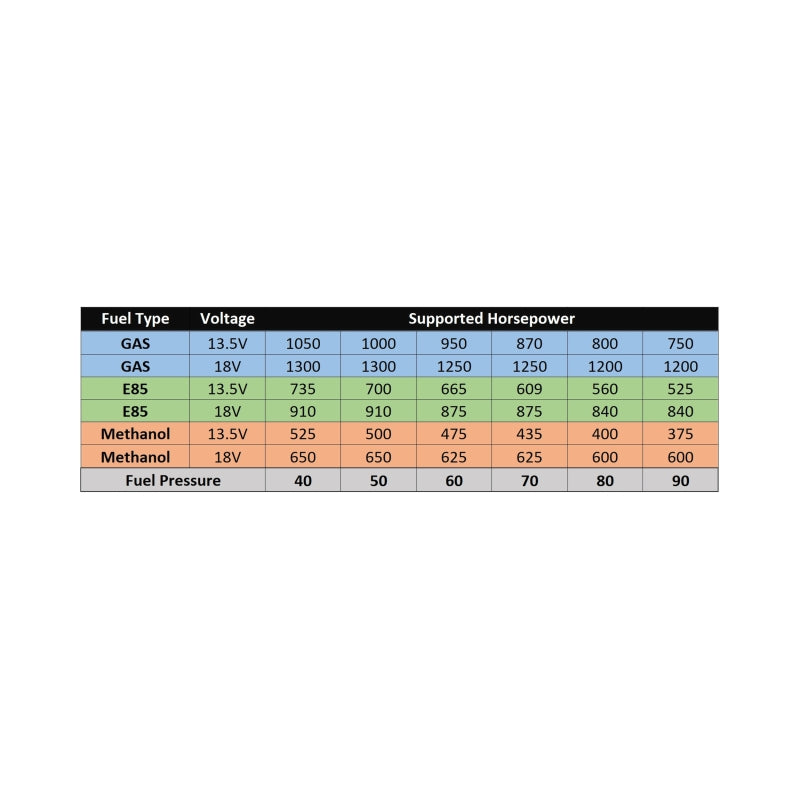

Does the flow rating apply at every pressure?No. Use the stated pressure/voltage test points. Rising fuel pressure, line restrictions and voltage losses affect flow; a pump-level flow rating is not a complete-system horsepower guarantee.
Which fuels are supported?Current primary PDP lists pump/race gasoline, ethanol up to E100 and methanol up to M100.
What must I verify electrically?Current primary PDP lists 12 A at 40 PSI and 15 A at 70 PSI. Exact fuse/voltage-limit/relay instructions are not established by the linked dimension sheet; obtain the correct supplied-pump instructions.
What mounting or instruction conflict remains?The current page links a dimension sheet rather than a complete installation manual. Exact fuse and circuit details remain open; another pump's manual is not substituted.
Does the kit include a complete vehicle installation package?No. Use the exact contents list above. Universal strainers, connectors and isolators may not match a particular assembly, and any unverified hose, clamp or adapter package is not promised.
What should be checked before starting the engine?Verify polarity, correct filtration, fuel-rated wiring/hoses, secure mounting and the full system's leak integrity. Correct all leaks and confirm delivered pressure/flow before operation.
Installation Instructions
- Obtain the full installation instructions for the supplied pump; the current exact manufacturer product page links a dimension sheet rather than a complete installation manual.
- Have a qualified installer depressurize and service the fuel system with appropriate ventilation, fire protection and fuel-rated protective equipment.
- Universal component, not a certified vehicle-specific assembly replacement. Verify body, inlet/outlet geometry, strainer clearance, mounting, wiring polarity and electrical capacity. AEM's vehicle finder is reference-only and does not approve modifying a tank to force fitment.
- Verify the supplied pump's fuel compatibility, permitted mounting location, electrical protection and exact kit contents. Resolve the documented source conflicts rather than selecting another pump's instructions.
- Use suitable fuel-rated hoses, filters and wiring. Do not route fuel hoses through the vehicle interior; protect them from heat, abrasion, moving parts and electrical cables.
- Check polarity before energizing. Leak-test the entire system before starting the engine, then verify pressure and delivered fuel capacity under the actual operating conditions.
