AEM CD-5L Carbon Logging Flush Digital Dash Display

AEM
AEM30-5601F
840879026417
Gauges
2 Units In Stock - Ships Next Business Day
$ 1,799.95 $ 1,599.95
$ 1,599.95

SKU: 30-5601F

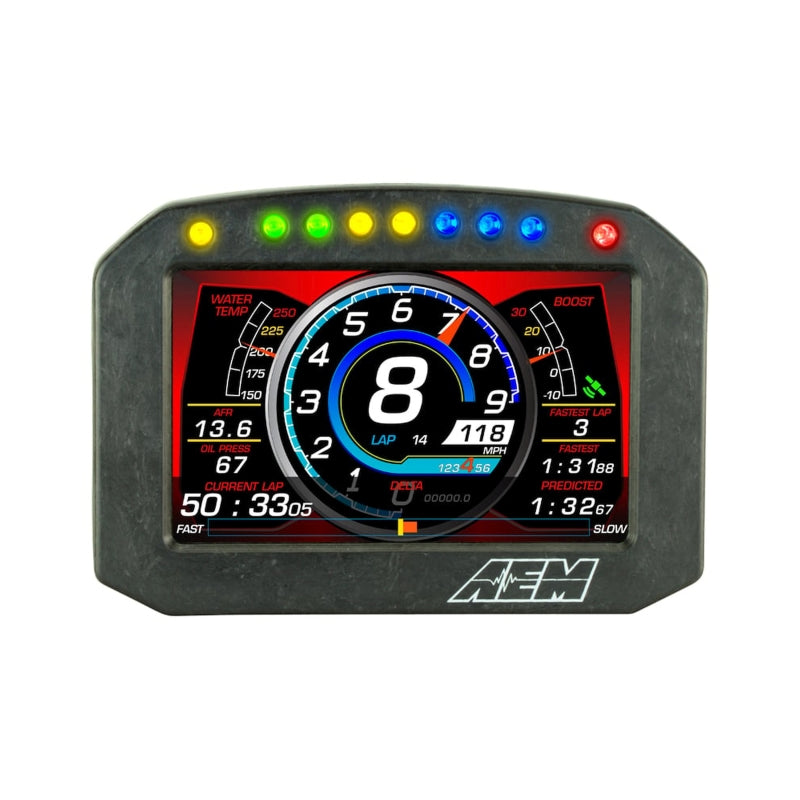

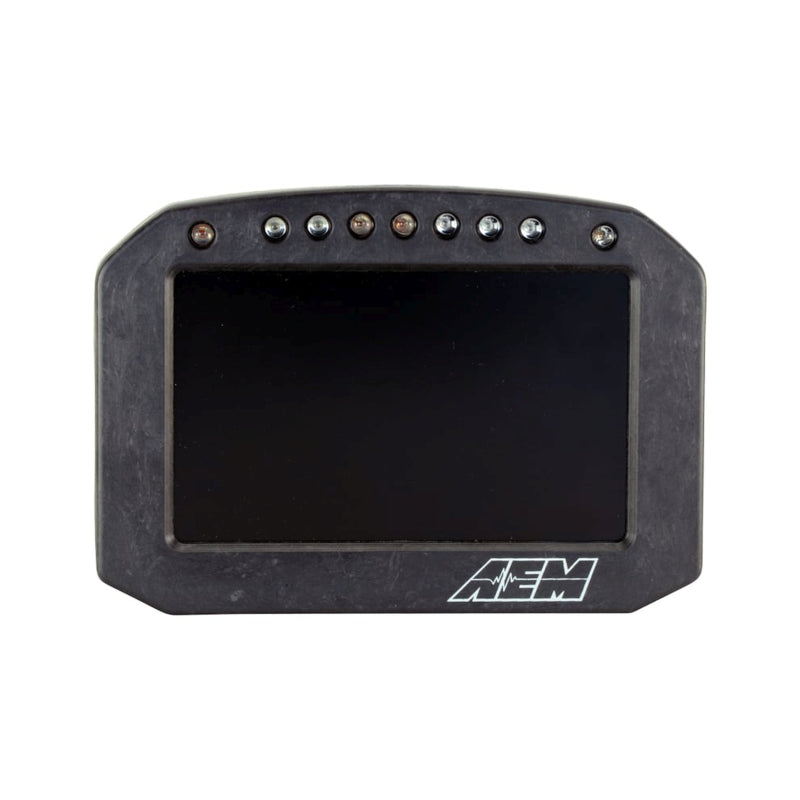

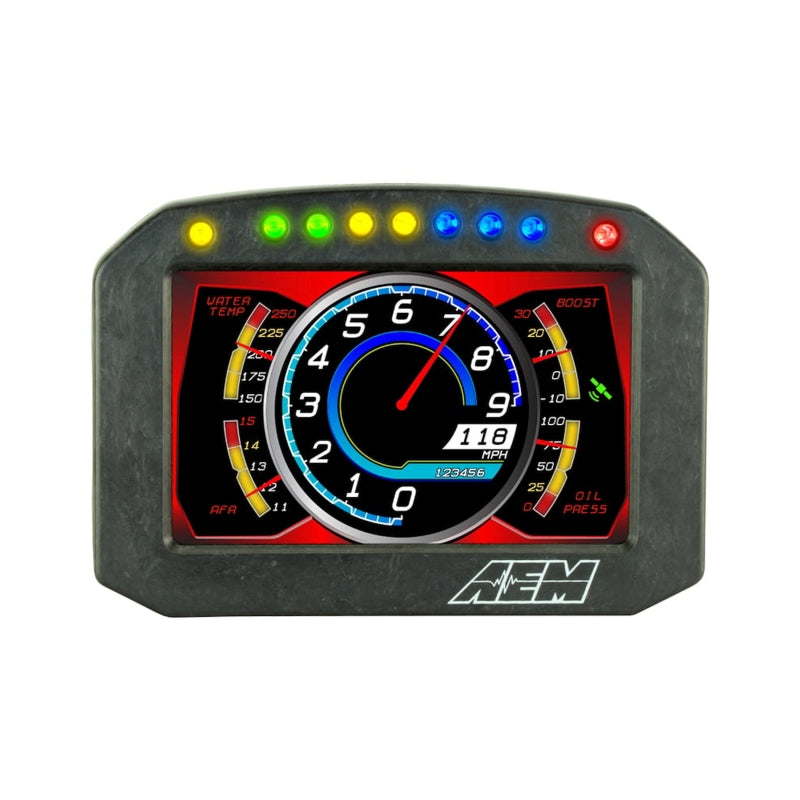

AEM CD-5L Carbon Logging Flush Digital Dash Display

Take full control of your vehicle’s data with the AEM CD-5L Carbon Logging Flush Digital Dash Display. This premium 5-inch full-color digital dash combines a sleek, flush-mount carbon fiber design with powerful onboard data logging, making it the perfect choice for track cars, race vehicles, and high-performance street builds. With 200MB of internal logging capability (up to 1,000Hz per channel), support for both AEMnet and third-party CAN bus systems, and seven programmable LED shift lights, the CD-5L delivers professional-grade performance in a compact, modern package.

Key Features

  • 5" Full-Color Daylight Readable Display – 800x480 resolution with 1000cd/m² brightness and anti-glare filter
  • Built-in Data Logging – 200MB internal memory with up to 1,000Hz per channel sampling rate
  • Advanced CAN Bus Support – Works with AEMnet devices and most aftermarket/non-AEM CAN systems
  • Seven Programmable LED Shift Lights – User-defined RPM range with dimmable brightness

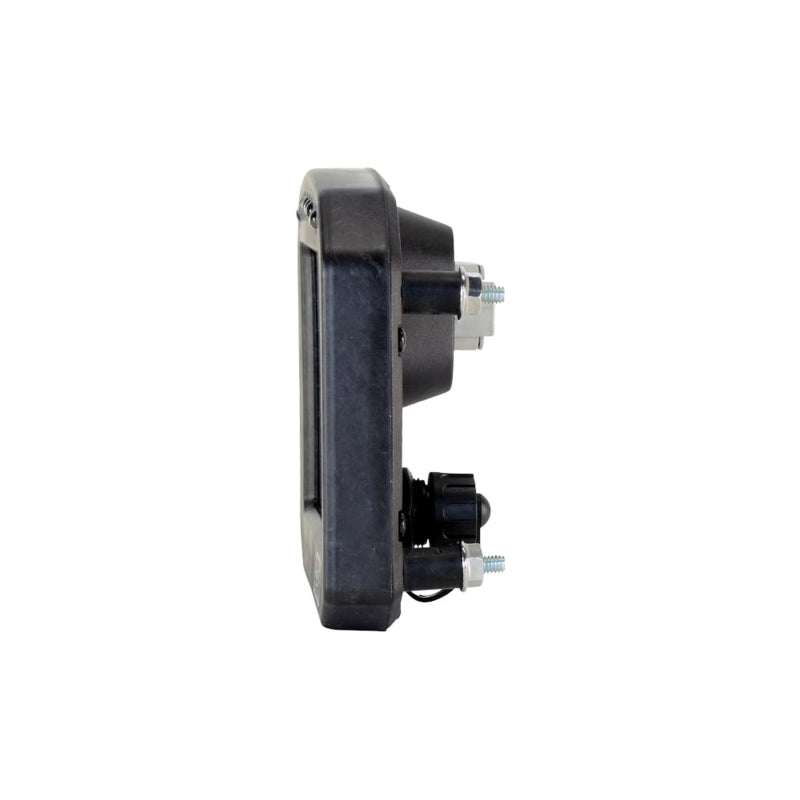

  • Flush-Mount Carbon Fiber Design – Sleek, low-profile enclosure ideal for tight dash spaces

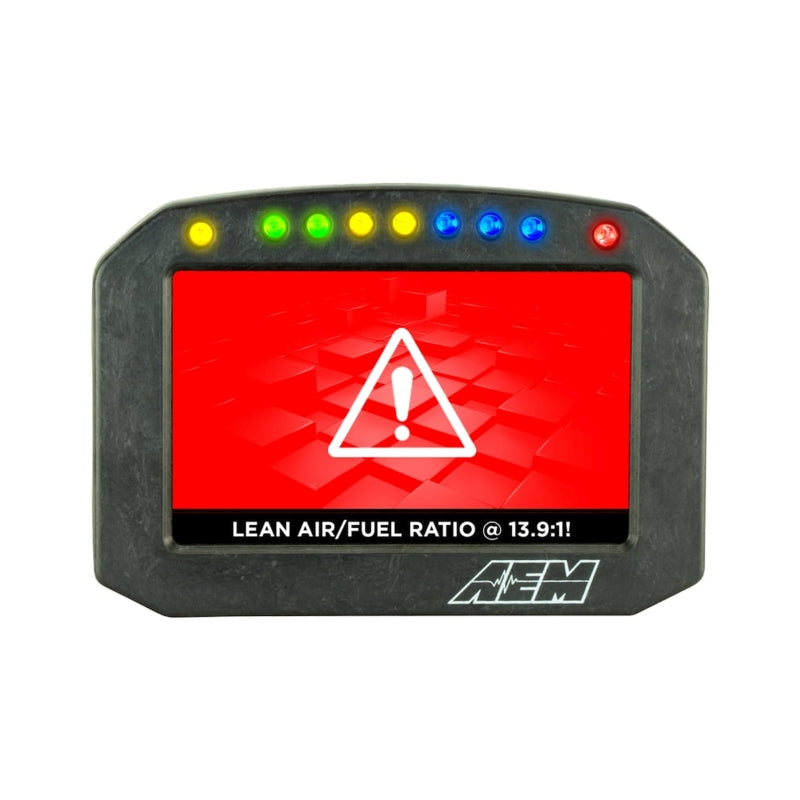

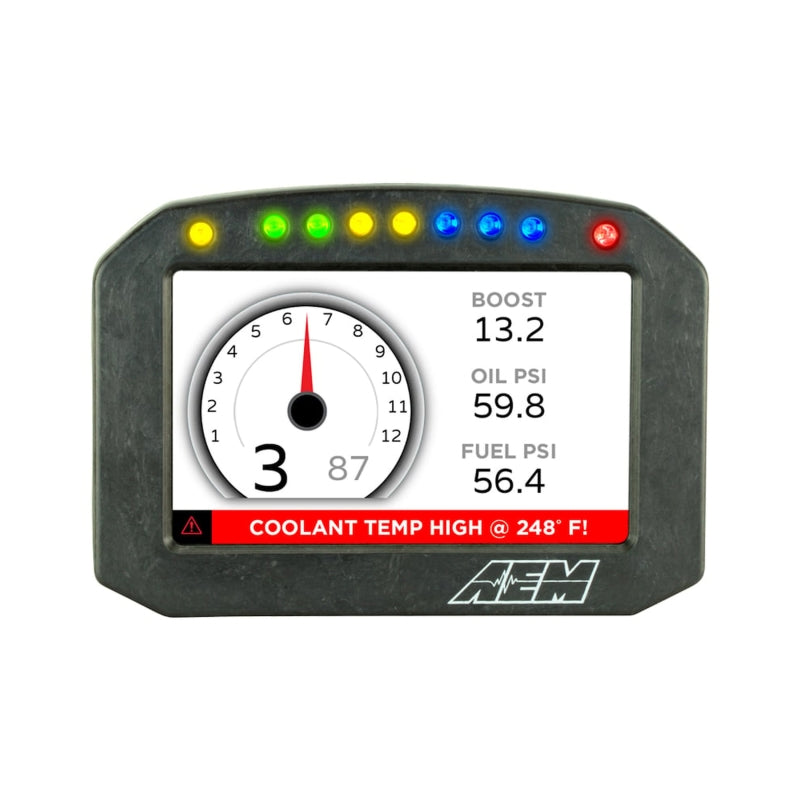

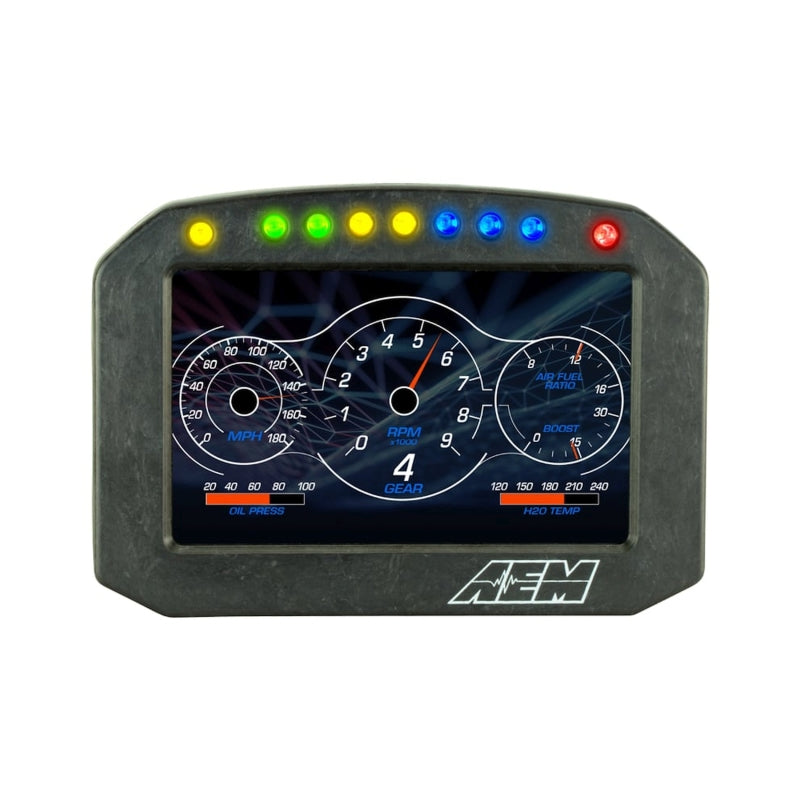

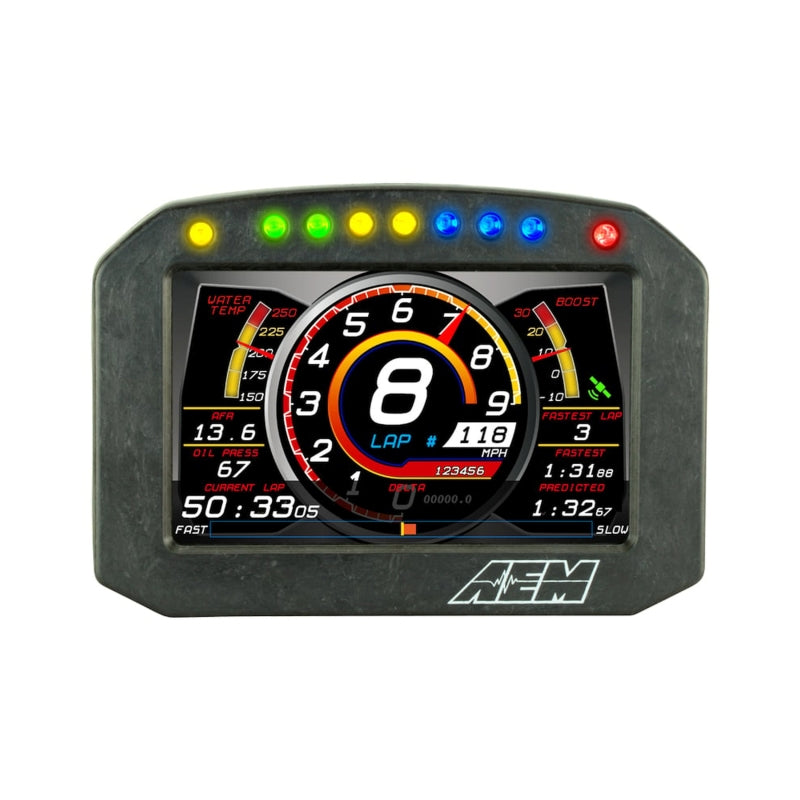

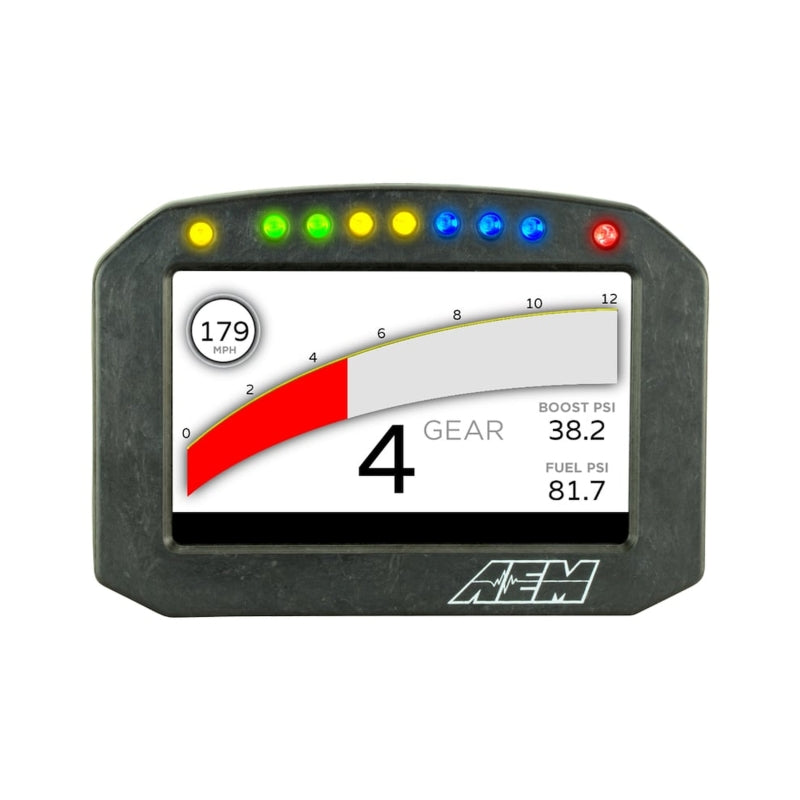

  • Customizable Pages & Warnings – Create up to 7 programmable pages with custom graphics and alarms
  • IP65 Water Resistance – Built tough for competition and harsh environments
  • Remote Button Support – Requires separate button kit (PN 30-3610) for page navigation

Specifications

Detail Value
Brand AEM
Type CD-5L Carbon Logging Flush Digital Dash

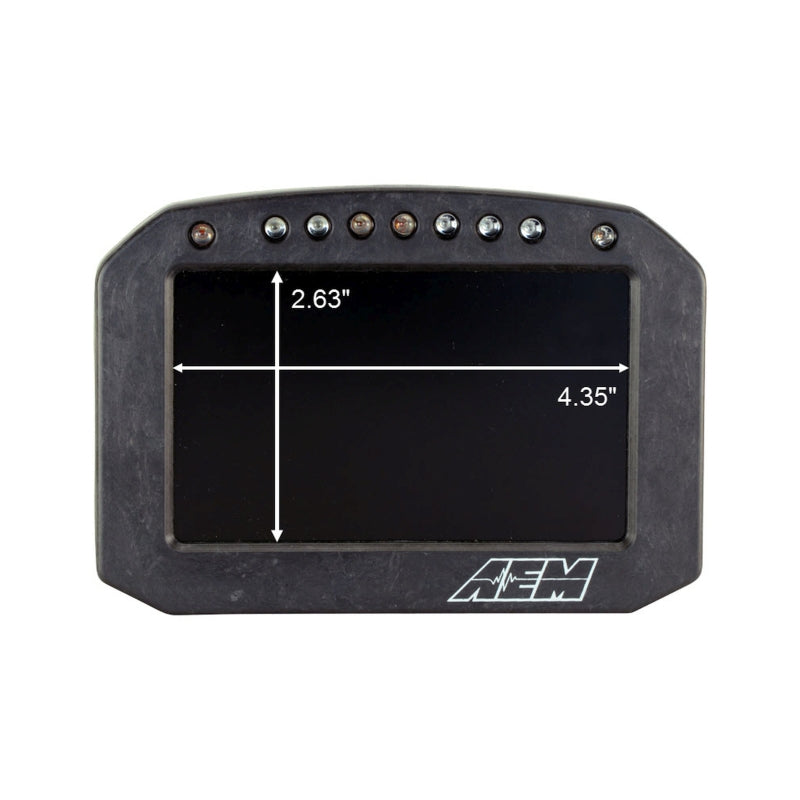

Screen Size 5" Diagonal (800x480 Resolution)
Logging Capacity 200MB Internal (Up to 1,000Hz/Channel)
Enclosure Material Carbon Fiber Composite
Water Resistance IP65
LED Shift Lights 7 Programmable & Dimmable
CAN Bus Support AEMnet + Third-Party CAN Compatible
GPS Not Included (Optional via Vehicle Dynamics Module)
Country of Origin United States
Warranty Manufacturer’s 1-Year Warranty

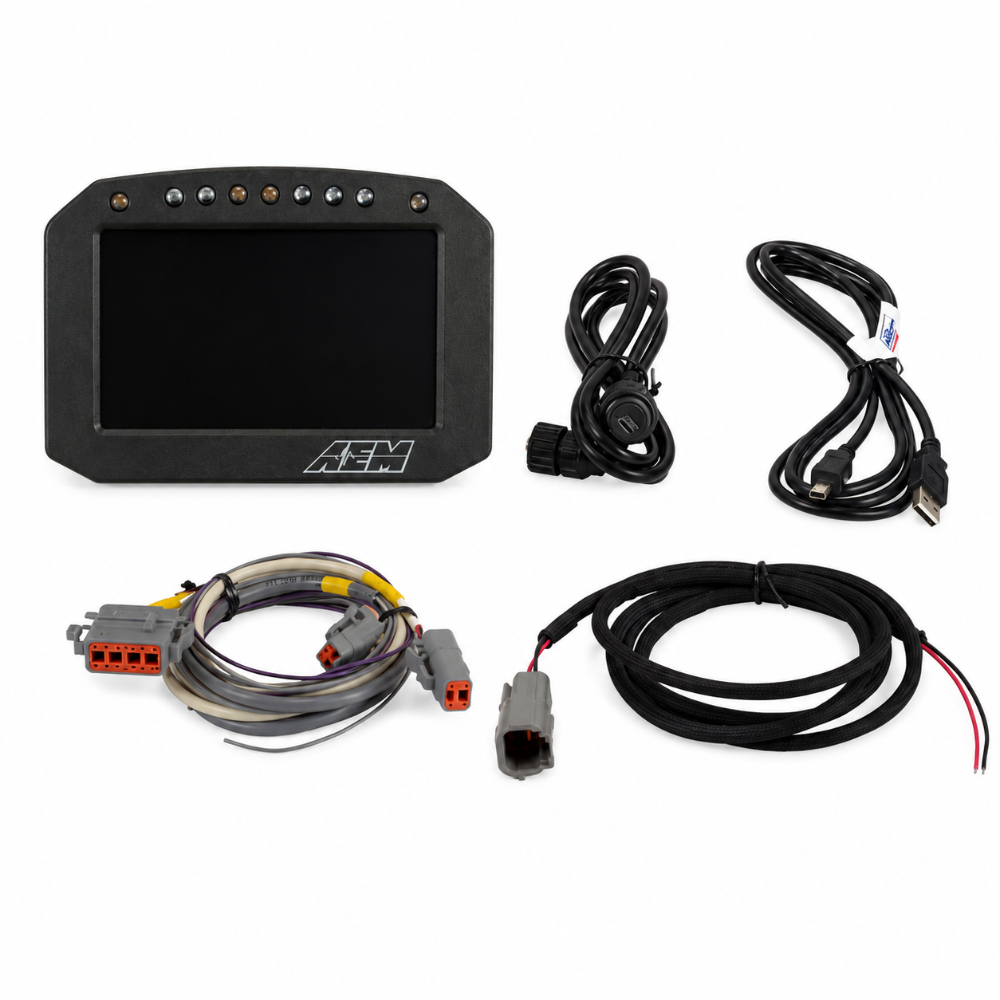

Whats Included

  • AEM CD-5L Carbon Logging Flush Digital Dash Display

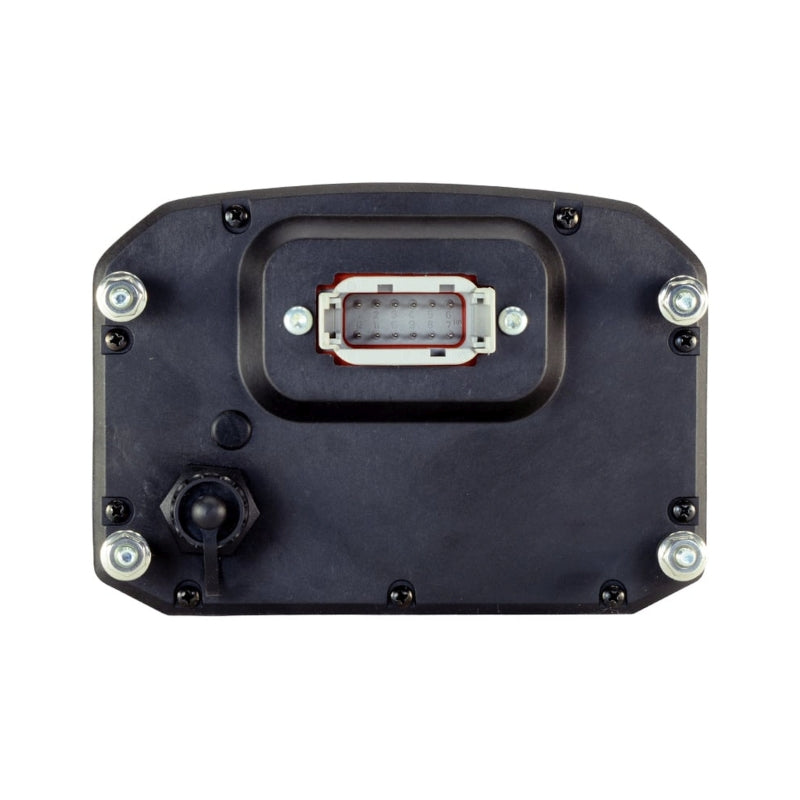

  • Wiring Harness
  • Mounting Hardware
  • Installation Instructions

Product Notes

  • Remote Button Kit (PN 30-3610) is required for page navigation and is sold separately
  • Professional installation is recommended
  • Compatible with carbureted engines and pre-2008 ECUs using AEM CAN Sensor Modules
  • Layout files are interchangeable with other CD-5 Carbon dashes

This Part Fits

Application Notes
Universal / Custom Builds Works with most performance and race vehicles
Modern CAN-Based Vehicles Plug & Play with 2008+ factory ECUs (OBDII adapter sold separately)
Carbureted & Pre-2008 Vehicles Compatible using AEM 22-Channel or 6-Channel CAN Sensor Modules

Why Choose AEM?

  • Industry leader in performance electronics and data acquisition systems
  • Proven reliability in professional motorsport and high-performance applications
  • Advanced features including high-speed logging and customizable displays
  • Backed by strong technical support and a 1-year warranty

Frequently Asked Questions

  • Q: Does this dash include data logging?
  • A: Yes. The CD-5L model includes 200MB of onboard logging with up to 1,000Hz per channel.
  • Q: Do I need the remote button kit?
  • A: Yes. The flush-mount version does not have onboard buttons, so the Remote Button Kit (PN 30-3610) is required.
  • Q: Can this work with my factory ECU?
  • A: Yes. It supports most 2008+ factory ECUs via the optional OBDII CAN adapter cable.
  • Q: Is this a flush-mount dash?
  • A: Yes. The CD-5L is designed for flush or in-dash installation with a low-profile carbon fiber enclosure.
