Description
aFe Ram RHO Track Series Carbon Fiber Intake

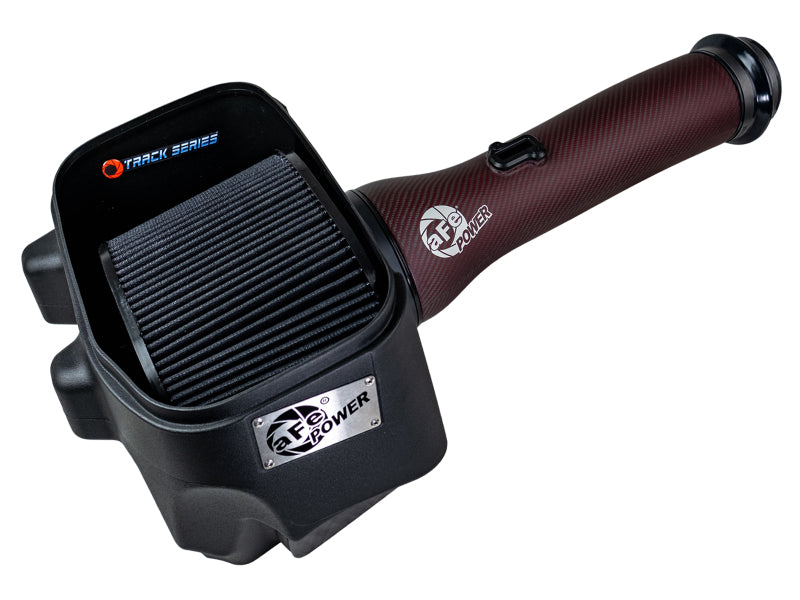

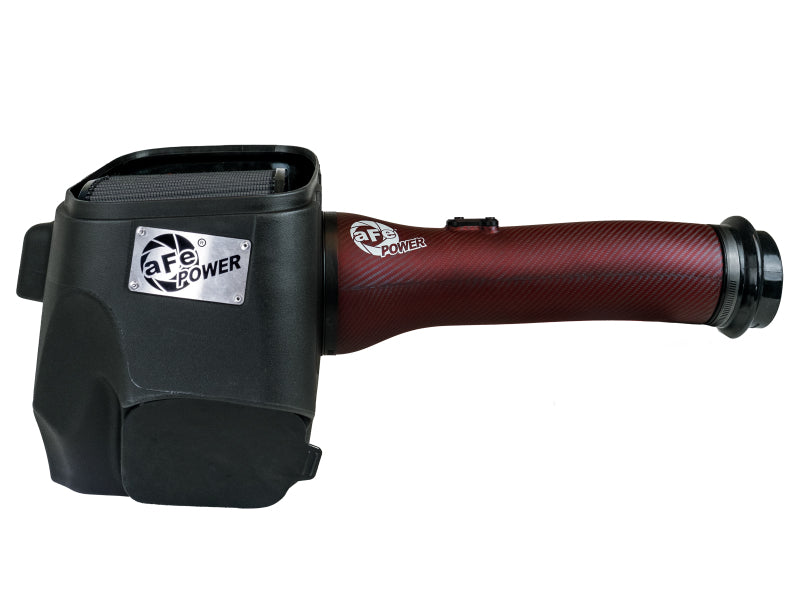

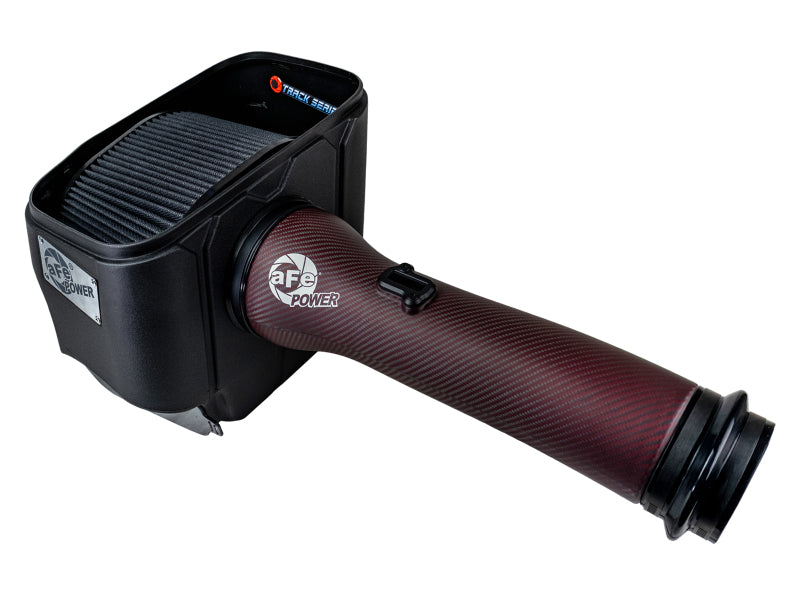

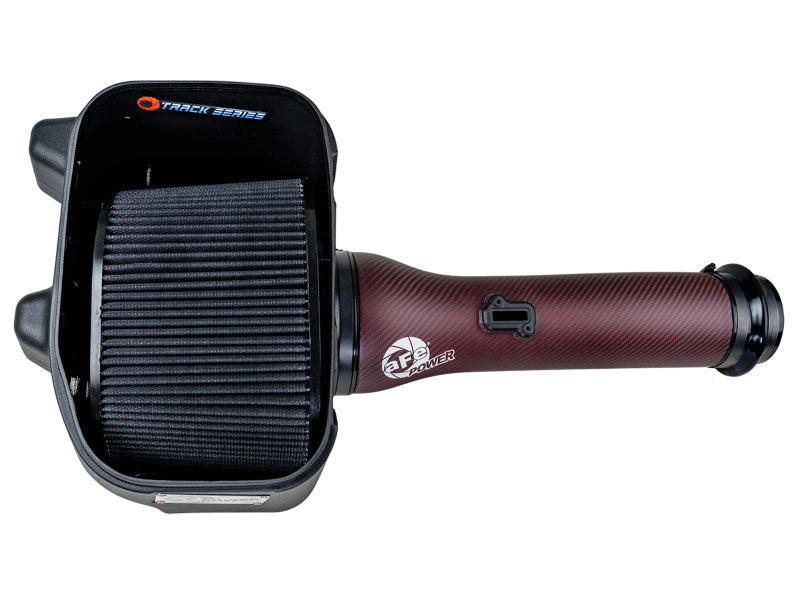

The aFe 57-10032KR combines one matte red Kevlar/carbon-fiber intake tube, one Black Pro 5R filter and a custom XLPE housing for the Ram 1500 RHO. A separate support bracket carries the factory engine-cover peg, coolant-line clips and harness holders. This is a single-tube Track Series configuration, with factory seal and sensor transfers.
Key Features
- One washable, reusable 24-91205K filter with five-layer pre-oiled cotton-gauze media.
- Matte carbon-fiber tube with red Kevlar reinforcement.
- XLPE housing reuses the factory trim seal, five lower grommets and drain.
- Black clamps, a silicone hump coupler and a dedicated engine-cover support bracket.
- Factory MAF-sensor transfer; exact RHO-only fitment.
Vehicle Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2025–2026 | Ram | 1500 | RHO; twin-turbo 3.0L inline-six Hurricane |
The exact 57-10032KR page and shared manual identify this application, and the page expressly states RHO only. Neither another Hurricane-equipped Ram nor a TRX is approved by the common Ram 1500 model name.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 57-10032KR |
| Series / quantity | Track Series; complete intake; one filter and one tube |
| Tube | matte red Kevlar/carbon-fiber |
| Housing | XLPE polymer; factory trim-seal transfer |
| Filter | 24-91205K; Black Pro 5R; listed service-filter height 8 inches, flange 5.5 inches |
| Coupler | Silicone hump; 4-inch inside diameter; 2-1/2 inches long |
| Clamps | Two black #64 and one black #96 worm-gear clamps |
| Sensor screws | Two M4 × 8 mm Torx screws |
| Emissions | Not currently CARB exempt |
What's Included

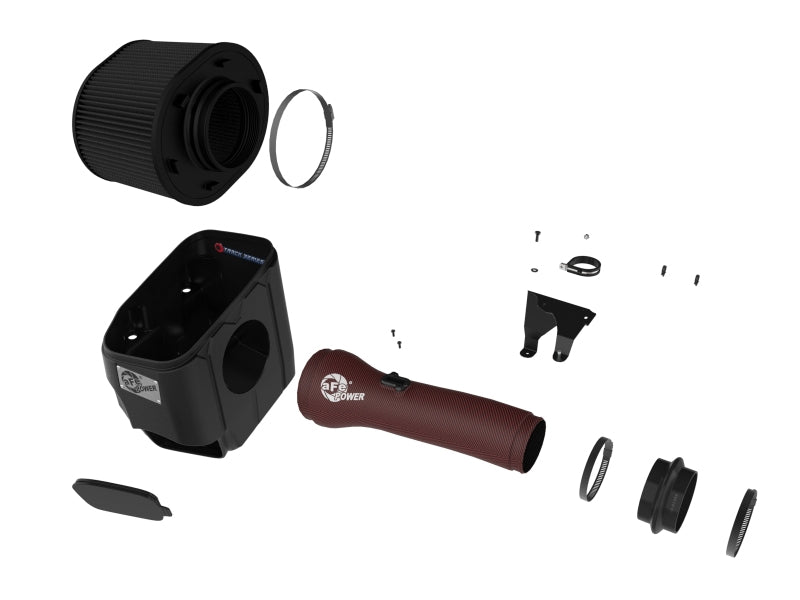

The 57-10032KR kit list identifies one 24-91205K filter, one matte red Kevlar/carbon-fiber tube, one housing, one silicone hump coupler, one auxiliary-inlet plug and one black engine-cover support bracket; two black #64 clamps, one black #96 clamp, two M4 × 8 mm Torx screws and two cable holders for 7/16-inch diameter; one neoprene-cushioned Adel clamp, one M6 × 1 nylon-lock hex nut, one black M6 fender washer and one black M6 × 1 × 16 hex-head screw. The original MAF sensor, five airbox grommets, drain, trim seal, coolant-line clips and engine-cover peg are reused. A new sensor, loose replacement factory seal set, second intake tube and reducer coupler are not listed.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
The matching replacement filter is 24-91205K. Use its Black Pro 5R cleaning and re-oiling service procedure. Browse carried aFe Power products.
Frequently Asked Questions
What is the manufacturer part number?
The manufacturer part number is 57-10032KR, the RHO-specific Track Series intake with a matte red Kevlar/carbon-fiber tube and one Black Pro 5R filter.
Does it fit a regular Ram 1500 or TRX?
The manufacturer expressly limits this system to the 2025–2026 Ram 1500 RHO with the twin-turbo 3.0L inline-six Hurricane engine. Other Hurricane trims and the supercharged V8 TRX are not included by similarity.
Does the black filter require oil?
Yes. Black Pro 5R is five-layer pre-oiled cotton gauze. Follow its cleaning and re-oiling procedure; black color does not identify dry synthetic media.
Is the housing carbon fiber?
The tube is matte red Kevlar/carbon-fiber. The housing is XLPE polymer, and its sealing arrangement reuses the original airbox trim. The shared manual specifically identifies the red Kevlar/carbon tube; generic 100%-carbon wording in the page overview does not erase that material distinction.
Does it use the same two-tube inventory as the Magnum kit?
No. This Track Series kit lists one carbon-fiber or Kevlar/carbon tube and one 4-inch hump coupler. Its separate support bracket carries the engine-cover peg, coolant-line clips and wiring holders. Do not borrow the Magnum kit's second tube or reducer.
What factory parts must be retained?
Transfer the five lower airbox grommets, drain plug, factory seal trim, MAF sensor and coolant-line clips. Remove and retain the factory engine-cover mounting peg for installation on the new bracket.
Which sensor screws and clamps are supplied?
The exact manual lists two M4 × 8 mm Torx screws, two black #64 worm-gear clamps and one black #96 clamp. A generic M4 × 10 mm accessory displayed on the product page is not the exact supplied screw specification.
Is this intake CARB exempt?
No. The exact product page and shared manual state that it is not currently CARB exempt and is unavailable for California purchase or use on California-registered vehicles.
Installation Instructions
- Confirm 57-10032KR and the RHO application, inspect the contents and read the exact shared aFe installation manual. Work with the engine cool.
- Remove the engine cover, release and protect the coolant line and MAF harness, unplug the sensor and remove the original intake. Remove and retain the factory mounting peg as instructed.
- Transfer the five lower housing grommets, drain plug and original seal trim to the new housing. Fit the supplied front-inlet silicone plug and seat the housing on its factory mounting pegs.
- Snap the filter into the housing in the illustrated orientation and position its black clamp without final tightening. Transfer the factory MAF sensor to the tube using the supplied M4 × 8 mm screws.
- Transfer the coolant-line clips to the new support bracket and fit the supplied harness holders. Secure the bracket with the M6 bolt and washer, place the cushioned Adel clamp around the oil-filler neck as shown and secure it to the bracket stud with the M6 nut. Reinstall the retained engine-cover peg on the bracket.
- Pre-position the clamps and coupler at the turbo inlet, then install the tube into the coupler and filter, protecting the finish around the bracket with a microfiber towel. Keep the sensor facing upward and tighten all three clamps after alignment. Reconnect and secure the MAF harness and coolant lines, reinstall the engine cover and recheck screws, clamps and connectors after 100–200 miles.
See the exact aFe product page for this individual Black Pro 5R configuration. The exact shared manual identifies the red tube as carbon fiber with red Kevlar; the page's generic carbon-fiber overview should not be treated as a different material or supplied part.
