Description

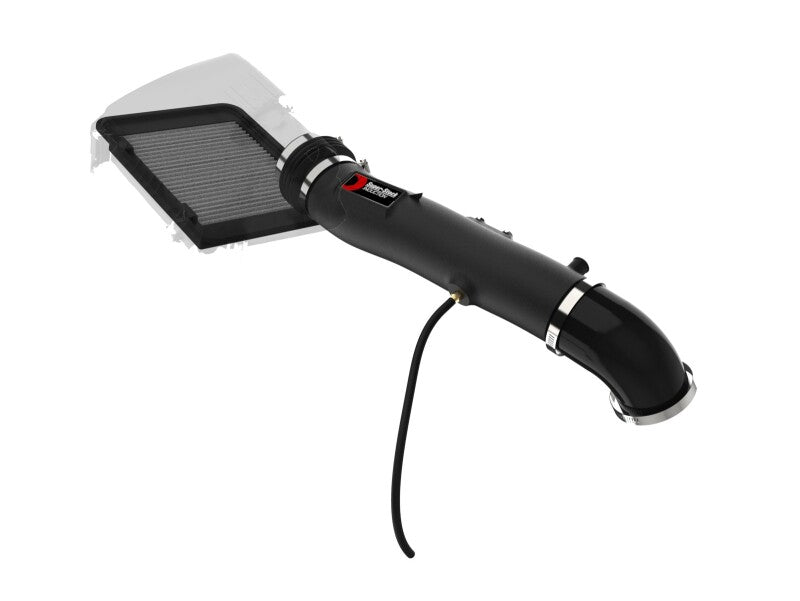

Toyota Super Stock factory-airbox induction system

aFe 55-10020D Super Stock retains the original Toyota Tacoma airbox for the specified 2.7L four-cylinder application. It replaces the factory tube with a XLPE tube, uses one three-layer oil-free synthetic Pro DRY S panel filter, and includes silicone couplings and stainless clamps.

Key Features

  • One washable, reusable three-layer oil-free synthetic Pro DRY S panel filter for the original factory airbox.
  • One XLPE tube and two supplied couplings.
  • Four supplied intake clamps; original sensors and required hose connections retained.
  • Transfers original MAP assembly and includes replacement fasteners, vacuum hose and brass nipple.
  • No replacement airbox, scoop or throttle-body spacer is listed in the kit.

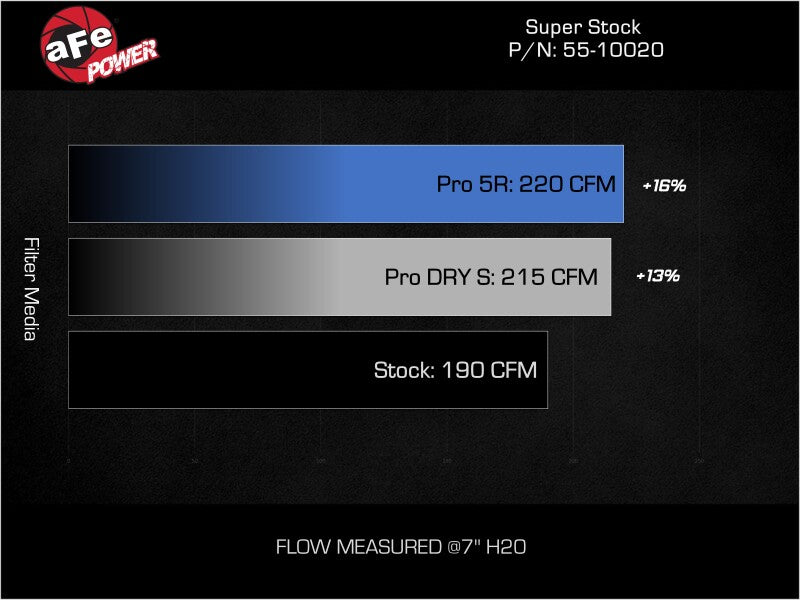

  • The actual linked chart shows the selected dry filter at 215 CFM versus 190 CFM stock at 7 inches H2O, or 13%. The launch bulletin 220 CFM/16% figure belongs to Pro 5R, not this dry version. Bench flow is not a filtration-efficiency or power guarantee.

Fitment

For Toyota Tacoma 2005-2023 with the 2.7L four-cylinder and original factory airbox. Confirm the actual engine, original housing and connections; a cab style or shared Toyota filter alone does not establish complete-kit fitment. The exact manufacturer page and manual both specify the 2.7L four-cylinder. Named Base and PreRunner 2005-2015 and SR/SR5 2016-2023 are supported by the exact-part table with engine scope. Legacy Access Cab, Double Cab and TRD Sport labels are withheld from the selectable named-trim mapping because that evidence does not establish those broad groups for this engine-specific kit; this is a source-scope limitation, not a claim that every cab is mechanically incompatible.

Years Make Model Named trim; actual engine and hood requirements apply
2005-2015 Toyota Tacoma Base
2005-2015 Toyota Tacoma PreRunner
2016-2023 Toyota Tacoma SR
2016-2023 Toyota Tacoma SR5

Verify 55-10020D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

Brand aFe POWER
Manufacturer Part Number 55-10020D
Application Toyota Tacoma 2005-2023, 2.7L four-cylinder; named and engine conditions apply
Filter One three-layer oil-free synthetic Pro DRY S OE-replacement panel
Tube XLPE tube
Factory equipment retained Original complete airbox and sensors
Couplings / intake clamps Two / four
Bench flow The actual linked chart shows the selected dry filter at 215 CFM versus 190 CFM stock at 7 inches H2O, or 13%. The launch bulletin 220 CFM/16% figure belongs to Pro 5R, not this dry version. Bench flow is not a filtration-efficiency or power guarantee.

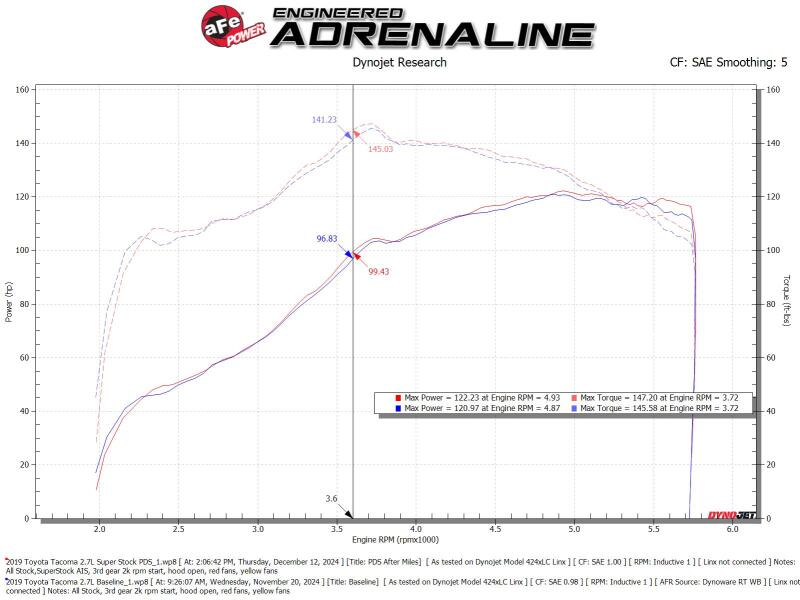

Dyno qualification At the marked 3,600 rpm the linked dry-filter chart changes from 96.83 to 99.43 hp and 141.23 to 145.03 lb-ft, or 2.60 hp and 3.80 lb-ft. Separate run maximums change from 120.97 to 122.23 hp and 145.58 to 147.20 lb-ft, or 1.26 hp and 1.62 lb-ft peak-to-peak. It identifies a 2019 Tacoma 2.7L, otherwise stock, third gear, 2,000-rpm start, hood open, red and yellow fans, inductive RPM and SAE correction 0.98 baseline versus 1.00 intake. Results are test-specific and are not guaranteed gains for every vehicle.
Emissions The exact product page and manual state not currently CARB exempt, unavailable for California purchase or use on California-registered vehicles.

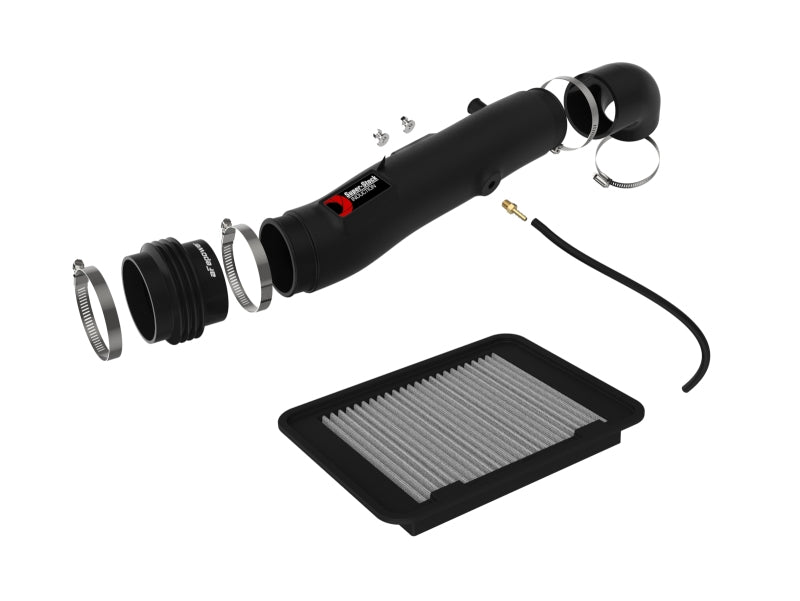

What's Included

Quantity Manufacturer service part Component
1 31-10123 Oil-free Pro DRY S OE-replacement panel filter
1 05-5510020B1 Black XLPE intake tube
1 05-60660 Silicone 60-degree elbow
1 05-01599 Silicone bellows coupling
4 03-50007 #048 clamps
2 03-50032 M6 x 1 x 12 hex screws
2 03-50070 M6 flat washers
1 05-00122 5/32-inch ID vacuum hose
1 03-50191 Brass hose nipple, 3/16-inch hose ID x 1/8 NPT

One selected filter is supplied; the alternatives in the shared manual are not additional filters. The original complete factory airbox and original sensors remain. No scoop or throttle-body spacer is listed in this exact kit parts list.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

Frequently Asked Questions

Which engine and factory housing are required for 55-10020D?

For Toyota Tacoma 2005-2023 with the 2.7L four-cylinder and original factory airbox. Confirm the actual engine, original housing and connections; a cab style or shared Toyota filter alone does not establish complete-kit fitment. The exact manufacturer page and manual both specify the 2.7L four-cylinder. Named Base and PreRunner 2005-2015 and SR/SR5 2016-2023 are supported by the exact-part table with engine scope. Legacy Access Cab, Double Cab and TRD Sport labels are withheld from the selectable named-trim mapping because that evidence does not establish those broad groups for this engine-specific kit; this is a source-scope limitation, not a claim that every cab is mechanically incompatible.

Does the selected filter need oil?

No. Service the oil-free synthetic filter with an appropriate dry-filter cleaner, rinse as directed and allow it to dry fully; do not oil it.

Is the factory airbox replaced?

No. The original complete airbox remains; replace the panel filter and fit the supplied tube and couplings. Original sensors remain in service.

Which sensor and hose connections matter?

The original MAP assembly transfers to the new tube with two supplied M6 screws and washers. Reconnect PCV, ASV, MAP harness and the vacuum hose to the fuel-pressure regulator.

Is a scoop or spacer supplied?

One selected filter is supplied; the alternatives in the shared manual are not additional filters. The original complete factory airbox and original sensors remain. No scoop or throttle-body spacer is listed in this exact kit parts list.

What flow result applies to this filter?

The actual linked chart shows the selected dry filter at 215 CFM versus 190 CFM stock at 7 inches H2O, or 13%. The launch bulletin 220 CFM/16% figure belongs to Pro 5R, not this dry version. Bench flow is not a filtration-efficiency or power guarantee.

Are the advertised gains peak-to-peak results?

At the marked 3,600 rpm the linked dry-filter chart changes from 96.83 to 99.43 hp and 141.23 to 145.03 lb-ft, or 2.60 hp and 3.80 lb-ft. Separate run maximums change from 120.97 to 122.23 hp and 145.58 to 147.20 lb-ft, or 1.26 hp and 1.62 lb-ft peak-to-peak. It identifies a 2019 Tacoma 2.7L, otherwise stock, third gear, 2,000-rpm start, hood open, red and yellow fans, inductive RPM and SAE correction 0.98 baseline versus 1.00 intake. Results are test-specific and are not guaranteed gains for every vehicle.

What emissions and recheck requirements apply?

The exact product page and manual state not currently CARB exempt, unavailable for California purchase or use on California-registered vehicles. Recheck connections after 100-200 miles; do not substitute an unrelated intake torque value.

Installation Instructions

Verify aFe 55-10020D. Detach the harness clips and remove the three screws holding the original tube. Disconnect the PCV hose, MAP connector and ASV line connection, and fuel-pressure line; remove the original tube. Open the two airbox clips, replace only the filter and reclose the original box. Remove the MAP assembly with its two screws, leaving the ASV line attached to the sensor, and transfer it to the new tube with the supplied M6 screws and washers. Fit the brass nipple and loosely assemble both silicone couplings and four #048 clamps. Connect the elbow to the throttle body and bellows to the factory box, align the PCV port and tighten all four clamps. Secure both ends of the PCV hose, reconnect MAP and ASV, and connect the supplied vacuum hose from the brass nipple to the fuel-pressure regulator. No numeric torque is supplied in this exact intake manual. Recheck all bolts/screws, clamps and connectors after 100-200 miles as directed.

Important Disclosures

For Toyota Tacoma 2005-2023 with the 2.7L four-cylinder and original factory airbox. Confirm the actual engine, original housing and connections; a cab style or shared Toyota filter alone does not establish complete-kit fitment. The exact manufacturer page and manual both specify the 2.7L four-cylinder. Named Base and PreRunner 2005-2015 and SR/SR5 2016-2023 are supported by the exact-part table with engine scope. Legacy Access Cab, Double Cab and TRD Sport labels are withheld from the selectable named-trim mapping because that evidence does not establish those broad groups for this engine-specific kit; this is a source-scope limitation, not a claim that every cab is mechanically incompatible. The actual linked chart shows the selected dry filter at 215 CFM versus 190 CFM stock at 7 inches H2O, or 13%. The launch bulletin 220 CFM/16% figure belongs to Pro 5R, not this dry version. Bench flow is not a filtration-efficiency or power guarantee. At the marked 3,600 rpm the linked dry-filter chart changes from 96.83 to 99.43 hp and 141.23 to 145.03 lb-ft, or 2.60 hp and 3.80 lb-ft. Separate run maximums change from 120.97 to 122.23 hp and 145.58 to 147.20 lb-ft, or 1.26 hp and 1.62 lb-ft peak-to-peak. It identifies a 2019 Tacoma 2.7L, otherwise stock, third gear, 2,000-rpm start, hood open, red and yellow fans, inductive RPM and SAE correction 0.98 baseline versus 1.00 intake. Results are test-specific and are not guaranteed gains for every vehicle. The exact product page and manual state not currently CARB exempt, unavailable for California purchase or use on California-registered vehicles.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
