Description
BladeRunner intake heater relocation with supplied element
The aFe 46-10074 relocates intake heating ahead of the intake manifold, upstream of the EGR feed, using a supplied spacer and heating element. It is not a Pro DRY S air filter, polymer airbox or complete cold-air intake. The original heater power line connects to the new element, with the supplied ground wire connected as instructed.
Key Features
- Moves the heater ahead of the intake manifold and EGR feed; not a filter-media conversion.
- Includes a new heater element and spacer, with exact power/ground installation described in the May 2026 guide.
- 6061 billet construction and included gaskets/hardware.
- Compatible OE/aFe manifold and charge-pipe arrangements still require actual interface verification.
Fitment
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2007.5–2010 | Dodge Ram 2500 / 3500 | 6.7L Cummins turbo diesel; verify actual midyear engine and installed interfaces. |
| 2011–2018 | Ram 2500 / 3500 | 6.7L Cummins turbo diesel; verify actual manifold, butterfly gate and charge-pipe interfaces. |
46-10074: The exact page approves OE and aFe POWER manifolds/charge pipes; its generic “Aftermarket” feature wording is not approval of every third-party assembly. The page says the original grid heater may be removed or replaced, but the linked installation sequence does not document a complete original-grid-heater removal/replacement procedure. Do not infer deletion instructions or an included replacement grid plate. Generic Filter Included/Coupler Included fields conflict with the exact BOM, which lists neither an air filter nor replacement hose. The manual's generic “exhaust system” inspection sentence does not change this intake heater kit into an exhaust part.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-10074 |
| Configuration | Heater spacer/element relocation kit; manifold and charge pipes are separate |
| Construction / airflow path | 6061 billet-aluminum spacer per current exact manufacturer page |
| Finish | No specific coating or color is certified by the exact written sources |
| Fasteners / torque | May 2026 exact manual gives no numerical heater, electrical-terminal, mounting-bolt or clamp torque, and no mileage recheck interval. Resolve these values for the actual kit before installation. |
| Heater / original components | Original butterfly gate, MAP sensor, EGR valve and temperature sensor, dipstick and hump hose are restored. The original grid-heater power line connects to the supplied heating element; the supplied 6-gauge ground wire connects spacer to battery as directed. |
| Emissions | Current exact primary page and visually read May 2026 manual state not CARB exempt; unavailable for purchase in California or use on California-registered vehicles. |

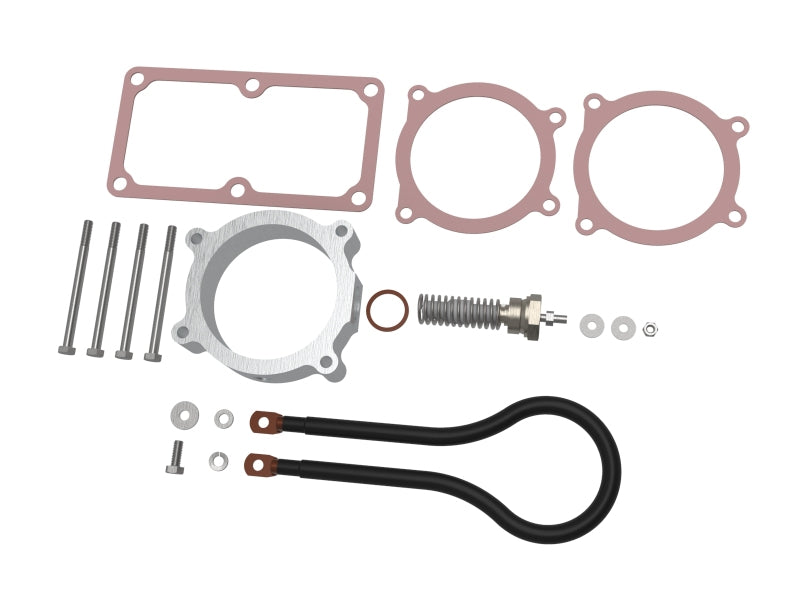

What's Included
- One heater spacer 05-61682 and one air-inlet heater element 05-61683.
- Four M6×1×85 mm grade-8.8 bolts, one M5×0.8 grade-8.8 nut, one M22×27×1.5 mm copper washer and two M5 fender washers.
- Two M6×1×16 bolts, one M6 lock washer, three M6 flat washers, one M6 washer with 12 mm outside diameter and one M6×1 nylon-lock nut.
- One 6-gauge ground wire 05-61751, two throttle-body gaskets 05-60209 and one manifold gasket 05-60146.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power by exact engine and intake-inlet configuration; individual engine generations use different manifolds and hardware.
- Match actual intake inlet, grid heater and intercooler coupling interfaces. A shared engine size does not approve another model or year.
Frequently Asked Questions
What is the 46-10074?An intake heater relocation kit with a supplied spacer and heater element for the specified 6.7L Cummins installation, not a filter or complete intake.

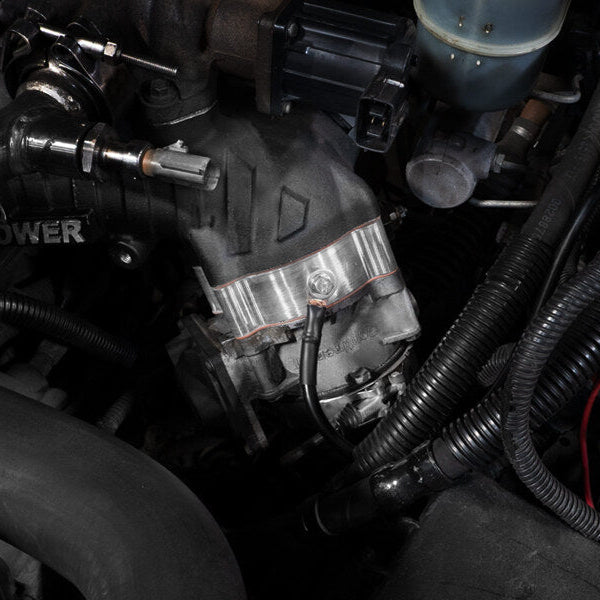

Where does the heater go?Between the butterfly gate and intake manifold, ahead of the EGR feed, following the exact assembly instructions.
Does it reuse only the original heating element?No. The exact BOM includes a new heater element. The original grid-heater power wire is connected to that element.
Does it include the ground wire and gaskets?Yes. The exact BOM lists a 6-gauge ground wire, two throttle-body gaskets and one manifold gasket, plus the specified hardware.
Does it remove EGR or the original grid heater automatically?No. EGR components are reinstalled. The exact guide does not give a complete original-grid-heater removal/replacement procedure despite the broader page wording.
Does it fit every aftermarket manifold?The current page explicitly names OE and aFe POWER manifolds/charge pipes. Confirm actual interfaces; generic aftermarket wording does not establish every third-party fit.
What torque is specified for the electrical terminal?The linked May 2026 guide supplies no numerical terminal or mounting torque. Obtain the correct value for the actual assembly before installation.
Is it CARB exempt or supplied with an air filter?No CARB exemption is claimed by the current page or manual. The exact BOM contains no air filter or replacement coupler.
Installation Instructions
- Read the exact manufacturer instructions for 46-10074, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
- Use professional installation as aFe recommends. Cool the vehicle, disconnect batteries and compare every supplied part with the exact BOM.
- Follow the complete EGR, harness, dipstick-bracket, hump-hose and manifold removal sequence. Remove the manifold slowly to unplug the butterfly-gate harness beneath it; retain the original EGR-tube gasket and clamps.

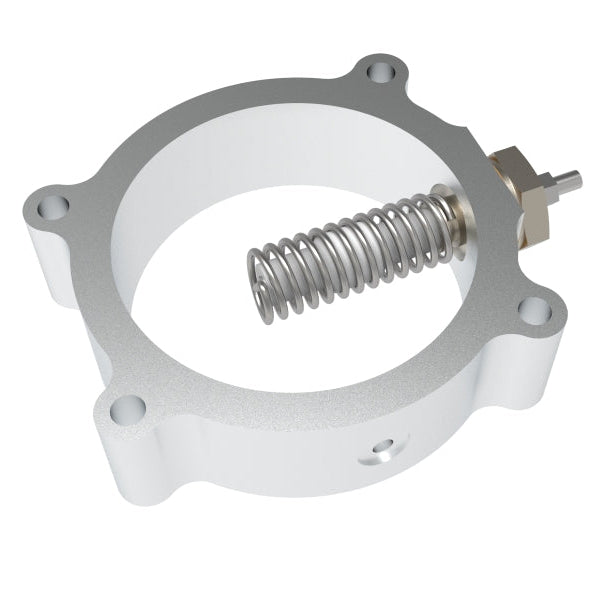

- Fit the supplied heater element into the spacer using the copper washer. Install the heater assembly between butterfly gate and manifold with the supplied 85 mm bolts and gaskets.
- Disconnect the power line from the original grid heater and attach it to the supplied element with the specified M5 nut and washers. This is not a substitute for an undocumented original-grid-heater removal procedure.
- Prepare the engine gasket surface, install the supplied manifold gasket, reconnect the butterfly-gate harness before manifold placement, and restore MAP/EGR connections, tube/clamps, dipstick bracket, hump hose, cover and dipstick.
- Connect the supplied ground strap to the spacer and battery as instructed before reconnecting batteries. Check all electrical connections and hardware; no numerical torque or recheck mileage is stated.
46-10074: inspect every connection and resolve the documented kit discrepancies before operation.
