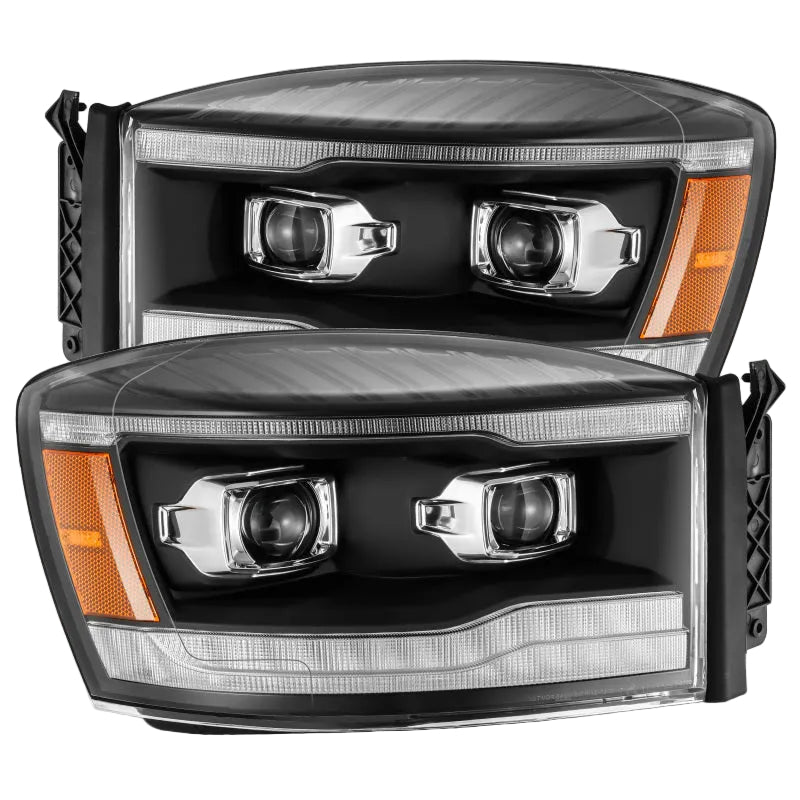

Dual LED Projector Upgrade for the 3rd Generation Dodge Ram 1500 2500 and 3500
The AlphaRex ARX880535 LUXX-Series LED Projector Headlights replace the factory halogen headlight assembly on 2006 to 2008 Dodge Ram 1500 and 2006 to 2009 Ram 2500 and 3500 trucks with a complete dual-projector LED unit engineered and tested to DOT and SAE FMVSS108 standards. The ARX880535 features AlphaRex's LUXX LED chip technology in a Plank Style housing with a gloss black interior finish, delivering a sharper low-beam cutoff, higher output, and a signature DRL light tube ring around each projector lens. The sequential LED turn signals animate toward the front of the truck on every signal activation, adding a premium look that is miles above the factory amber bulb setup. The complete ARX880535 assembly is a plug-and-play replacement requiring no permanent wiring changes, making it one of the cleaner visual and functional upgrades available for the 3rd gen Ram platform.
Key Features
- AlphaRex LUXX LED chips in a dual-projector configuration: outer low beam, inner high beam
- Plank Style housing with gloss black interior finish

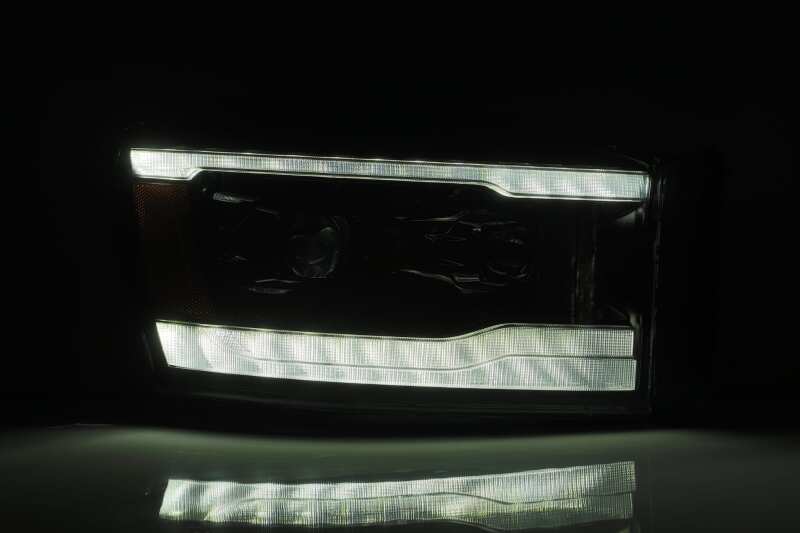

- Switchback sequential LED DRL tube ring around each projector

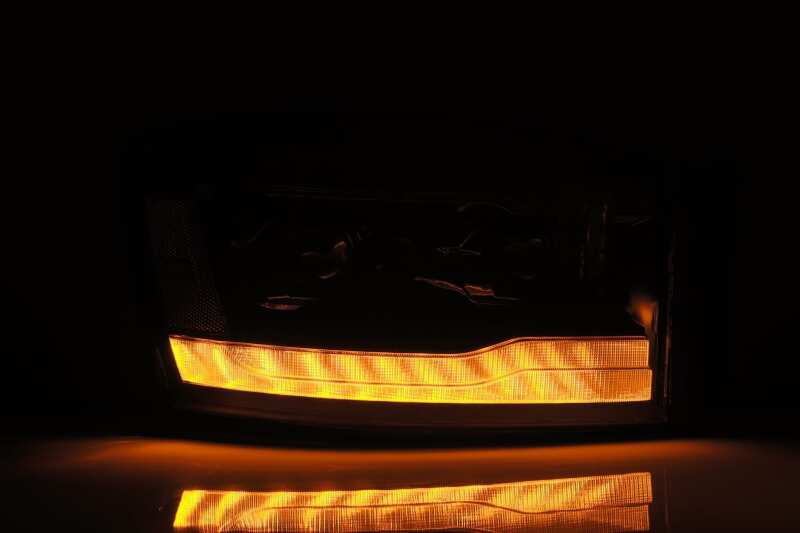

- Sequential LED turn signals with animated activation sequence
- DOT and SAE FMVSS108 compliant for US road use
- Polycarbonate (PC) lens with polypropylene (PP) housing for OEM-grade durability
- Plug-and-play wiring harness included, no permanent wiring changes required
- Signature activation light animation when doors unlock
- Fits 2006-2008 Dodge Ram 1500 and 2006-2009 Dodge Ram 2500 and 3500
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2006-2008 | Dodge | Ram 1500 |
| 2006-2009 | Dodge | Ram 2500 |
| 2006-2009 | Dodge | Ram 3500 |
Specifications
| Detail | Value |
|---|---|
| Part Number | ARX880535 |
| MPN | 880535 |
| Series | LUXX-Series LED Projector |
| Housing Style | Plank Style |
| Housing Color | Gloss Black |
| Lens Material | Polycarbonate (PC) |
| Housing Material | Polypropylene (PP) |
| Projector Configuration | Dual Projector (Outer Low / Inner High) |
| DRL Type | Switchback LED Tube Ring |
| Turn Signal | Sequential LED |
| Side Marker | Amber |
| Compliance | DOT / SAE FMVSS108 |
| Installation | Plug-and-Play |
| Fitment | 2006-2008 Dodge Ram 1500 / 2006-2009 Ram 2500 / 2006-2009 Ram 3500 |
| Brand | AlphaRex |
| UPC | N/A |
What's Included
- 1 driver side ARX880535 LUXX LED projector headlight assembly
- 1 passenger side ARX880535 LUXX LED projector headlight assembly
- Plug-and-play wiring harness
- AlphaRex installation hardware
About AlphaRex
AlphaRex is a lighting manufacturer specializing in LED and projector headlight assemblies for trucks, SUVs, and performance vehicles. Every AlphaRex product is designed from inception with proprietary LED chips, patented projector lenses, and full DOT and SAE compliance to ensure legal road use and genuine performance improvement over factory lighting. AlphaRex backs its LUXX and NOVA series headlights with a manufacturer warranty against defects in materials and workmanship.
Frequently Asked Questions
Does the ARX880535 fit the 2006-2008 Dodge Ram 1500 HD?Yes. The ARX880535 is confirmed fitment for the 2006-2008 Dodge Ram 1500, including the 1500 HD, as well as the 2006-2009 Dodge Ram 2500 and Ram 3500. All of these 3rd generation Ram trucks share the same headlight housing opening and mounting configuration.
Is the ARX880535 a direct drop-in replacement?Yes. The ARX880535 includes a plug-and-play wiring harness that connects to the factory headlight connector without cutting, splicing, or permanent wiring modification. The housing mounts directly to the factory headlight bracket using the factory hardware.
What is the difference between the ARX880535 Plank Style and the standard 880533 or 880534?The ARX880535 is the Plank Style version with a gloss black interior. The 880533 is the standard Gloss Black housing and the 880534 is the Chrome housing. The 880535 Plank Style features a distinctive internal trim strip design that creates a more modern, custom appearance compared to the standard reflector housing layouts of the other variants.
Are these headlights legal for road use in all US states?Yes. The ARX880535 meets DOT and SAE FMVSS108 compliance standards, making it legal for public road use throughout all 50 US states. AlphaRex designs and tests all LUXX-Series assemblies specifically to US left-hand-drive vehicle regulations for beam pattern and intensity.
Will the ARX880535 work with my Ram's factory DRL system?The ARX880535 includes switchback LED DRL tubes that function as daytime running lights. The DRL circuit operates within the factory vehicle wiring via the plug-and-play harness. If the factory Ram DRL system uses a separate control module, verify that the LED DRL load is compatible or use an appropriate load resistor.
Do the sequential turn signals require any additional modules or programming?No. The sequential LED turn signals in the ARX880535 are self-contained within the assembly and activate through the factory turn signal circuit via the included plug-and-play harness. No external flasher relay or additional module is required. In some cases, upgrading the factory turn signal flasher relay to an LED-compatible unit may be needed if rapid flashing occurs.
What is the warranty on the AlphaRex ARX880535?AlphaRex provides a manufacturer warranty against defects in materials and workmanship on the ARX880535. For specific warranty duration and claim procedures, contact AlphaRex customer service directly at alpharexusa.com, as warranty terms can vary by product and purchase date.
Can the ARX880535 be installed with an aftermarket leveling kit or lift?Yes. Headlight aim adjustment is required any time a vehicle's ride height changes significantly. After installing either a leveling kit or a suspension lift, adjust the ARX880535 beam aim using the factory headlight adjuster screws on the back of the housing to restore proper beam alignment for oncoming traffic safety.
Installation Instructions
- Disconnect the vehicle battery negative terminal before starting headlight removal.
- Open the hood and locate the factory headlight assembly mounting bolts. Remove all mounting hardware securing the factory housing to the bumper and grille surround.
- Disconnect the factory headlight wiring connector and turn signal connector from the back of the housing.
- Remove the factory headlight assembly from the vehicle and set aside.
- Connect the included ARX880535 plug-and-play wiring harness to the factory headlight and turn signal connectors.
- Route the harness through the housing opening and connect it to the back of the ARX880535 assembly.
- Position the ARX880535 into the headlight opening and align with the factory mounting points.
- Install the factory mounting hardware and tighten to specification.
- Reconnect the battery negative terminal and test all functions: low beam, high beam, DRL, turn signal, and activation light.
- Aim the headlights using the factory adjuster screws to ensure proper beam pattern for oncoming traffic. Aim to factory specification or per your state's requirements.
