SKU: 1209K
ARB Old Man Emu BP-51 Bypass Coilover Kit - Toyota LandCruiser 200 Series (2008-2021) & Lexus LX570 (2008-2021)

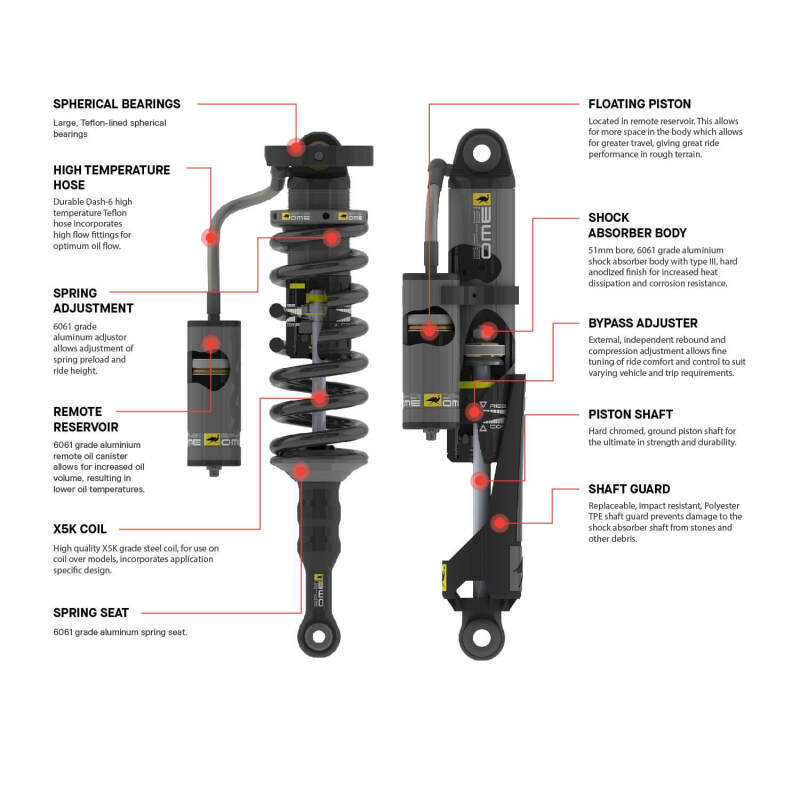

The ARB Old Man Emu BP-51 bypass coilover kit delivers position-sensitive internal bypass technology that provides on-road comfort with progressive damping and full off-road control with increased oil volume and heat dissipation. Featuring 51mm monotube bores, remote reservoirs on all four corners, independent rebound and compression adjustment, and height-adjustable spring seats, this system maintains ride height under load while allowing precise tuning for street, highway, or severe off-road conditions.
Key Features
- Internal Bypass Technology: Position-sensitive damping with multiple bypass zones for plush ride and bottom-out resistance.
- 51mm Monotube Design: Large bore with remote reservoirs for consistent performance and fade-free operation.
- Rebound & Compression Adjustable: 10-click rebound and 8-click compression via top-mounted knobs (front) and reservoirs (rear).
- Height Adjustable: 50-75mm lift range with threaded spring seats and preload adjustment.
- 6061-T6 Aluminum Components: Hard-anodized bodies, reservoirs, and fittings for corrosion resistance.
- Dash-Mountable Control: Optional bypass valve controller for on-the-fly firmness changes.
- Rebuildable Design: Fully serviceable with worldwide ARB/OME support.
- Integrated Stone Guards: Protects shafts and seals in harsh environments.
Product Notes

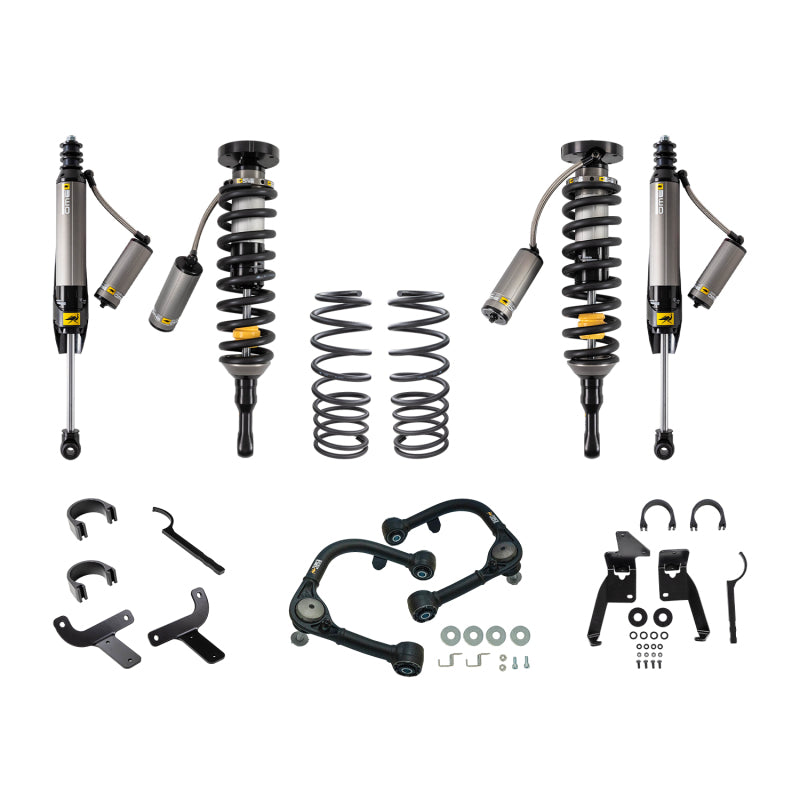

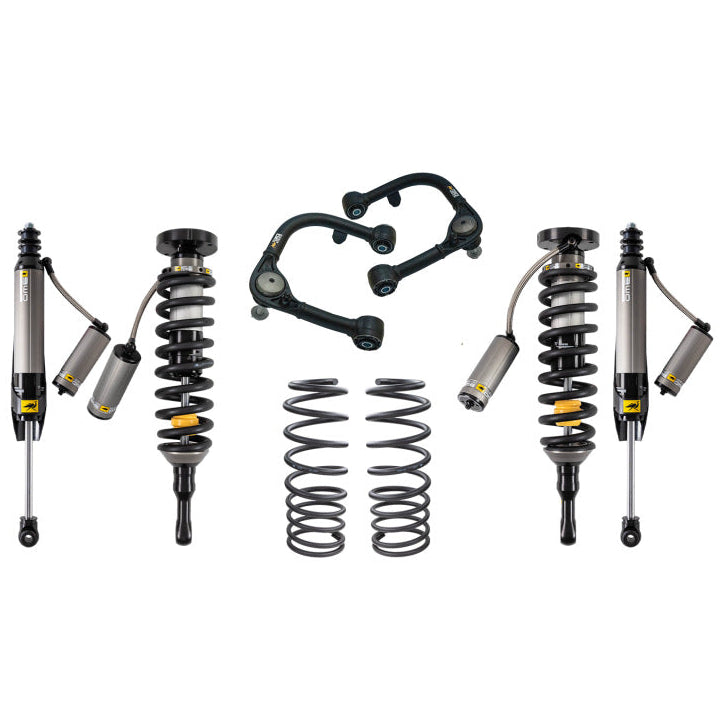

- Complete front and rear kit includes coilovers, reservoirs, brackets, hoses, and all hardware.
- Part number: 1209K (BP-51 full kit for 200 Series).
- Designed for vehicles with up to 200kg constant load (GVM upgrade compatible).
- Spring rates tuned for 200 Series weight and geometry.
- Compatible with factory KDSS (with minor modifications on some models).
- Kit weight approximately 85-90kg total.
Installation Notes
- Bolt-on installation using factory mounting points.
- Professional installation and alignment required.
- Reservoir mounting brackets included secure routing of hoses recommended.
- Typical installation time 6-8 hours with lift.
This Part Fits
| Year | Make | Model | Notes |
|---|---|---|---|
| 2008-2021 | Toyota | LandCruiser 200 Series | All models incl. VX, Sahara, GX |
| 2008-2021 | Lexus | LX570 | All models |
Why Choose ARB Old Man Emu?
- Australian-engineered suspension with over 40 years of 4WD development.
- BP-51 technology proven in outback, desert racing, and overland expeditions.
- Comprehensive vehicle-specific tuning and worldwide warranty support.
Frequently Asked Questions
- Q: Does this kit require new springs?
- A: No, integrated coilover design with adjustable spring seats; no separate coil springs needed.
- Q: Is KDSS compatibility affected?
- A: Generally compatible some models may require minor sway bar drop bracket adjustment.
- Q: Can I add the dash controller later?
- A: Yes, optional bypass valve controller kit available separately.
Shipping & Handling
- Method: Freight truck (multiple heavy boxes).
- Package Weight: Approximately 100–110kg total (split into 3-4 cartons).
- Box Dimensions (approx): Front pair 90cm × 40cm × 40cm, Rear pair similar + reservoir box.
