ARB Bumper Fitting Kit for the Summit MKII Bull Bar on the Land Cruiser 250
ARB fitting kit 6178473 supplies the vehicle specific steel chassis brackets, weld assemblies and graded fasteners needed to mount the ARB Summit MKII bull bar 3421885 to a 2024 to 2025 Toyota Land Cruiser 250. The kit locates the bar to the factory chassis rails so the bar sits at the correct height and standoff, and it is engineered to work with the vehicle safety systems when the bar is installed exactly as the ARB fitting instructions require. The bull bar itself is a separate purchase, so this listing covers the mounting kit only.
Key Features
- Vehicle specific mounting kit designed for the Land Cruiser 250 chassis and the Summit MKII bull bar
- Steel inner, outer and underpanel chassis brackets supplied in left and right pairs
- Chassis mount weld assemblies and chassis crush tubes for load bearing attachment to the frame rails
- High tensile M6, M10 and M12 bolts, flange nuts and washers in property classes 8.8, 10.9 and 11.9
- Chassis mount adjustment shims so the bar can be aligned to the body panels
- Retains normal SRS airbag operation when the bar is installed according to the supplied instructions
- Supports the bull bar rating for a winch of up to 10,000 lb
Fitment
| Years | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2024 to 2025 | Toyota | Land Cruiser | 1958 | Front |
| 2024 to 2025 | Toyota | Land Cruiser | Base | Front |
This kit is required for the ARB Summit MKII bull bar 3421885 installation on the 250 series Land Cruiser. Vehicles equipped with the front cross traffic alert system are not compatible with this bull bar installation, and factory fog lights cannot be reused.
Specifications
| Detail | Value |
|---|---|
| Brand | ARB |
| Part Number | 6178473 |
| Product Type | Bumper chassis fitting kit |
| Compatible Bar | ARB Summit MKII bull bar 3421885 |
| Bracket Material | Steel |
| Fastener Grades | Property class 8.8, 10.9 and 11.9 |
| Mounting Method | Bolt on to the factory chassis rails |
| Airbag Compatible | Yes when installed to the ARB instructions |
| Fastener Torque | M6 9 Nm, M10 class 8.8 44 Nm, M10 class 11.9 54 Nm, M12 class 8.8 77 Nm, M12 class 10.9 92 Nm, M12 class 11.9 102 Nm |
| Sold As | Complete single vehicle fitting kit |
What's Included
- Outer chassis brackets, left and right, 1 pair
- Inner chassis brackets, left and right, 1 pair
- Chassis underpanel mount brackets, left and right, 1 pair
- Chassis mount weld assemblies, left and right, 1 pair
- Chassis crush tubes, quantity 2
- Chassis mount adjustment shims, quantity 6
- M12 x 1.75 x 100 bolts class 10.9, quantity 2, with M12 x 1.75 nyloc nuts, quantity 2
- M12 x 1.25 x 35 flange bolts class 8.8, quantity 12, with M12 x 1.25 flange nuts, quantity 10
- M12 x 1.25 x 40 flange bolts class 11.9, quantity 6, with M12 x 1.25 flange nuts class 10.9, quantity 6
- M10 x 1.5 x 40 bolts, quantity 2, with M10 x 1.5 flange nuts, quantity 2
- M10 x 1.25 x 40 flange bolts class 11.9, quantity 4, with M10 x 1.25 flange nuts class 10.9, quantity 4
- M6 x 1.0 x 25 flange bolts, quantity 4, with M6 flange nuts, quantity 4
- M12 x 26 x 4 washers, quantity 28, and M10 x 25 x 4 washers, quantity 8

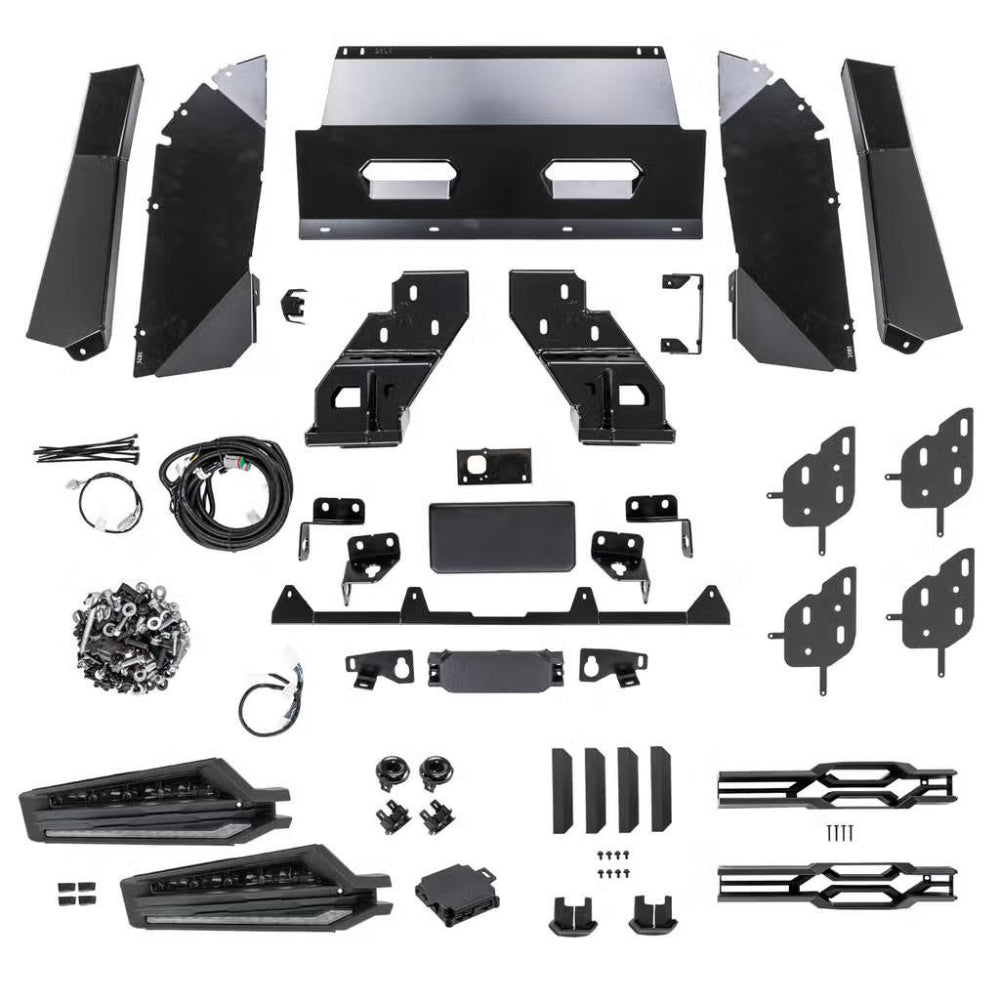

Images are for reference only and may not represent the exact components included with this kit. Refer to the verified What's Included list for the parts supplied.
About ARB
ARB has built four wheel drive protection and touring equipment in Australia since 1975 and develops each bull bar and fitting kit around a specific chassis rather than adapting a universal design. Vehicle testing covers airbag system compatibility, structural loading and winch mounting, which is why the mounting components for a Summit MKII bar are released as a dedicated kit for each application.
Related Parts
- ARB 2024+ Toyota LC 250 Summit MKII COMBAR
- ARB Bumper Fitting Kit for Summit MKII Bull Bar on 2024-2026 Toyota Tacoma
FAQ
Does this kit include the bull bar
No. This is the mounting kit only and it contains the chassis brackets, weld assemblies, shims and fasteners. The Summit MKII bull bar is ordered separately.
Which ARB bar does this kit mount
It is the fitting kit for the ARB Summit MKII bull bar built for the 250 series Land Cruiser. Do not use it with other ARB bars or other vehicles because the bracket geometry is specific to this chassis.
Which model years and submodels does it fit
It fits the 2024 and 2025 Toyota Land Cruiser 250 series in the 1958 and Base submodels.
Will the front airbag system still work normally
Yes. When the bar and this mounting kit are installed exactly as the ARB instructions specify, the front protection bar does not affect operation of the SRS airbag system.
Is any cutting or drilling of the vehicle required
Yes. The factory bumper needs to be cut and drilled at the marked locations before the brackets and bar are fitted, so plan for permanent modification of that panel.
Can the factory fog lights be reused
No. The Summit MKII bar carries its own LED lighting and the OEM fog lights are not compatible with the installation.
Are the brackets side specific
Yes. The outer, inner and underpanel brackets and the weld assemblies are supplied as left and right pairs and each side has to go to its matching chassis rail.
Can factory bumper bolts be reused instead of the supplied hardware
No. Only the graded hardware supplied in the kit should be used because the bolts, nuts and washers are specified by property class for the chassis loads involved.
Do I need a torque wrench
Yes. Every fastener has a published torque figure by size and property class, so a calibrated torque wrench and metric sockets are needed for a correct installation.
Can a winch still be fitted
Yes. The bar is rated for a winch of up to 10,000 lb once it is mounted on this chassis kit. A hawse fairlead spacer kit is needed separately if a synthetic rope hawse fairlead is used.
What tools and skills are needed
Metric hand tools, a cutting and drilling setup for the factory bumper, protective eyewear and hearing protection are needed, and ARB recommends installation by trained personnel.
Installation Instructions
- Read the ARB fitting instructions supplied with the bar completely before starting and fit protective eyewear and hearing protection.
- Remove the factory front bumper and the related trim and fixings so the chassis rails are accessible.
- Cut and drill the factory bumper at the marked locations shown in the instructions.
- Fit the chassis crush tubes and the chassis mount weld assemblies to the frame rails.
- Bolt the inner, outer and underpanel brackets to each chassis rail with the specified bolts, washers and flange nuts left loose for adjustment.
- Refit the modified factory bumper and any relocated components.
- Lift the bull bar onto the mounts and secure it with the class 11.9 flange bolts and nuts.
- Set the bar height and standoff using the chassis mount adjustment shims until the panel gaps are even.
- Connect the bar lighting to the vehicle harness as directed and check every lighting function.
- Torque all fasteners to the published figures for their size and property class, then recheck the torque after the first short drive.
