SKU: 200-2402 | UPC: 672036005337
ARP 1955-2004 Chevrolet Small Block 1in Carburetor Spacer Stud Kit 2.7in OAL
ARP 200-2402 stud kit secures 1-inch carburetor spacers on Chevrolet Small Block V8 engines found in Camaro, Corvette, Chevelle, trucks and more from 1955-2004. These studs provide consistent hold-down force to prevent spacer lift under boost or high rpm. Built for reliability in street and race builds with phenolic or aluminum spacers.
Key Features
- 8740 Chromoly Steel: Rated at 200,000 psi tensile strength to handle high cylinder pressures and vibration
- Stud Design: Protects intake manifold threads from wear while allowing accurate torque readings
- Rolled Threads: Increases fatigue resistance and ensures full thread engagement for repeatable installs

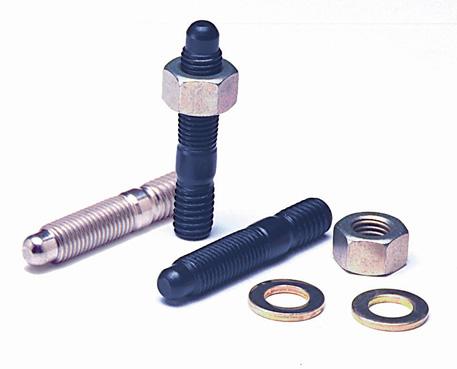

- Complete Kit: Includes studs, hard washers and 12-point nuts for plug-and-play assembly

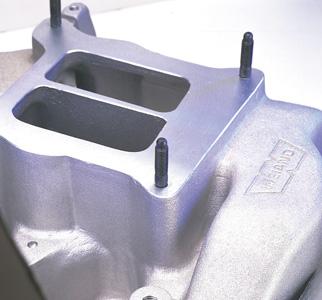

- 2.7in OAL: Exact length matches 1in spacers on SBC intake manifolds with 3/8-16 threads
Product Notes
- Confirm intake stud height measures 2.7in from manifold surface to top
- Apply ARP Ultra-Torque lubricant on threads and under nut faces
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Torque 12-point nuts to 35-45 ft-lbs in crisscross pattern using ARP specs
- Compatible with stock or aftermarket SBC intakes like Edelbrock Performer RPM
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1955-1981 | Chevrolet | Bel Air | All V8 |
| 1964-1987 | Chevrolet | C10 Pickup | All V8 |
| 1967-2002 | Chevrolet | Camaro | Base, RS, SS, Z/28 |
| 1962-1982 | Chevrolet | Corvette | All V8 |
| 1964-1972 | Chevrolet | Chevelle | All V8 |
| 1962-1979 | Chevrolet | Impala | All V8 |
| 1968-1974 | Chevrolet | Nova | All V8 |
Why Choose ARP?
- Proven in NHRA Top Fuel and Pro Stock engines for decades
- Every fastener lot tested for strength and consistency
- Made in USA with ISO-certified processes
Frequently Asked Questions
-
Q: Does this fit LS engines or only Gen I SBC?
A: Designed exclusively for Gen I/II Small Block Chevy 262-400ci V8 with standard 1in spacers. Not for LS or big block. -
Q: What material and finish are the studs?
A: Heat-treated 8740 chromoly steel with rolled threads and black oxide finish for corrosion resistance. -
Q: Is there a warranty?
A: ARP provides limited lifetime warranty against manufacturing defects when installed and torqued per instructions.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: ARP box 6in x 4in x 1in
- Weight: 0.25 lbs
