SKU: 200-2802 | UPC: 672036005412

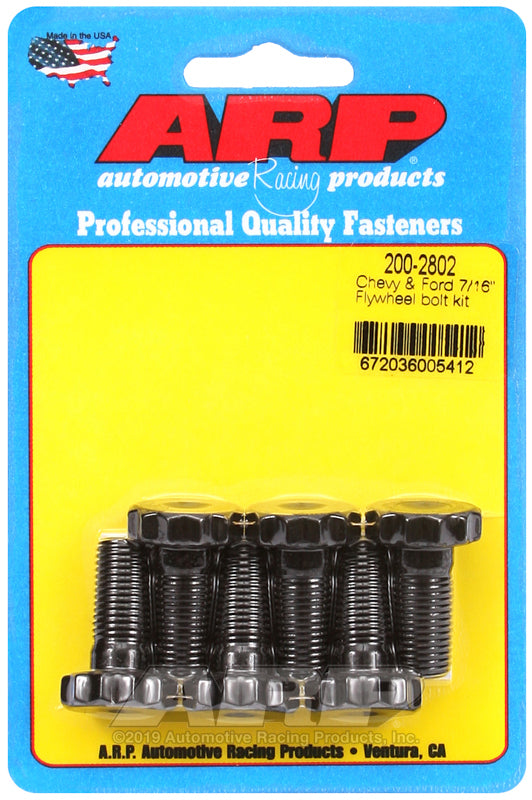

ARP Flywheel Bolt Kit 200-2802 for Chevy Small Block V8 1955-1998, Big Block V8 1965-1996 & Ford 289/302/351W 1962-1995 7/16-20
ARP 200-2802 Pro Series flywheel bolt kit secures flywheels and flexplates on Chevy small block 262-400cid and big block 396-454cid engines from 1955-1998 plus Ford 289/302/351W V8s 1962-1995 using 7/16-20 threads. These bolts deliver 190,000 PSI tensile strength from aerospace-grade 8740 chromoly to handle extreme torque and RPM in race or street applications. The 12-point heads and oversized shank ensure precise registration and clamp load retention for dependable power transfer.
Key Features
- Pro Series Strength: 190,000 PSI rating forged from 8740 chromoly steel exceeds OEM hardware for high-horsepower builds
- 12-Point Head Design: Exclusive flat 12-point heads provide secure wrench engagement and prevent cam-out during installation
- Oversized Shank: Larger diameter than stock improves strength and flywheel centering accuracy
- Black Oxide Finish: Resists corrosion while maintaining precise tolerances through heat treatment and thread rolling
- Complete Kit: Includes 6 bolts, hardened washers and 12-point nuts for Chevy and Ford applications
Product Notes
- Heat-treated before thread rolling for maximum fatigue resistance
- Use ARP Ultra-Torque fastener lubricant on threads and under heads
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Torque to ARP specifications: 65 ft-lbs for Chevy, 75 ft-lbs for Ford using ARP lube
- Compatible with stock and aftermarket flywheels/flexplates with 7/16-20 holes
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1955-1998 | Chevrolet | Small Block V8 | 262, 265, 267, 283, 302, 305, 327, 350, 400 cid |
| 1965-1996 | Chevrolet | Big Block V8 | 396, 402, 427, 454 cid Mark IV |
| 1962-1995 | Ford | Small Block V8 | 289, 302, 351W |
Why Choose ARP?
- Developed for NASCAR and proven in professional racing
- 8740 chromoly construction heat-treated for consistent performance
- Precision machined in USA for exact fit and reliability
Frequently Asked Questions
-
Q: Does ARP 200-2802 fit LS engines or 351 Cleveland?
A: No, designed for Chevy small/big block Mark IV and Ford Windsor 289/302/351W with 7/16-20 threads. LS uses different 7/16-14. 351C uses 1/2-20. -
Q: What material and finish are used?
A: Forged 8740 chrome moly steel with black oxide finish, rated 190,000 PSI tensile strength. -
Q: What torque specs apply?
A: ARP recommends 65 ft-lbs Chevy/75 ft-lbs Ford with ARP Ultra-Torque lube. check flywheel instructions.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box 6 x 4 x 1 inches
- Weight: 0.8 lbs
