SKU: 154-3701 | UPC: 672036003739
Cylinder Head Bolt Kit for Ford 1962-1995 289-302 V8 with Factory or Edelbrock 60259/60379 Heads ARP 154-3701

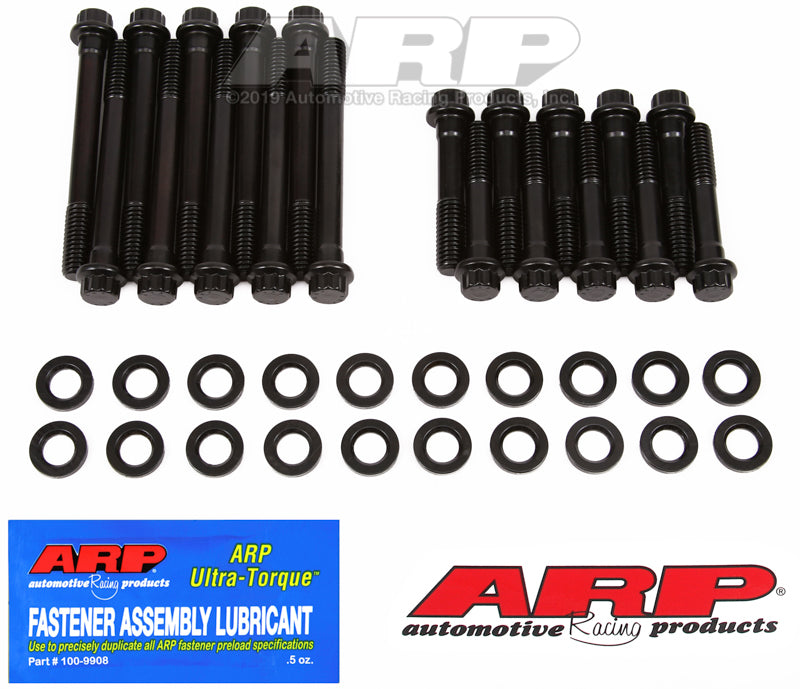

ARP 154-3701 cylinder head bolt kit secures Ford 289 and 302 V8 engines with factory 6-bolt heads or Edelbrock Performer RPM heads #60259 left bank and #60379 right bank. These 8740 chrome moly bolts deliver 180,000 PSI tensile strength for dependable clamping in performance applications. The complete kit includes hardened parallel-ground washers and a design enabling retorquing without valve train removal.
Key Features
- 8740 Chrome Moly Steel: Provides 180,000 PSI tensile strength 15 percent stronger than Grade 8 bolts for lasting head gasket seal
- Black Oxide Finish: Resists corrosion while offering low friction for accurate torquing
- Flanged Head Design: Wide area flange with reduced wrenching hex or 12-point style simplifies access and retorquing
- Hardened Washers Included: Parallel-ground for even load distribution and precise torque application
- USA Manufactured: Meets ARP rigorous quality control for automotive and racing reliability
Product Notes
- Confirm 6-bolt cylinder head configuration on 289/302 engines before ordering
- Torque per ARP instructions included with kit for optimal performance
- Kit contains correct bolt assortment for Ford small block Windsor heads
Installation Notes
- Professional installation recommended.
- Apply ARP Ultra-Torque fastener lubricant to threads and under heads
- Uses torque-to-yield method follow ARP three-step torque sequence
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964-1973 | Ford | Mustang | 289/302 V8 |
| 1966-1970 | Ford | Falcon | 289/302 V8 |
| 1966-1969 | Ford | Fairlane | 289/302 V8 |
| 1968-1971 | Ford | Torino | 302 V8 |
| 1966-1974 | Ford | Ranchero | 289/302 V8 |
| 1965-1976 | Ford | F-100 to F-350 | 302 V8 |
| 1963-1968 | Ford | Full Size | 289 V8 |
Why Choose ARP?
- Trusted by racers in NHRA NASCAR and circle track for decades
- Precision forged threads rolled for maximum fatigue strength
- ARP limited lifetime warranty covers fastener failures
Frequently Asked Questions
-
Q: Does this fit Edelbrock Performer RPM heads on my 302?
A: Yes ARP 154-3701 matches Edelbrock #60259 left and #60379 right 6-bolt heads for 289-302 -
Q: What bolts and sizes are in the kit?
A: 10 x M11 x 2.5 x 125mm 6 x 3/8-16 x 3.5 inch with matching washers for complete Ford Windsor coverage -
Q: What warranty applies?
A: ARP provides limited lifetime warranty when installed and torqued per instructions
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 1.5 x 6 x 8 inches
- Weight: 2.1 lbs
