SKU: 100-7703 | UPC: 672036000417
ARP Ford Rear Disc Brakes 1965-2001 Chrysler Front Wheel Stud Kit

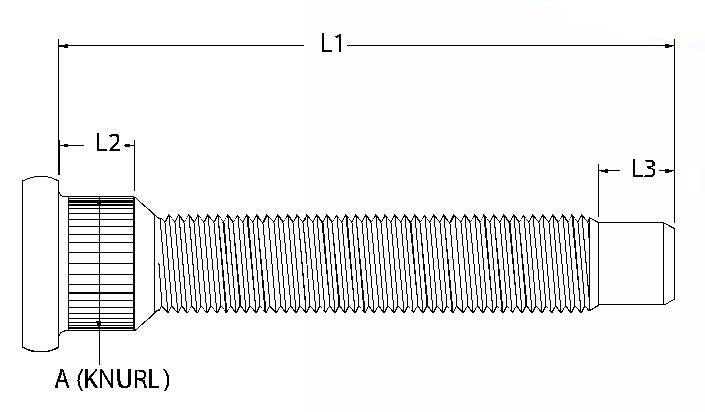

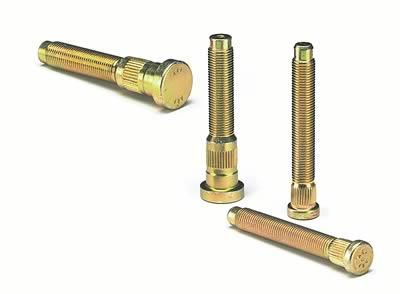

ARP 100-7703 wheel stud kit provides 10 knurled 1/2-20 x 5.500-inch studs for Ford rear disc brake setups from 1965-2001 passenger cars trucks and vans plus Chrysler front disc brake trucks from 1972-up. These studs offer high tensile strength and precise fit to maintain wheel retention under high loads. Built for daily driving or racing they prevent stretching or failure common in stock studs.
Key Features
- 8740 Chromoly Steel: Heat-treated to 200000 psi tensile strength for repeated torque cycles without fatigue
- Rolled Threads: After heat treatment process increases fatigue life and resists thread galling during installs
- Knurled Shank: Ensures press-fit installation without special tools while reducing hub thread wear
- Application-Specific Length: 5.500-inch studs match OEM dimensions for Ford rear and Chrysler front disc brake hubs
- Kit of 10 Studs: Complete set covers one axle with consistent clamp load for even wheel seating
Product Notes
- Inspect hub bores for damage before installation to ensure proper press fit
- Re-torque wheels after 50-100 miles and first heat cycle for bed-in
- Packaged in protective ARP tube for damage-free shipping
Installation Notes
- Professional installation recommended.
- Clean hub threads apply ARP Ultra-Torque lubricant and press studs using ARP tool or press
- Torque to manufacturer specs 85-110 ft-lbs typical follow multi-pass sequence
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-2001 | Ford | Mustang | Rear Disc Brake |
| 1973-1997 | Ford | F-100 | Rear Disc Brake |
| 1973-1997 | Ford | F-150 | Rear Disc Brake |
| 1973-1997 | Ford | F-250 | Rear Disc Brake |
| 1973-1997 | Ford | F-350 | Rear Disc Brake |
| 1975-1997 | Ford | E-100 | Rear Disc Brake |
| 1975-1997 | Ford | E-150 | Rear Disc Brake |
| 1975-1997 | Ford | E-250 | Rear Disc Brake |
| 1975-1997 | Ford | E-350 | Rear Disc Brake |
| 1972-2001 | Dodge | D-Series | Front Disc Brake |
| 1972-2001 | Dodge | W-Series | Front Disc Brake |
| 1972-2001 | Plymouth | Trailduster | Front Disc Brake |
Why Choose ARP?
- ARP fasteners power NHRA Top Fuel dragsters and NASCAR teams worldwide
- Every stud undergoes rigorous testing for load and fatigue resistance
- CNC machining ensures exact dimensions and balance for vibration-free performance
Frequently Asked Questions
-
Q: Will this kit fit 1985 Ford F-150 rear disc brakes?
A: Yes ARP 100-7703 matches 1973-1997 Ford F-Series trucks with rear disc brakes including F-150 2WD and 4WD models -
Q: What material are these wheel studs made from?
A: Exclusive ARP 8740 chromoly steel construction with rolled threads after heat treatment for maximum strength and durability -
Q: What is the torque spec and warranty?
A: Follow ARP or OEM specs typically 85-110 ft-lbs with Ultra-Torque lube ARP offers defect warranty contact manufacturer for details
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: ARP protective tube 5.75 x 4 x 1.25 inches
- Weight: 1.20 lbs
