Click to zoom in
SKU: 230-7304 | UPC: 672036029876

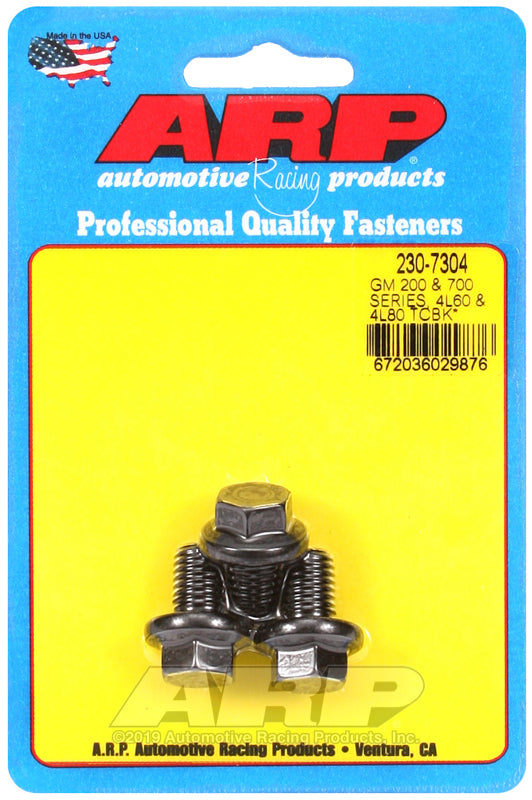

ARP GM 200 & 700 4L60 & 4L80 Torque Converter Bolt Kit - Fits 1981+ Chevy GMC
This ARP torque converter bolt kit delivers secure attachment between the torque converter and flexplate in GM TH200-4R 700R4 4L60 4L60E 4L65E and 4L80E transmissions. Designed for high-performance GM trucks cars SUVs and vans from 1981 to present these 6 bolts maintain clamp load under extreme stress. Engineered to handle street drag strip and track demands with consistent reliability.
Key Features
- 8740 Chromoly Steel Construction: Rated at 200000 PSI tensile strength to resist fatigue and failure in high-torque setups
- Precision-Rolled Threads: 7/16-20 x 1.600 inch size provides maximum thread engagement and accurate torque values
- 12-Point Flange Head Design: Ensures positive wrench grip and eliminates stripping during installation
- Black Oxide Finish: Protects against corrosion for long-term durability in harsh environments
- Complete 6-Bolt Kit: Direct OEM replacement includes hardware and torque instructions for easy flexplate setup
Product Notes
- Inspect flexplate and converter hub for wear before installation
- Store in dry area to preserve threads and finish
- Compact kit weighs 0.25 lbs for quick shipping
Installation Notes
- Professional installation recommended.
- Apply ARP Ultra-Torque lubricant to threads and under heads
- Torque to 65 ft-lbs in crisscross sequence per ARP guide re-torque after 100 miles
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1981-1992 | Chevrolet | Camaro | All |
| 1982-1992 | Pontiac | Firebird | All |
| 1990-1996 | Chevrolet | Corvette | All |
| 1988-1998 | Chevrolet | C/K 1500 Pickup | All |
| 1999-2007 | Chevrolet | Silverado 1500 | All |
| 1999-2007 | GMC | Sierra 1500 | All |
| 1991-2002 | Chevrolet | C/K 3500 Pickup | All |
| 2001-2007 | Chevrolet | Silverado 2500 HD | All |
| 1996-2020 | Chevrolet | Express 2500 Van | All |
| 1992-1999 | Chevrolet | K1500 Suburban | All |
Why Choose ARP?
- 70+ years of fastener expertise in motorsports and OEM applications
- Proven in NHRA Top Fuel and high-horsepower street builds
- CNC-machined for exact tolerances and repeatable performance
Frequently Asked Questions
-
Q: Does this fit 4L60E and 4L80E in 2000s Chevy trucks?
A: Yes ARP 230-7304 fits TH200-4R 700R4 4L60 4L60E 4L65E and 4L80E transmissions in Chevy Silverado Sierra Express and similar 1981+ models -
Q: What material and specs do the bolts have?
A: Forged 8740 chromoly steel 7/16-20 x 1.600 in 200000 PSI tensile 12-point heads black oxide coated -
Q: What warranty and install support is provided?
A: Limited lifetime warranty on street use kit includes detailed torque specs sequence and lube instructions
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: ARP branded box 6 x 4 x 1 inches
- Weight: 0.25 lbs
