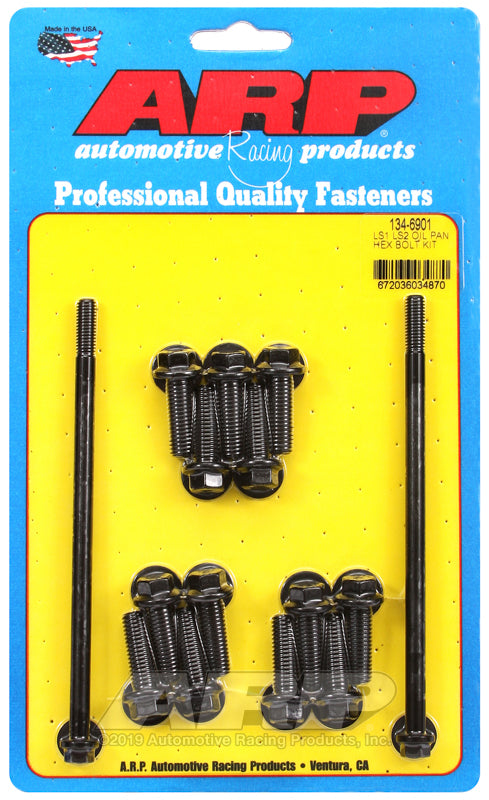

This ARP performance fastener, stud, bolt, tool, or assembly is the LS1/LS2 Hex Oil Pan Bolt Kit. Confirm the exact engine or vehicle application, thread size, length, material, strength series, included quantity, installation lubricant, tightening sequence, and current ARP torque specification before ordering.
Key Features
- Material: 8740 chromoly steel construction delivers 170,000 PSI tensile strength exceeding Grade 8 bolts for lasting durability.
- Design: Hex heads work with 10mm and 8mm sockets. M8 x 1.25 threads match OEM pan contours exactly.
- Bolts are 8740 chromoly steel with 170,000 PSI strength and black oxide finish for corrosion resistance.
- Kit Contents: 15 precision hex head bolts in mixed lengths plus 15 hardened washers provide full oil pan coverage.
- Finish: Black oxide coating protects against corrosion in engine bay environments.
- Performance: Maintains torque retention under high-revving demands proven in racing applications.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Universal or specification-matched application. Verify every dimension, interface, load or operating requirement, and listing note. | |||
Specifications
| Brand | ARP |
|---|---|
| Manufacturer Part Number | 134-6901 |
| Product Type | Hardware Kits - Other |
| Condition | New |
| Configuration | LS1/LS2 Hex Oil Pan Bolt Kit |
| Material | 8740 chromoly steel construction delivers 170,000 PSI tensile strength exceeding Grade 8 bolts for lasting durability |
| Kit Contents | 15 precision hex head bolts in mixed lengths plus 15 hardened washers provide full oil pan coverage |
| Finish | Black oxide coating protects against corrosion in engine bay environments |
| Design | Hex heads work with 10mm and 8mm sockets. M8 x 1.25 threads match OEM pan contours exactly |
| Performance | Maintains torque retention under high-revving demands proven in racing applications |
| Q | Does this kit fit aftermarket oil pans? A: Designed specifically for stock GM Gen III/IV LS oil pans. Always verify your pan configuration for compatibility. |
| Method | Standard ground shipping |
| Availability | In stock - ships same or next business day |
| Packaging | Compact shipping box 10" L x 6" W x 0.625" H |
| Weight | 0.7 lbs |
| SUVs. Key Features Material | 8740 chromoly steel construction delivers 170,000 PSI tensile strength exceeding Grade 8 bolts for lasting durability |
What's Included
One new ARP hardware kits - other in the exact configuration and quantity identified by this listing. Brackets, wiring, air lines, fittings, switches, fasteners, fitting kits, fluids, covers, and accessories are included only when expressly stated for this exact part.
About ARP
Automotive Racing Products manufactures high-performance studs, bolts, nuts, washers, wheel hardware, assembly tools, and installation lubricants for engine, drivetrain, chassis, and racing applications. Thread dimensions, material, preload method, lubricant, torque, and included quantity remain exact-part specific.
Important Disclosures
- California Proposition 65 warning applies. Review the current manufacturer warning before handling or installation.
Related Parts
- Shop all ARP products
- ARP .875in OD x 7/16in ID Insert Washers (10 pack)
- ARP 01-06 6.6L GM Duramax Diesel Flywheel Bolt Kit
- ARP 01-10 6.6L GM Duramax Diesel Flexplate Bolt Kit
Frequently Asked Questions
How do I confirm the LS1/LS2 Hex Oil Pan Bolt Kit fits my application?
Match the exact engine family or vehicle, component location, thread diameter and pitch, under-head length, material, strength series, and every current ARP application note.
Can I reuse the factory torque value with this ARP hardware?
Not automatically. Use ARP's current instructions for the exact part, material, lubricant, tightening sequence, and preload method. Factory torque values may be based on different hardware and friction.
What is included with this ARP kit?
Only the studs, bolts, nuts, washers, lubricant, and tools expressly listed for this exact part number are included. Verify the required quantity before disassembly.
Installation Instructions
- Confirm ARP part number 134-6901, the complete application, and every required supporting component before beginning work.
- Clean and inspect all mating threads and components, then verify thread engagement, length, washers, nuts, lubricant, and required preparation before assembly.
- Follow ARP's current tightening sequence, lubricant instructions, torque or stretch method, and any retorque procedure for this exact part.
- Verify clearance, preload, fastener seating, and normal component operation before returning the vehicle or engine to service.
