Secure Universal Fabrication Projects with Compact ARP Fasteners

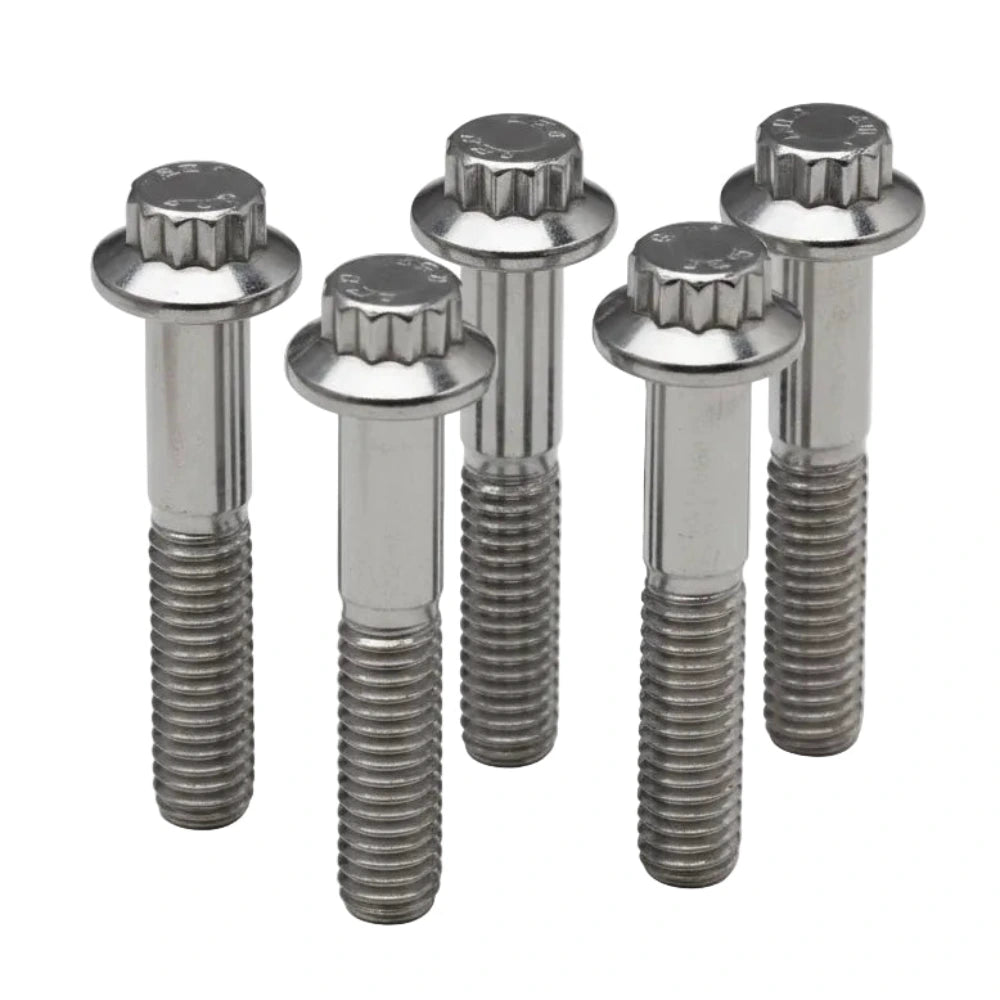

ARP 670-1016 is a five pack of compact metric bolts for universal fabrication and assembly work that calls for M6 x 1.00 threads and a 12 mm under head length.
Key Features
- Five matching metric bolts per package
- M6 x 1.00 thread size
- 12 mm under head length
- 8 mm 12 point socket size
- Black oxide finish
- Universal hardware for compatible threaded assemblies
Fitment
| Application | Compatibility Requirement |
|---|---|
| Universal | M6 x 1.00 thread and 12 mm under head length |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 670-1016 |
| Thread Size | M6 x 1.00 |
| Under Head Length | 12 mm |
| Head Style | 12 point |
| Socket Size | 8 mm |
| Finish | Black oxide |
| Package Quantity | 5 |
What's Included
- Five ARP metric bolts
About ARP
Automotive Racing Products develops precision fasteners for automotive, marine, racing, and fabrication applications.
FAQ
What is the 670-1016?It is a five pack of M6 x 1.00 metric bolts with a 12 mm under head length.
What thread size do these bolts use?Each bolt uses an M6 x 1.00 metric thread.
How long are the bolts?The under head length is 12 mm.
What tool size fits the bolt head?The 12 point head uses an 8 mm socket.
How many bolts are included?The package contains five matching bolts.
Are these bolts vehicle specific?No. They are universal hardware and require verification of thread size, length, and application clearance.
What finish is used?The bolts have a black oxide finish.
What torque should be used?Follow the requirements for the specific assembly. ARP lists 11 ft lb with ARP Ultra Torque as general guidance, not as a substitute for application instructions.
Installation Instructions
- Confirm the assembly requires M6 x 1.00 threads and a 12 mm under head length.
- Inspect the mating threads and contact surfaces.
- Apply the lubricant required by the specific assembly instructions.
- Start each bolt by hand to prevent cross threading.
- Tighten in the sequence and to the torque required for the specific assembly.
- Inspect the completed installation for proper seating and clearance.
