SKU: 154-3601 | UPC: 672036003692

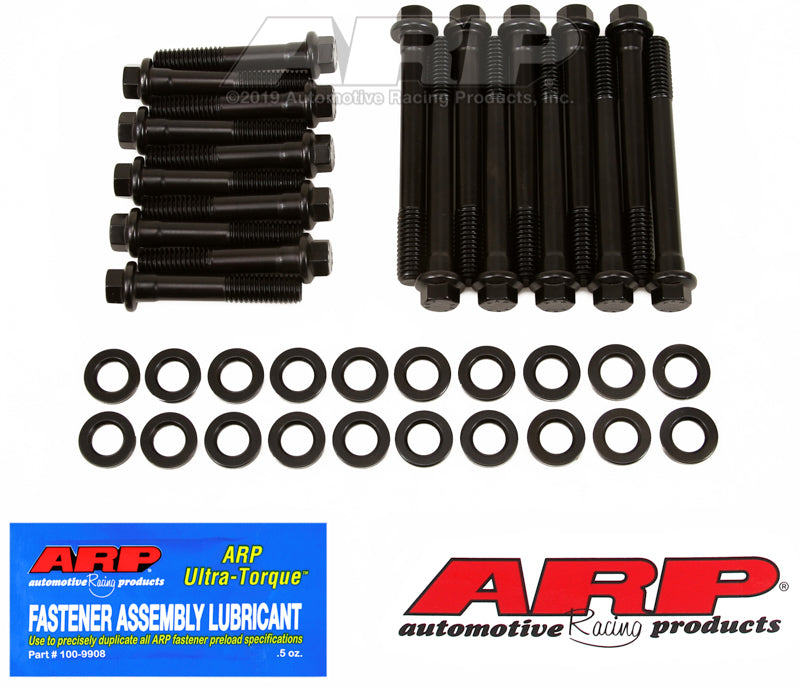

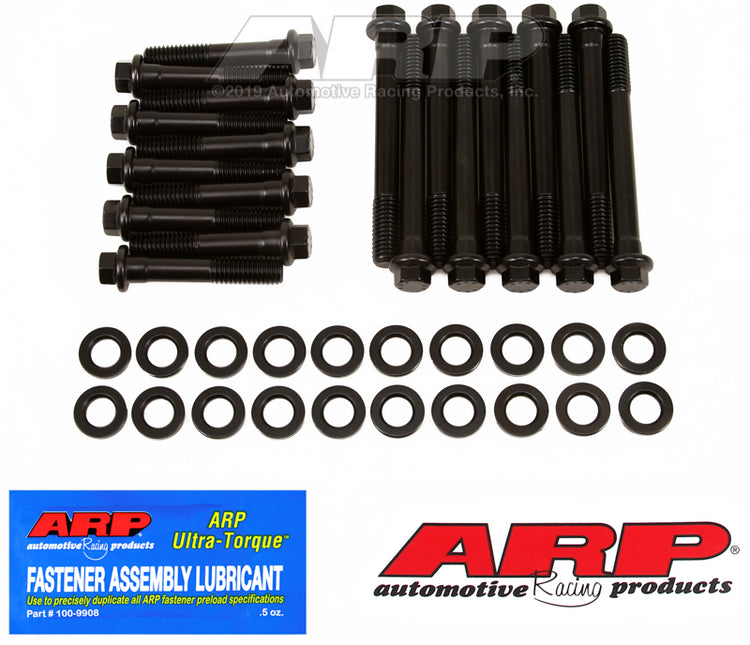

ARP Cylinder Head Bolt Kit for 1962-1997 Ford 289-302 V8 with Factory or Edelbrock 60259/60379 Heads 154-3601
Secure your Ford 289 or 302 V8 engine with ARP's high-performance cylinder head bolt kit designed for factory heads or Edelbrock Performer RPM heads part numbers 60259 and 60379. These bolts deliver reliable clamping force for high-compression builds and track use while simplifying maintenance. Kits include everything needed for precise installation on 1962-1997 Ford Windsor engines found in Mustangs trucks and more.
Key Features
- 8740 Chrome Moly Construction: Forged alloy steel provides exceptional fatigue resistance and durability under extreme boost and RPM
- 180,000 PSI Tensile Strength: Exceeds Grade 8 fasteners by 15 percent for superior head gasket sealing in performance applications
- Wide Area Flanged Head Design: Distributes load evenly across head to prevent galling and allow retorquing without removing valve covers or rocker arms
- 12-Point or Reduced Hex Head: Ensures positive engagement with sockets for fast accurate torquing during assembly and checks
- Hardened Parallel Ground Washers: Included in every kit for flat seating surface and consistent preload on every bolt
Product Notes
- Compatible only with factory Ford 289/302 heads or Edelbrock #60259 left/#60379 right cylinder heads
- Follow ARP torque specs included with kit for optimal performance
- Black oxide finish resists corrosion in engine bays
Installation Notes
- Professional installation recommended.
- Clean threads in block and heads thoroughly before installation
- Use ARP Ultra-Torque lubricant on threads and under bolt heads for accurate torque values
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964-1973 | Ford | Mustang | 289/302 V8 |
| 1965-1970 | Ford | Falcon | 289/302 V8 |
| 1966-1974 | Ford | Fairlane | 289/302 V8 |
| 1966-1970 | Ford | Torino | 289/302 V8 |
| 1965-1979 | Ford | F-100 | 289/302 V8 |
| 1966-1977 | Ford | Cougar | 289/302 V8 |
| 1968-1976 | Ford | Bronco | 289/302 V8 |
| 1969-1974 | Ford | Econoline | 289/302 V8 |
Why Choose ARP?
- Proven in NHRA IHRA and NASCAR racing for decades
- Every bolt precision-manufactured and thread-rolled after heat treat
- Made in USA with rigorous quality control
Frequently Asked Questions
-
Q: Will this kit fit Edelbrock Performer heads on my 1969 Mustang 302?
A: Yes ARP 154-3601 fits Edelbrock #60259 left and #60379 right heads on 289/302 Windsor engines including 1964-1973 Mustangs -
Q: What material are these head bolts made from?
A: Forged 8740 chrome moly steel with black oxide finish rated at 180,000 PSI tensile strength and includes hardened washers -
Q: Does ARP offer a warranty on this cylinder head bolt kit?
A: ARP provides a limited lifetime warranty against manufacturing defects when installed and maintained per instructions
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box 7 x 5 x 2 inches
- Weight: 2.3 lbs
