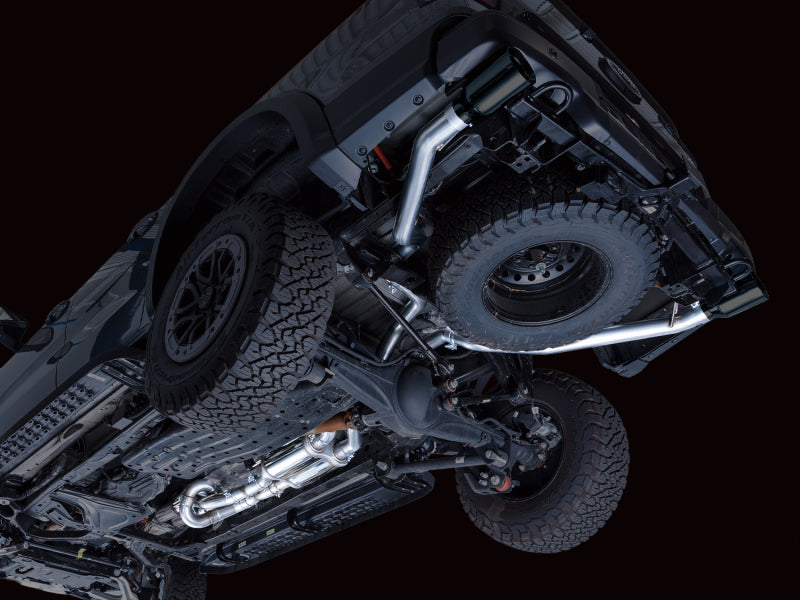

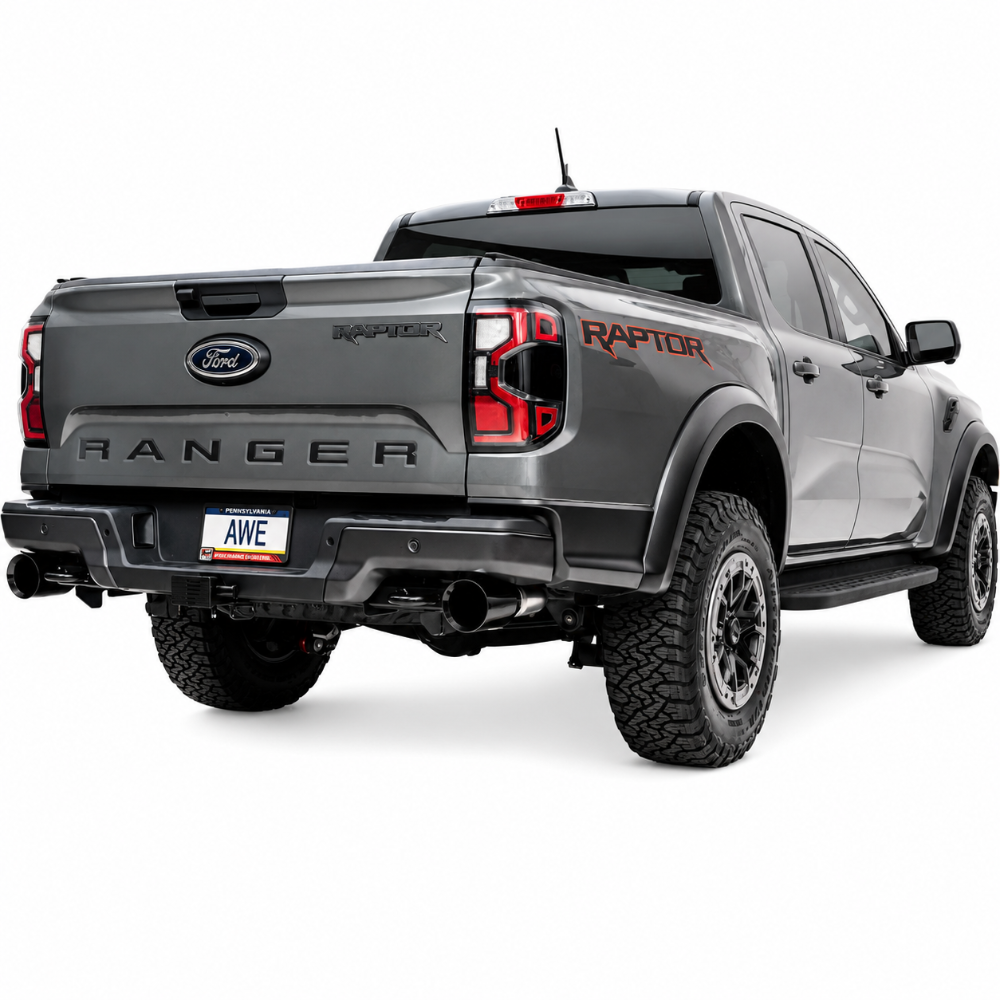

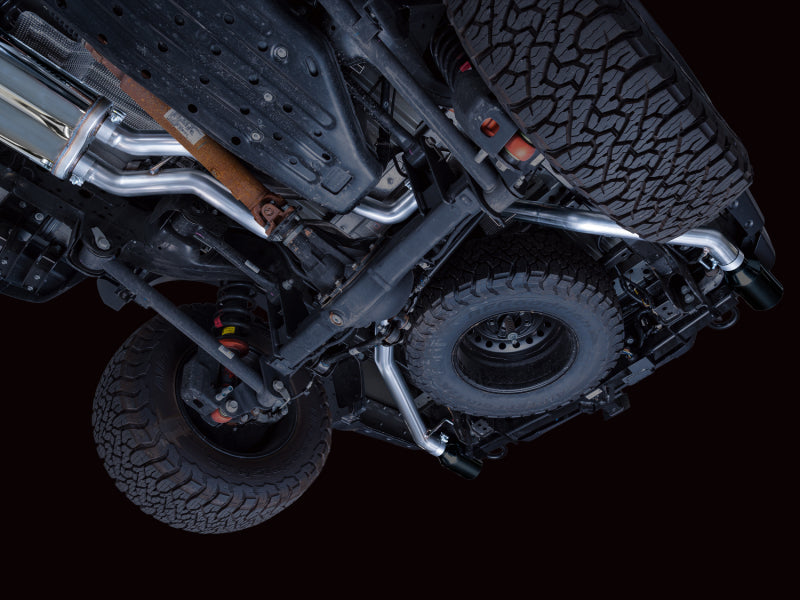

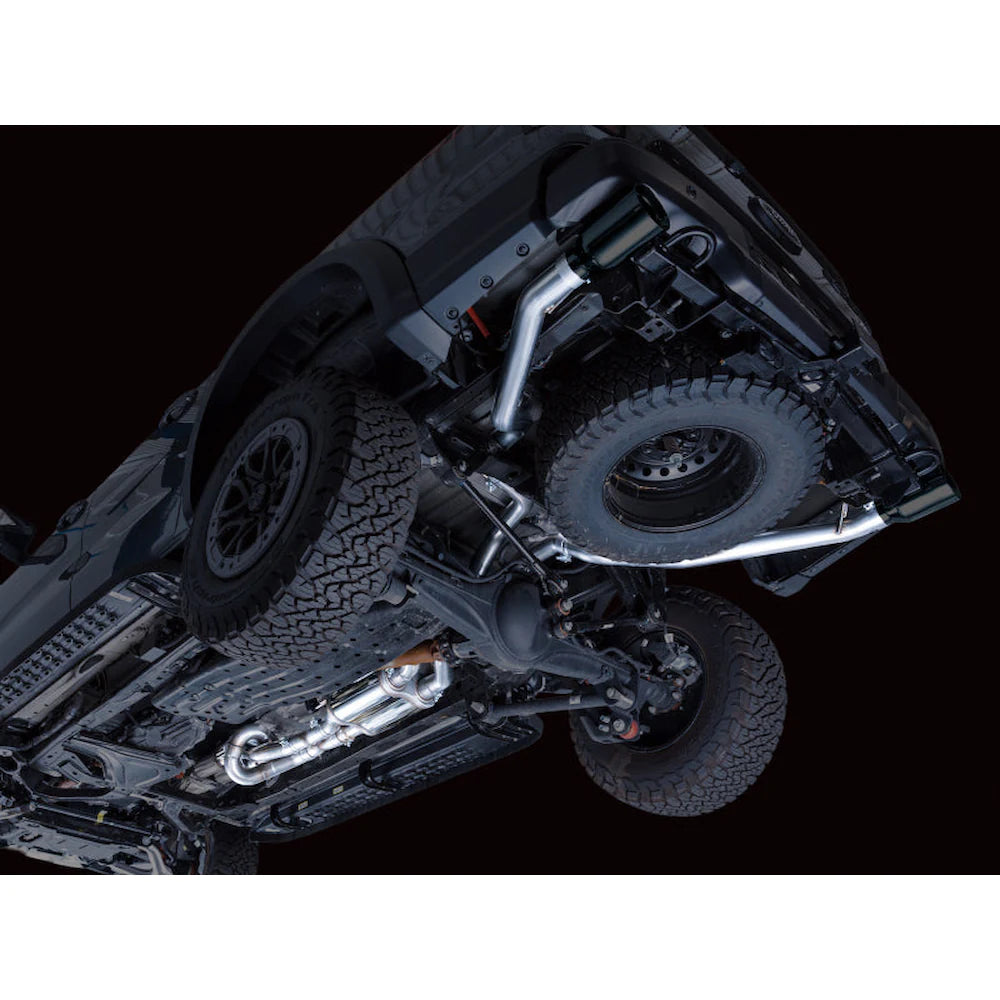

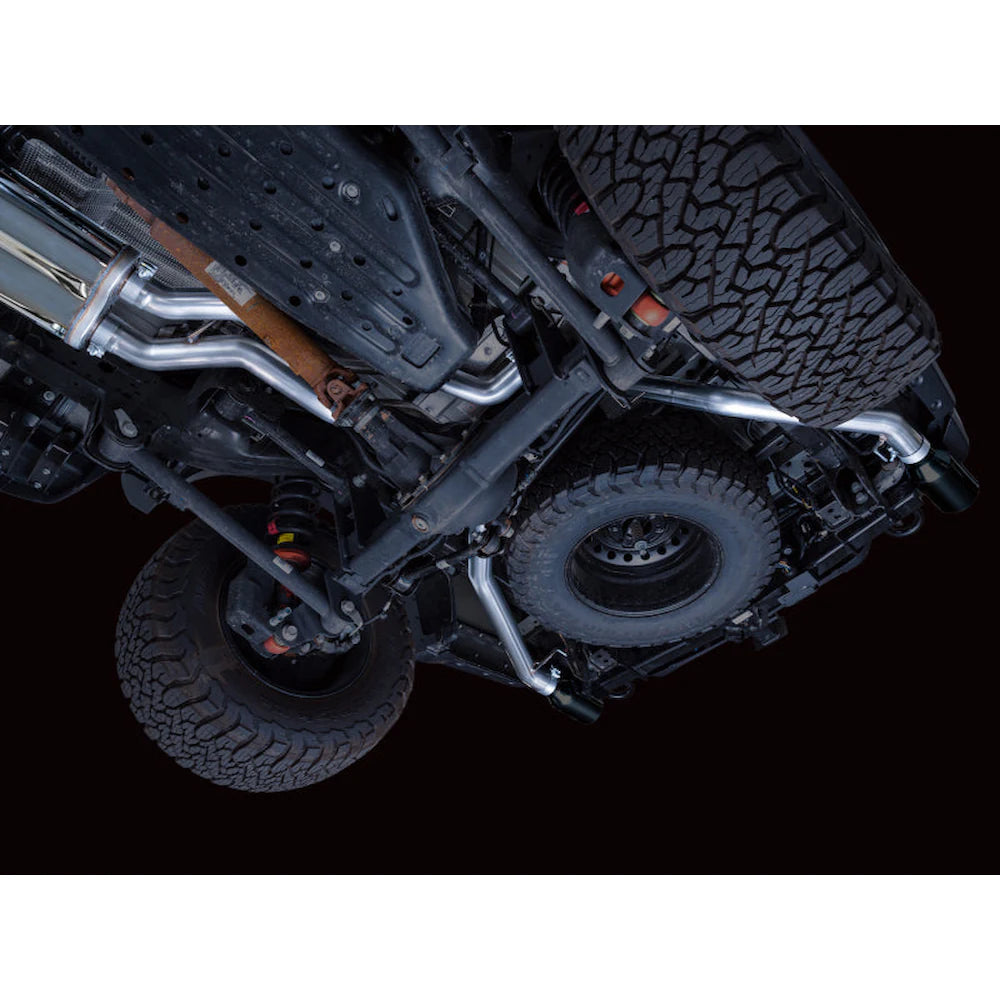

Two Exhaust Personalities in One Bolt-On Kit for the 2024+ Ford Ranger Raptor 3.0L
The AWE 3025-33306 SwitchPath Cat-Back Exhaust gives the 2024+ Ford Ranger Raptor a fully controlled dual soundtrack without modifying any factory wiring or electronics. Close the valve for a refined, highway-friendly tone.

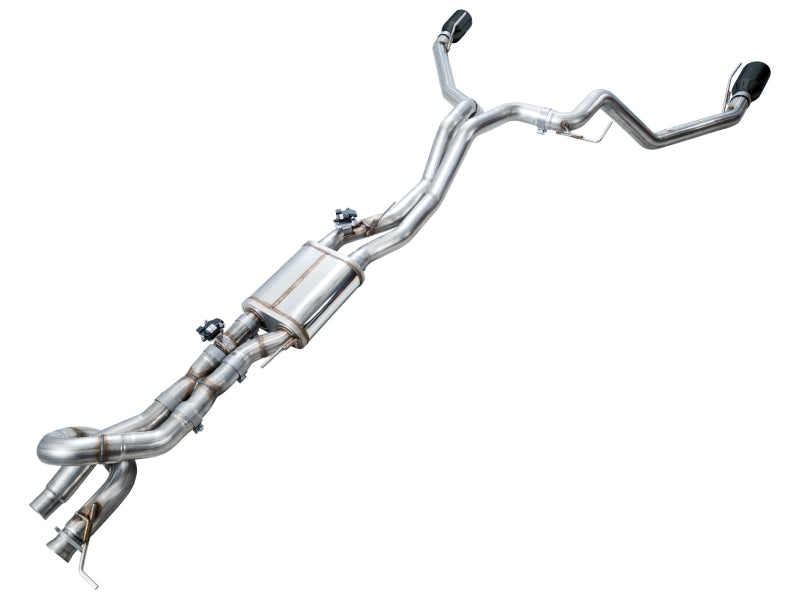

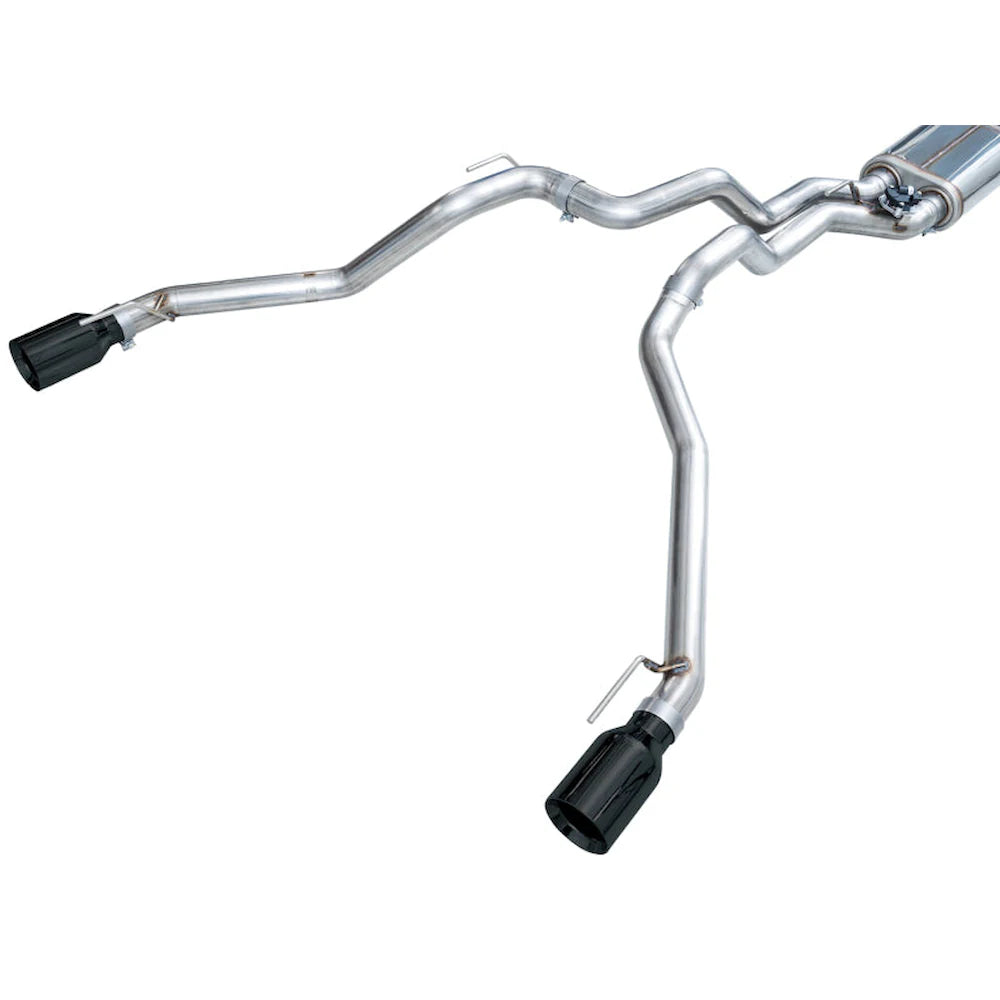

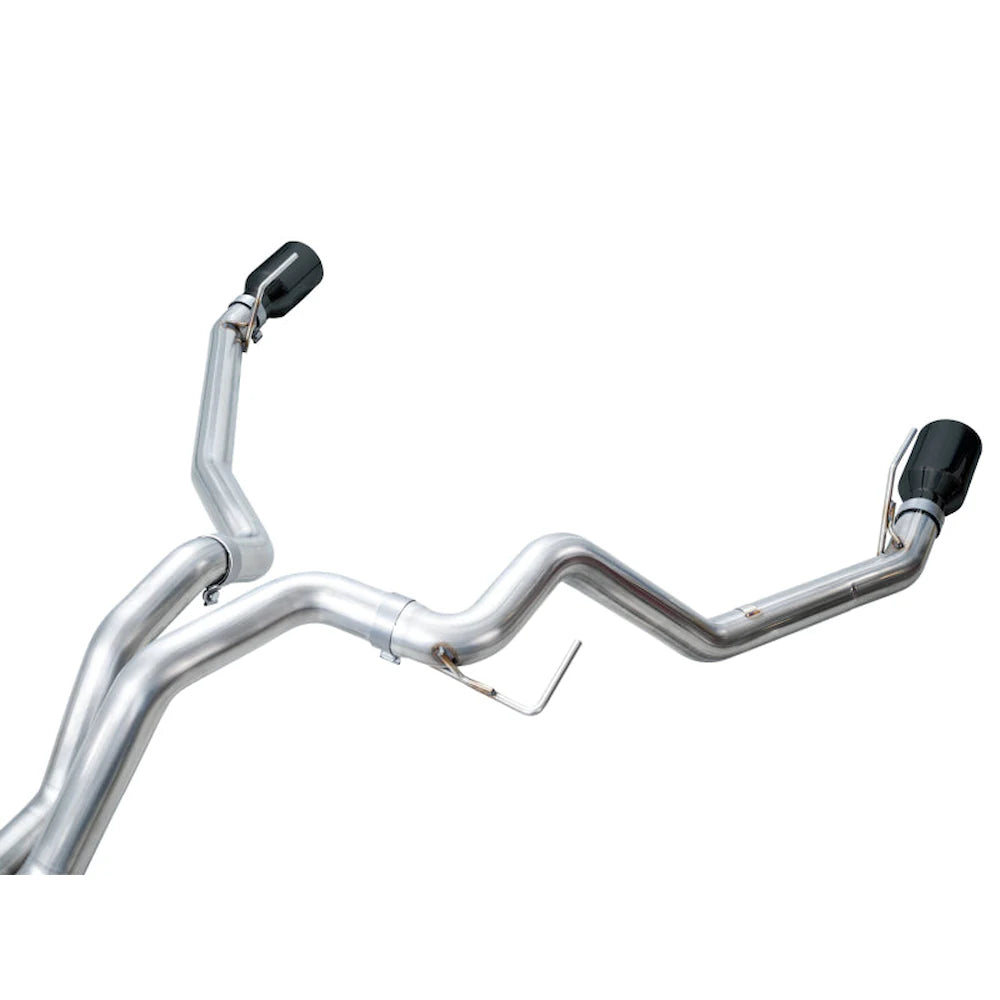

Open it for a deep, aggressive exhaust note that matches the Raptor's off-road character. The 3025-33306 is handcrafted from 3-inch, .065-inch-wall T304L stainless steel in Pennsylvania, USA, and terminates in 5-inch double-walled diamond black tips.

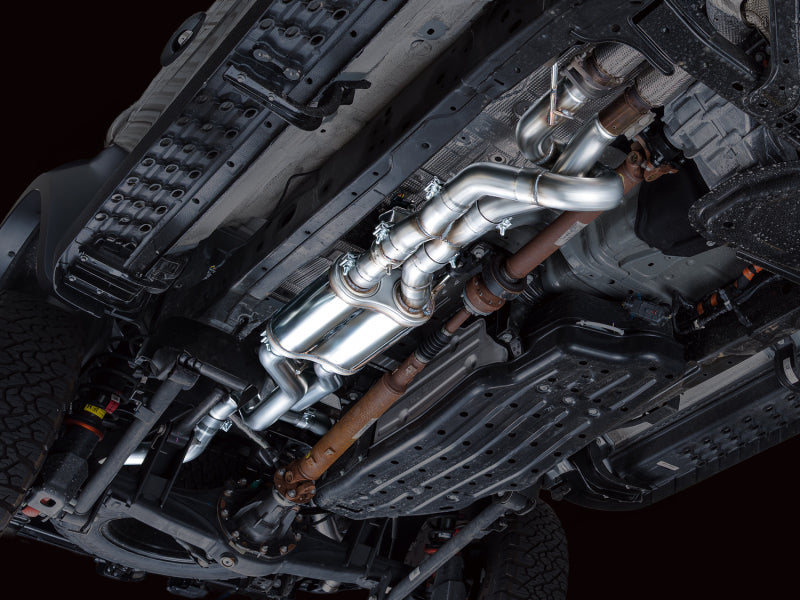

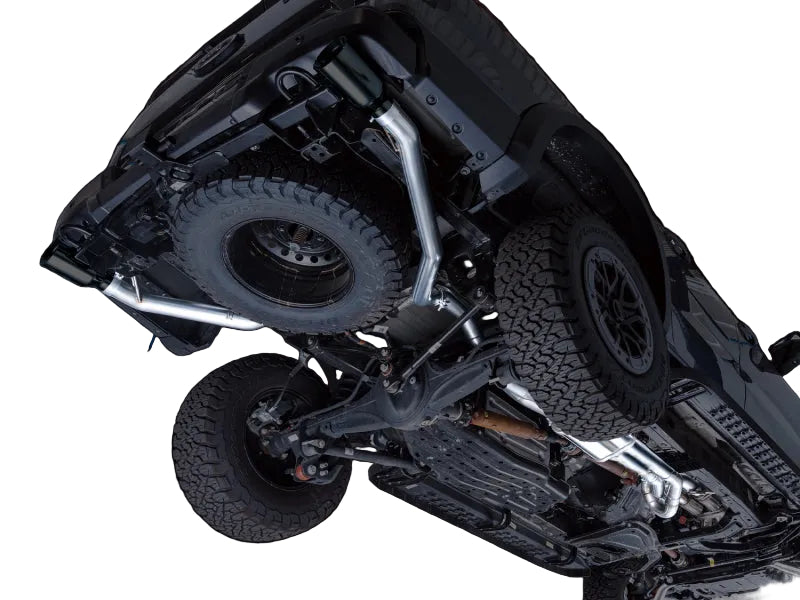

The AWE SwitchPath valve integrates directly with the factory OEM tier-1 valve motor, retaining full button and throttle-input valve control without any additional controller or wiring harness. Installation is bolt-on with no cutting, no welding, and no check engine light. The 3025-33306 is backed by AWE's perfect fitment guarantee, no CEL guarantee, and a lifetime warranty.
Key Features
-

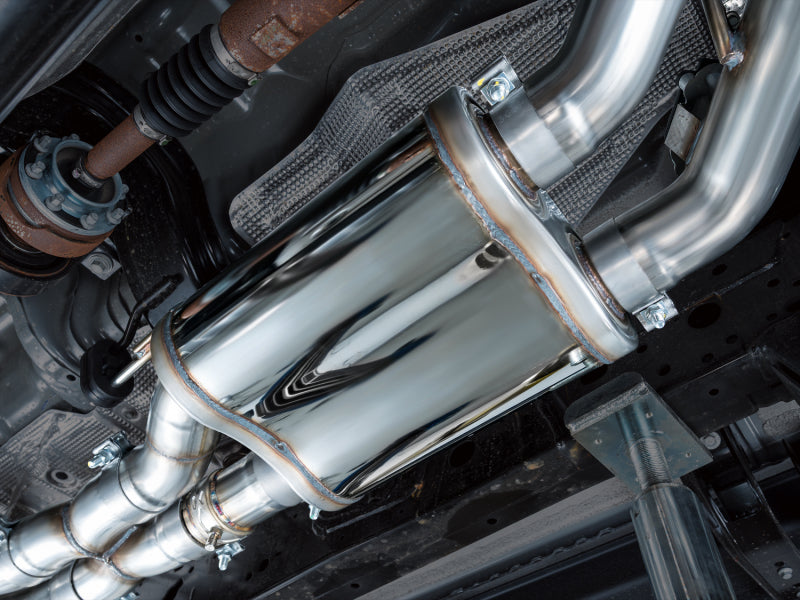

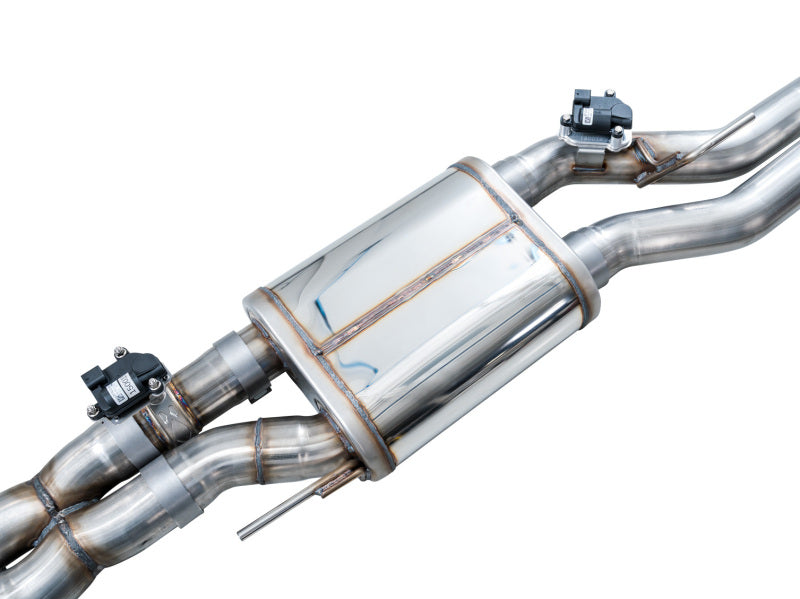

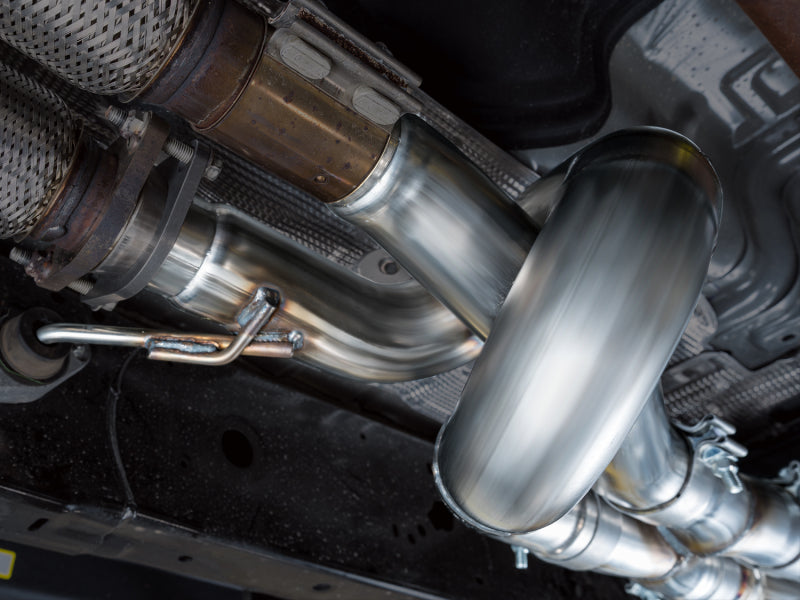

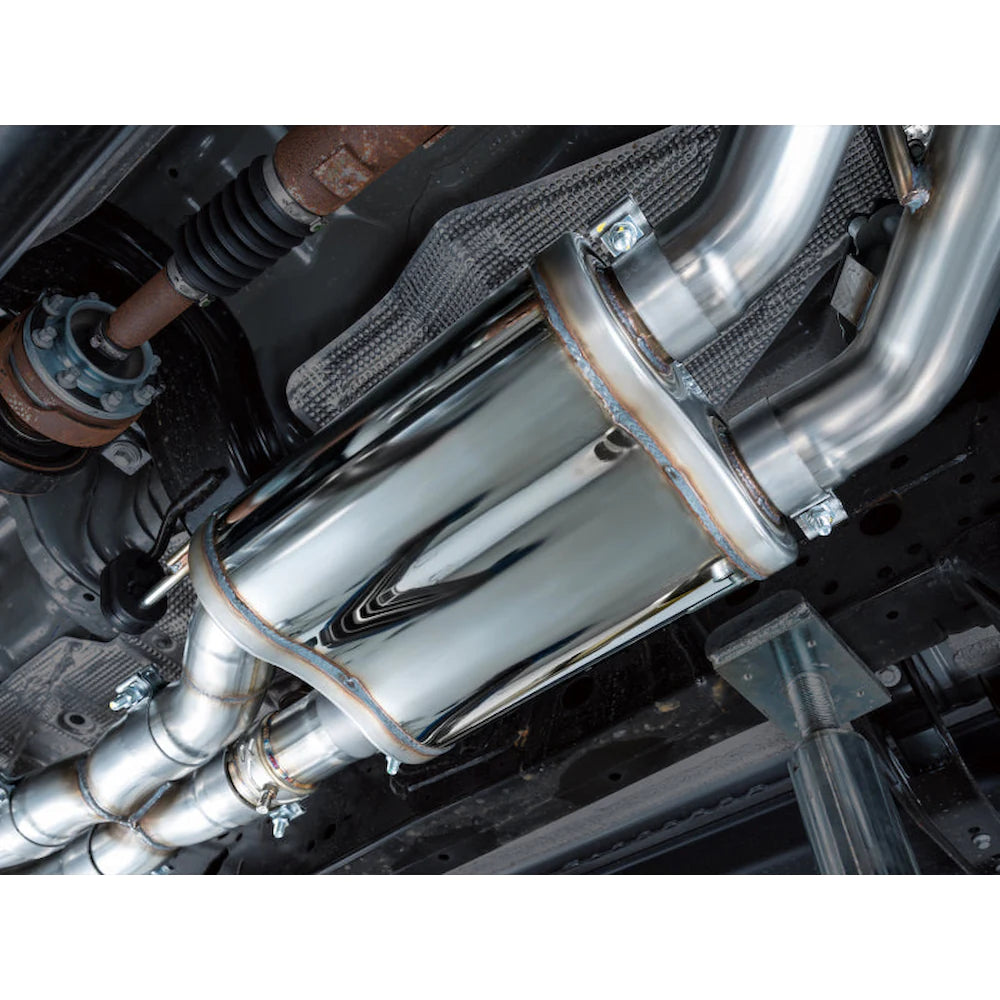

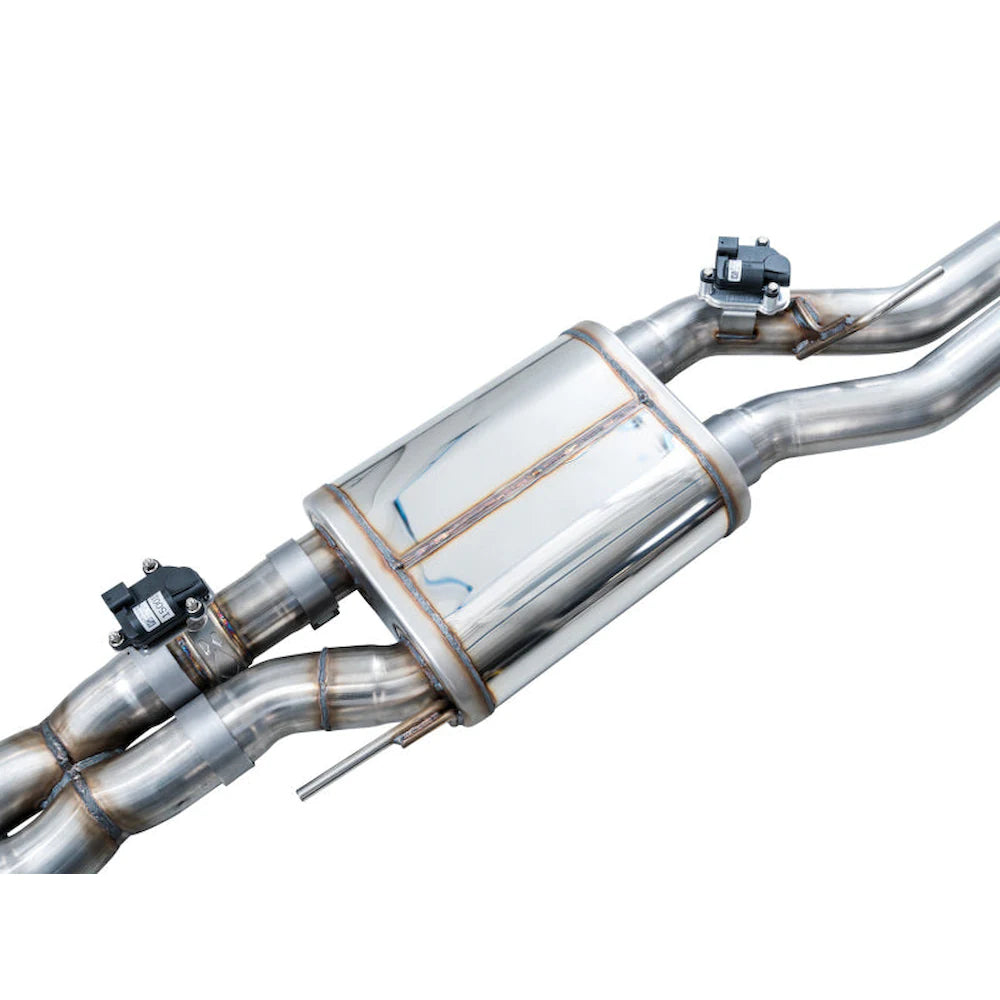

SwitchPath Dual Soundtrack: The AWE 3025-33306 SwitchPath muffler provides two distinct sound profiles controlled by the factory OEM valve button and throttle input, giving the 2024+ Ranger Raptor a quiet highway mode and an aggressive open mode in a single system
-

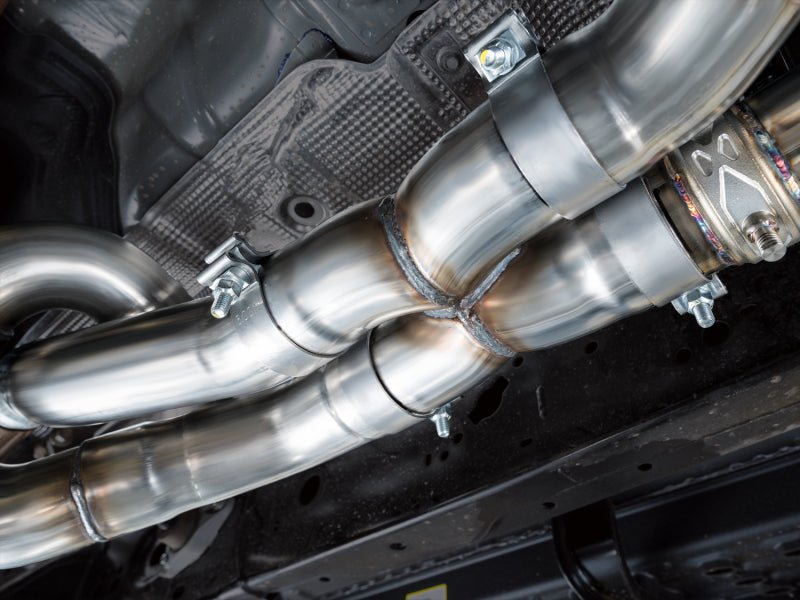

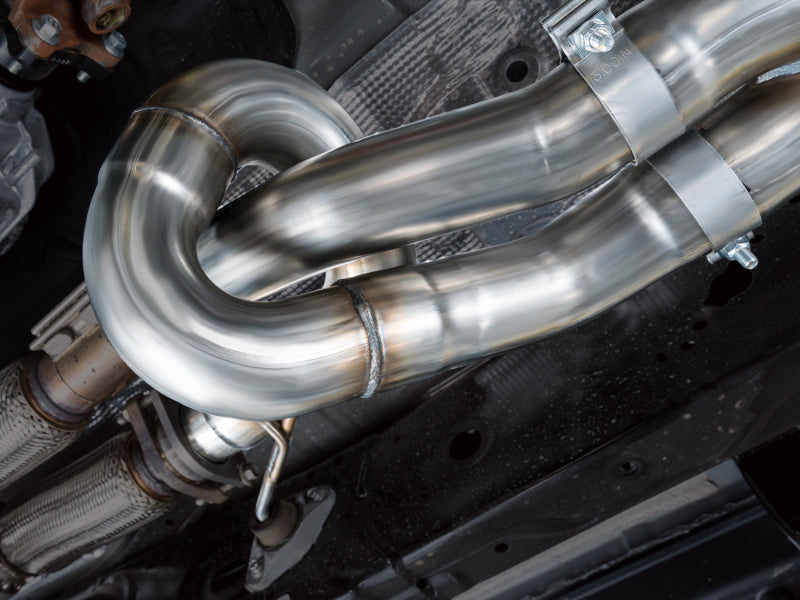

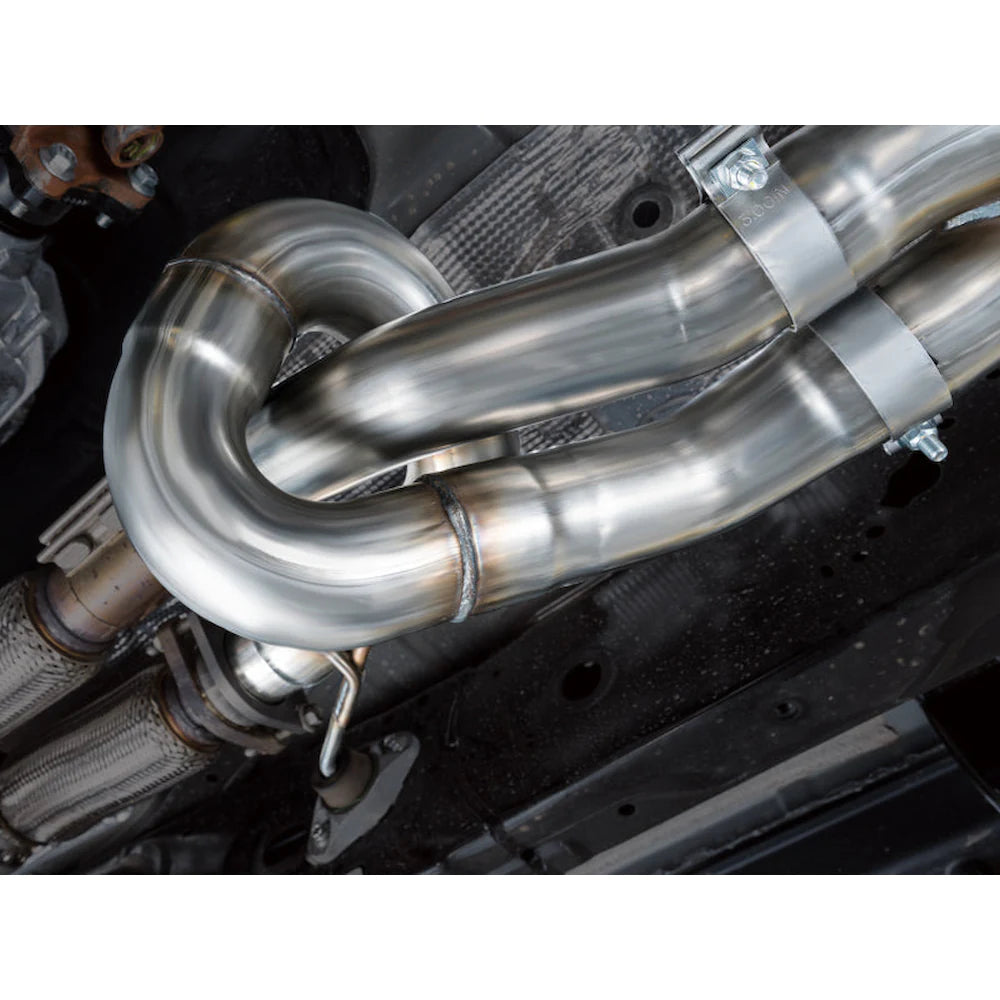

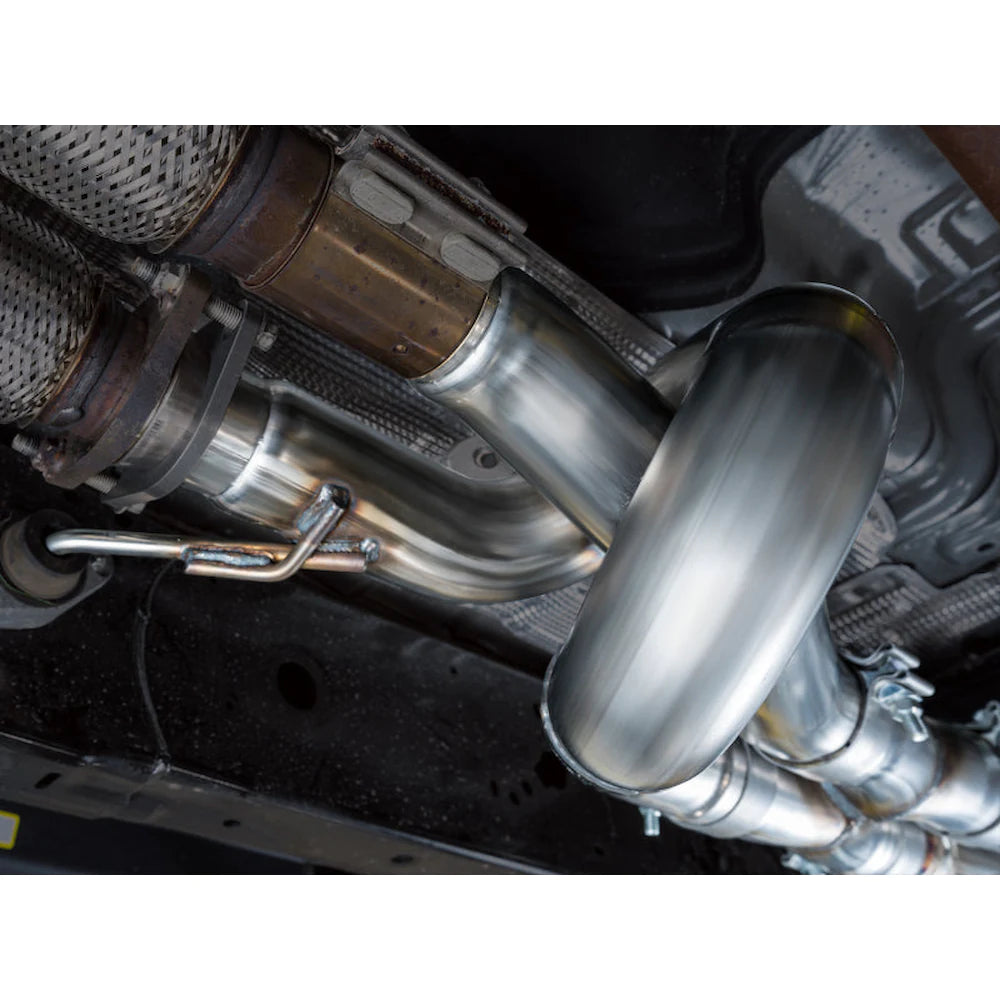

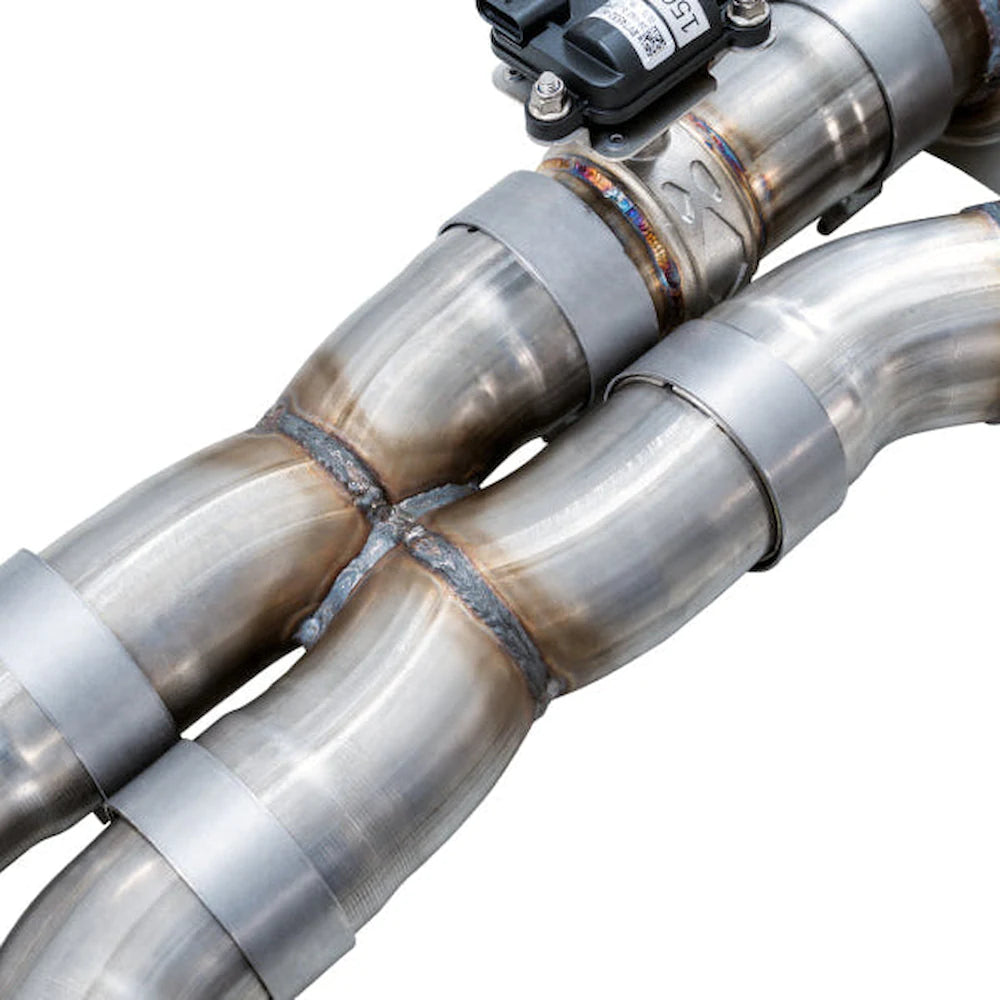

3in T304L Stainless Steel Construction: Every section of the 3025-33306 is CNC mandrel-bent from 3-inch, .065-inch-wall U.S.-sourced T304L stainless steel for maximum durability, corrosion resistance, and flow efficiency over the Ranger Raptor's 3.0L EcoBoost V6
-

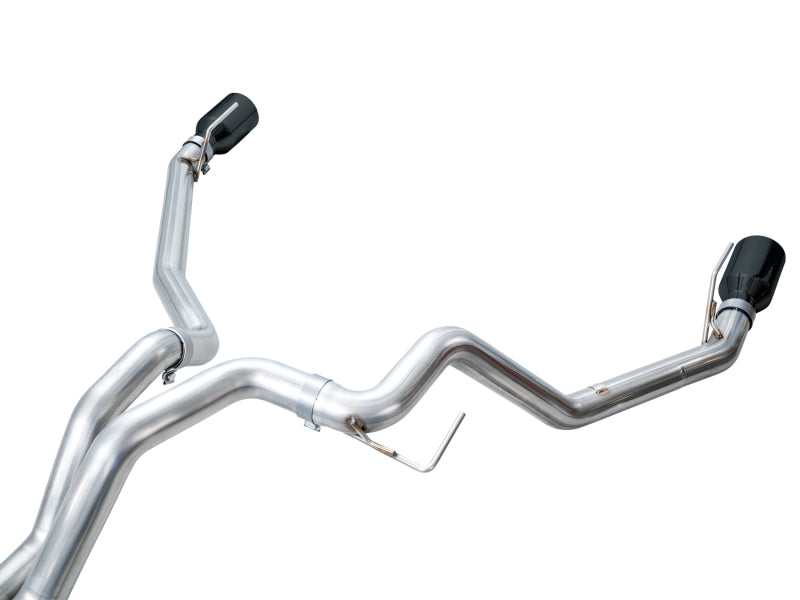

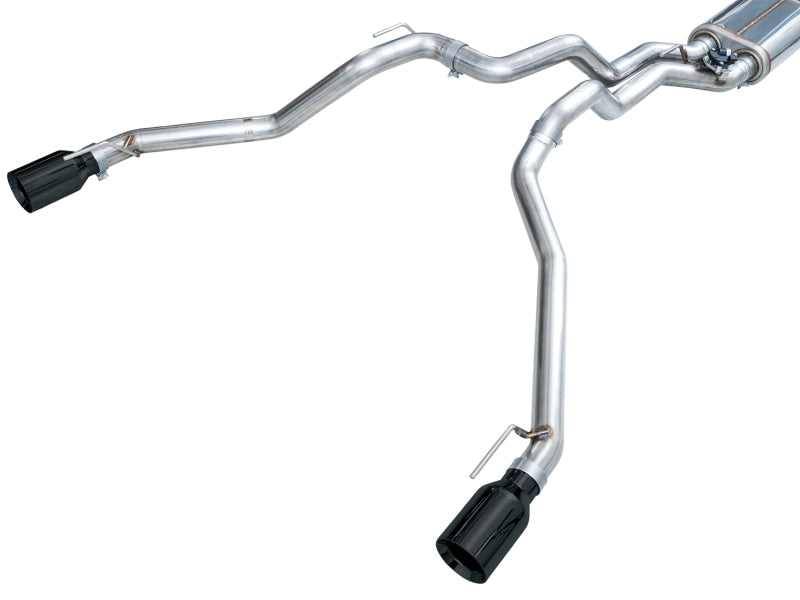

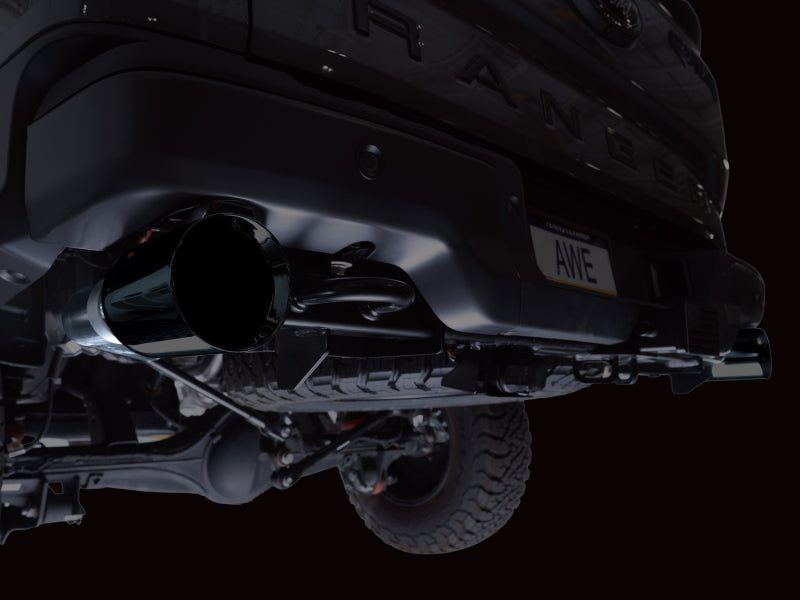

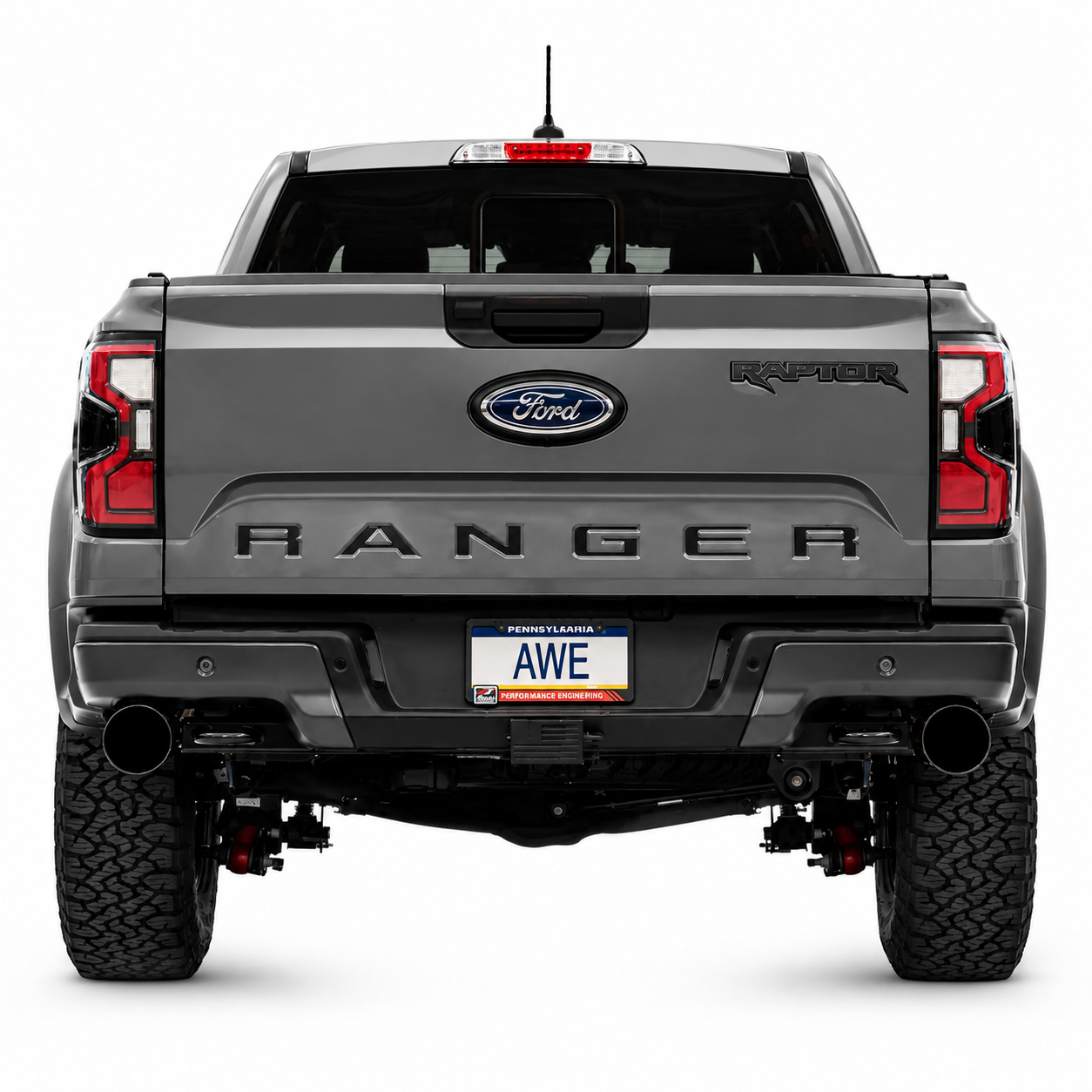

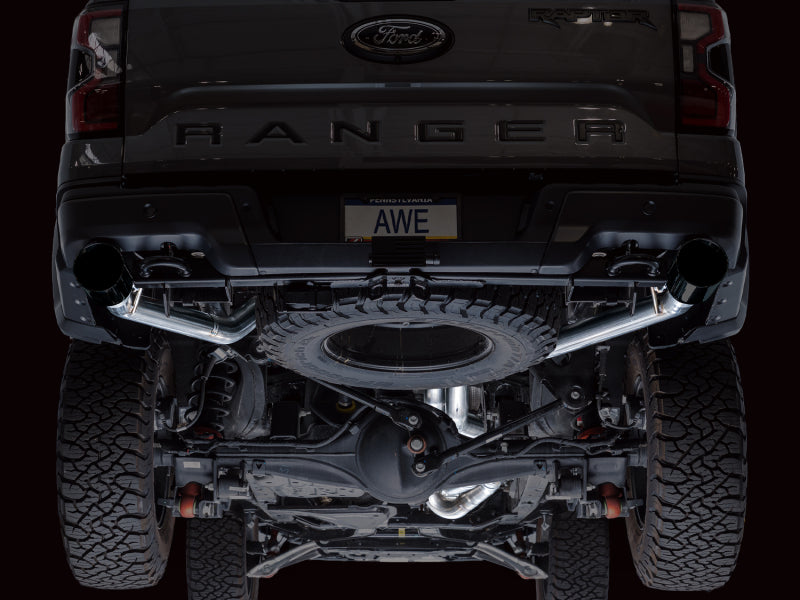

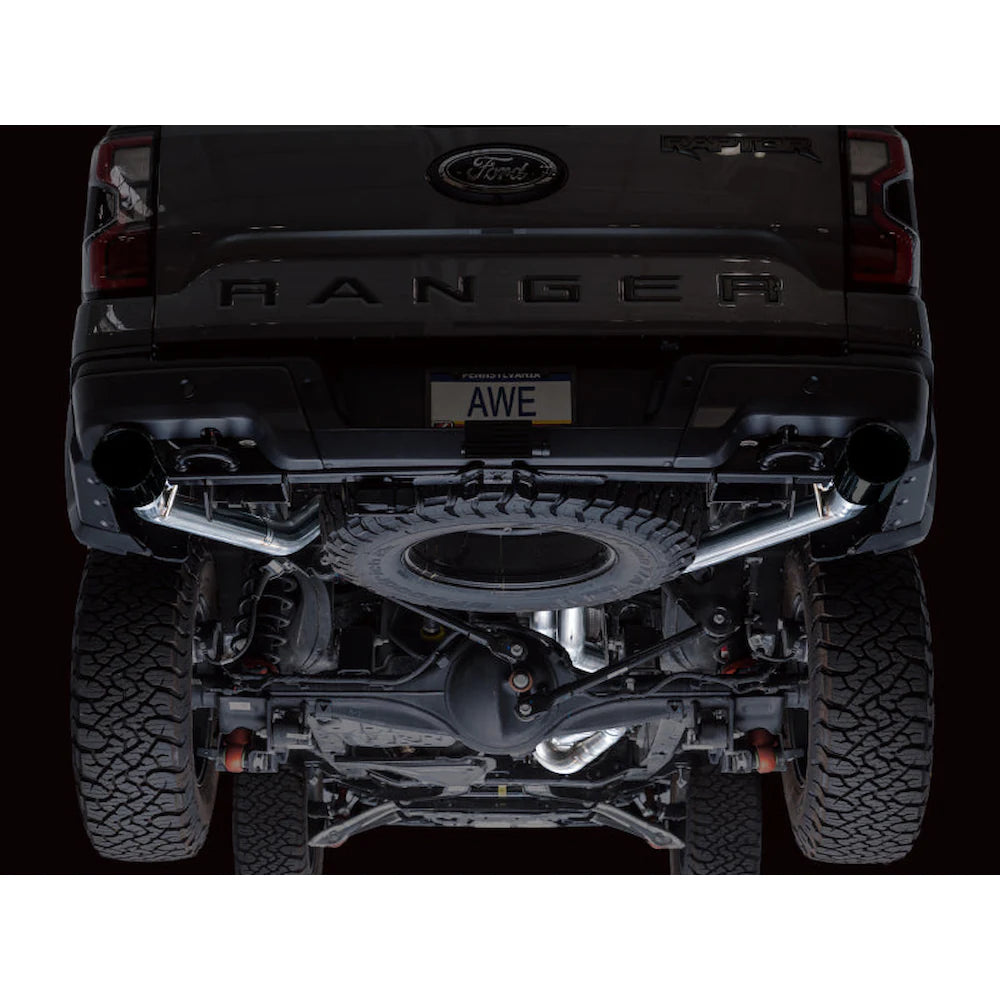

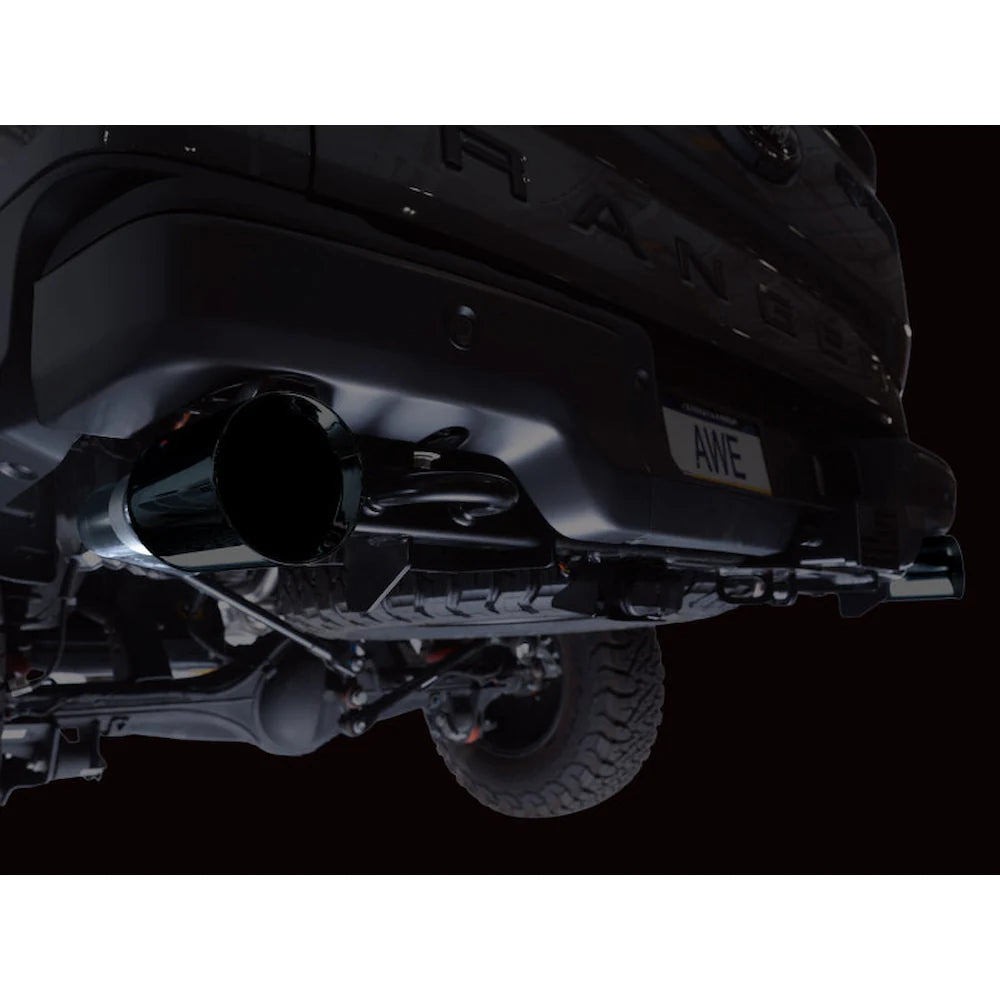

5in Double-Walled Diamond Black Tips: Slash-cut 5-inch double-walled tips in AWE's signature diamond black coating give the rear of the Raptor a bold, purposeful appearance while staying protected from corrosion and discoloration
-
OEM Tier-1 Valve Integration: The 3025-33306 retains the factory Ranger Raptor valve motor and controls exactly as designed, with no aftermarket controller required. The exhaust-mounted valve motor simulator bracket keeps the ECU from logging valve faults
-
No CEL Guarantee: AWE guarantees the 3025-33306 will not trigger a check engine light on the 2024+ Ranger Raptor when installed correctly per AWE instructions
-
Perfect Fitment Guarantee: AWE guarantees the 3025-33306 will bolt directly onto the 2024+ Ranger Raptor without modification, cutting, or fitment adjustments
-
Handcrafted in Pennsylvania, USA: Every AWE exhaust is manufactured domestically to tight tolerances with American-sourced stainless steel
-
Lifetime Warranty: AWE backs the 3025-33306 with a limited lifetime warranty against defects in materials and workmanship for the original purchaser
This Part Fits
| Year Range |
Make |
Model |
Trim |
| 2024-2026 |
Ford |
Ranger |
Raptor |
Specifications
| Detail |
Value |
| Part Number |
3025-33306 |
| UPC |
850084616617 |
| System Type |
Cat-Back (SwitchPath) |
| Engine |
3.0L V6 EcoBoost |
| Tubing Material |
T304L Stainless Steel, U.S.-sourced |
| Tubing Diameter |
3 inches |
| Wall Thickness |
.065 inches |
| Tip Size |
5 inches, double-walled |
| Tip Finish |
Diamond Black |
| Valve Type |
OEM Tier-1 (factory control retained) |
| Country of Manufacture |
USA (Pennsylvania) |
| Emissions |
50-state legal |
| Warranty |
AWE Limited Lifetime Warranty |
| Prop 65 |
No |

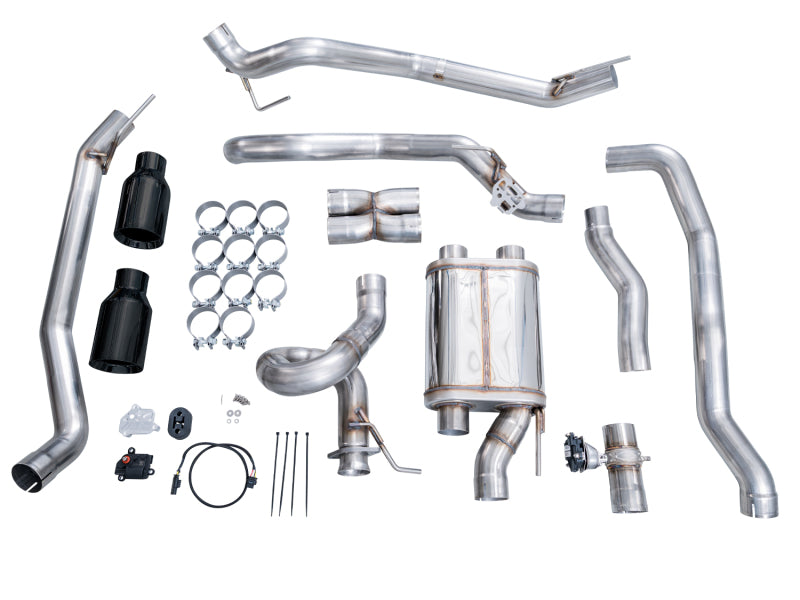

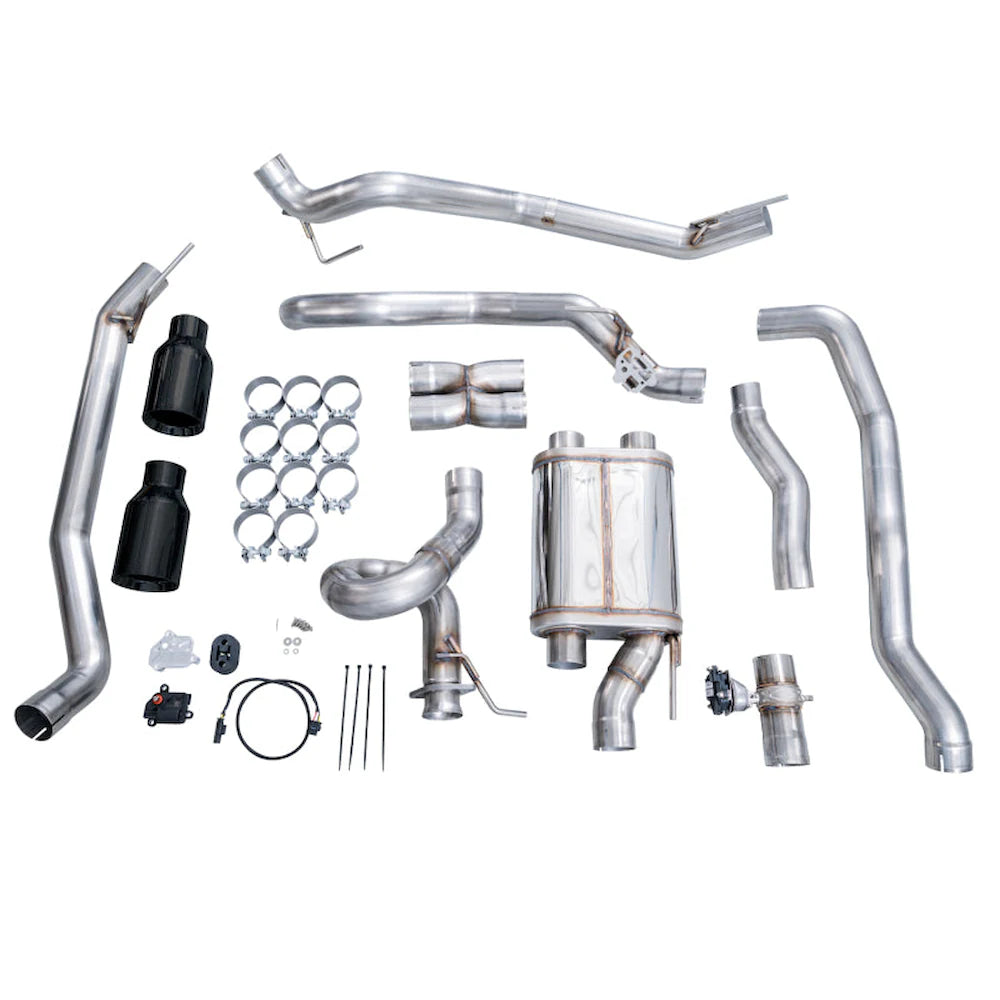

What's Included

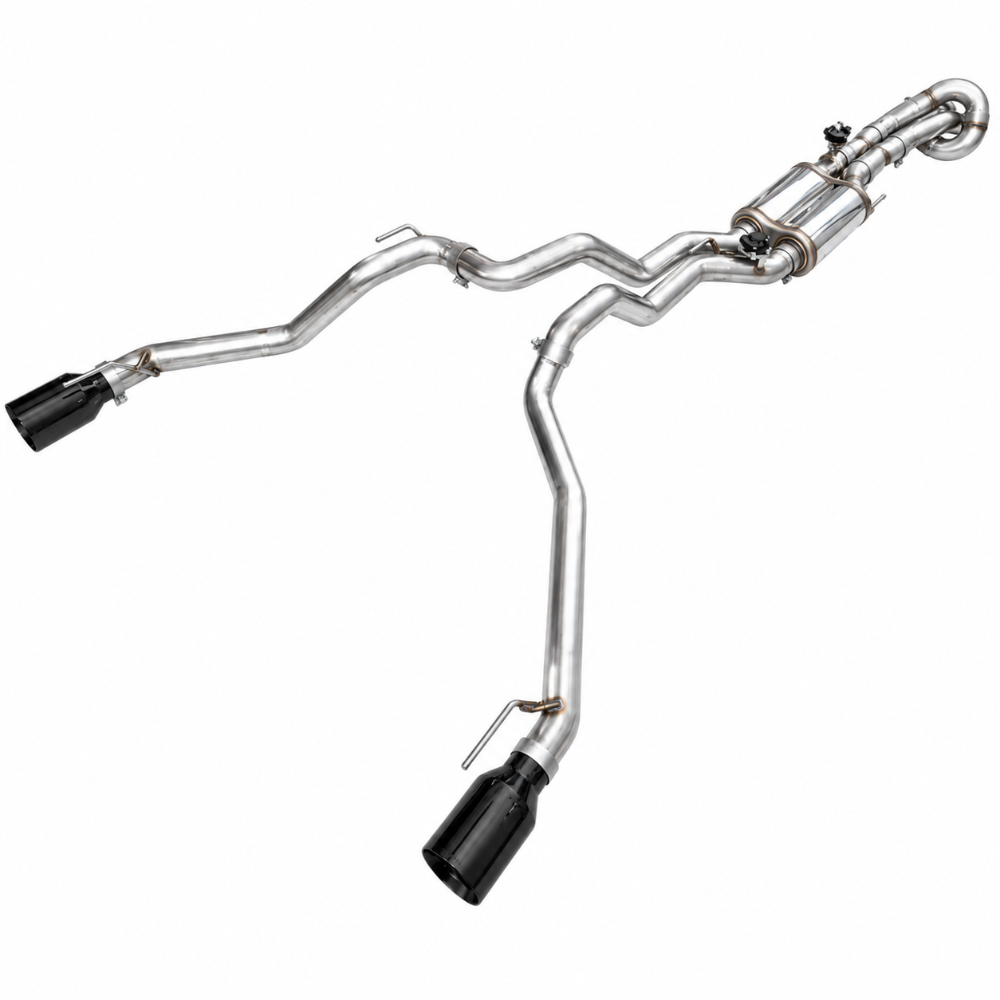

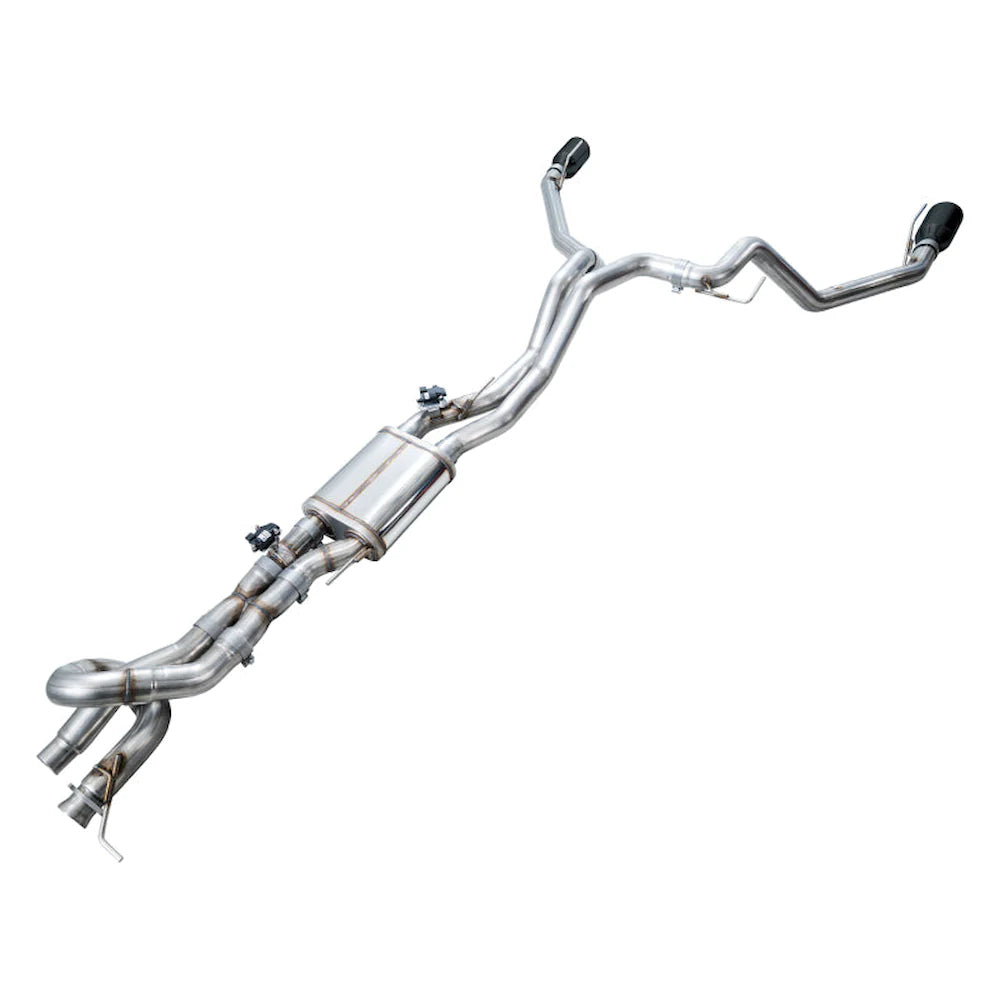

- AWE 3025-33306 SwitchPath cat-back exhaust system, complete
- 5-inch double-walled diamond black tips with locking collars
- Exhaust-mounted valve motor simulator bracket
- All mounting hardware and exhaust hangers
- AWE installation instructions
About AWE Tuning
AWE Tuning has been engineering exhaust systems and performance parts in Pennsylvania, USA since 1991. Every AWE exhaust is designed on the dyno, validated on the road and track, and handcrafted from U.S.-sourced stainless steel before leaving the factory floor. The SwitchPath system was developed specifically for factory-valved exhaust platforms to deliver a true dual-soundtrack experience without sacrificing OEM integration or reliability. AWE backs every exhaust with a perfect fitment guarantee, a no CEL guarantee, and a limited lifetime warranty.
Frequently Asked Questions
What is the AWE 3025-33306?
The AWE 3025-33306 is the SwitchPath Cat-Back Exhaust for the 2024+ Ford Ranger Raptor 3.0L EcoBoost V6, finished with 5-inch double-walled diamond black tips. It uses the factory OEM valve to deliver two driver-selectable exhaust tones, is handcrafted in Pennsylvania from T304L stainless steel, and installs without cutting or welding. It is backed by AWE's perfect fitment guarantee, no CEL guarantee, and a lifetime warranty.
What years does the AWE 3025-33306 fit?
The 3025-33306 fits the 2024 and newer Ford Ranger Raptor equipped with the 3.0L V6 EcoBoost engine. It does not fit the standard Ranger 2.3L, prior-generation Rangers, or Ranger Raptor models sold outside the USA with different engine configurations.
How does the SwitchPath valve work on the Ranger Raptor?
The AWE 3025-33306 integrates with the factory OEM tier-1 valve motor already installed on the Ranger Raptor. No external controller is needed. The factory button on the dash and factory throttle-input valve control operate the SwitchPath valve exactly as designed by Ford. AWE also includes a valve motor simulator bracket to prevent ECU valve-fault codes.
Will the AWE 3025-33306 trigger a check engine light?
No. AWE guarantees the 3025-33306 will not cause a check engine light on the 2024+ Ford Ranger Raptor when installed correctly. The included valve motor simulator bracket keeps the ECU from detecting any valve-related fault.
Is the AWE 3025-33306 50-state legal?
Yes. The AWE 3025-33306 is 50-state emissions legal and does not require a CARB exemption number for use on the 2024+ Ford Ranger Raptor in California or any other state.
How is the AWE 3025-33306 installed? Does it require cutting or welding?
No. The 3025-33306 is a direct bolt-on replacement for the factory exhaust behind the catalytic converter. Installation uses factory mounting locations and includes all hardware. No cutting, welding, or custom fabrication is required. AWE estimates installation time at approximately 60 to 90 minutes with basic hand tools and a lift or jack stands.
What tip finish options are available for this exhaust?
AWE offers the Ford Ranger Raptor 3.0L SwitchPath cat-back in two tip finishes: diamond black (part number 3025-33306) and chrome silver (part number 3025-32306). Both systems are otherwise identical in construction and performance. Only the tip finish differs.
What is the warranty on the AWE 3025-33306?
AWE covers the 3025-33306 with a limited lifetime warranty against defects in materials and workmanship for the original purchaser. Warranty claims are handled directly through AWE Tuning.
Does the AWE 3025-33306 change exhaust sound at idle?
With the SwitchPath valve closed, the 3025-33306 is subtle at idle and refined at highway speeds. With the valve open, the Ranger Raptor's 3.0L produces a significantly deeper, more aggressive exhaust note at all RPMs. The valve can be toggled at any time using the factory button or through throttle input.
Installation Instructions
- Raise and safely support the vehicle on a lift or jack stands with the engine fully cooled before beginning
- Disconnect the factory exhaust valve actuator harness and set aside. Install the AWE valve motor simulator bracket in its place to prevent ECU valve fault codes
- Loosen and remove all factory exhaust hangers behind the catalytic converter outlet flange, working from rear to front
- Remove the factory cat-back exhaust system and set aside
- Dry-fit the AWE 3025-33306 sections to confirm routing and hanger alignment before final assembly
- Attach the AWE exhaust sections starting at the front flange, working rearward. Torque the front flange bolts to the specification in the AWE instruction sheet
- Hang all AWE-supplied exhaust hangers and confirm the system is evenly supported with no contact to the underbody or fuel/brake lines
- Slide the locking collars over the tip connections and tighten to lock the 5-inch tips in the desired rotational position
- Reconnect the factory OEM valve motor harness to the AWE SwitchPath muffler valve actuator
- Lower the vehicle, start the engine, and verify valve operation using the factory dash button. Test both valve positions at idle and during a short test drive
