Baer Brakes Remaster 15/16in Bore 2-Bolt Master Cylinder Kit - Black

Complete Billet Hydraulic Upgrade in One Box

This Baer 6805203 kit pairs the black Remaster master cylinder in a 15/16 inch bore with the matching black adjustable proportioning valve and pre bent hardlines that use 3/8 inch inverted flare fittings. The valve mounts directly beneath the master cylinder, so the whole hydraulic assembly stays compact while rear brake bias becomes adjustable.

Key Features

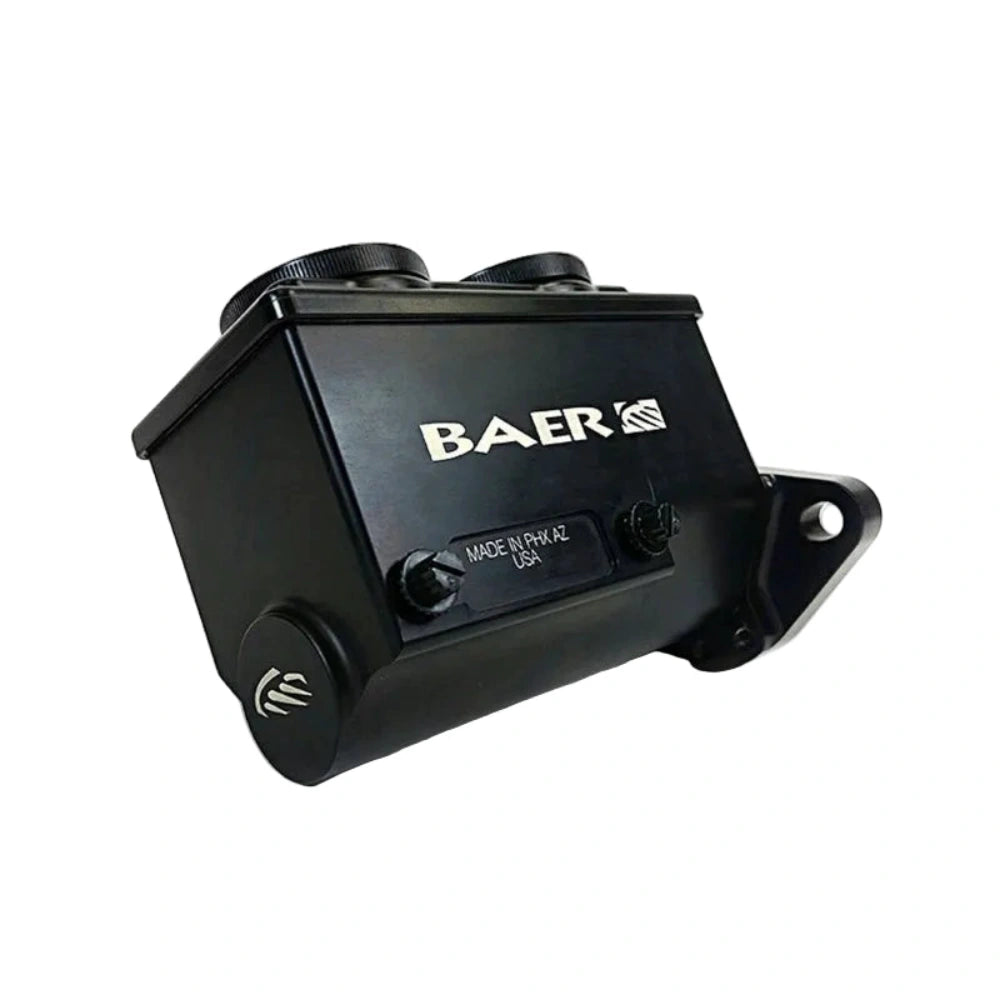

• Black Remaster master cylinder with left side ports and a two bolt mounting flange
• 15/16 inch bore master cylinder

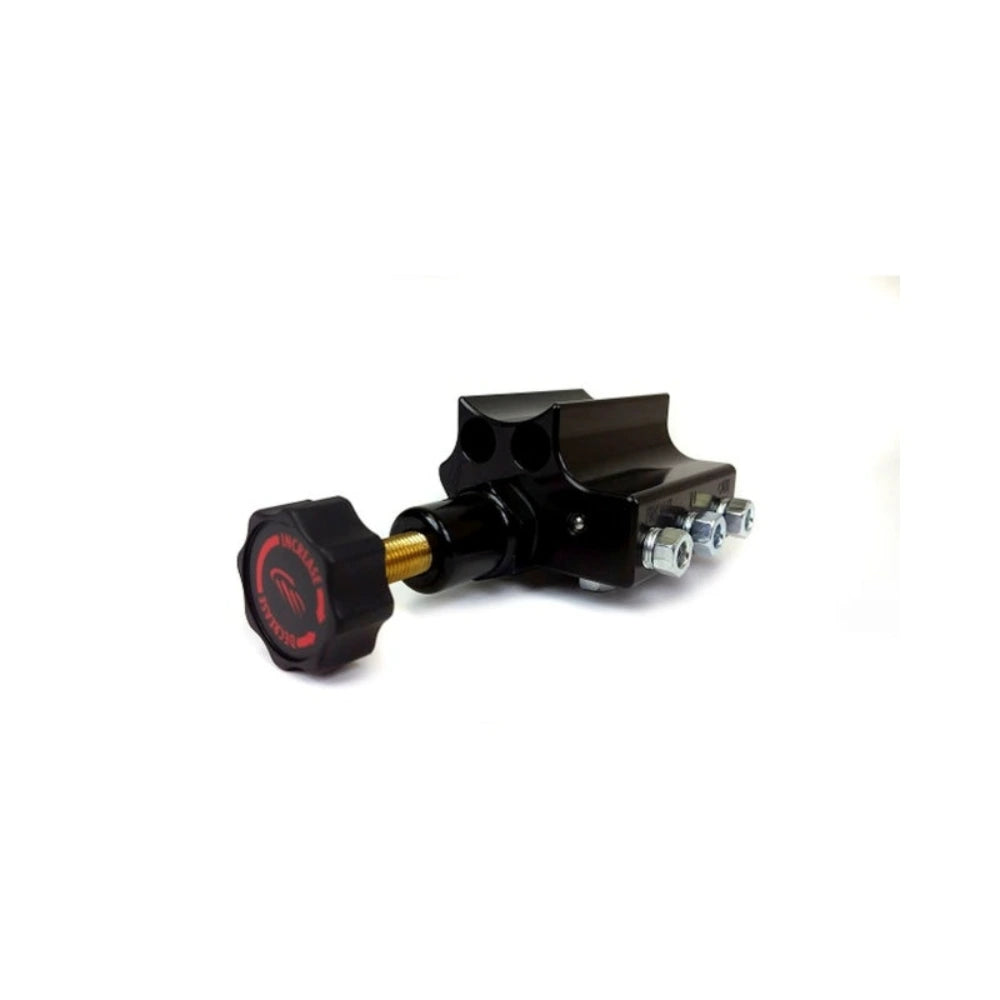

• Matching black Remaster specific adjustable proportioning valve

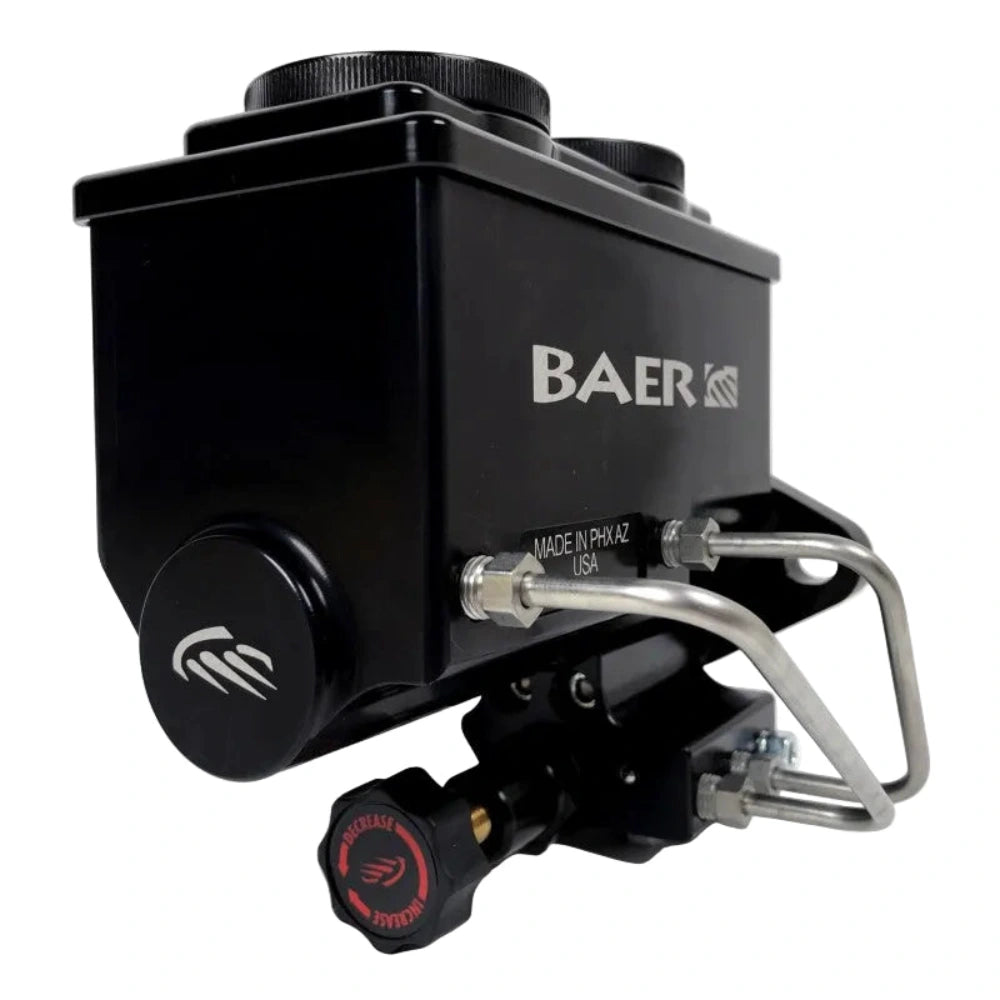

• Valve is machined to mount directly under the master cylinder for a compact assembly
• Pre bent hardlines with 3/8 inch inverted flare fittings
• One piece 6061 T6 billet aluminium master cylinder body
• Outlet ports accept inverted flare fittings with the included seats or straight banjo fittings
• Suits manual brake systems and most long and short boosters using the included bullet
• Adjustable rear bias for cars running non standard tyres, calipers or weight distribution
• Exact manufacturer part number: 6805203

Fitment

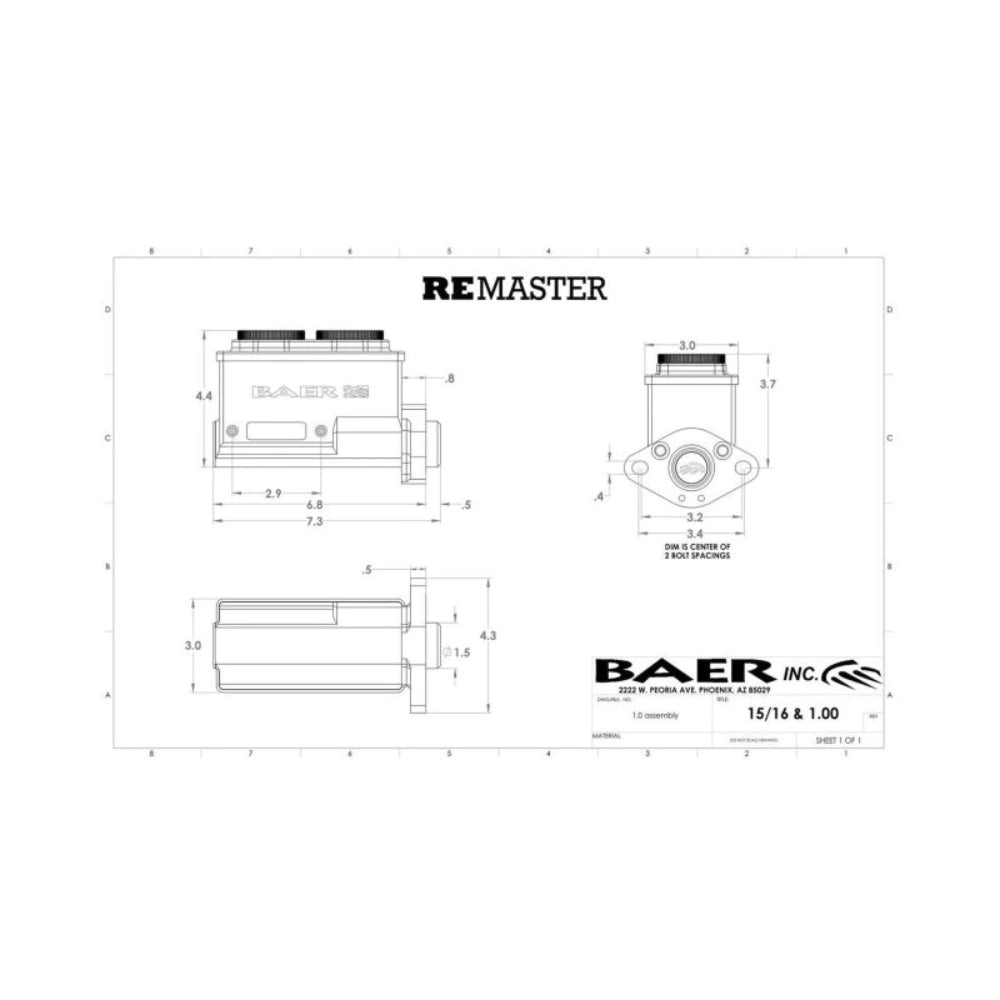

The hardlines are specific to the Remaster bore size, so keep this kit together as supplied. Confirm the flange bolt spacing and pushrod arrangement before ordering.

Specifications

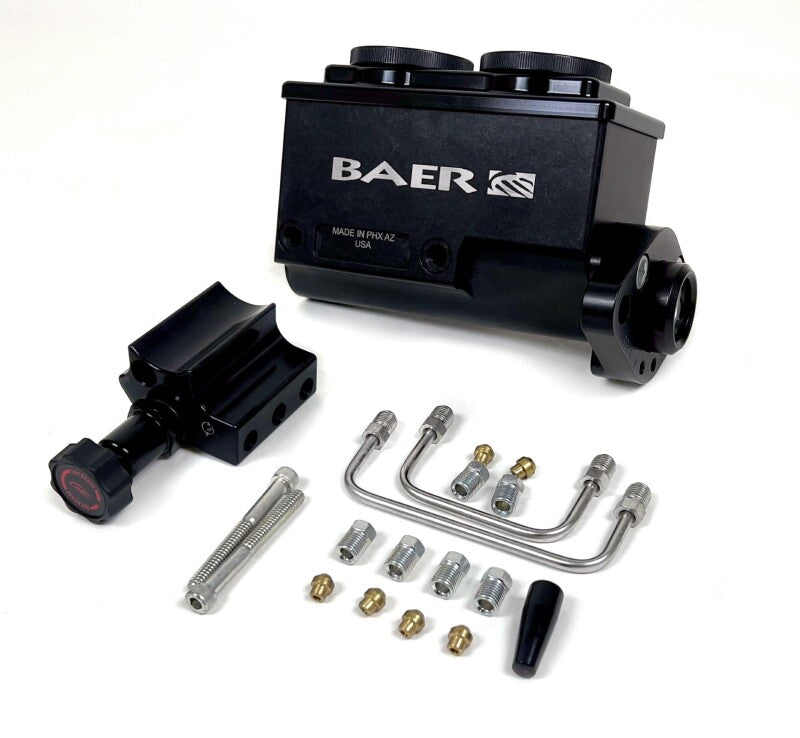

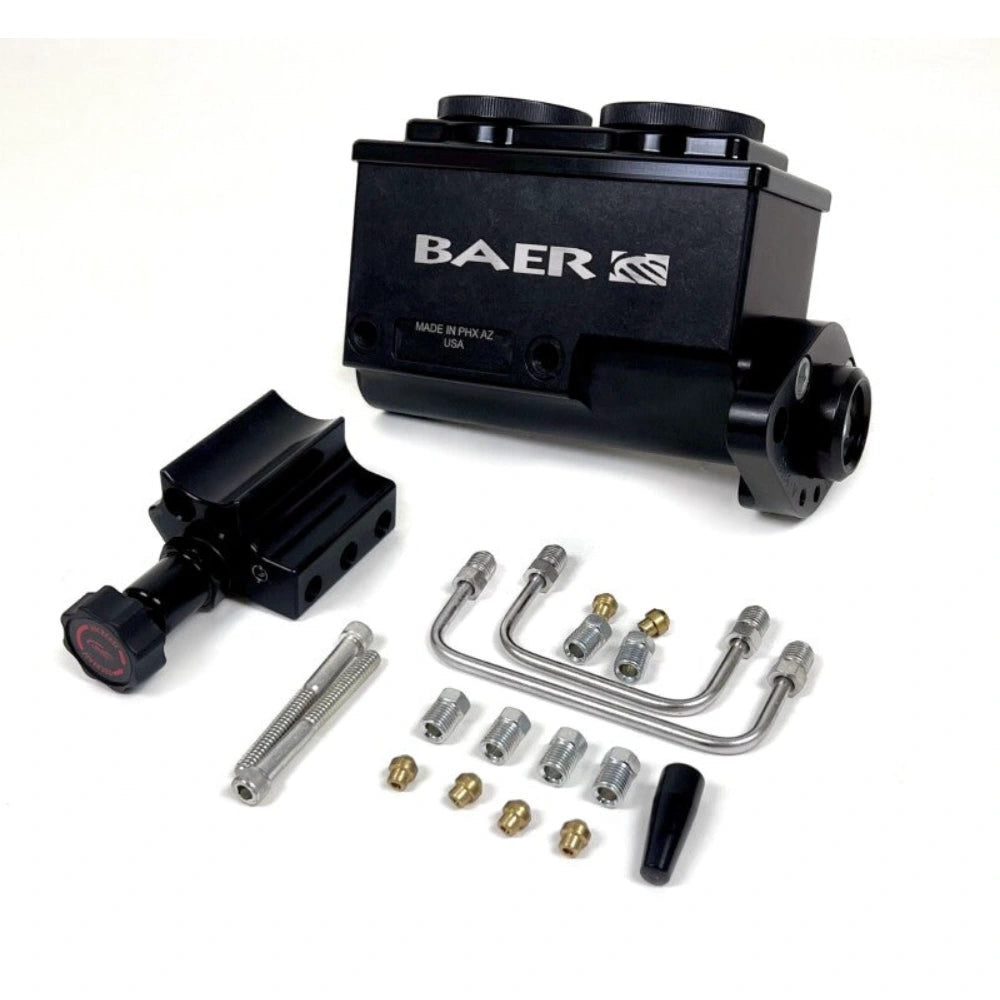

What's Included

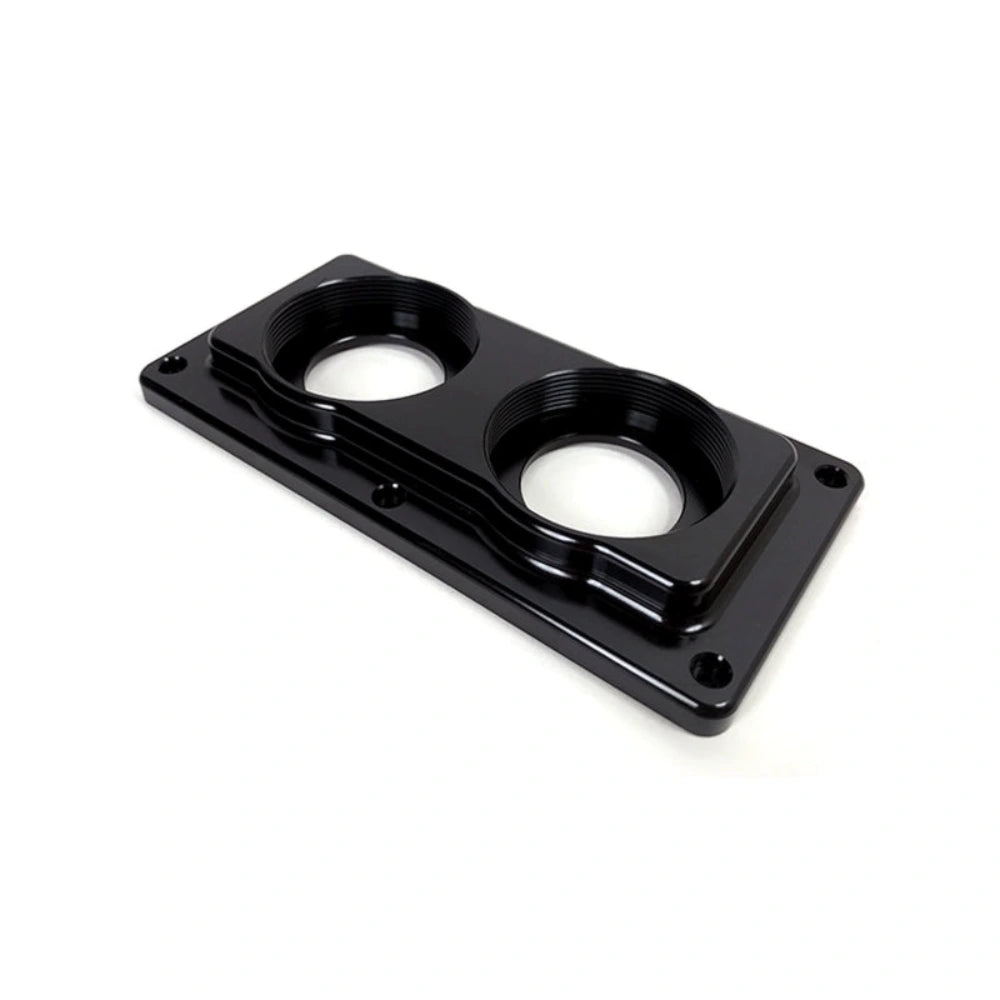

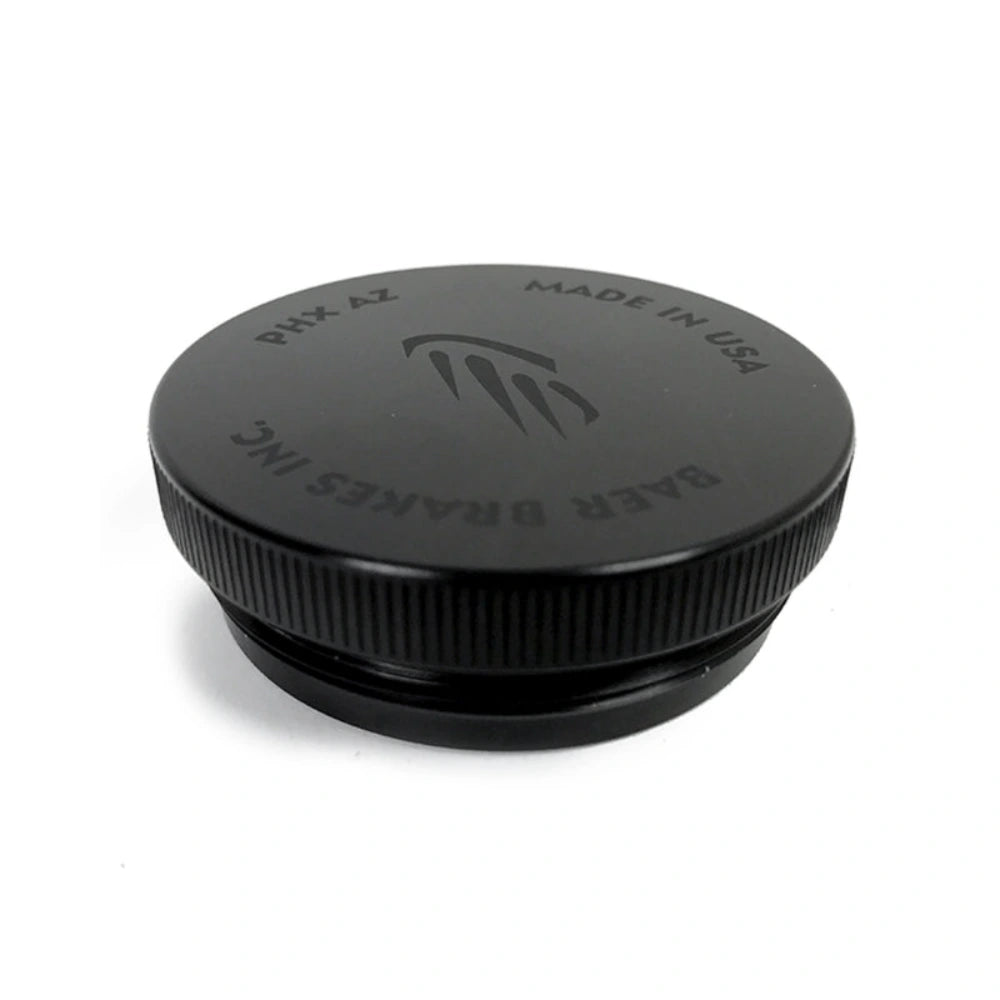

• One black Remaster master cylinder assembly with billet top and two screw on caps
• One black Remaster adjustable proportioning valve

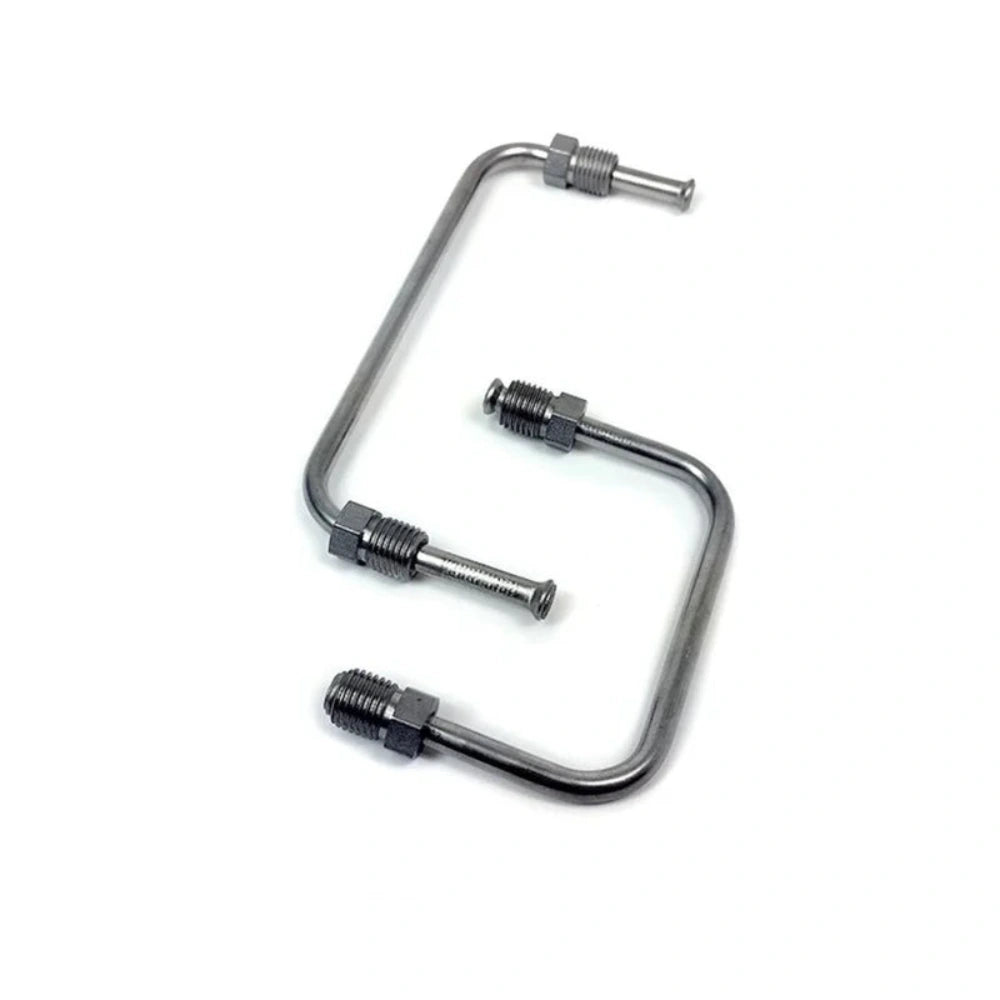

• Two pre bent inverted flare hardlines matched to the bore size
• Removable brass seats and tube nuts for the valve
• Booster pushrod bullet

About Baer Brakes

Baer Brakes designs and machines brake systems and hydraulic components in the United States, with a catalogue built around big brake conversions, rotors, master cylinders and the billet Remaster hydraulic range. The Remaster line exists to replace bulky cast master cylinders with a compact billet unit that keeps the engine bay clean while accepting either inverted flare or banjo plumbing.

FAQ

It bundles the black Remaster master cylinder with the matching black adjustable proportioning valve and pre bent hardlines that use 3/8 inch inverted flare fittings.

The master cylinder in this kit has a 15/16 inch bore. Match the bore to the caliper piston area and to whether the car runs manual brakes or a booster.

It lets rear brake pressure be dialled in so the rear tyres are not the first to lock, which matters when tyre sizes, brake hardware or vehicle weight differ from the original setup.

The Remaster specific valve is machined to mount directly beneath the master cylinder, so the assembly stays compact and the plumbing stays short.

Yes. The pre bent hardlines are matched to the Remaster bore size, so use the lines supplied with this kit rather than lines from another bore.

The supplied hardlines use 3/8 inch inverted flare fittings.

The master cylinder uses a two bolt mounting flange that suits many Ford and GM applications. Check the flange bolt spacing, pushrod arrangement and the side the lines run before ordering.

Yes. The Remaster works on manual brake systems and on most long and short boosters using the included bullet.

Yes. Bench bleed the master cylinder before fitting, then bleed the complete system in the sequence given in the factory service information.

Installation Instructions

1. Work on a cool vehicle, disconnect the battery negative terminal and protect painted surfaces from brake fluid.
2. Note the routing and thread sizes of the existing brake lines before anything is disconnected.
3. Bench bleed the new master cylinder before installation so the bore is primed.
4. Remove the original master cylinder from the booster or firewall mounting studs and cap the open lines.
5. Decide between inverted flare and banjo fittings, then fit or remove the supplied brass seats to match.
6. Mount the proportioning valve to the underside of the master cylinder using the supplied hardware and seats.
7. Mount the master cylinder and valve assembly to the two bolt flange and check pushrod engagement.
8. Fit the pre bent hardlines between the master cylinder and the valve, then run the front pass through and rear outlet lines.
9. Fill both reservoirs with fresh fluid of the specification the vehicle requires and bleed the system in the factory sequence.
10. Set the proportioning valve to a conservative starting point, then adjust rear bias in small steps during controlled low speed testing.
11. Confirm a firm pedal with no weeping fittings, then recheck the fluid level and every fitting after the first drive.
