Baer Brakes Remaster Left Port Adjustable Proportioning Valve - Black

Dial In Rear Brake Bias Under the Master Cylinder

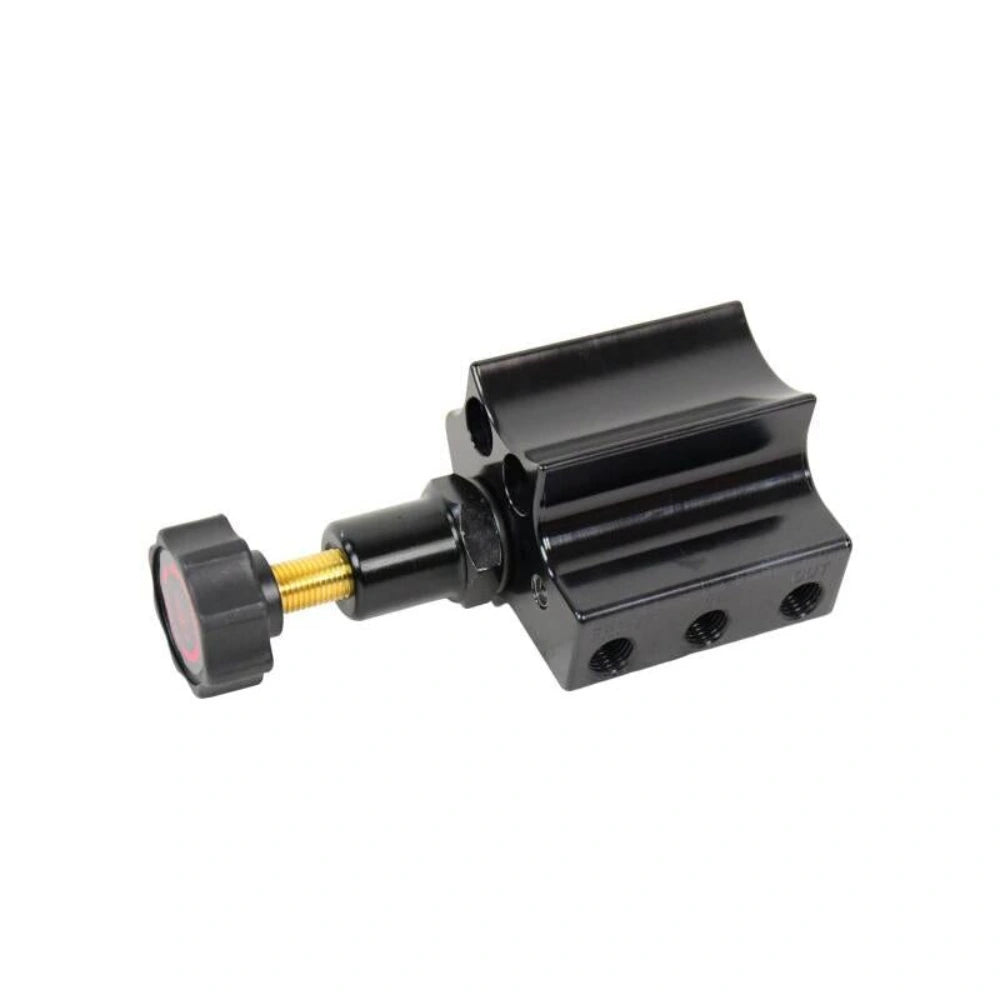

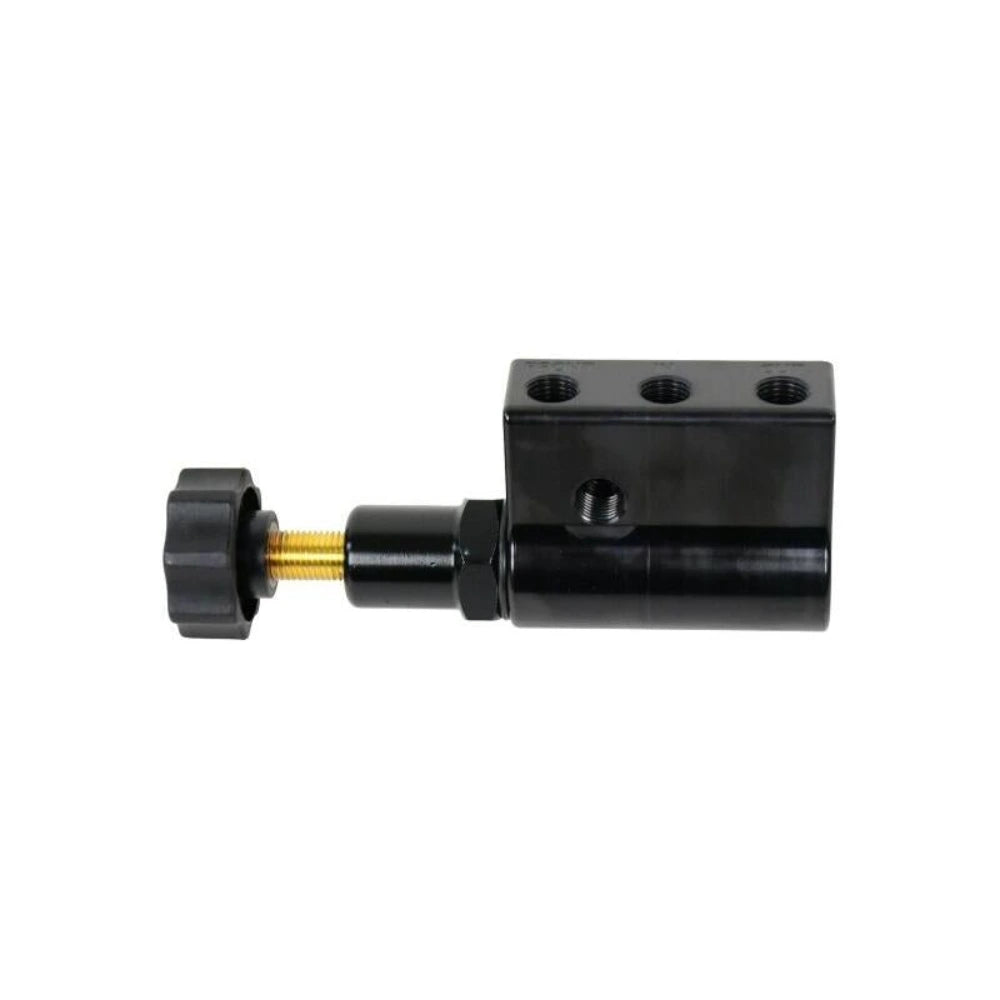

This Baer 2000057LP adjustable proportioning valve is machined to mount directly beneath a Remaster master cylinder, so rear brake pressure becomes adjustable without adding a separate bracket or a long run of line. The left port version matches a left port Remaster, and the rear circuit passes through the valve while the front circuit passes straight through to keep the plumbing short and tidy.

Key Features

• Machined to mount directly under the Remaster master cylinder for a compact assembly
• Adjustable rear brake pressure so the rear tyres are not the first to lock
• Left port configuration to match a left port Remaster

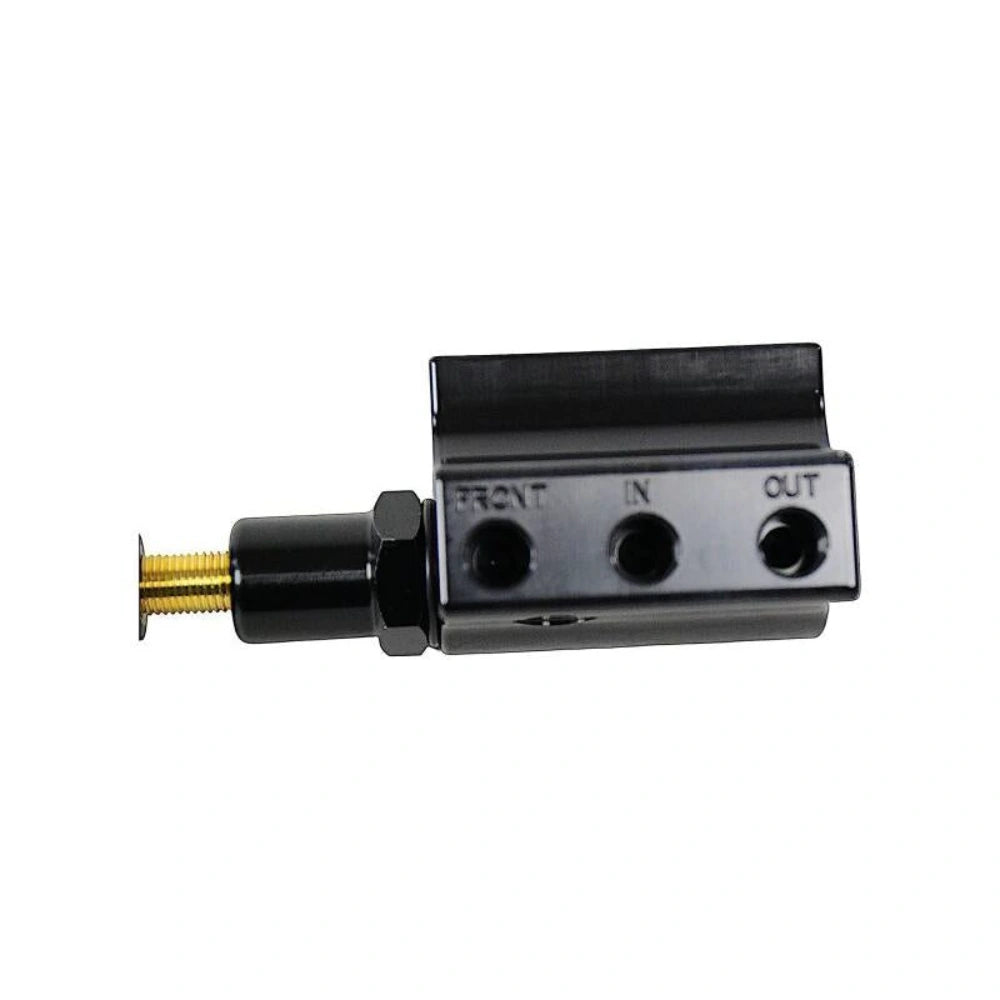

• Rear inlet and outlet ports plus a front pass through for simple plumbing
• Removable brass seats allow either inverted flare or straight banjo fittings
• Supplied with four brass seats and four 3/8 inch by 24 tube nuts
• Black finish to match a black Remaster
• Exact manufacturer part number: 2000057LP

Fitment

Match the port side to the Remaster fitted to the car. Hardlines between the master cylinder and the valve are specific to the Remaster bore size and are supplied separately or as part of a complete kit.

Specifications

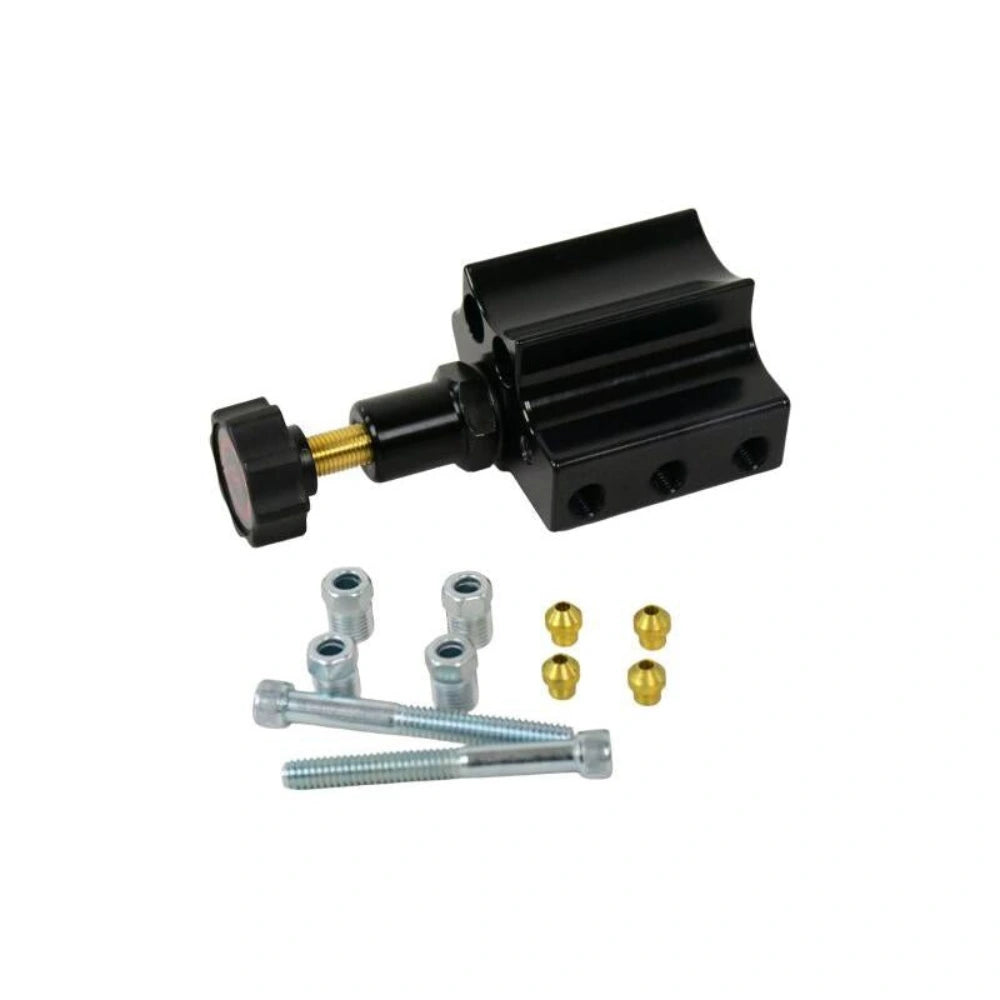

What's Included

• One Baer Remaster adjustable proportioning valve, left port, black
• Four brass seats
• Four 3/8 inch by 24 tube nuts

About Baer Brakes

Baer Brakes designs and machines brake systems and hydraulic components in the United States, with a catalogue built around big brake conversions, rotors, master cylinders and the billet Remaster hydraulic range. The Remaster line exists to replace bulky cast master cylinders with a compact billet unit that keeps the engine bay clean while accepting either inverted flare or banjo plumbing.

FAQ

It limits how much pressure reaches the rear brakes, which stops the rear tyres locking before the front when tyre sizes, brake hardware or vehicle weight differ from the original setup.

No. The valve controls the rear circuit and provides a pass through for the front circuit so the plumbing stays simple.

Match the valve to the port side of the Remaster master cylinder already fitted or being purchased. A right port version is available for right port units.

Yes. Leave the brass seats out for straight banjo fittings, or install them for inverted flare fittings.

Four 3/8 inch by 24 tube nuts are supplied with the valve.

No. The pre bent hardlines are sold separately because they are specific to the Remaster bore size, and they are also bundled in the complete Remaster kits.

Start with a conservative setting that reduces rear pressure, then increase it in small steps during controlled low speed testing until braking is balanced.

Yes. It works with manual brake systems and with boosted systems, because it acts on hydraulic pressure to the rear circuit.

It is machined specifically for the Remaster mounting pattern, so it is intended for a Remaster rather than a generic cast master cylinder.

Installation Instructions

1. Work on a cool vehicle, protect painted surfaces from brake fluid and relieve any residual line pressure.
2. Decide whether inverted flare or banjo fittings will be used and install or remove the brass seats accordingly.
3. Bolt the valve to the underside of the Remaster master cylinder using the machined mounting pattern.
4. Connect the rear inlet from the master cylinder and the rear outlet toward the rear brakes.
5. Run the front circuit through the pass through so the front brakes remain unrestricted.

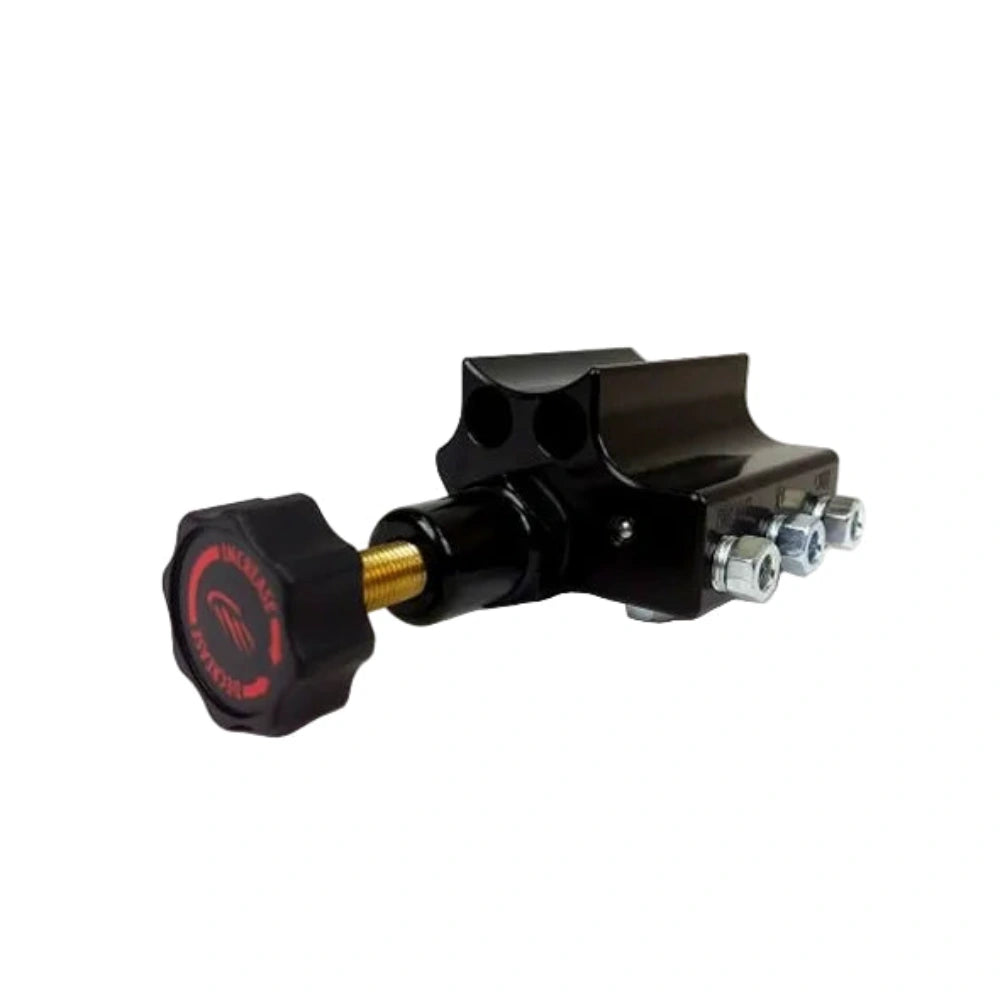

6. Fit the tube nuts and tighten every fitting only after all lines are started by hand.
7. Bleed the complete system in the sequence given in the factory service information.

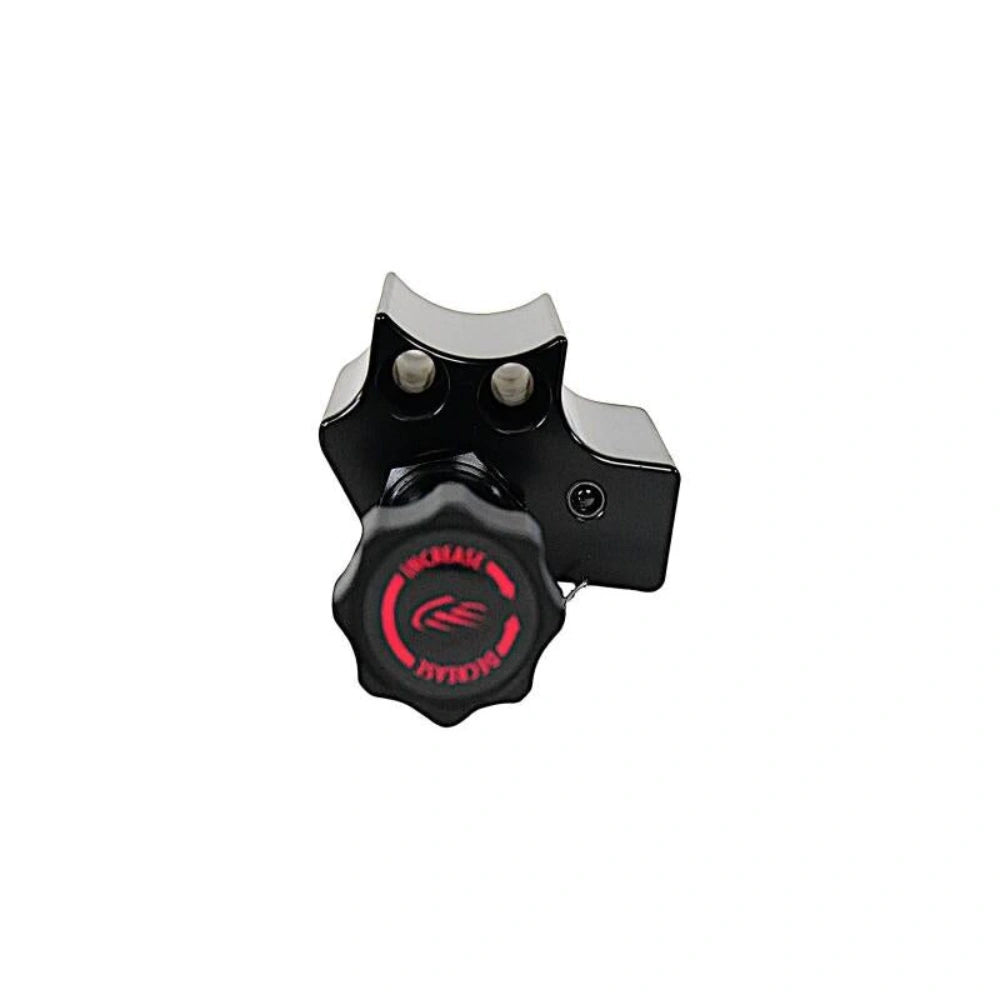

8. Set the adjuster to a conservative starting point that reduces rear pressure.
9. Test braking at low speed in a safe area and increase rear pressure in small steps until the balance is right.
10. Recheck every fitting for weeping and confirm the fluid level after the first drive.
