Baja Designs 21-25 Ford Raptor Squadron Pro 2.0 A-Pillar Kit (Driving/Combo) - Clear

Purpose-Built A-Pillar Lighting for the 2021-2025 Ford Raptor That Installs Without Drilling

The Baja Designs 440021 is a complete Squadron Pro 2.0 A-Pillar light kit engineered specifically for the 2021-2025 Ford F-150 Raptor. Each of the two included Squadron Pro 2.0 lights puts out 5,921 raw lumens at 65 watts using next-generation Cree LED optics in a Driving/Combo beam pattern, representing a 41% output increase over the previous generation Squadron Pro. The 440021 includes vehicle-specific A-pillar mounting brackets that align precisely to the Raptor's existing body structure with no drilling required, along with a toggle switch wiring harness engineered to integrate with the Raptor's factory upfitter switches. IP69K waterproofing means these lights endure full submersion, pressure washing, and sustained off-road abuse. The standard Deutsch 4-pin connector ensures a secure, vibration-resistant electrical connection that holds up through years of hard use. Everything needed for a clean, professional installation is in the box.

Key Features

• 5,921 raw lumens per light at 65W / 4.7A — 41% brighter than the previous generation Squadron Pro
• Driving/Combo beam pattern with dual 42-degree driving and 9-degree spot optics for maximum near and far trail coverage
• Vehicle-specific A-pillar mounting brackets for the 2021-2025 Ford F-150 Raptor — no drilling required
• Wiring harness designed to connect to the Raptor's factory upfitter switches for a clean OEM-style integration
• IP69K rated — waterproof, dust-tight, and pressure-wash resistant
• Standard Deutsch 4-pin connector for improved durability over push-lock style connectors
• Redesigned bracket allows greater vertical adjustability for precise beam aim
• Hard anodized and powder coated cast aluminum housing resists corrosion and impact
• Hardcoated polycarbonate clear lens resists scratching and UV degradation
• LED life expectancy rated at 49,930 hours

Vehicle Fitment

Specifications

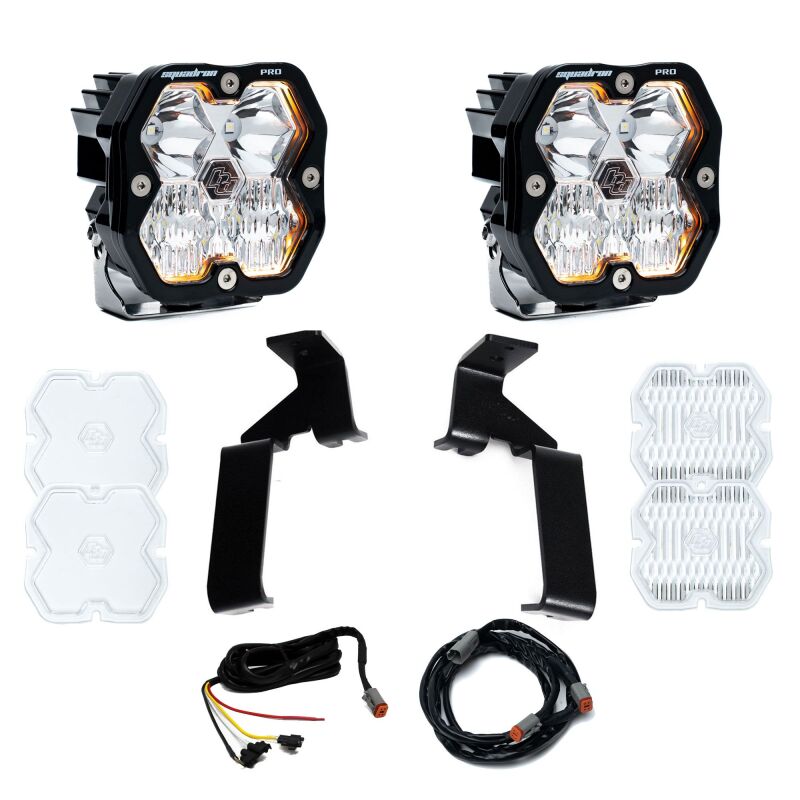

What's Included

• 2x Baja Designs Squadron Pro 2.0 LED lights (Driving/Combo, Clear)
• 2x Vehicle-specific A-pillar mounting brackets for 2021-2025 Ford Raptor
• 1x Toggle switch 4-pin wiring harness (upfitter switch compatible)
• 2x Squadron 2.0 lens kits (Clear/Driving Combo + Clear/Wide Cornering)
• All necessary mounting hardware (stainless steel)

Frequently Asked Questions

Yes. The 440021 kit includes vehicle-specific A-pillar brackets machined to align with the Raptor's existing body structure. The installation uses existing attachment points and requires no drilling, cutting, or permanent modification to the truck. The brackets are designed to hold the Squadron Pro 2.0 lights at the correct position relative to the A-pillar for the 2021-2025 Raptor body style.

Yes. The included toggle switch harness in the 440021 kit is specifically engineered to connect to the factory upfitter switches built into the 2021-2025 Ford F-150 Raptor's center console. This allows you to control the lights using the OEM switch panel rather than adding an aftermarket toggle, keeping the interior clean and factory-looking.

Each Squadron Pro 2.0 light in the 440021 kit produces 5,921 raw lumens at 65 watts. Running both lights simultaneously delivers 11,842 combined raw lumens. This is a 41% increase in light output over the previous generation Squadron Pro, while also delivering improved beam control and higher electrical efficiency through next-generation optics.

The 440021 kit uses the Driving/Combo beam pattern, which combines a 42-degree driving optic with a 9-degree spot optic in a single light. This Lighting Zone 3 setup delivers both near-field illumination for close obstacles and long-range spot projection simultaneously, making it the most versatile single-pattern option for trail driving, off-road recovery, and overland travel.

Yes. The Raptor R shares the same A-pillar geometry and upfitter switch layout as the standard Raptor, and the 440021 vehicle-specific brackets are compatible with both the Raptor and Raptor R for the 2021-2025 generation. Always confirm your truck's specific build year and body trim level before ordering.

IP69K is the highest available waterproofing and dust protection rating in the IP rating system. It means the Squadron Pro 2.0 lights are completely dust-tight and withstand high-pressure, high-temperature water jets from any direction, as well as submersion. This is the same protection standard used in heavy equipment, agricultural machinery, and military-spec lighting applications.

Yes. The Squadron Pro 2.0 lights in the 440021 kit operate across a 12-32V input range, making them compatible with both standard 12V automotive systems and 24V systems. However, the included upfitter switch harness is calibrated for the Ford Raptor's 12V system. If adapting to a non-Raptor 24V application, verify harness compatibility separately.

Yes. In addition to the standard Driving/Combo clear lenses installed on the lights, the 440021 kit includes a spare Clear/Wide Cornering lens kit for each light. This allows you to swap the beam pattern from Driving/Combo to Wide Cornering without purchasing additional accessories, giving you two beam pattern options from one kit purchase.

The Squadron Pro 2.0 LED modules in the 440021 are rated for 49,930 hours of operational life. At typical off-road and auxiliary lighting usage patterns, this represents the practical lifetime of the vehicle in most applications.

Installation Instructions

1. Disconnect the negative battery terminal before beginning any wiring work.
2. Open the 440021 kit and identify all components: 2x Squadron Pro 2.0 lights, 2x A-pillar brackets, the upfitter switch wiring harness, lens kits, and hardware bag.
3. Position the passenger-side A-pillar bracket against the Raptor's A-pillar body panel at the designated mounting location. Thread the stainless hardware finger-tight to confirm alignment before final torquing.
4. Repeat bracket fitment on the driver side.
5. Mount each Squadron Pro 2.0 light onto its respective bracket. Adjust the vertical aim angle to your preferred beam direction, then torque the pivot bolt to lock position.
6. Route the wiring harness from the engine compartment through the firewall grommet to the interior. Baja Designs provides a dedicated routing path that avoids moving components and heat sources.
7. Connect the harness leads to the appropriate upfitter switch terminals in the Raptor center console. Refer to the included Baja Designs wiring diagram for the correct switch pin assignment.
8. Connect the Deutsch 4-pin connector from each light to the corresponding harness lead. The connectors are keyed and cannot be mis-seated.
9. Connect the harness ground wire to a clean chassis ground point near the battery or firewall.
10. Reconnect the negative battery terminal. Test both lights through the upfitter switch before closing up the firewall grommet and securing the harness with the supplied zip ties.
11. With the lights on, perform final vertical and horizontal beam aim adjustment. Lock the bracket pivot bolts to their final torque spec once aim is confirmed.
