Baja Designs 18-25 Jeep JL/JT / 20-25 Gladiator Squadron 2.0 A-Pillar Sportsmen Kit (Spot) - Clear

Two Squadron 2.0 LED Pods on Purpose-Built A-Pillar Brackets for the Jeep Wrangler JL and Gladiator JT

The Baja Designs 440043 is a complete A-pillar light kit that mounts two Squadron 2.0 Sport LED pods to the factory A-pillar cowl mounting locations on the 2018 to 2025 Jeep Wrangler JL and 2020 to 2025 Jeep Gladiator JT. No drilling or modification to the Jeep is required. The brackets bolt directly to the factory mounting points on the cowl panel, positioning the lights at the base of the A-pillar for a clean, OEM-integrated look. The kit ships in the Spot beam pattern with a clear lens and includes the wiring harness for a complete plug-in installation.

Each Squadron 2.0 Sport pod in the 440043 produces 3,200 lumens at 30 watts through a 4-pin Deutsch-style connector that is weatherproof and vibration-resistant. The pods carry an IP69K waterproof rating and IK10 mechanical impact rating. The housing is powder-coated cast aluminum. The Squadron 2.0 also features an integrated 9-color selectable RGBW backlight, adjustable through the included harness. Baja Designs backs the 440043 with a Limited Lifetime Warranty and a 30-Day Satisfaction Guarantee.

440043 Key Features

• Two Squadron 2.0 Sport LED pods in Spot / Clear configuration
• 3,200 lumens per pod at 30W / 2.2A at 13.8V
• Spot beam pattern: 9-degree narrow beam for distance illumination
• Integrated 9-color selectable RGBW backlight
• 4-pin Deutsch-style connector on every pod and harness
• IP69K rated: waterproof to 9 feet and pressure-wash safe
• IK10 compliant for mechanical impact resistance
• Exceeds MIL-STD810G Mil-Spec testing
• Brackets bolt to factory JL/JT A-pillar cowl mounting locations, no drilling
• Toggle switch harness included for simple on/off control
• LED life rated at 49,930 hours
• Limited Lifetime Warranty and 30-Day Satisfaction Guarantee

Specifications

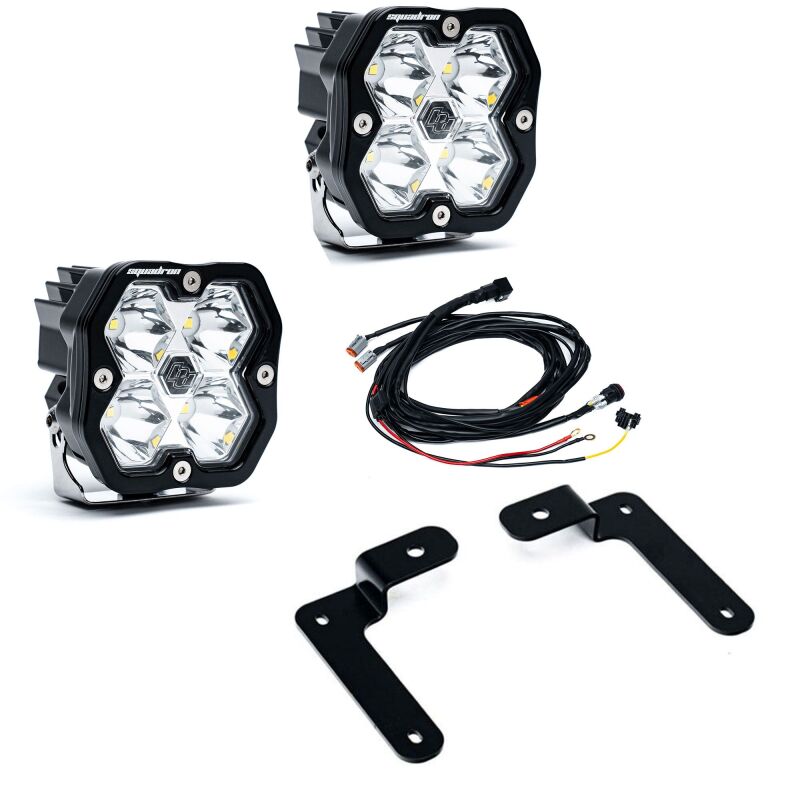

What's Included

• 2 x Baja Designs Squadron 2.0 Sport LED Pods (Spot / Clear)
• 2 x A-pillar mounting brackets for Jeep JL/JT factory cowl locations
• 1 x Toggle switch wiring harness (4-pin)
• All necessary stainless steel mounting hardware

Additional lens kits and rock guards are sold separately.

Vehicle Fitment

The 440043 fits the 2018 to 2025 Jeep Wrangler JL and 2020 to 2025 Jeep Gladiator JT using factory A-pillar cowl mounting points. Note: Mojave and 392 models have a taller cowl and may require longer M6 x 80mm flange bolts not included in the kit.

Frequently Asked Questions

Does the Baja Designs 440043 require drilling on my Jeep Wrangler JL?
No. The 440043 brackets bolt to the factory A-pillar cowl mounting locations that are already present on all Wrangler JL and Gladiator JT models. No drilling or modification to your Jeep is required for a standard JL or JT model.

What beam pattern does the Baja Designs 440043 use?
The 440043 ships with a Spot beam pattern, which is a 9-degree narrow beam optimized for distance illumination on the trail ahead. The Spot pattern sends light farther down the trail than Wide or Driving/Combo patterns and is best paired with driving or wide cornering lights for a complete lighting setup.

How many lumens does each Squadron 2.0 Sport pod produce?
Each Squadron 2.0 Sport pod in the 440043 produces 3,200 lumens at 30 watts. The two-pod kit delivers 6,400 combined lumens. The updated Squadron 2.0 optics direct more usable light forward compared to the previous generation despite a similar lumen rating.

Will the Baja Designs 440043 fit my 2025 Jeep Wrangler JL?
Yes. The 440043 is compatible with all 2018 to 2025 Jeep Wrangler JL models. Confirm you have a standard JL model rather than a Mojave or 392, which have a taller cowl and may require longer M6 x 80mm bolts not included in the kit.

What does the RGBW backlight on the Squadron 2.0 do?
The Squadron 2.0 features an integrated backlight that can be set to one of nine colors including red, green, blue, magenta, cyan, amber, yellow, pink, and white. The color is selected through the included harness and is retained when the light is powered off. The backlight adds ambient lighting around the pod when the main beam is in use.

Can I change the beam pattern on the 440043 pods?
Yes. The Squadron 2.0 uses Baja Designs' uService system, which allows the reflector and lens to be replaced or swapped to change the beam pattern. Alternative lens kits in Wide Cornering and Driving/Combo patterns are sold separately by Baja Designs. The amber and clear rock guards from Baja Designs also fit the Squadron 2.0 pods.

What is the 440043 wiring harness configuration?
The 440043 includes a 4-pin toggle switch harness. The 4-pin Deutsch-style connector is weatherproof and vibration-resistant. Connect the positive and negative wires to the battery, mount the toggle switch in a convenient cab location, and plug the harness into each pod connector for a complete installation.

What warranty does the Baja Designs 440043 carry?
Baja Designs backs the 440043 with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser, plus a 30-Day Satisfaction Guarantee. The Magnuson-Moss Warranty Act protects your right to use aftermarket lighting without voiding unrelated vehicle warranties.

Is the Squadron 2.0 in the 440043 compatible with the original Squadron S2 rock guards?
No. The Squadron 2.0 has an updated housing profile that is not compatible with original S2 or S1 accessories. Use the 668015 (Baja Amber) or 668016 (Clear) rock guards designed specifically for the Squadron 2.0 Sport and Pro pods.

Installation Instructions

Remove any trim caps or plugs covering the factory A-pillar cowl mounting bosses on each side of the Jeep windshield base. Position the 440043 mounting brackets over the factory mounting points and thread the supplied stainless bolts into the factory threaded inserts. Do not overtighten. If your Jeep is a Mojave or 392 with a taller cowl, source M6 x 80mm flange bolts before proceeding. Attach each Squadron 2.0 pod to its bracket using the supplied stainless hardware. Orient each pod toward the trail ahead and snug the pivot bolt. Route the 4-pin harness from each pod to your preferred switch location inside the cab. Connect the positive wire through the inline fuse to battery positive and run the negative to chassis ground. Connect the toggle switch in line per the included Baja Designs wiring diagram. Power on and aim each pod. Re-check all mounting bolts after the first off-road use.
