Run XL Sport LED Power on Your Ram TRX A-Pillars Without the Guesswork
The Baja Designs 447774 RAM XL Sport A-Pillar Light Kit mounts a pair of XL Sport LED pods directly to the A-pillars of the 2021-2024 Ram 1500 TRX using a dedicated bracket system engineered to eliminate vibration on even the roughest terrain. No drilling, no cutting, no improvising. The 447774 uses CopperDrive technology to run each LED at 100 percent capacity for maximum output and the IP69K waterproof rating means they handle whatever the TRX is built to go through.
Key Features
- 447774 includes a dedicated A-pillar bracket system designed specifically for the 2021-2024 Ram 1500 TRX chassis, ensuring zero vibration at speed
- XL Sport LED pods use CopperDrive technology, driving each LED at 100 percent of rated capacity for maximum lumen output
- IP69K waterproof rating exceeds standard submersion requirements, withstanding pressure washing and water submersion up to 9 feet
- MoistureBlock technology seals internal electronics from moisture intrusion even in sustained wet conditions
- 5000K daylight color temperature reduces driver fatigue and renders colors accurately compared to cool or warm alternatives
- Driving/Combo beam pattern provides both a focused spot throw and a wide flood spread from a single pod
- 30.36W per pod with 3,162 lumens output and an average rated life of 49,930 hours
- Hardcoated polycarbonate lens resists UV yellowing and scratching over years of use
- Powder-coated cast aluminum housing withstands thermal cycling, rocks, and road debris
- Stainless steel mounting hardware included; no drilling or permanent modification to the TRX is required
- Exceeds MIL-STD-810G mil-spec durability testing and IK10 mechanical impact resistance certification
- Built-in overvoltage protection guards the LEDs against electrical spikes from the TRX's electrical system
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2021-2024 | Ram | 1500 | TRX |
Specifications
| Detail | Value |
|---|---|
| MPN | 447774 |
| Brand | Baja Designs |
| Kit Name | RAM XL Sport A-Pillar Light Kit |
| Fitment | 2021-2024 Ram 1500 TRX |
| LED Technology | CopperDrive |
| Beam Pattern | Driving/Combo |
| Wattage (per pod) | 30.36W |
| Lumens (per pod) | 3,162 |
| Color Temperature | 5000K Daylight |
| LED Rated Life | 49,930 hours average |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Powder Coated Cast Aluminum |
| Waterproof Rating | IP69K (Submersible to 9 ft, Pressure Washable) |
| Impact Rating | IK10 Compliant |
| Durability Standard | Exceeds MIL-STD-810G |
| Amperage (per pod) | 2.2A |
| Wiring Harness Included | No |
| Mounting Hardware | Stainless Steel (included) |
| Unit Weight | 2.45 lbs per pod; 13.5 lbs total kit |
| Box Dimensions | 10.6 x 10.2 x 12.0 in. |
| UPC | N/A |

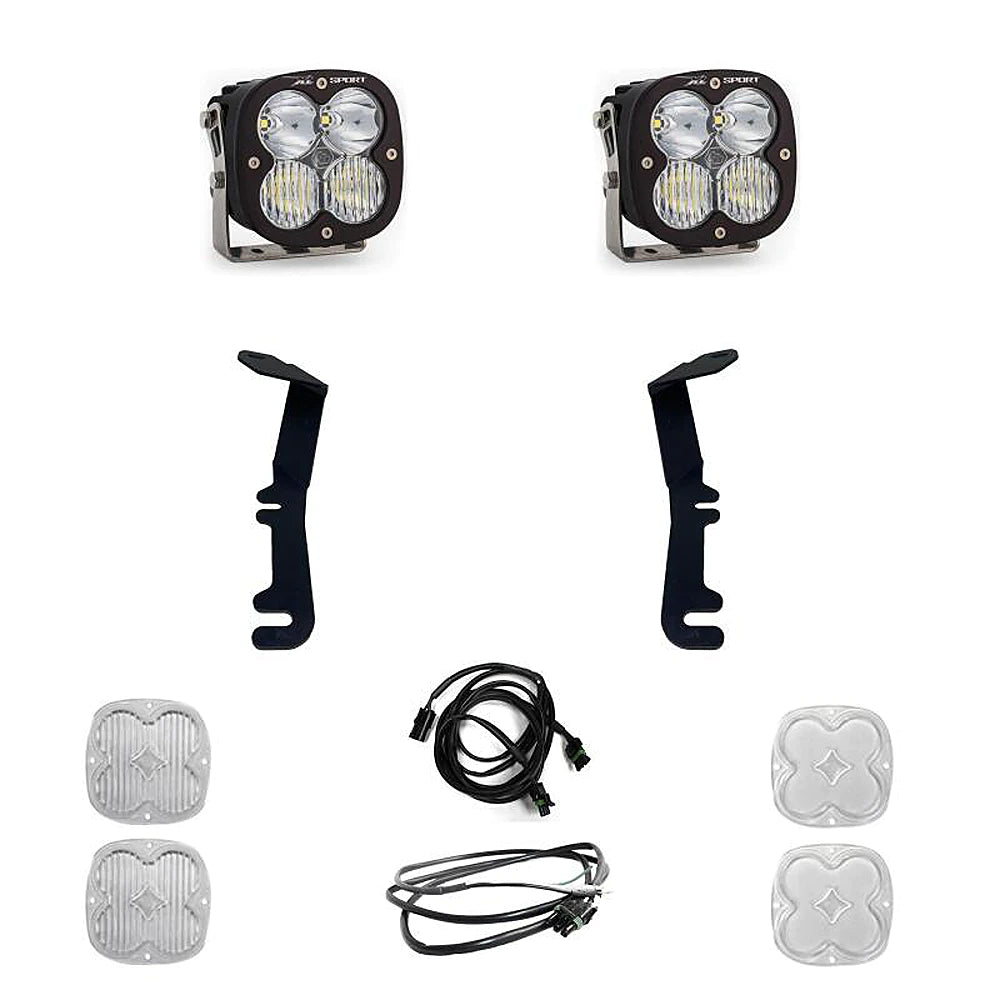

What's Included
- 2x Baja Designs XL Sport LED light pods (Driving/Combo, Clear)
- 2x Ram 1500 TRX A-pillar mounting brackets (447774 specific)
- Stainless steel mounting hardware
- Installation instruction sheet (Baja Designs 447774)
About Baja Designs
Baja Designs was founded by off-road racers and engineers who needed lights that could actually survive the Baja 1000. Every product in their lineup is validated through motorsport competition before reaching consumers. The CopperDrive LED system and MoistureBlock sealing are proprietary Baja Designs technologies developed over decades of racing in the most hostile conditions on earth. The 447774 brings that race-proven engineering directly to the Ram 1500 TRX in a bolt-on package built for the truck's factory A-pillar mounting locations.
FAQ
Does the Baja Designs 447774 require drilling or cutting on the Ram TRX?No. The 447774 uses dedicated A-pillar mounting brackets engineered specifically for the 2021-2024 Ram 1500 TRX. Installation is direct bolt-on to factory locations with the included stainless steel hardware. No drilling, cutting, or permanent modification is required.
What years of Ram TRX does the 447774 fit?The Baja Designs 447774 fits the 2021, 2022, 2023, and 2024 Ram 1500 TRX. It is not compatible with the Ram 1500 Rebel or other Ram 1500 trims, which use different A-pillar geometry requiring different bracket part numbers.
Does the Baja Designs 447774 include a wiring harness?No. The 447774 kit includes the XL Sport LED pods and A-pillar brackets, but does not include a wiring harness. A separate Baja Designs wiring harness is required to connect the pods to your TRX's electrical system and switch. Refer to Baja Designs' product page to identify the correct harness for your installation preference.
What is the beam pattern on the 447774 XL Sport pods?The XL Sport pods in the 447774 kit use a Driving/Combo beam pattern, which combines a focused spot throw for long-distance illumination with a wide flood spread for close peripheral coverage. This dual-pattern output makes the 447774 useful both on high-speed desert runs and slower technical terrain.
How bright are the XL Sport pods included in the 447774?Each XL Sport pod in the 447774 kit produces 3,162 lumens at 30.36 watts using the 5000K daylight color temperature. The CopperDrive system drives each LED at 100 percent of its rated capacity, ensuring no derating or dimming under operating conditions.
Is the Baja Designs 447774 waterproof?Yes. The XL Sport pods included in the 447774 carry an IP69K waterproof rating, which is the highest available rating for waterproofing. This means they are sealed against high-pressure, high-temperature water jets and are submersible to 9 feet. The MoistureBlock system provides additional internal sealing against moisture intrusion over long-term use.
How long do the Baja Designs XL Sport LED pods in the 447774 last?The XL Sport LEDs carry an average rated life of 49,930 hours. At typical use rates, the pods should outlast the vehicle in most cases without requiring replacement.
Can the 447774 XL Sport pods be upgraded to a different beam pattern later?The XL Sport LED pods in the 447774 are fixed in their Driving/Combo configuration. If you need a different beam pattern, such as Scene or Spot, you would need to purchase pods in the desired configuration separately. The 447774 A-pillar bracket hardware is compatible with other XL Sport and XL Pro configurations, so the mounts are reusable if you swap pods.
What certifications does the Baja Designs 447774 carry?The 447774 XL Sport pods exceed MIL-STD-810G military specification durability testing, carry IK10 mechanical impact resistance certification, and are IP69K rated for waterproofing. These certifications are independently verified, not self-declared.
What switch or controller is needed to operate the 447774 on a Ram TRX?The 447774 light pods connect to a Baja Designs-compatible wiring harness which then connects to a switch or factory switch bank. Baja Designs offers OEM-integrated switch solutions for the Ram TRX that connect to the factory electrical system. Check Baja Designs' vehicle-specific harness options to identify the correct pairing for your 447774 installation.
Installation Instructions
- Disconnect the negative battery terminal on the Ram 1500 TRX before beginning any electrical work.
- Locate the A-pillar mounting points on both driver and passenger sides. These are the factory hard points that the 447774 brackets are designed for.
- Position the driver-side 447774 A-pillar bracket against the A-pillar at the designated mounting locations. Thread the included stainless steel hardware in finger-tight.
- Align the XL Sport pod to the bracket, orient the beam pattern as desired, and thread the pod mounting hardware finger-tight.
- Repeat for the passenger side.
- With both brackets and pods positioned, torque all mounting hardware to the specification listed in the Baja Designs 447774 installation sheet.
- Route your wiring harness leads from each pod along the A-pillar and through the firewall or door jamb to the switch location. Secure harness leads at regular intervals with zip ties.
- Connect the harness to the switch or OEM switch bank per the harness instructions. Reconnect the battery terminal.
- Power on and aim each pod. Aiming should be done at a wall or garage door 25 feet away, with beams adjusted so the center of the driving beam is level with or slightly below the horizon.
- Verify waterproof connections at all junctions and confirm no harness slack contacts moving components.
