Baja Designs 2021+ Ford Raptor OnX6 Behind Grill Kit -10in. Amber D/C

Dual 10-Inch Baja Amber OnX6 Light Bars Purpose-Built for the 2021 and Newer Ford F-150 Raptor Grille Opening

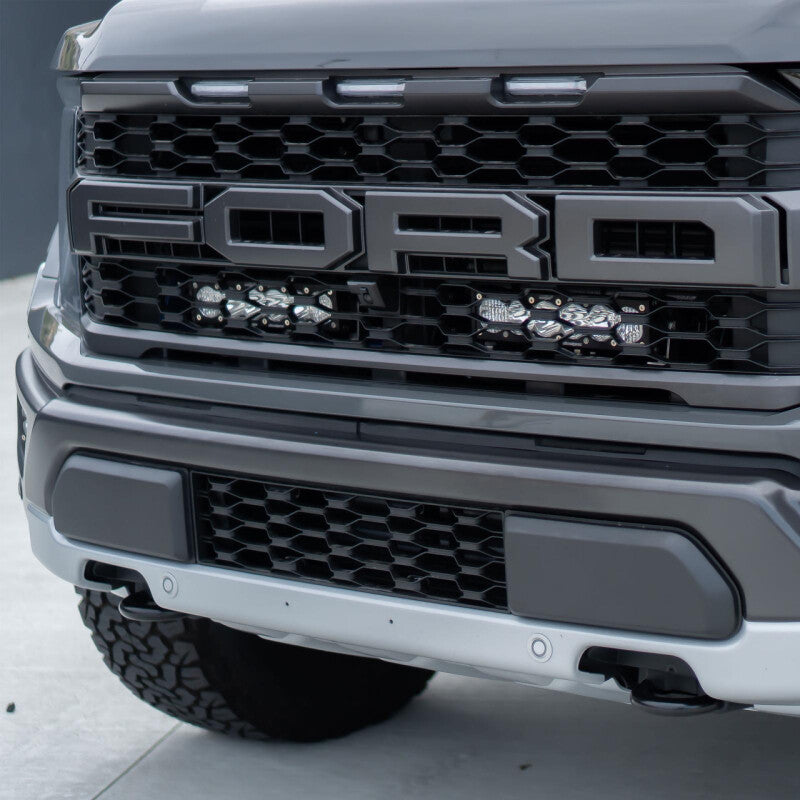

The Baja Designs 448064 is a complete behind-grille lighting kit for the 2021 to 2025 Ford F-150 Raptor. The kit includes two 10-inch OnX6 LED light bars in Baja Amber with a Driving/Combo beam pattern, purpose-built mounting brackets that attach to the factory grille shutter mounting points, a splitter wiring harness, and an up-fitter harness that connects to the Raptor factory auxiliary switches without cutting any wires. The entire kit is designed to integrate cleanly behind the grille for a factory appearance with significant off-road lighting output.

Each OnX6 10-inch bar in the 448064 produces 10,817 raw lumens on high and 9,230 on low, drawing 106.26 watts at 7.7 amps. The Driving/Combo beam pattern combines a 9-degree spot lens with a 42-degree wide lens in a single bar, delivering usable light close and far simultaneously. The Baja Amber lens color improves contrast in dusty, foggy, and smoky conditions compared to clear output. The bars are built with aircraft-grade aluminum housing, mil-spec hard anodize, billet machined aluminum bezels, and stainless steel hardware throughout. IP69K waterproof and IK10 impact rated. Baja Designs backs the 448064 with a Limited Lifetime Warranty and a 30-Day Satisfaction Guarantee.

448064 Key Features

• Two 10-inch OnX6 LED light bars in Baja Amber / Driving Combo configuration
• 10,817 lumens per bar on high, 9,230 on low
• 106.26W / 7.7A per bar at 13.8V
• Driving/Combo beam: 9-degree spot plus 42-degree wide lens in one bar
• Brackets mount to factory grille shutter points on the 2021 to 2025 F-150 Raptor
• Up-fitter harness connects directly to factory Raptor auxiliary switches
• Aircraft-grade aluminum housing with Mil-Spec hard anodize
• Billet machined aluminum bezels and stainless steel hardware
• IP69K waterproof to 9 feet and pressure-wash safe
• IK10 compliant for mechanical impact resistance
• Exceeds MIL-STD810G Mil-Spec testing
• LED life rated at 49,930 hours
• 5000K daylight color temperature on high and low beams
• Limited Lifetime Warranty and 30-Day Satisfaction Guarantee

Specifications

What's Included

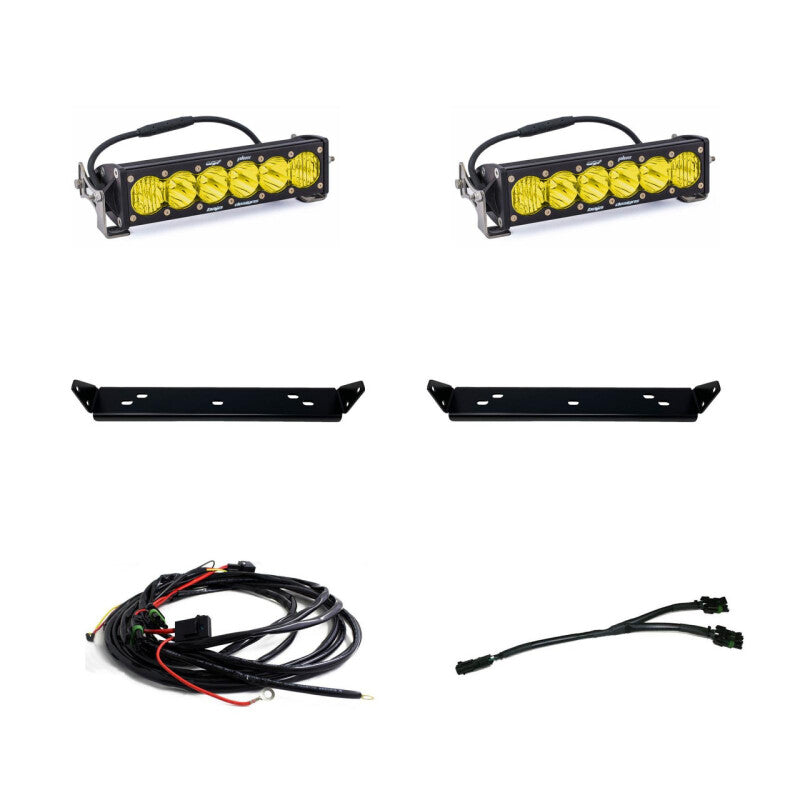

• 2 x Baja Designs 10-inch OnX6 LED Light Bars (Baja Amber / Driving Combo)
• 2 x Behind-grille mounting brackets for 2021 to 2025 Ford F-150 Raptor
• 1 x Splitter wiring harness
• 1 x Up-fitter wiring harness (connects to factory Raptor auxiliary switches)
• All necessary mounting hardware (stainless steel)

Note: This kit will not work with adaptive cruise control relocation kits.

Vehicle Fitment

Frequently Asked Questions

Does the Baja Designs 448064 fit the 2024 and 2025 Ford F-150 Raptor?
Yes. The 448064 is compatible with 2021 through 2025 Ford F-150 Raptor models. The brackets attach to the factory grille shutter mounting points that are consistent across the Gen 3 Raptor production run. Note: this kit does not work with adaptive cruise control relocation kits.

What is the difference between the 448064 amber kit and the clear version?
The 448064 uses Baja Amber lenses on both OnX6 bars. The amber lens converts the output to a warmer amber wavelength that cuts through dust, fog, and rain with less reflected glare. The clear version (448063) produces the same lumen output in white 5000K daylight. Both kits use identical brackets, hardware, and harness components.

How does the 448064 harness connect to the Ford Raptor?
The included up-fitter harness is designed to plug into the factory Raptor auxiliary switch wiring located behind the battery. No permanent wiring modification is needed. The factory auxiliary switches provide switched power with built-in fusing. Baja Designs recommends using upfitter switch 1, 2, or 3 and avoiding switch 4 and the purple wire, which are limited to 10 amps.

What beam pattern does the 448064 produce?
The 448064 uses the Driving/Combo pattern, which combines a 9-degree spot lens for long-distance illumination with a 42-degree wide lens for near-field coverage in a single light bar. This provides a smooth blend of light at various distances without needing two separate beam patterns.

How bright is the Baja Designs 448064 kit total?
The two bars in the 448064 produce a combined 21,634 raw lumens on high. Each 10-inch OnX6 bar produces 10,817 lumens on high at 106.26 watts. This makes the 448064 one of the highest-output behind-grille kits available for the Gen 3 Raptor.

Is the 448064 waterproof?
Yes. Each OnX6 bar carries an IP69K rating, which means it is waterproof to 9 feet of submersion and is pressure-wash safe. The bars also meet IK10 mechanical impact resistance standards and exceed MIL-STD810G Mil-Spec testing for vibration and temperature extremes.

What warranty does the Baja Designs 448064 carry?
Baja Designs backs the 448064 with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser, plus a 30-Day Satisfaction Guarantee. The Magnuson-Moss Warranty Act protects your right to use aftermarket lighting without voiding unrelated vehicle warranties.

Will the 448064 work if my Raptor has the adaptive cruise control relocation kit?
No. Baja Designs notes that this kit will not work with adaptive cruise control relocation kits. If your Raptor has a ACC relocation kit installed, check with Baja Designs for compatible alternatives before purchasing.

How long does it take to install the Baja Designs 448064 on a Ford Raptor?
With basic hand tools, most experienced installers complete the 448064 in two to three hours. The grille must be removed, the lower shutter slats on both sides are removed, brackets are mounted to the factory shutter mounting points, bars are positioned and aligned, and the harness is run to the up-fitter switch wiring behind the battery. The grille is reinstalled last.

Installation Instructions

Remove the factory grille by removing the two lower 10mm mounting bolts and the upper mounting fasteners and pulling outward to release the clips. Remove the lower four shutter slats on both sides using a flat screwdriver to pry the retaining clips. Mount the supplied Baja Designs brackets to the factory shutter mounting points using the included stainless hardware. Position and snug the OnX6 bars onto the universal brackets using the supplied bar mounts. Reinstall the grille and route the bar harness connectors through the opening. Connect the bar connectors to the splitter harness. Run the up-fitter harness from the splitter to the auxiliary switch wiring behind the battery, connecting positive to your chosen factory switch wire and negative to chassis ground using the supplied ring terminal. Do not use upfitter switch 4, the brown wire, or the purple wire as they are rated at only 10 amps. Test the lights before finalizing harness routing. Aim the bars toward the intended lighting zone and re-tighten all pivot hardware.
