5,921 Lumens of Baja Amber Output in a Round Pod That Mounts Anywhere

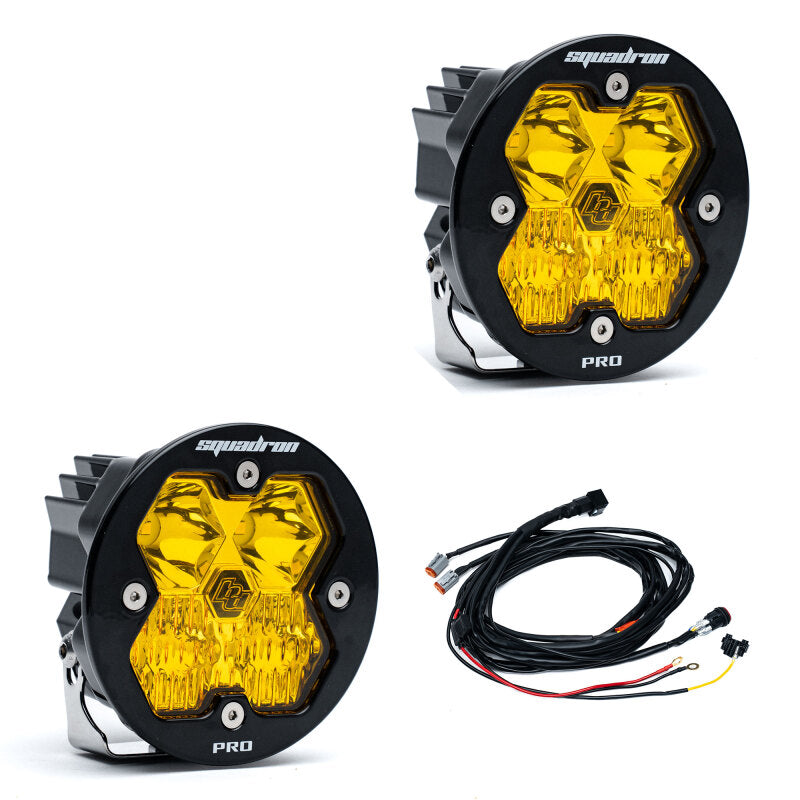

The Baja Designs 597813 Squadron-R 2.0 Pro is a pair of high-output round LED auxiliary lights in Baja Amber with a Driving/Combo beam pattern, sold as a complete two-light set. The Squadron-R 2.0 Pro is the round-bezel variant of the Squadron 2.0 Pro platform, featuring a 4-inch diameter housing designed for vehicles with round auxiliary light cutouts in aftermarket bumpers, grille guards, and light bars, as well as universal ditch, pillar, and hood mounts. Each light delivers 5,921 raw lumens at 65 watts, representing a 21% improvement over the previous generation Squadron-R Pro. The Baja Amber lens is optimized for dusty, foggy, and low-contrast desert environments where white light washes out terrain detail. IP69K-rated waterproofing, a Deutsch 4-pin connector, and a hard anodized aluminum housing make the 597813 pair built for the harshest conditions any truck, Jeep, or overland rig will encounter.
Key Features
- 5,921 raw lumens per light at 65W / 4.7A 21% brighter than the previous generation Squadron-R Pro
- Baja Amber lens optimized for dust, fog, and low-visibility desert conditions where white light loses contrast
- 4-inch round housing fits standard round aftermarket bumper cutouts, grille guards, and universal brackets
- Driving/Combo beam pattern combines 42-degree driving and 9-degree spot optics for near and far trail coverage
- IP69K rated completely dust-tight, waterproof, and pressure-wash resistant
- Deutsch 4-pin connector for secure, vibration-resistant electrical connection
- Hard anodized and powder coated cast aluminum housing 4 inches diameter, 2.84 inches deep
- 9-color RGB backlight option adds ambient styling capability
- 3-position built-in switch on wiring harness controls main beam and backlight independently
- 12-32V operational range compatible with all 12V and 24V vehicle electrical systems
- LED life expectancy: 49,930 hours
Specifications
| Detail | Value |
|---|---|
| MPN | 597813 |
| Brand | Baja Designs |
| Product Type | Round LED Auxiliary Light Pod Pair |
| Light Series | Squadron-R 2.0 Pro |
| Lens Color | Baja Amber |
| Beam Pattern | Driving/Combo |
| Lumens (per light) | 5,921 raw lumens |
| Wattage (per light) | 65W |
| Amperage (per light) | 4.7A @ 13.8V |
| Operational Voltage | 12-32V DC |
| IP Rating | IP69K (Waterproof and Pressure Washable) |
| Housing Diameter | 4.00 inches (from front) |
| Housing Depth | 2.84 inches |
| Connector Type | Deutsch 4-pin |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Backlight Colors | 9 selectable RGB colors |
| LED Life Expectancy | 49,930 hours |
| Quantity | 2 lights (pair) |
| Application | Universal (fits any vehicle with compatible mounting) |
| UPC | N/A |
What's Included
- 2x Baja Designs 597813 Squadron-R 2.0 Pro LED lights (Baja Amber, Driving/Combo)
- 1x Wiring harness with 3-position switch (controls main beam and RGB backlight)
- Mounting hardware
- Note: Vehicle-specific mounting brackets are NOT included. Universal bracket solutions are sold separately by Baja Designs and third-party manufacturers for specific applications.
Frequently Asked Questions
What vehicles does the Baja Designs 597813 Squadron-R 2.0 Pro fit?
The 597813 is a universal product. It does not include vehicle-specific mounting brackets and is intended for installation on any truck, Jeep, SUV, or off-road vehicle using aftermarket bumpers with 4-inch round cutouts, grille guards, light bars, hood brackets, ditch light mounts, or other universal mounting solutions. Vehicle-specific bracket kits for common platforms are available separately from Baja Designs and aftermarket suppliers.
What is the difference between the Baja Amber lens and a standard clear lens?
Baja Amber is Baja Designs' proprietary amber-tinted lens optimized for off-road conditions. Amber wavelength light (approximately 580-620nm) penetrates dust, fog, and sand suspension more effectively than white light because it reduces backscatter. In desert and dusty trail environments, amber lights reveal terrain texture and obstacles more clearly than white auxiliary lights at equivalent lumen output. Clear lenses are better for open high-speed road use; amber is better for technical terrain with airborne particles.
How bright is the Baja Designs 597813 Squadron-R 2.0 Pro?
Each light in the 597813 pair produces 5,921 raw lumens at 65 watts, for a combined output of 11,842 lumens from both lights. This is a 21% increase over the previous generation Squadron-R Pro. The Driving/Combo beam pattern achieves an ELS score of 128 degrees horizontal spread at 7.4 effective lux, covering 403 feet of effective illumination range.
What does the 3-position switch on the harness control?
The wiring harness included with the 597813 features a 3-position switch that independently controls the main LED beam and the 9-color RGB backlight ring. Position 1 is off, position 2 activates the backlight only, and position 3 activates both the main beam and the backlight. The backlight color is cycled through 9 options using a separate input on the harness.
Will the 597813 Squadron-R 2.0 Pro fit standard round bumper cutouts?
Yes. The 597813 housing measures 4 inches in diameter from the front face. Most aftermarket off-road bumpers with round auxiliary light ports use a 3.5 to 4-inch round cutout, which accommodates the Squadron-R 2.0 Pro. Confirm your specific bumper cutout diameter before ordering. The 4-inch bezel sits flush against bumper surfaces with standard round holes.
Is the Baja Designs 597813 compatible with 24V electrical systems?
Yes. The Squadron-R 2.0 Pro operates across 12-32V DC, making it compatible with both standard 12V automotive systems and 24V heavy-duty truck and commercial vehicle systems. Always verify that the wiring harness relay and switch are rated for your specific voltage before installation.
Can I use the 597813 Squadron-R 2.0 Pro as ditch lights on a pickup truck?
Yes. The 597813 is commonly used as ditch lights (also called hood lights or A-pillar lights) on trucks and SUVs using universal ditch light brackets. Many aftermarket bracket manufacturers make universal ditch-mount solutions for common truck platforms that accept 4-inch round lights. Baja Designs also offers vehicle-specific ditch and A-pillar kits that use the same Squadron-R 2.0 Pro lights as the core component.
How is the Squadron-R 2.0 Pro different from the original Squadron-R Pro?
The Squadron-R 2.0 Pro is a complete redesign of the original Squadron-R Pro with a new housing, next-generation optics, and a 21% increase in lumen output (5,921 vs. the previous generation). The 2.0 also adds the 9-color RGB backlight feature, upgrades to the Deutsch 4-pin connector standard, and improves beam control with ELS-measured optics. The housing dimensions are largely compatible with existing 4-inch round mount positions from the previous generation.
What warranty does Baja Designs offer on the 597813?
Baja Designs covers the 597813 Squadron-R 2.0 Pro with their standard warranty against defects in materials and workmanship. Baja Designs is known for strong customer support and has a direct warranty claim process through their website. Keep your purchase documentation for warranty claims.
Installation Instructions
- Disconnect the negative battery terminal before beginning any wiring work.
- Select and install your vehicle-specific or universal mounting brackets at the desired location (ditch, A-pillar, bumper, grille guard, or light bar). Brackets are not included with the 597813.
- Mount each Squadron-R 2.0 Pro light pod to the bracket. Adjust aim direction finger-tight before final torquing.
- Route the wiring harness from the light mounting location through the firewall or along the frame to a switched power source. Avoid routing near heat sources, sharp edges, or moving parts.
- Connect the positive harness lead to a fused switched 12V source (use the relay output, not direct battery). Connect the ground lead to a clean chassis ground point.
- Connect the Deutsch 4-pin connector from each light to the corresponding harness leads. Connectors are keyed — confirm correct orientation before pressing together.
- Mount the 3-position switch in a convenient interior location. The switch controls main beam (position 3) and backlight only (position 2).
- To select backlight color, cycle through the 9 RGB options using the backlight input on the harness while the backlight is active.
- Reconnect the negative battery terminal. Test the main beam and backlight through the switch before completing final harness routing.
- With lights on, perform final beam aim adjustment. For ditch or A-pillar positions, aim lights toward the front-left and front-right zones to maximize off-road trail visibility. Lock bracket pivot bolts to final torque once aim is confirmed.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
