SKU: 523003DC | UPC: 819314020143

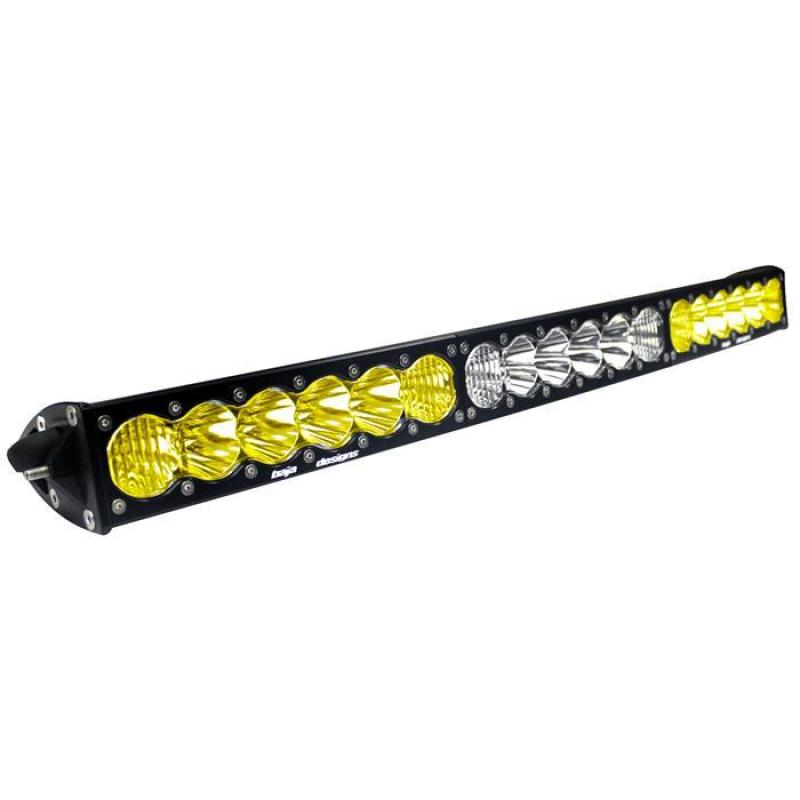

Baja Designs OnX6 Arc Series Dual Control Pattern 30in LED Light Bar - Amber/White
The Baja Designs OnX6 Arc Dual Control 30in LED Light Bar delivers versatile illumination through independent control of inner clear white and outer Baja amber zones. This universal product mounts on trucks SUVs Jeeps UTVs and ATVs with included stainless steel brackets for off-road adventures. It produces 28938 lumens on high beam with 5000K daylight matching natural vision to cut driver fatigue.
Key Features
- Dual Control Zones: Separate power cords and switches manage inner white Driving/Combo beam and outer amber sections for fog/dust penetration or long-range visibility
- High Lumens Output: 28938 lumens high beam 23150 low beam from 18 Cree LEDs driven at 100 percent via CopperDrive technology
- ClearView Optics: Precise light projection focuses all output forward where needed with Driving/Combo pattern
- MoistureBlock Waterproofing: IP69K rated submersible up to 9ft pressure washable exceeds MIL-STD810G and IK10 impact standards
- Durable Construction: Aircraft grade aluminum housing with Mil-Spec hard anodize black bezel machined aluminum and hardcoated polycarbonate lenses
Product Notes
- Light does not include wiring harness order 640119 Hi/Lo harness for dual control operation
- uService design allows replaceable lenses and optics covers guards and lens kits available as add-ons
- Average rated life 49930 hours overvoltage protection built-in weight 11.45 lbs dimensions 30in L x 2.69in H x 4.29in D
Installation Notes
- Professional installation recommended.
- Mounting brackets and stainless steel hardware included for universal roof bumper or grille setups
- Hi/Lo dongle wiring connector provided harness and splitter 640119 613608 or 613609 sold separately
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2024 | Jeep | Wrangler | JK JL Unlimited Rubicon Sport |
| 2015-2024 | Ford | F-150 | XLT Lariat King Ranch Platinum Raptor |
| 2004-2024 | Toyota | Tacoma | SR5 TRD Off-Road TRD Pro |
| 2019-2024 | Ford | Ranger | XL XLT Lariat FX4 |
| 2014-2024 | Chevrolet | Silverado 1500 | WT LT Z71 Trail Boss |
| 2010-2024 | GMC | Sierra 1500 | SLE SLT AT4 Denali |
| 2009-2024 | Toyota | Tundra | SR5 Limited TRD Pro |
| Universal | All | Trucks SUVs UTVs | All with compatible mounts |
Why Choose Baja Designs?
- LED lighting leader since 1992 focused on off-road durability and performance
- Exceeds military standards with Mil-Spec anodizing and extreme testing
- Complete protection via Limited Lifetime Warranty and 30-Day Satisfaction Guarantee
Frequently Asked Questions
-
Q: Is wiring harness included with the 523003DC light bar?
A: No wiring harness included. Use Baja Designs 640119 Hi/Lo harness or 640115 On/Off harness with 613608 splitter for dual control. Compatible with 640094 Upfitter 640163 Hi Beam. -
Q: What materials are used in construction?
A: Aircraft grade aluminum housing with Mil-Spec hard anodize black finish. Billet machined aluminum bezel. Hardcoated polycarbonate lenses. Stainless steel mounting hardware. -
Q: What warranty coverage applies?
A: Limited Lifetime Warranty covers defects in materials and workmanship. Plus 30-Day Satisfaction Guarantee for full money-back return.
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective carton with foam inserts
- Weight: 11.45 lbs
